HL7 V2.4 Chapter 13

13 .
Clinical Laboratory Automation


Co-Chair/Editor:

Charles D. Hawker, PhD
ARUP Laboratories

Co-Chair/Editor

Andrzej J. Knafel, PhD
Roche Diagnostics

Editor

John (Jack) F. Boje
LAB-InterLink

Editor:

Hendrik Keesom
Johnson and Johnson

Editor

Brad Kowalski
Marshfield Laboratories

13.1 CHAPTER 13 CONTENTS

13.2 BACKGROUND AND INTRODUCTION

13.2.1 Background

Clinical laboratory automation involves the integration or interfacing of automated or robotic transport systems, analytical instruments, and pre- or post-analytical process equipment such as automated centrifuges and aliquoters, decappers, recappers, sorters, and specimen storage and retrieval systems. In addition to the electrical and mechanical interfaces of these various components, the computers that control these devices or instruments must also be interfaced to each other and/or the Laboratory Information System (LIS).
The types of information communicated between these systems include process control and status information for each device or analyzer, each specimen, specimen container, and container carrier, information and detailed data related to patients, orders, and results, and information related to specimen flow algorithms and automated decision making. This wide array of communicated information is essential for a Laboratory Automation System (LAS) to control the various processes and to ensure that each specimen or aliquot has the correct tests performed in the proper sequence.
As of 1999 there are already more than 200 clinical laboratories in the world with "total laboratory automation" systems and hundreds more with a lesser level of automation - generally workcells or modular automation systems. The development of prospective standards for these aspects of clinical laboratory automation will facilitate the inter-operability of the systems being developed by the various players in lab automation - the vendors of analytical instruments, LIS systems, automation systems and components and their laboratory customers.
In the early 1990's an ad hoc task force, Clinical Testing Automation Standards Steering Committee (CTASSC), began to meet at the annual meetings of the International Conference on Automation and Robotics (ICAR) and the American Association for Clinical Chemistry (AACC). In 1996, CTASSC approached NCCLS,[1] a globally-recognized, consensus standards organization that has developed more than 125 clinical laboratory standards and related products since it was founded in 1968, about taking on a project for clinical laboratory automation. NCCLS agreed to sponsor this project which was separately funded via a direct solicitation of the vendors in lab automation, instruments, LIS systems, and automation customers. It was organized as a "fast track" project to develop prospective standards to guide future developments in laboratory automation. With the oversight of an Area Committee on Automation, five separate subcommittees have worked since 1997 to develop a series of prospective standards for:
§ Specimen containers and carriers
§ Bar codes for specimen container identification
§ Communications
§ System operational requirements and characteristics
§ Electromechanical interfaces
Approved level standards for all five of these areas are expected to be published by NCCLS in calendar year 2000.

13.2.2 Introduction

This chapter specifies HL7 triggers, messages, and segments required for implementation of clinical laboratory automation communication interfaces. It was developed jointly by the HL7 Laboratory Automation Special Interest Group and the NCCLS Subcommittee on Communications with Automated Systems. This chapter, by agreement between HL7 and NCCLS, is also published in its entirety as part of the NCCLS Approved Level standard:
* AUTO3, "Laboratory Automation: Communications with Automated Clinical Laboratory Systems, Instruments, Devices, and Information Systems, © NCCLS" [2]
This document contains other chapters to enable a vendor to successfully implement all of the elements essential to meet the standard.
The other related NCCLS clinical laboratory automation standards are:
* AUTO1: "Laboratory Automation: Specimen Container / Specimen Carrier", © NCCLS.
* AUTO2: "Laboratory Automation: Bar Codes for Specimen Container Identification", © NCCLS.
* AUTO4: "Laboratory Automation: Systems Operational Requirements, Characteristics, and Information Elements", © NCCLS.
* AUTO5: "Laboratory Automation: Electromechanical Interfaces", © NCCLS.
The reader is referred to any or all of these NCCLS standards, particularly AUTO3 and AUTO4, for detailed information on the communications requirements in clinical laboratory automation applications.
The control model proposed in this standard is an extension of the model described in LECIS:
* ASTM E1989-98. Laboratory Equipment Control Interface Specification (LECIS). American Society for Testing and Materials; 1998

13.2.3 Glossary

The terminology found in ANSI X3.182-1990[3] shall be used where applicable. Other computer-related technical terms used in this document can be found in ASTM Terminology E 1013[4], IEEE 100[5], IEEE 610[6], and ANSI X3.172[7]

13.2.3.1 Accession Identifier (also accession number):

A numeric (or alphanumeric) identifier assigned by the LIS for a test order. Depending on the particular LIS a patient's test orders for a single encounter may use one or more accession identifiers and each accession identifier may encompass one or more tests and one or more specimens and/or specimen containers. However, accession identifiers are unique within each patient encounter. The Accession identifier may not be equal to the Placer or Filler Order Numbers, because of uniqueness requirement.

13.2.3.2 Additive:

As used here, refers to a substance generally a chemical that has been added to a specimen collection tube or container to prevent degradation of one or more constituents of the specimen.

13.2.3.3 Aliquot:

1) In Quantitative Analysis, a sample comprising a known fraction or measured portion of the whole; 2) In NCCLS LAB AUTOMATION Standard documents, a portion of a specimen placed in a separate container to facilitate concurrent testing or to hold in reserve for future use.
Notes: a) The portion of the specimen is typically removed from the original specimen after initial processing, such as centrifugation, to obtain serum or plasma samples, and is considered to be chemically identical to all other subdivisions of an original sample of serum, plasma, urine, CSF, etc.;
b) It may be necessary to identify the aliquot as an individual specimen distinct from the original specimen in a collection container labeled with a unique identifier that may be linked to or associated with the primary collection container.

13.2.3.4 Analyzer:

An instrument and/or specimen processing and handling device that performs measurements on patient specimens of quantitative, clinically relevant analytes.
Note: A portion of a patient's specimen is consumed in the analytic process.

13.2.3.5 Automated:

A characterization applied when all analytical processes, including sample and reagent uptake, sample/reagent interaction, chemical/biological analysis, result calculation, and result readout are mechanized.

13.2.3.6 Automated instrument:

A laboratory instrument that may or may not be connected to a laboratory information system (LIS), hospital information system (HIS), and/or laboratory automation system (LAS), which performs measurements on a patient's sample;
Note: These instruments may have specific hardware and/or software modifications that allow interface to a laboratory automation system.

13.2.3.7 Automation system:

An automation system refers to a variety of possible systems that can include some of the following types: automated instruments, laboratory information systems (LIS), laboratory automation systems (LAS), hospital information systems (HIS), and front-end processing devices.

13.2.3.8 Bar code:

An array of parallel rectangular bars and spaces that creates a symbology representing a number or alphanumeric identifier.

13.2.3.9 Bar length:

The length of the bars in the bar code.

13.2.3.10 Barrier:

See Separator

13.2.3.11 Barrier Delta:

Identifies the distance from the Point of Reference to the separator material (barrier) within the container. This distance may be provided by the LAS to the instrument and/or specimen processing/handling device to facilitate the insertion of a sampling probe into the specimen without touching the separator. See the Point of reference definition or in NCCLS standard AUTO5 Laboratory Automation: Electromechanical Interfaces.

13.2.3.12 Bottom of cap:

The farthest point from the top of the container/test tube that the cap reaches.
Note: This point may be inside the tube.

13.2.3.13 Bottom of container//Bottom of tube:

The portion of the container/test tube farthest from the cap (see Point of reference).

13.2.3.14 Bottom of tube:

See Bottom of container.

13.2.3.15 Carrier:

See Specimen carrier.

13.2.3.16 Character:

1) The smallest abstract element of a writing system or script.
Note: A character refers to an abstract idea rather than to a specific shape.
2) A code element.

13.2.3.17 Clinical laboratory automation:

The integration of laboratory personnel and preanalytical, analytical, and postanalytical processes and information systems.

13.2.3.18 Clinical laboratory automation systems:

An assemblage of components that mechanically and electronically transfers, analyzes, and processes information and material related to clinical diagnostic testing of patient specimens, controls, calibrators, standards, and images.

13.2.3.19 Closed-container sampling//Closed-tube sampling:

The action of aspirating a sample from a container/tube with the closure in place, requiring the sample probe to pierce the closure of the container/sample container.

13.2.3.20 Closed-tube sampling:

See Closed-container sampling.

13.2.3.21 Container//Tube//Test Tube:

See Specimen container.

13.2.3.22 Container Identifier

A numeric (or alphanumeric) identifier provided by the LIS or LAS to uniquely identify each specimen container or aliquot container. The NCCLS LAB AUTOMATION Standard requires a unique identifier for each container introduced into the LAS or leaving the LAS.

13.2.3.23 Cycle time components:

The identified time segments of the process of moving from one sample to the next, including: presentation of specimen along transportation system to docking site at instrument; identification/recognition that the correct specimen is in place; either direct aspiration from specimen container by probe, or transfer of specimen container to instrument, aspiration, and return of specimen container to specimen carrier/transportation system; departure of completed specimen container; movement into position of next specimen container.

13.2.3.24 Decapping:

The removal of a closure from a specimen container.

13.2.3.25 Delimiter:

A symbol used to separate items in a list.

13.2.3.26 Directions of the specimen, Transportation system, Instrument or Specimen processing and handling device interfaces:

The orthogonal axes.
Note: a) These axes are demonstrated in Figure 13-1.

Figure 13-1. Physical Frame of Reference in a Three-Dimensional Space (X-Y-Z)
* X-direction, n - The direction that a specimen travels along a transportation system.
Note: b) Specimens would move along the X dimension as, for example, in transportation from station to station in a laboratory (See Figure 13-2.)

Click here for Picture

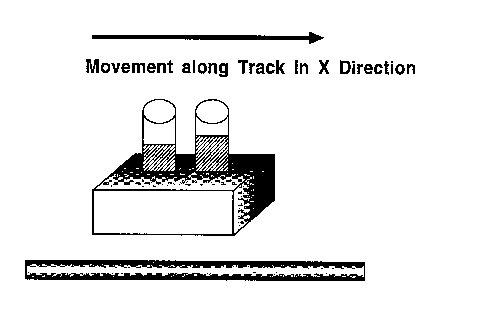

Figure 13-2. X Direction
* Y-direction, n - The horizontal direction perpendicular to specimen travel along a transportation system;
Note: c) Specimens could move in the Y dimension away from a transport system to be placed onto an instrument for analysis (see Figure 13-3). The sample probe would move in the Y dimension as it moves out from the instrument or specimen processing and handling device to a position directly over the specimen container.
Click here for Picture

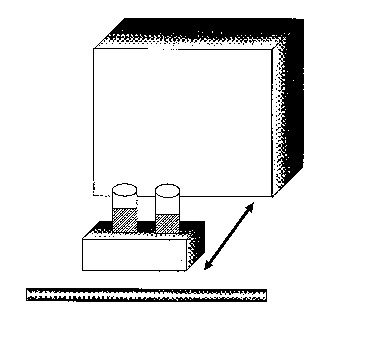

Figure 13-3. Y Direction
Z-direction, n - The vertical dimension;
Notes: d) Specimens could be lifted in the Z dimension off a transport system for transfer between locations;
e) The center line of a container should be controlled, so it is in the Z dimension; a specimen centering device would be referenced to the Z dimension; a sample probe would follow the Z dimension as it moves downward into a specimen container to aspirate serum, blood, etc. for analysis (see Figure 13-4);
f) Rotation about the Z dimension may be used to locate and read the bar-code label on a specimen container or to assess the quality of a specimen in terms of turbidity, hemolysis, icterus, etc.
Click here for Picture

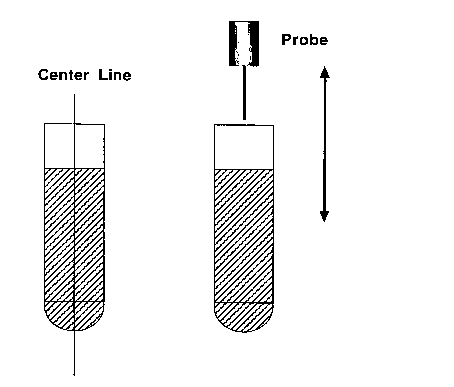

Figure 13-4. Z Direction

13.2.3.27 Directions of the sample, Transportation system, Instrument or Specimen processing handling device and interfaces

See Directions of the specimen, etc.

13.2.3.28 Direct track sampling:

The process in which aspiration of a sample occurs directly from the specimen container while it is on the transportation system, whereby the instrument probe extends to reach the specimen container on the transportation system;
Note: This process requires agreement between the transportation system and the instrument and specimen processing and handling devices regarding point of reference (POR) to guide movement of the probe to the specimen.

13.2.3.29 Docking site:

1) The location of the physical interface between two components of a system; 2) In NCCLS LAB AUTOMATION Standard documents, the interface between the transportation system and the instrument and/or the specimen processing and handling devices where the specimen container arrives for sampling to occur.

13.2.3.30 Flection:

The point at which the vertical (straight) walls of the specimen container bend to form the base.

13.2.3.31 Interaction:

A standard exchange of messages between two instances of equipment that synchronizes the execution of one or more commands. State models are used describe the standard interactions.

13.2.3.32 Label:

1) The display of written, printed, or graphic matter upon the immediate container of any article; 2) In NCCLS LAB AUTOMATION Standard documents, the paper and attached adhesive coating on which the bar code and other human readable information is printed.

13.2.3.33 Laboratory automation system (LAS):

A system of information and hardware technology that allows the operation of the clinical laboratory process without significant operator intervention;
Note: Typical functionality includes information system control of the instruments through direct LAS interfacing, including any technology that manipulates the specimen (i.e., centrifuge); transportation of the specimen; result evaluation, repeat testing, reflex testing; and quality assessment and results reporting.

13.2.3.34 Laboratory equipment control interface specification (LECIS):

A high-level protocol that defines message content for standard behaviors or interactions for remote control of analytical instruments and devices (ASTM E 1989-9810).

13.2.3.35 Laboratory information system (LIS):

The information system that is responsible for management of data regarding patient specimen identification, tests requested, results reported, quality control testing, and other aspects of sample analysis;
Notes: a) The LIS interfaces directly with the LAS to communicate patient, visit, container, test orders, specimen status, and results about specific testing to be done
b) Instrument or specimen processing and handling devices may be interfaced with the LIS or the LAS to direct specific testing and to retrieve results for reporting;
c) The LIS is frequently also interfaced to a clinical information system for use by physicians and other medical personnel.

13.2.3.36 LECIS:

Acronym for Laboratory Equipment Control Interface Specification, (ASTM E 1989-9810).

13.2.3.37 Location:

A physical place within the laboratory, with a unique identifier (e.g., refrigerator shelf number, instrument buffer ID, track identifier).

13.2.3.38 Open-container sampling//Open-tube sampling:

The action of aspirating a sample from a specimen container from which the closure has previously been removed;
Note: The sample probe contacts the surface of the specimen without other physical barriers.

13.2.3.39 Open-tube sampling:

See Open-container sampling.

13.2.3.40 Pitch:

The center distance between two specimen containers in a carrier or between two sequential specimen container carriers.

13.2.3.41 Point of reference//Point in space, (POR):

The intersection of the xy plane and an infinite line in the `z' direction.
Note: The POR is the reference from which all positioning and alignment of specimen containers are measured.

13.2.3.42 Process instruments:

In NCCLS LAB AUTOMATION Standard documents, components of an automated laboratory comprising the automated devices that perform a multitude of pre- and postanalytical tasks, and perform nonanalytical tasks on specimens, containers, carriers, and similar processes.

13.2.3.43 Quiet zone:

In NCCLS LAB AUTOMATION documents, the white {blank} space on a bar code immediately preceding the first bar and immediately following the last bar.

13.2.3.44 Recap:

To replace the closure on a specimen container; either with the original closure or with a new replacement closure.

13.2.3.45 Robotic arm:

A device capable of moving a specimen container, specimen carrier, or another object in the X, Y, and Z directions;
Note: Unless this device is an integral part of the LAS system, it is considered an instrument for the purpose of this proposed standard.

13.2.3.46 Sample//(Specimen):

1) A small part of anything ... intended to show the quality, style, or nature of the whole; 2) In NCCLS LAB AUTOMATION Standard documents, a portion or aliquot withdrawn from a container for the actual test;
Notes: In NCCLS LAB AUTOMATION Standard documents,
a) samples are typically not placed in containers that will have to be uniquely identified, but may go directly into the instrument or specimen processing and handling device test stream or may be placed in sample cups unique to the instrument or specimen processing and handling device;
b) the ID of the specimen is typically assured by computer linkage of the pipetting or aspiration step to the ID of the container from which it was obtained, or by a separate numbering system for the sample cups that is internal to the analytical instrument or specimen processing and handling device.

13.2.3.47 Sample carrier:

See Specimen carrier.

13.2.3.48 Sample container:

See Specimen collection container.

13.2.3.49 Sample-positioning system:

See Specimen-positioning system.

13.2.3.50 Sample probe:

See Specimen probe.

13.2.3.51 Separator:

A material such as a gel which is contained in blood collection tubes to facilitate separation of blood cells from blood serum by creating a physical "barrier" between them.

13.2.3.52 Serum/Plasma Separator:

See Separator.

13.2.3.53 Service envelope:

In NCCLS LAB AUTOMATION Standard documents, the space around the transportation system and instruments that may be accessed periodically for maintenance or repair of equipment;
Note: A transportation system and analytic instruments should not have mutually impinging service envelopes.

13.2.3.54 Specimen:

The discrete portion of a body fluid or tissue taken for examination, study, or analysis of one or more quantities or characteristics, to determine the character of the whole.
Note: The substance may still be referred to as a specimen if it has been processed from the obtained specimen; thus, examples of specimens include whole blood and serum or plasma prepared from whole blood; saliva; cerebrospinal fluid; feces; urine; fingernail clippings; hair clippings; tissue samples, even if embedded in a paraffin block; etc.

13.2.3.55 Specimen carrier//Sample carrier//Carrier:

A device that holds the specimen container;
Note: The specimen carrier interfaces mechanically with the transportation system to move the specimen from location to location, and may carry one specimen container or many specimen containers. (See Figure 13-5).

13.2.3.56 Specimen collection container//Specimen container//Sample container//Container:

The tube that holds a patient specimen;
Note: The container typically consists of a glass or plastic closed-end tube with a removable closure on the opposite end. (See Figure 13-5)

Click here for Picture

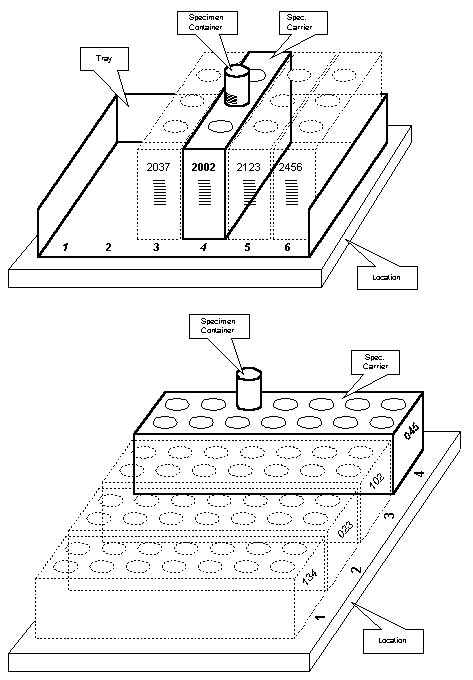

Figure 13-5: Relationship Among Specimen Container, Specimen Carrier, Tray, and Locations.

13.2.3.57 Specimen-positioning system//Sample-positioning system (SPS):

A device to position a specimen container within acceptable tolerances of a POR.

13.2.3.58 Specimen probe//Sample probe:

A part of an instrument or specimen processing and handling device that aspirates fluid from a specimen and delivers it to the instrument for analysis.
Note: The sample probe can also be called sample proboscis, nozzle, needle, or sampling mechanism.

13.2.3.59 Stay clear zone:

In NCCLS LAB AUTOMATION Standard documents, the area between the instrument or specimen processing and handling device and the automation hardware that must remain clear of any physical device, ensuring that there is adequate access by the user or service person to either system.

13.2.3.60 Symbol:

In NCCLS LAB AUTOMATION Standard documents, a combination of bar-code characters, including start/stop characters, quiet zones, data elements, and check characters which form a complete scanning entity.

13.2.3.61 Test mnemonics:

Short, understandable contractions for test names.

13.2.3.62 Top of container//Top of tube:

The open end of the container/test tube, closest to the cap.

13.2.3.63 Top of tube:

See Top of container.

13.2.3.64 Tray:

A holder for one or more carriers (optional). (See Figure 13-5).

13.2.3.65 X-direction:

See Directions.

13.2.3.66 Y-direction:

See Directions.

13.2.3.67 Z-direction:

See Directions.

13.3 TRIGGER EVENTS AND MESSAGE DEFINITIONS

Each trigger event is listed below, along with the application form of the message exchange. The notation used to describe the sequence, optionality and repetition of segments is described in Chapter 2.
The notation used to describe the sequence, the optionality, and the repetition of segments is described in HL7, Chapter 2, under "Format for Defining Abstract Message."
All the ACK messages are varieties of the 'general acknowledgement' message defined in Chapter 2, Section 2.14.1. The only difference is the event code.
The "Equipment Notification" message (EAN/ACK event U09) is used to send information about the occurrence of an event. An event does not necessarily cause a state transition. The "Status Update" message (EAU/ACK event U01) is used to transfer information about the current status. This status can be the result of one or more events that led to the state transition. Example: The event of a "warning level of a consumable being reached" (e.g., 10% left) does not cause a state transition, because the system can remain "In operation". This results in an EAN/ACK message. An event "container transport jammed" causes the state transition to "Emergency stop". This results in both EAN/ACK and EAU/ACK messages.
For the transfer of laboratory automation orders and results refer to 4.4.6 OML - laboratory order message (event O21) instead of ORM and 7.3.2 OUL - unsolicited laboratory observation message (event O20) instead of ORU.

13.3.1 ESU/ACK - automated equipment status update (event U01)

This message is used to send information about the status of a device or equipment from one application to another (e.g., automated device to a Laboratory Automation System). The status update can be sent unsolicited or as a response to the trigger "Automated Equipment Status Request."

ESU^U01^ESU_U01

Equipment Status Message

Chapter

MSH

Message Header

2

EQU

Equipment Detail

13

[ { ISD } ]

Interaction Status Detail

13

[ ROL ]

Role Detail

12


ACK^U01^ACK

General Acknowledgement

Chapter

MSH

Message Header

2

MSA

Message Acknowledgment

2

[ ERR ]

Error[8]


2

13.3.2 ESR/ACK - automated equipment status request (event U02)

This message is used to request information about a device's or piece of equipment's status from one application to another (e.g., Laboratory Automation System to automated equipment). The equipment identified in the EQU segment should respond with its status using the "Automated Equipment Status Update."

ESR^U02^ESR_U02

Equipment Status Message

Chapter

MSH

Message Header

2

EQU

Equipment Detail

13

[ ROL ]

Role Detail

12


ACK^U02^ACK

General Acknowledgment

Chapter

MSH

Message Header

2

MSA

Message Acknowledgment

2

[ ERR ]

Error

2

13.3.3 SSU/ACK - specimen status update (event U03)

This message is used to send information concerning the location and status of specimens from one application to another (e.g., automated equipment to a Laboratory Automation System).
The OBX segments attached to the SAC should be used for transfer of information not included in the SAC segment.

SSU^U03^SSU_U03

Specimen Status Message

Chapter

MSH

Message Header

2

EQU

Equipment Detail

13

{ SAC

Specimen and Container Detail

13

[ OBX ]

Observation Result

7

}

[ ROL ]

Role Detail

12


ACK^U03^ACK

General Acknowledgment

Chapter

MSH

Message Header

2

MSA

Message Acknowledgment

2

[ ERR ]

Error

2

13.3.4 SSR/ACK - specimen status request (event U04)

This message is used to request information concerning the location and status of specimens from one application to another (e.g., Laboratory Automation System to automated equipment). The request can be addressed for a specific container, a specific carrier, a specific tray or a specific location, depending on the arguments set in the SAC segment. The equipment specified in the EQU segment should respond with the "Specimen Status Update."

SSR^U04^SSR_U04

Specimen Status Message

Chapter

MSH

Message Header

2

EQU

Equipment Detail

13

{ SAC }

Specimen and Container Detail

13

[ ROL ]

Role Detail

12


ACK^U04^ACK

General Acknowledgment

Chapter

MSH

Message Header

2

MSA

Message Acknowledgment

2

[ ERR ]

Error

2

13.3.5 INU/ACK - automated equipment inventory update (event U05)

This message is used to send information about inventory items from one application to another (e.g., automated Equipment to a Laboratory Automation System).

INU^U05^INU_U05

Inventory Update Message

Chapter

MSH

Message Header

2

EQU

Equipment Detail

13

{ INV }

Inventory Detail

13

[ ROL ]

Role Detail

12


ACK^U05^ACK

General Acknowledgment

Chapter

MSH

Message Header

2

MSA

Message Acknowledgment

2

[ ERR ]

Error

2

13.3.6 INR/ACK - automated equipment inventory request (event U06)

This message is used to request information about inventory items from one application to another (e.g., Laboratory Automation System to automated equipment). The equipment specified in the EQU segment should respond with the information about inventory item requested in the INV segment (or all items).

INR^U06^INR_U06

Inventory Request Message

Chapter

MSH

Message Header

2

EQU

Equipment Detail

13

{ INV }

Inventory Detail

13

[ ROL ]

Role Detail

12


ACK^U06^ACK

General Acknowledgment

Chapter

MSH

Message Header

2

MSA

Message Acknowledgment

2

[ ERR ]

Error

2

13.3.7 EAC/ACK - automated equipment command (event U07)

This message is used to send equipment commands from one application to another (e.g., a Laboratory Automation System to an automated Equipment).

EAC^U07^EAC_U07

Equipment Command Message

Chapter

MSH

Message Header

2

EQU

Equipment Detail

13

{ ECD }

Equipment Command Detail

13

[ SAC ]

Specimen and Container Detail

13

[ CNS ]

Clear Notification

13

[ ROL ]

Role Detail

12


ACK^U07^ACK

General Acknowledgment

Chapter

MSH

Message Header

2

MSA

Message Acknowledgment

2

[ ERR ]

Error

2

13.3.8 EAR/ACK - automated equipment response (event U08)

This message is used to send equipment responses to previously issued commands from one application to another (e.g., automated Equipment to a Laboratory Automation System).

EAR^U08^EAR_U08

Equipment Command Message

Chapter

MSH

Message Header

2

EQU

Equipment Detail

13

{ ECD

Equipment Command Detail

13

[ SAC ]

Specimen and Container Detail

13

ECR }

Equipment Command Response

13

[ ROL ]

Role Detail

12


ACK^U08^ACK

General Acknowledgment

Chapter

MSH

Message Header

2

MSA

Message Acknowledgment

2

[ ERR ]

Error

2

13.3.9 EAN/ACK - automated equipment notification (event U09)

This message is used to send equipment notifications from one application to another (e.g., alerts sent by automated equipment to a Laboratory Automation System).

EAN^U09^EAN_U09

Equipment Status Message

Chapter

MSH

Message Header

2

EQU

Equipment Detail

13

{ NDS

Notification Detail

13

[ NTE ]


Notification Note

2

}

[ ROL ]

Role Detail

12


ACK^U09^ACK

General Acknowledgment

Chapter

MSH

Message Header

2

MSA

Message Acknowledgment

2

[ ERR ]


Error

2

13.3.10 TCU/ACK - automated equipment test code settings update (event U10)

This message is used to send information concerning test codes and parameters from one application to another (e.g., automated equipment to a Laboratory Automation System). This message transfers the current snapshot of the test parameters of the sending system. The sent parameter sets are supposed to replace the parameter sets existing at the receiver of this message before the trigger (there is no selective "Add" or "Delete").

TCU^U10^TCU_U10

Test Code Settings Update

Chapter

MSH

Message Header

2

EQU

Equipment Detail

13

{ TCC }

Test Code Configuration

13

[ ROL ]

Role Detail

12


ACK^U10^ACK

General Acknowledgment

Chapter

MSH

Message Header

2

MSA

Message Acknowledgment

2

[ ERR ]

Error

2

13.3.11 TCR/ACK - automated equipment test code settings request (event U11)

This message is used to request information concerning test codes from one application to another (e.g., Laboratory Automation System to automated equipment).

TCR^U11^TCU_U10

Test Code Settings Request

Chapter

MSH

Message Header

2

EQU

Equipment Detail

13

{ TCC }

Test Code Configuration

13

[ ROL ]

Role Detail

12


ACK^U11^ACK

General Acknowledgment

Chapter

MSH

Message Header

2

MSA

Message Acknowledgment

2

[ ERR ]

Error

2

13.3.12 LSU/ACK - automated equipment log/service update (event U12)

This message is used to send log and/or service events from one application to another (e.g., automated equipment to Laboratory Automation System).

LSU^U12^LSU_U12

Equipment Log/Service Message

Chapter

MSH

Message Header

2

EQU

Equipment Detail

13

{ EQP }

Equipment Log/Service

13

[ ROL ]

Role Detail

12


ACK^U12^ACK

General Acknowledgment

Chapter

MSH

Message Header

2

MSA

Message Acknowledgment

2

[ ERR ]

Error

2

13.3.13 LSR/ACK - automated equipment log/service request (event U13)

This message is used to request log and/or service events from one application to another (e.g., Laboratory Automation System to automated equipment).

LSR^U13^LSU_U12

Equipment Log/Service Message

Chapter

MSH

Message Header

2

EQU

Equipment Detail

13

{ EQP }

Equipment Log/Service

13

[ ROL ]

Role Detail

12


ACK^U13^ACK

General Acknowledgment

Chapter

MSH

Message Header

2

MSA

Message Acknowledgment

2

[ ERR ]

Error

2

13.4 MESSAGE SEGMENTS

The following section identifies the message segments proposed for incorporation in this standard, and will be submitted for incorporation or reference in other HL7 and NCCLS standard documents. Valid entries are presented in an Attribute Table for each segment.

13.4.1 EQU - equipment detail segment

The equipment detail segment contains the data necessary to identify and maintain the equipment that is being used throughout the Laboratory Automation System.

HL7 Attribute Table - EQU - Equipment Detail

SEQ

LEN

DT

OPT

RP/#

TBL#

ITEM #

ELEMENT NAME

1

22

EI

R

01479

Equipment Instance Identifier

2

26

TS

R

01322

Event Date/Time

3

250

CE

C

0365

01323

Equipment State

4

250

CE

O

0366

01324

Local/Remote Control State

5

250

CE

O

0367

01325

Alert Level

13.4.1.0 EQU field definitions

13.4.1.1 EQU-1 Equipment instance identifier (EI) 01479

Components: <entity identifier (ST)> ^ <namespace ID (IS)> ^ <universal ID (ST)> ^ <universal ID type (ID)>
Definition: This field identifies the equipment. This is the identifier from an institution's master list of equipment. The <namespace ID> identifies the institution.

13.4.1.2 EQU-2 Event date/time (TS) 01322

Definition: This field is the date/time that the event (e.g., state transition, issuing of command, finishing of command execution) occurred.

13.4.1.3 EQU-3 Equipment state (CE) 01323

Components: <identifier (ST)> ^ <text (ST)> ^ <name of coding system (IS)> ^ <alternate identifier (ST)> ^ <alternate text (ST)> ^ <name of alternate coding system (IS)>
Definition: This field identifies the status that the equipment was in at the time that the transaction was initiated. Refer to HL7 Table 0365 - Equipment state for valid values. The Equipment State is required in the ESU message and is optional otherwise.

HL7 Table 0365 - Equipment state

Value

Description

PU

Powered Up

IN

Initializing

ID

Idle

CO

Configuring

OP

Normal Operation

CL

Clearing

PA

Pausing

PD

Paused

ES

E-stopped

(null) No state change

This table is based on LECIS (see sub-chapter "Introduction and Overview")

13.4.1.4 EQU-4 Local/remote control state (CE) 01324

Components: <identifier (ST)> ^ <text (ST)> ^ <name of coding system (IS)> ^ <alternate identifier (ST)> ^ <alternate text (ST)> ^ <name of alternate coding system (IS)>
Definition: This field identifies the current state of control associated with the equipment. An equipment can either work autonomously (`Local' control state) or it can be controlled by another system, e.g., LAS computer (`Remote' control state). Refer to HL7 Table 0366 - Local/remote control state for valid values.

HL7 Table 0366 - Local/remote control state

Value

Description

L

Local

R

Remote

(null) No state change

This table is based on LECIS (see sub-chapter "Introduction and Overview")

13.4.1.5 EQU-5 Alert level (CE) 01325

Components: <identifier (ST)> ^ <text (ST)> ^ <name of coding system (IS)> ^ <alternate identifier (ST)> ^ <alternate text (ST)> ^ <name of alternate coding system (IS)>
Definition: This field identifies the highest level of the alert state (e.g., highest alert severity) that is associated with the indicated equipment (e.g. processing event, inventory event, QC event). Refer to HL7 Table 0367 - Alert level for valid values.

HL7 Table 0367 - Alert level

Value

Description

Note

N

Normal

No Corrective Action Needed

W

Warning

Corrective Action Anticipated

S

Serious

Corrective Action Required

C

Critical

Shut Down, Fix Problem and Re-init


(null) No level change


13.4.2 ISD - interaction status detail segment

The interaction detail segment contains information about the status of specific interaction (e.g., processing -- see section Glossary) on the specific equipment.

HL7 Attribute Table - ISD - Interaction Status Detail

SEQ

LEN

DT

OPT

RP/#

TBL#

ITEM #

ELEMENT NAME

1

20

NM

R

01326

Reference Interaction Number (unique identifier)

2

250

CE

O

0368

01327

Interaction Type Identifier

3

250

CE

R

0387

01328

Interaction Active State

13.4.2.0 ISD field definitions

13.4.2.1 ISD-1 Reference interaction number (NM) 01326

Definition: This number uniquely identifies the interaction. If the interaction is performed as the result of a previous command, then the Reference Command Number should be used. (See 13.4.5.1 ECD-1 Reference command number (NM) 01390)

13.4.2.2 ISD-2 Interaction type identifier (CE) 01327

Components: <identifier (ST)> ^ <text (ST)> ^ <name of coding system (IS)> ^ <alternate identifier (ST)> ^ <alternate text (ST)> ^ <name of alternate coding system (IS)>
Definition: This field specifies the type of interaction. If the interaction is performed as the result of a previous command, then the interaction type as specified in User-defined Table 0368 - Remote control command should be used.

13.4.2.3 ISD-3 Interaction active state (CE) 01328

Components: <identifier (ST)> ^ <text (ST)> ^ <name of coding system (IS)> ^ <alternate identifier (ST)> ^ <alternate text (ST)> ^ <name of alternate coding system (IS)>
Definition: This field transfers the state of the interaction. If the interaction is performed as the result of a previous command, then the interaction state should be one of the Command Responses (Refer to User-defined Table 0387 - Command response). If the interaction is not performed as a result of a command (e.g., periodically time triggered automatic maintenance) then this state is interaction specific, and should refer to either the LECIS state transitions for interactions or a user or equipment specific table.

13.4.3 SAC- specimen and container detail segment

The container detail segment is the data necessary to maintain the containers that are being used throughout the Laboratory Automation System.

HL7 Attribute Table - SAC - Specimen and container detail

SEQ

LEN

DT

OPT

RP/#

TBL#

ITEM #

ELEMENT NAME

1

80

EI

O

01329

External Accession Identifier

2

80

EI

O

01330

Accession Identifier

3

80

EI

C

01331

Container Identifier

4

80

EI

C

01332

Primary (parent) Container Identifier

5

80

EI

O

01333

Equipment Container Identifier

6

300

CM

O

0070/ 0369

00249

Specimen Source

7

26

TS

O

01334

Registration Date/Time

8

250

CE

O

0370

01335

Container Status

9

250

CE

O

0378

01336

Carrier Type

10

80

EI

O

01337

Carrier Identifier

11

80

NA

O

01338

Position in Carrier

12

250

CE

O

0379

01339

Tray Type - SAC

13

80

EI

O

01340

Tray Identifier

14

80

NA

O

01341

Position in Tray

15

250

CE

O

Y

01342

Location

16

20

NM

O

01343

Container Height

17

20

NM

O

01344

Container Diameter

18

20

NM

O

01345

Barrier Delta

19

20

NM

O

01346

Bottom Delta

20

250

CE

O

01347

Container Height/Diameter/Delta Units

21

20

NM

O

00644

Container Volume

22

20

NM

O

01349

Available Volume

23

20

NM

O

01350

Initial Specimen Volume

24

250

CE

O

01351

Volume Units

25

250

CE

O

0380

01352

Separator Type

26

250

CE

O

0381

01353

Cap Type

27

250

CE

O

Y

0371

00647

Additive

28

250

CE

O

01355

Specimen Component

29

20

SN

O

01356

Dilution Factor

30

250

CE

O

0373

01357

Treatment

31

20

SN

O

01358

Temperature

32

20

NM

O

01359

Hemolysis Index

33

250

CE

O

01360

Hemolysis Index Units

34

20

NM

O

01361

Lipemia Index

35

250

CE

O

01362

Lipemia Index Units

36

20

NM

O

01363

Icterus Index

37

250

CE

O

01364

Icterus Index Units

38

20

NM

O

01365

Fibrin Index

39

250

CE

O

01366

Fibrin Index Units

40

250

CE

O

Y

0374

01367

System Induced Contaminants

41

250

CE

O

Y

0382

01368

Drug Interference

42

250

CE

O

0375

01369

Artificial Blood

43

250

CE

O

Y

0376

01370

Special Handling Considerations

44

250

CE

O

Y

0377

01371

Other Environmental Factors

13.4.3.0 SAC field definitions

13.4.3.1 SAC-1 External accession identifier (EI) 01329

Components: <entity identifier (ST)> ^ <namespace ID (IS)> ^ <universal ID (ST)> ^ <universal ID type (ID)>
Definition: This field identifies the laboratory accession (see section Glossary). This identifier is assigned by the external laboratory information system.
Example: If laboratory A sends a specimen to laboratory B, then within laboratory B this field contains accession identifier of lab A.

13.4.3.2 SAC-2 Accession identifier (EI) 01330

Components: <entity identifier (ST)> ^ <namespace ID (IS)> ^ <universal ID (ST)> ^ <universal ID type (ID)>
Definition: This field identifies the laboratory accession (see section Glossary). This identifier is assigned by the information system of the laboratory performing the tests.
An accession identifier can refer to more than one container. A Container Identifier (see below) is a Unique Identifier for that container.

13.4.3.3 SAC-3 Container identifier (EI) 01331

Components: <entity identifier (ST)> ^ <namespace ID (IS)> ^ <universal ID (ST)> ^ <universal ID type (ID)>
Definition: This field identifies the container. This field is the container's unique identifier assigned by the corresponding equipment. A container may contain the primary (original) specimen or an aliquot (secondary sample) of that specimen. For primary sample this field contains Primary Container ID; for bar-coded aliquot samples this field contains Aliquot Container ID; for non-bar-coded aliquot samples (e.g., microtiter plate) this field is empty[9]














The NCCLS standard requires a unique identifier for each container introduced into the Laboratory Automation System. The combination of the fields: Primary Container ID, Container ID, Carrier ID / Position, Tray ID / Position must identify the container uniquely within the LAS. The naturally best solution is unique machine-readable id attached to the container (which of course is sufficient to ensure the uniqueness of the fields' combination). A bar code that symbolizes this ID should meet the proposed standard NCCLS AUTO2 (Laboratory Automation: Bar Codes for Specimen Container Identification).

13.4.3.4 SAC-4 Primary (parent) container identifier (EI) 01332

Components: <entity identifier (ST)> ^ <namespace ID (IS)> ^ <universal ID (ST)> ^ <universal ID type (ID)>
Definition: If this field is filled in, it identifies the primary container from which this specimen came. For primary samples this field is empty; for aliquot samples this field should contain the identifier of primary container.

13.4.3.5 SAC-5 Equipment container identifier (EI) 01333

Components: <entity identifier (ST)> ^ <namespace ID (IS)> ^ <universal ID (ST)> ^ <universal ID type (ID)>
Definition: This field identifies the container in a particular device (e.g., one container in a carousel or rack of containers within an analyzer, analyzer specific bar code mapping, etc.).

13.4.3.6 SAC-6 Specimen source (CM) 00249

Components: <specimen source name or code (CE)> ^ <additives (TX)> ^ <free text (TX)> ^ <body site (CE)> ^ <site modifier (CE)> ^ <collection method modifier code (CE)> ^ <specimen role (CE)>
Subcomponents of specimen source name or code: <identifier (ST)> & <test (ST)> & <name of coding system (IS)> & <alternate identifier (ST)> & <alternate text (ST)> & <name of alternate coding system (ST)>
Subcomponents of body site: <identifier (ST)> & <test (ST)> & <name of coding system (IS)> & <alternate identifier (ST)> & <alternate text (ST)> & <name of alternate coding system (ST)>
Subcomponents of site modifier: <identifier (ST)> & <test (ST)> & <name of coding system (IS)> & <alternate identifier (ST)> & <alternate text (ST)> & <name of alternate coding system (ST)>
Subcomponents of collection method modifier code: <identifier (ST)> & <test (ST)> & <name of coding system (IS)> & <alternate identifier (ST)> & <alternate text (ST)> & <name of alternate coding system (ST)>
Subcomponents of specimen role: <identifier (ST)> & <test (ST)> & <name of coding system (IS)> & <alternate identifier (ST)> & <alternate text (ST)> & <name of alternate coding system (ST)>
Definition: This field is the site where the specimen should be obtained or where the service should be performed.
The first component contains the specimen source name or code (as a CE data type component). (Even in the case of observations whose name implies the source, a source may be required, e.g., blood culture: heart blood.) Refer to HL7 Table 0070 - Specimen source codes for valid entries.
The second component should include free text additives to the specimen such as heparin, EDTA, or oxalate, when applicable.
The third is a free text component describing the method of collection when that information is a part of the order. When the method of collection is logically an observation result, it should be included as a result segment.
The fourth component specifies the body site from which the specimen was obtained, and the fifth is the site modifier. For example, the site could be antecubital fossa, and the site modifier "right." The components of the CE fields become sub-components. Refer to HL7 Table 0163 - Administrative site for valid entries.
The sixth component indicates whether the specimen is frozen as part of the collection method. Suggested values are F (Frozen); R (Refrigerated). If the component is blank, the specimen is assumed to be at room temperature.
The 7th component indicates the role of the sample. Refer to User-defined Table 0369 - Specimen role for suggested values. Each of these values is normally identifiable by the systems and its components and can influence processing and data management related to the specimen.

User-defined Table 0369 - Specimen role

Value

Description

P

Patient (default if blank component value)

Q

Control specimen

C

Calibrator

B

Blind Sample

R

Replicate (of patient sample as a control)

13.4.3.7 SAC-7 Registration date/time (TS) 01334

Definition: This field is the date/time that the container was last registered with the "automated system.", e.g., reading of a container bar code by a device.

13.4.3.8 SAC-8 Container status (CE) 01335

Components: <identifier (ST)> ^ <text (ST)> ^ <name of coding system (IS)> ^ <alternate identifier (ST)> ^ <alternate text (ST)> ^ <name of alternate coding system (IS)>
Definition: This field identifies the status of the unique container in which the specimen resides at the time that the transaction was initiated. Refer to HL7 Table 0370 - Container status for valid values. The equipment specific container status should be sent as <alternate identifier> as needed.

HL7 Table 0370 - Container status

Value

Description

I

Identified

P

In Position

O

In Process

R

Process Completed

L

Left Equipment

M

Missing

X

Container Unavailable

U

Unknown

The container states are relevant for the exchange of information among devices (within the LAS). Not all of them are relevant for information transfer between the LAS and the LIS.
In the explanations below the system means the LAS or any equipment interfaced to it or to another equipment.
Identified status is used by one system to inform another that it has received a container. In the exchange between the LAS and LIS the Identified status can be used for reporting of the "In Lab" (Specimen Received) status. In some cases this may not be equal to the first event of sample recognition.
In Position status is used by one system to inform another that the container is in position for specimen transfer (e.g., container removal from track, pipetting, etc.).
In Process status is used by one system to inform another that the specific container is being processed by the equipment. It is useful as a response to a query about Container Status, when the specific step of the process is not relevant.
Process Completed status is used by one system to inform another that the processing has been completed, but the container has not been released from that system.
Left Equipment status is used by one system to inform another that the container has been released from that system.
Missing status is used by one system to inform another that the container did not arrive at its next expected location.
Cancelled status is used by one system to inform another that the container is no longer available within the scope of the system (e.g., tube broken or discarded).
Unknown status is used by one system to inform another that the container has not been identified.

13.4.3.9 SAC-9 Carrier type (CE) 01336

Components: <identifier (ST)> ^ <text (ST)> ^ <name of coding system (IS)> ^ <alternate identifier (ST)> ^ <alternate text (ST)> ^ <name of alternate coding system (IS)>
Definition: This field identifies the type of the carrier (see section Glossary). Refer to User-defined Table 0378 - Carrier type for suggested values. Because the geometry can be different, the carrier type should, if possible, express the number of positions in the carrier.
The definition assumes hierarchical nesting using the following phrases: container is located in a carrier, carrier is located in a tray.

User-defined Table 0378 - Carrier type

Value

Description

No suggested values defined

Examples of values: R01 (one position carrier), R05 (five position carrier)

13.4.3.10 SAC-10 Carrier identifier (EI) 01337

Components: <entity identifier (ST)> ^ <namespace ID (IS)> ^ <universal ID (ST)> ^ <universal ID type (ID)>
Definition: This field identifies the carrier. It is the ID (e.g., number or bar code) of the carrier where the container (e.g., tube) is located.
Example: A carrier could be a rack with single or multiple specimen containers. A carrier is usually used for automated specimen transport. Multiple carriers can be stacked in a tray, which is then used for manual or automatic transport.

13.4.3.11 SAC-11 Position in carrier (NA) 01338

Components: <value1 (NM)> ^ <value2 (NM)> ^ <value3 (NM)> ^ <value4 (NM)> ^ ...
Definition: This field identifies the position of the container in the carrier (e.g., 1...3...). The sub-components allow, if necessary, to transfer multiple axis information, e.g., 2-dimensional carrier (X^Y).

13.4.3.12 SAC-12 Tray type - SAC (CE) 01339

Components: <identifier (ST)> ^ <text (ST)> ^ <name of coding system (IS)> ^ <alternate identifier (ST)> ^ <alternate text (ST)> ^ <name of alternate coding system (IS)>
Definition: This field identifies the type of the tray (see section Glossary). Refer to User-defined Table 0379 - Tray type for suggested values. Because the geometry can be different, the tray type should if possible express the number of positions in the tray.
The definition assumes hierarchical nesting using the following phrases: container is located in a carrier, carrier is located in a tray.

User-defined Table 0379 - Tray type

Value

Description

No suggested values defined

13.4.3.13 SAC-13 Tray identifier (EI) 01340

Components: <entity identifier (ST)> ^ <namespace ID (IS)> ^ <universal ID (ST)> ^ <universal ID type (ID)>
Definition: This field identifies the tray identifier (e.g., a number of a tray or a bar code on the tray), where the container carrier is located.

13.4.3.14 SAC-14 Position in tray (NA) 01341

Components: <value1 (NM)> ^ <value2 (NM)> ^ <value3 (NM)> ^ <value4 (NM)> ^ ...
Definition: This field identifies the position of the carrier in the tray. The sub-components allow, if necessary, to transfer multiple axis information, e.g., 2-dimensional tray (X^Y).

13.4.3.15 SAC-15 Location (CE) 01342

Components: <identifier (ST)> ^ <text (ST)> ^ <name of coding system (IS)> ^ <alternate identifier (ST)> ^ <alternate text (ST)> ^ <name of alternate coding system (IS)>
Definition: This field is the physical location that the specimen was at the time that the transaction was initiated. The location description can vary with the LAS. For example, it can be an X,Y,Z coordinate in a storage system; a refrigerator number and drawer number where the container-carrier-tray is located; or it can be the name of the institution and the laboratory which owns the container currently. The repeating of this field allows for hierarchical representation of location (lowest level first), e.g., shelf number, refrigerator storage id, lab name, institution name, etc.

13.4.3.16 SAC-16 Container height (NM) 01343

Definition: This field identifies the height of the container in units specified below.

13.4.3.17 SAC-17 Container diameter (NM) 01344

Definition: This field identifies the outside diameter of the container in units specified below.

13.4.3.18 SAC-18 Barrier delta (NM) 01345

Definition: This field identifies the distance from the Point of Reference to the separator material (barrier) within the container in units specified below. This distance may be provided by the LAS to the instrument and/or specimen processing/handling device to facilitate the insertion of a sampling probe into the specimen without touching the separator. Refer to Point Of Reference definition in section Glossary or in NCCLS standard AUTO5 Laboratory Automation: Electromechanical Interfaces.

13.4.3.19 SAC-19 Bottom delta (NM) 01346

Definition: This field identifies the distance from the Point of Reference to the outside bottom of the container in units specified below. Refer to Point Of Reference definition in section Glossary or in NCCLS standard AUTO5 Laboratory Automation: Electromechanical Interfaces.

13.4.3.20 SAC-20 Container diameter/height/delta units (CE) 01347

Components: <identifier (ST)> ^ <text (ST)> ^ <name of coding system (IS)> ^ <alternate identifier (ST)> ^ <alternate text (ST)> ^ <name of alternate coding system (IS)>
Definition: This field is the unit identifier that is being used to describe the diameter, height and deltas of the container. If the units are ISO+ units, they should be recorded as single case abbreviations. If the units are ANS+ or L (local), the units and the source code table must be recorded, except that in this case, component delimiters should be replaced by subcomponent delimiters. The default unit is millimeters (mm), which should be assumed if no units are reported.

13.4.3.21 SAC-21 Container volume (NM) 00644

Definition: This field indicates the capacity of the container in the units specified below.

13.4.3.22 SAC-22 Available volume (NM) 01349

Definition: This field identifies the current volume available for use in the container in the units specified below.

13.4.3.23 SAC-23 Initial specimen volume (NM) 01350

Definition: This field identifies the draw volume of the container in the units specified below.

13.4.3.24 SAC-24 Volume units (CE) 01351

Components: <identifier (ST)> ^ <text (ST)> ^ <name of coding system (IS)> ^ <alternate identifier (ST)> ^ <alternate text (ST)> ^ <name of alternate coding system (IS)>
Definition: This field is the unit identifier that is being used to describe the volume of the container. If the units are ISO+ units, they should be recorded as single case abbreviations. The default unit is milliliters (ml), which should be assumed if no units are reported.

13.4.3.25 SAC-25 Separator type (CE) 01352

Components: <identifier (ST)> ^ <text (ST)> ^ <name of coding system (IS)> ^ <alternate identifier (ST)> ^ <alternate text (ST)> ^ <name of alternate coding system (IS)>
Definition: This field identifies the type of the separator that is being used (e.g., gel separator in the container - not to be confused with the communication separators). Refer to User-defined Table 0380 - Separator type for suggested values. It is recommended that the first table entry be "NO" meaning "No Separator".

User-defined Table 0380 - Separator type

Value

Description

No suggested values defined

Examples of values: NO (no separator), GEL (gel separator), M01 (manufacturer specific)

13.4.3.26 SAC-26 Cap type (CE) 01353

Components: <identifier (ST)> ^ <text (ST)> ^ <name of coding system (IS)> ^ <alternate identifier (ST)> ^ <alternate text (ST)> ^ <name of alternate coding system (IS)>
Definition: This field indicates the type of cap that is to be used with this container for decapping, piercing or other mechanisms. Refer to User-defined Table 0381 - Cap type for suggested values.

User-defined Table 0381 - Cap type

Value

Description

No suggested values defined

Examples of values: SCR (screw cap), PSH (push cap), FOIL (foil)

13.4.3.27 SAC-27 Additive (CE) 00647

Components: <identifier (ST)> ^ <text (ST)> ^ <name of coding system (IS)> ^ <alternate identifier (ST)> ^ <alternate text (ST)> ^ <name of alternate coding system (IS)>
Definition: This field identifies any additives introduced to the specimen before or at the time of collection. It is a repetitive field. Refer to HL7 Table 0371 - Additive for valid values. The table's values are taken from NCCLS AUTO4. The value set can be extended with user specific values.

HL7 Table 0371 - Additive

Value

Description

EDTK

Potassium/K EDTA

EDTN

Sodium/Na EDTA

HEPL

Lithium/Li Heparin

HEPN

Sodium/Na Heparin

C32

3.2% Citrate

C38

3.8% Citrate

BOR

Borate

HCL6

6N HCL

13.4.3.28 SAC-28 Specimen component (CE) 01355

Components: <identifier (ST)> ^ <text (ST)> ^ <name of coding system (IS)> ^ <alternate identifier (ST)> ^ <alternate text (ST)> ^ <name of alternate coding system (IS)>
Definition: This field identifies the specimen component, e.g., supernatant, sediment, etc. Refer to User-defined Table 0372 - Specimen component for valid values. This table's values are taken from NCCLS AUTO4. The value set can be extended with user specific values.

User-defined Table 0372 - Specimen component

Value

Description

SUP

Supernatant

SED

Sediment

BLD

Whole blood, homogeneous

BSEP

Whole blood, separated

PRP

Platelet rich plasma

PPP

Platelet poor plasma

SER

Serum, NOS (not otherwise specified)

PLAS

Plasma, NOS (not otherwise specified)

13.4.3.29 SAC-29 Dilution factor (SN) 01356

Components: <comparator (ST)> ^ <num1 (NM)> ^ <separator/suffix (ST)> ^ <num2 (NM)>
Definition: This field identifies the factor of dilution already performed on the specimen. The equipment entity that changes the dilution is responsible for sending this information to other equipment. If the endogenous content of the test (analyte) in the diluent is required for the calculation of the test (analyte) concentration, then the test (analyte) specific values should be exchanged between the systems via Master Files or other means.
Examples of use:
|^1^:^5| - means dilution 1 to 5, i.e., 1 part sample, 4 parts diluent
|^1^+| - sample is diluted, but the factor is unknown
|^1^:^1| - not diluted sample
|| - dilution not changed

13.4.3.30 SAC-30 Treatment (CE) 01357

Components: <identifier (ST)> ^ <text (ST)> ^ <name of coding system (IS)> ^ <alternate identifier (ST)> ^ <alternate text (ST)> ^ <name of alternate coding system (IS)>
Definition: This field identifies the specimen collection treatment. Refer to User-defined Table 03 73 - Treatment for valid values. This table's values are taken from NCCLS AUTO4. The value set can be extended with user specific values.

User-defined Table 0373 - Treatment

Value

Description

LDLP

LDL Precipitation

RECA

Recalification

DEFB

Defibrination

ACID

Acidification

NEUT

Neutralization

ALK

Alkalization

FILT

Filtration

UFIL

Ultrafiltration

13.4.3.31 SAC-31 Temperature (SN) 01358

Components: <comparator (ST)> ^ <num1 (NM)> ^ <separator/suffix (ST)> ^ <num2 (NM)>
Definition: This field identifies the specimen temperature in degrees Celsius [°C] at the time of the transaction specified in the EQU segment.

13.4.3.32 SAC-32 Hemolysis index (NM) 01359

Components: <comparator (ST)> ^ <num1 (NM)> ^ <separator/suffix (ST)> ^ <num2 (NM)>
Definition: This field is the index identifier that is being used to describe the Hemolysis Index of the specimen.

13.4.3.33 SAC-33 Hemolysis index units (CE) 01360

Components: <identifier (ST)> ^ <text (ST)> ^ <name of coding system (IS)> ^ <alternate identifier (ST)> ^ <alternate text (ST)> ^ <name of alternate coding system (IS)>
Definition: This field is the unit's identifier that is being used to describe the Hemolysis Index of the specimen. It is recommended to use g/L. (The transmission of the index values is added here instead of the original use of the OBX segments, because the frequency of the transfer of the specimen details justifies use of more efficient mechanism.)
If this field is null, the recommended value is assumed.

13.4.3.34 SAC-34 Lipemia index (NM) 01361

Definition: This field is the index identifier that is being used to describe the Lipemia Index of the specimen. It is recommended to use the optical turbidity at 600 nm (in absorbance units).

13.4.3.35 SAC-35 Lipemia index units (CE) 01362

Components: <identifier (ST)> ^ <text (ST)> ^ <name of coding system (IS)> ^ <alternate identifier (ST)> ^ <alternate text (ST)> ^ <name of alternate coding system (IS)>
Definition: This field is the unit's identifier that is being used to describe the Lipemia Index of the specimen.
If this field is null, the recommended value is assumed.

13.4.3.36 SAC-36 Icterus index (NM) 01363

Definition: This field is the index identifier that is being used to describe the Icterus Index of the specimen.

13.4.3.37 SAC-37 Icterus index units (CE) 01364

Components: <identifier (ST)> ^ <text (ST)> ^ <name of coding system (IS)> ^ <alternate identifier (ST)> ^ <alternate text (ST)> ^ <name of alternate coding system (IS)>
Definition: This field is the unit's identifier that is being used to describe the Icterus Index of the specimen. It is recommended to use mMol/L of bilirubin.
If this field is null, the recommended value is assumed.

13.4.3.38 SAC-38 Fibrin index (NM) 01365

Definition: This field is the index identifier that is being used to describe the Fibrin Index of the specimen. In the case of only differentiating between Absent and Present, we recommend using 0 and 1 respectively and send the field Fibrin Index Units null.

13.4.3.39 SAC-39 Fibrin index units (CE) 01366

Components: <identifier (ST)> ^ <text (ST)> ^ <name of coding system (IS)> ^ <alternate identifier (ST)> ^ <alternate text (ST)> ^ <name of alternate coding system (IS)>
Definition: This field is the unit's identifier that is being used to describe the Fibrin Index of the specimen.

13.4.3.40 SAC-40 System induced contaminants (CE) 01367

Components: <identifier (ST)> ^ <text (ST)> ^ <name of coding system (IS)> ^ <alternate identifier (ST)> ^ <alternate text (ST)> ^ <name of alternate coding system (IS)>
Definition: This field describes the specimen contaminant identifier that is associated with the specimen. Refer to User-defined Table 0374 - System induced contaminants for valid values. This table's values are taken from NCCLS AUTO4. The value set can be extended with user specific values.

User-defined Table 0374 - System induced contaminants

Value

Description

CNTM

Present, type of contamination unspecified

13.4.3.41 SAC-41 Drug interference (CE) 01368

Components: <identifier (ST)> ^ <text (ST)> ^ <name of coding system (IS)> ^ <alternate identifier (ST)> ^ <alternate text (ST)> ^ <name of alternate coding system (IS)>
Definition: This field describes the drug interference identifier that is associated with the specimen. Refer to User-defined Table 0382 - Drug interference for suggested values.

User-defined Table 0382 - Drug interference

Value

Description

No suggested values defined

13.4.3.42 SAC-42 Artificial blood (CE) 01369

Components: <identifier (ST)> ^ <text (ST)> ^ <name of coding system (IS)> ^ <alternate identifier (ST)> ^ <alternate text (ST)> ^ <name of alternate coding system (IS)>
Definition: This field describes the artificial blood identifier that is associated with the specimen. Refer to User-defined Table 0375 - Artificial blood for valid values. This table's values are taken from NCCLS AUTO4. The value set can be extended with user specific values.

User-defined Table 0375 - Artificial blood

Value

Description

SFHB

Stromal free hemoglobin preparations

FLUR

Fluorocarbons

13.4.3.43 SAC-43 Special handling considerations (CE) 01370

Components: <identifier (ST)> ^ <text (ST)> ^ <name of coding system (IS)> ^ <alternate identifier (ST)> ^ <alternate text (ST)> ^ <name of alternate coding system (IS)>
Definition: This field describes any special handling considerations that are associated with the specimen. (E.g. centrifugation). Refer to User-defined Table 0376 - Special handling considerations for valid values. This table's values are taken from NCCLS AUTO4. The value set can be extended with user specific values.

User-defined Table 0376 - Special handling considerations

Value

Description

PRTL

Protect from light

CFRZ

Critical Frozen

CATM

Critical do not expose to atmosphere - Do not uncap

CREF

Critical refrigerated

CAMB

Critical ambient temperature

C37

Critical maintain at 37C (e.g., cryoglobulin specimen

13.4.3.44 SAC-44 Other environmental factors (CE) 01371

Components: <identifier (ST)> ^ <text (ST)> ^ <name of coding system (IS)> ^ <alternate identifier (ST)> ^ <alternate text (ST)> ^ <name of alternate coding system (IS)>
Definition: This field describes other environmental factors that are associated with the specimen, e.g., atmospheric exposure. Refer to User-defined Table 0377 - Other environmental factors for valid values. This table's values are taken from NCCLS AUTO4. The value set can be extended with user specific values.

User-defined Table 0377 - Other environmental factors

Value

Description

ATM

Opened container, atmosphere/duration unspecified

A60

Opened container, indoor atmosphere, 60 minutes duration

13.4.4 INV - inventory detail segment

The inventory detail segment is the data necessary to track the inventory of substances (e.g. reagent, tips, waste) on equipment.
Figure 13-6. Information on the Types of Measures on a Container

HL7 Attribute Table - INV - Inventory Detail

SEQ

LEN

DT

OPT

RP/#

TBL#

ITEM #

ELEMENT NAME

1

250

CE

R

0451

01372

Substance Identifier

2

250

CE

R

Y

0383

01373

Substance Status

3

250

CE

O

0384

01374

Substance Type

4

250

CE

O

01532

Inventory Container Identifier

5

250

CE

O

01376

Container Carrier Identifier

6

250

CE

O

01377

Position on Carrier

7

20

NM

O

01378

Initial Quantity

8

20

NM

O

01379

Current Quantity

9

20

NM

O

01380

Available Quantity

10

20

NM

O

01381

Consumption Quantity

11

250

CE

O

01382

Quantity Units

12

26

TS

O

01383

Expiration Date/Time

13

26

TS

O

01384

First Used Date/Time

14

200

TQ

O

01385

On Board Stability Duration

15

250

CE

O

Y

01386

Test/Fluid Identifier(s)

16

200

ST

O

01387

Manufacturer Lot Number

17

250

CE

O

0385

00286

Manufacturer Identifier

18

250

CE

O

0386

01389

Supplier Identifier

13.4.4.0 INV field definitions

13.4.4.1 INV-1 Substance identifier (CE) 01372

Components: <identifier (ST)> ^ <text (ST)> ^ <name of coding system (IS)> ^ <alternate identifier (ST)> ^ <alternate text (ST)> ^ <name of alternate coding system (IS)>

Definition: Unique identifier for the substance that is in inventory. This is a manufacturer-specific identifier.

User-defined Table 0451 - Substance identifier

Value

Description

ALL

Used for query of all inventory items

13.4.4.2 INV-2 Substance status (CE) 01373

Components: <identifier (ST)> ^ <text (ST)> ^ <name of coding system (IS)> ^ <alternate identifier (ST)> ^ <alternate text (ST)> ^ <name of alternate coding system (IS)>
Definition: The status of the inventoried item. The status indicates the current status of the substance. Refer to HL7 Table 0383 - Substance status for suggested values.

HL7 Table 0383 - Substance status

Value

Description

EW

Expired Warning

EE

Expired Error

CW

Calibration Warning

CE

Calibration Error

QW

QC Warning

QE

QC Error

NW

Not Available Warning

NE

Not Available Error

OW

Other Warning

OE

Other Error

OK

OK Status

13.4.4.3 INV-3 Substance type (CE) 01374

Components: <identifier (ST)> ^ <text (ST)> ^ <name of coding system (IS)> ^ <alternate identifier (ST)> ^ <alternate text (ST)> ^ <name of alternate coding system (IS)>
Definition: The type of substance. Refer to HL7 Table 0384 - Substance type for suggested values.

HL7 Table 0384 - Substance type

Value

Description

SR

Single Test Reagent

MR

Multiple Test Reagent (consumption cannot be tied to orders for single test)

DI

Diluent

PT

Pretreatment

RC

Reagent Calibrator

CO

Control

PW

Purified Water

LW

Liquid Waste

SW

Solid Waste

SC

Countable Solid Item (e.g., Tip, etc.)

LI

Measurable Liquid Item

OT

Other

13.4.4.4 INV-4 Inventory container identifier (CE) 01532

Components: <identifier (ST)> ^ <text (ST)> ^ <name of coding system (IS)> ^ <alternate identifier (ST)> ^ <alternate text (ST)> ^ <name of alternate coding system (IS)>
Definition: Identifies the inventory container, e.g., unique identifier of a specific package instance of a specific substance. This is a manufacturer-specific identifier.

13.4.4.5 INV-5 Container carrier identifier (CE) 01376

Components: <identifier (ST)> ^ <text (ST)> ^ <name of coding system (IS)> ^ <alternate identifier (ST)> ^ <alternate text (ST)> ^ <name of alternate coding system (IS)>
Definition: This is the carrier used to transport the substance containers, (e.g., a removable rotor with reagent bottles).

13.4.4.6 INV-6 Position on carrier (CE) 01377

Components: <identifier (ST)> ^ <text (ST)> ^ <name of coding system (IS)> ^ <alternate identifier (ST)> ^ <alternate text (ST)> ^ <name of alternate coding system (IS)>
Definition: Identifies the position (e.g., index) on the carrier.

13.4.4.7 INV-7 Initial quantity (NM) 01378

Definition: This field identifies the initial quantity of the substance in inventory.

13.4.4.8 INV-8 Current quantity (NM) 01379

Definition: This field is the current quantity, i.e., initial quantity minus what has been actually used.

13.4.4.9 INV-9 Available quantity (NM) 01380

Definition: This field is the available quantity of substance. This is the current quantity minus any planned consumption (e.g., tests that are planned).

13.4.4.10 INV-10 Consumption quantity (NM) 01381

Definition: This field is the consumption that is used each time the equipment uses this substance.

13.4.4.11 INV-11 Quantity units (CE) 01382

Components: <identifier (ST)> ^ <text (ST)> ^ <name of coding system (IS)> ^ <alternate identifier (ST)> ^ <alternate text (ST)> ^ <name of alternate coding system (IS)>
Definition: This field is the units of measure of the available quantity. If the units are ISO+ units, they should be recorded as single case abbreviations. If the units are ANS+ or L (local), the units and the source code table must be recorded, except that in this case, component delimiters should be replaced by sub-component delimiters. For example, "l" indicates liters, whereas pt&&ANS+ indicates pints (ANSI units). The default unit is milliliters (ml), which should be assumed if no units are reported.

13.4.4.12 INV-12 Expiration date/time (TS) 01383

Definition: This field is the expiration date/time of the substance.

13.4.4.13 INV-13 First used date/time (TS) 01384

Definition: This field is the time and date when the substance was first used. This date and time can be necessary to determine the stability of the substance.

13.4.4.14 INV-14 On board stability duration (TQ) 01385

Components: <quantity (CQ)> ^ <interval (CM)> ^ <duration (ST)> ^ <start date/time (TS)> ^ <end date/time (TS)> ^ <priority (ST)> ^ <condition (ST)> ^ <text (TX)> ^ <conjunction (ID)> ^ <order sequencing (CM)>
Definition: This field is the time duration that the substance is stable.

13.4.4.15 INV-15 Test/fluid identifier(s) (CE) 01386

Components: <identifier (ST)> ^ <text (ST)> ^ <name of coding system (IS)> ^ <alternate identifier (ST)> ^ <alternate text (ST)> ^ <name of alternate coding system (IS)>
Definition: This field is the list of tests and body fluid that apply to this substance. This is a repeating field. An empty field means that this substance is not test specific, i.e., it applies to all tests.

13.4.4.16 INV-16 Manufacturer lot number (ST) 01387

Definition: This field specifies the lot number assigned by the manufacturer during production of the substance.

13.4.4.17 INV-17 Manufacturer Identifier (CE) 00286

Components: <identifier (ST)> ^ <text (ST)> ^ <name of coding system (IS)> ^ <alternate identifier (ST)> ^ <alternate text (ST)> ^ <name of alternate coding system (IS)>
Definition: This field identifies the manufacturer of this substance. Refer to User-defined Table 0385 - Manufacturer identifier for suggested values

User-defined Table 0385 - Manufacturer identifier

Value

Description

No suggested value defined

13.4.4.18 INV-18 Supplier identifier (CE) 01389

Components: <identifier (ST)> ^ <text (ST)> ^ <name of coding system (IS)> ^ <alternate identifier (ST)> ^ <alternate text (ST)> ^ <name of alternate coding system (IS)>
Definition: This field identifies the supplier of this substance. Refer to User-defined Table 0386 - Supplier identifier for suggested values.

User-defined Table 0386 - Supplier identifier

Value

Description

No suggested value defined

13.4.5 ECD - equipment command segment

The equipment command segment contains the information required to notify the receiving component what is to happen.

HL7 Attribute Table - ECD - Equipment Command

SEQ

LEN

DT

OPT

RP/#

TBL#

ITEM #

ELEMENT NAME

1

20

NM

R

01390

Reference Command Number

2

250

CE

R

0368

01391

Remote Control Command

3

80

ID

O

0136

01392

Response Required

4

200

TQ

O

01393

Requested Completion Time

5

65536

ST

O

Y

01394

Parameters

13.4.5.0 ECD field definitions

13.4.5.1 ECD-1 Reference command number (NM) 01390

Definition: This field contains the unique identifier for this particular command that should be used by the various components for future referral to this command. It is similar to the concept of MSH-10 "Message control ID", but at the equipment command/response level. This number is generated by the originator of this command.

13.4.5.2 ECD-2 Remote control command (CE) 01391

Components: <identifier (ST)> ^ <text (ST)> ^ <name of coding system (IS)> ^ <alternate identifier (ST)> ^ <alternate text (ST)> ^ <name of alternate coding system (IS)>
Definition: This field identifies the command that the component is to initiate. Refer to User-defined Table 0368 - Remote control command for valid values. Refer to LECIS standard for details.

User-defined Table 0368 - Remote control command

Value

Description

SA

Sampling

LO

Load

UN

Unload

LK

Lock

UC

Unlock

TT

Transport To

CN

Clear Notification

IN

Initialize/Initiate

SU

Setup

CL

Clear

PA

Pause

RE

Resume

ES

Emergency -stop

LC

Local Control Request

RC

Remote Control Request

AB

Abort

EN

Enable Sending Events

DI

Disable Sending Events

EX

Execute (command specified in field Parameters (ST) 01394)

13.4.5.3 ECD-3 Response required (ID) 01392

Definition: This field identifies the mode of synchronization that is to be used in relation to the execution of the command. "Y" (Yes) means that the response is required immediately after execution, "N" (No) response is not required at all. Refer to HL7 Table 0136 - Yes/no indicator for valid values.

13.4.5.4 ECD-4 Requested completion time (TQ) 01393

Components: <quantity (CQ)> ^ <interval (CM)> ^ <duration (ST)> ^ <start date/time (TS)> ^ <end date/time (TS)> ^ <priority (ST)> ^ <condition (ST)> ^ <text (TX)> ^ <conjunction (ID)> ^ <order sequencing (CM)>
Definition: This field identifies when the remote control action must be completed. The devices managed in the LAS should have synchronized time (use original HL7 message NMQ, NMD with "System Clock Segment" NCK). If relative time quantity is used, then the referenced time is the time transferred in the EQU segment.

13.4.5.5 ECD-5 Parameters (ST) 01394

Definition: This field identifies the parameters of the command (if they are not included in separate segment[s]).
Note: Elements of this segment (or other elements not defined here) may be required for certain vendor-specific equipment such as centrifuges, aliquoters, sorters, uncappers, recappers, automated storage units, etc.

13.4.6 ECR - equipment command response segment

The equipment command response segment contains the receiving component's response to the previously received command.

HL7 Attribute Table - ECR - Equipment Command Response

SEQ

LEN

DT

OPT

RP/#

TBL#

ITEM #

ELEMENT NAME

1

250

CE

R

0387

01395

Command Response

2

26

TS

R

01396

Date/Time Completed

3

65536

ST

O

Y

01397

Command Response Parameters

13.4.6.0 ECR field definitions

13.4.6.1 ECR-1 Command response (CE) 01395

Components: <identifier (ST)> ^ <text (ST)> ^ <name of coding system (IS)> ^ <alternate identifier (ST)> ^ <alternate text (ST)> ^ <name of alternate coding system (IS)>
Definition: This field identifies the response of the previously issued command. Refer to User-defined Table 0387 - Command response for valid values.

User-defined Table 0387 - Command response

Value

Description

OK

Command completed successfully

TI

Command cannot be completed within requested completion time

ER

Command cannot be completed because of error condition (see response parameters)

ST

Command cannot be completed because of the status of the requested equipment

UN

Command cannot be completed for unknown reasons

13.4.6.2 ECR-2 Date/time completed (TS) 01396

Definition: This field contains the date and time that the receiving component completed the requested command.

13.4.6.3 ECR-3 Command response parameters (ST) 01397

Definition: This field identifies any associated parameters that relate to the returned response command message.

13.4.7 NDS - notification detail segment

The equipment notification detail segment is the data necessary to maintain an adequate audit trail as well as notifications of events, (e.g., alarms that have occurred on a particular piece of equipment.

HL7 Attribute Table - NDS - Notification Detail

SEQ

LEN

DT

OPT

RP/#

TBL#

ITEM #

ELEMENT NAME

1

20

NM

R

01398

Notification Reference Number

2

26

TS

R

01399

Notification Date/Time

3

250

CE

R

0367

01400

Notification Alert Severity

4

250

CE

R

01401

Notification Code

13.4.7.0 NDS field definitions

13.4.7.1 NDS-1 Notification reference number (NM) 01398

Definition: This field contains a unique sequential reference number that may be used by various components to refer to this transaction. This number is generated by the originator of this notification.

13.4.7.2 NDS-2 Notification date/time (TS) 01399

Definition: This field is the date/time of the notifications.

13.4.7.3 NDS-3 Notification alert severity (CE) 01400

Components: <identifier (ST)> ^ <text (ST)> ^ <name of coding system (IS)> ^ <alternate identifier (ST)> ^ <alternate text (ST)> ^ <name of alternate coding system (IS)>
Definition: The severity of the specific notification. Refer to HL7 Table 0367 - Alert level for valid entries.

13.4.7.4 NDS-4 Notification code (CE) 01401

Components: <identifier (ST)> ^ <text (ST)> ^ <name of coding system (IS)> ^ <alternate identifier (ST)> ^ <alternate text (ST)> ^ <name of alternate coding system (IS)>
Definition: This field contains information about the type of notification being sent. These are manufacturer and equipment specific error or status codes, e.g., AQN0123 - aliquoting error - clot detected.

13.4.8 CNS - clear notification segment

The clear equipment notification segment contains the data necessary to allow the receiving equipment to clear any associated notifications.

HL7 Attribute Table - CNS - Clear Notification

SEQ

LEN

DT

OPT

RP/#

TBL#

ITEM #

ELEMENT NAME

1

20

NM

O

01402

Starting Notification Reference Number

2

20

NM

O

01403

Ending Notification Reference Number

3

26

TS

O

01404

Starting Notification Date/Time

4

26

TS

O

01405

Ending Notification Date/Time

5

250

CE

O

01406

Starting Notification Code

6

250

CE

O

01407

Ending Notification Code

13.4.8.0 CNS field definitions

13.4.8.1 CNS-1 Starting notification reference number (NM) 01402

Definition: This field contains the starting notification reference number that is to be cleared.

13.4.8.2 CNS-2 Ending notification reference number (NM) 01403

Definition: This field contains the ending notification reference number that is to be cleared. If empty, then only notification with Starting Notification Reference Number will be cleared.

13.4.8.3 CNS-3 Starting notification date/time (TS) 01404

Definition: This field is the starting date/time of the notifications to be cleared. If this field is empty but Ending Notification Date/Time is filled, then all notifications before Ending Notification Date/Time will be cleared.

13.4.8.4 CNS-4 Ending notification date/time (TS) 01405

Definition: This field is the ending date/time of the notifications to be cleared. If this field is empty but Starting Notification Date/Time is filled, then all notifications after Starting Notification Date/Time will be cleared.

13.4.8.5 CNS-5 Starting notification code (CE) 01406

Components: <identifier (ST)> ^ <text (ST)> ^ <name of coding system (IS)> ^ <alternate identifier (ST)> ^ <alternate text (ST)> ^ <name of alternate coding system (IS)>
Definition: This field contains the starting notification code that is to be cleared (see 13.4.7.4 NDS-4 Notification code (CE) 01401).

13.4.8.6 CNS-6 Ending notification code (CE) 01407

Components: <identifier (ST)> ^ <text (ST)> ^ <name of coding system (IS)> ^ <alternate identifier (ST)> ^ <alternate text (ST)> ^ <name of alternate coding system (IS)>
Definition: This field contains the ending notification code that is to be cleared (see 13.4.7.4 NDS-4 Notification code (CE) 01401). If empty, then only notification with Starting Notification Code will be cleared.

13.4.9 TCC - test code configuration segment

The test (e.g., analyte) code configuration segment is the data necessary to maintain and transmit information concerning the test entity codes that are being used throughout the "automated system."

HL7 Attribute Table - TCC - Test Code Configuration

SEQ

LEN

DT

OPT

RP/#

TBL#

ITEM #

ELEMENT NAME

1

250

CE

R

00238

Universal Service Identifier

2

80

EI

R

01408

Test Application Identifier

3

300

CM

O

0070/ 0163/ 0369

00249

Specimen Source

4

20

SN

O

01410

Auto-Dilution Factor Default

5

20

SN

O

01411

Rerun Dilution Factor Default

6

20

SN

O

01412

Pre-Dilution Factor Default

7

20

SN

O

01413

Endogenous Content of Pre-Dilution Diluent

8

10

NM

O

01414

Inventory Limits Warning Level

9

1

ID

O

0136

01415

Automatic Rerun Allowed

10

1

ID

O

0136

01416

Automatic Repeat Allowed

11

1

ID

O

0136

01417

Automatic Reflex Allowed

12

20

SN

O

01418

Equipment Dynamic Range

13

250

CE

O

00574

Units

14

250

CE

O

0388

01419

Processing Type

13.4.9.0 TCC field definitions

13.4.9.1 TCC-1 Universal service Identifier (CE) 00238

Components: <identifier (ST)> ^ <text (ST)> ^ <name of coding system (IS)> ^ <alternate identifier (ST)> ^ <alternate text (ST)> ^ <name of alternate coding system (IS)>
Definition: This field identifies the test code that information is being transmitted about. The alternate elements represent the test code identifier that has been assigned by the manufacturer to this particular test code.

13.4.9.2 TCC-2 Equipment test application identifier (EI) 01408

Components: <entity identifier (ST)> ^ <namespace ID (IS)> ^ <universal ID (ST)> ^ <universal ID type (ID)>
Definition: This field identifies the test application code assigned by the manufacturer of the equipment or reagents and associated with performing of the particular test specified by the Universal Test Identifier.

13.4.9.3 TCC-3 Specimen source (CM) 00249

Components: <specimen source name or code (CE)> ^ <additives (TX)> ^ <freetext (TX)> ^ <body site (CE)> ^ <site modifier (CE)> ^ <collection method modifier code (CE)> ^ <specimen role (CE)>
Subcomponents of specimen source name or code: <identifier (ST)> & <test (ST)> & <name of coding system (IS)> & <alternate identifier (ST)> & <alternate text (ST)> & <name of alternate coding system (ST)>
Subcomponents of body site: <identifier (ST)> & <test (ST)> & <name of coding system (IS)> & <alternate identifier (ST)> & <alternate text (ST)> & <name of alternate coding system (ST)>
Subcomponents of site modifier: <identifier (ST)> & <test (ST)> & <name of coding system (IS)> & <alternate identifier (ST)> & <alternate text (ST)> & <name of alternate coding system (ST)>
Subcomponents of collection method modifier code: <identifier (ST)> & <test (ST)> & <name of coding system (IS)> & <alternate identifier (ST)> & <alternate text (ST)> & <name of alternate coding system (ST)>
Subcomponents of specimen role: <identifier (ST)> & <test (ST)> & <name of coding system (IS)> & <alternate identifier (ST)> & <alternate text (ST)> & <name of alternate coding system (ST)>
Definition: This field is the site where the specimen should be obtained or where the service should be performed.
The first component contains the specimen source name or code (as a CE data type component). (Even in the case of observations whose name implies the source, a source may be required (e.g., blood culture: heart blood.) Refer to HL7 Table 0070 - Source of specimen for valid entries.
The second component should include free text additives to the specimen such as heparin, EDTA, or oxalate, when applicable.
The third is a free text component describing the method of collection when that information is a part of the order. When the method of collection is logically an observation result, it should be included as a result segment.
The fourth component specifies the body site from which the specimen was obtained, and the fifth is the site modifier. For example, the site could be antecubital fossa, and the site modifier "right." The components of the CE fields become sub-components. Refer to HL7 Table 0163 - Administrative site for valid entries.
The sixth component indicates whether the specimen is frozen as part of the collection method. Suggested values are F (Frozen); R (Refrigerated). If the component is blank, the specimen is assumed to be at room temperature.
The 7th component indicates the role of the sample. Refer to User- defined Table 0369 - Specimen role

13.4.9.4 TCC-4 Auto-dilution factor default (SN) 01410

Components: <comparator (ST)> ^ <num1 (NM)> ^ <separator/suffix (ST)> ^ <num2 (NM)>
Definition: This field is the value that is to be used as the default factor for automatically diluting a specimen by an instrument for this particular test code. (See examples in definition of "Dilution factor" in the "Specimen and Container Detail Segment".)

13.4.9.5 TCC-5 Rerun dilution factor default (SN) 01411

Components: <comparator (ST)> ^ <num1 (NM)> ^ <separator/suffix (ST)> ^ <num2 (NM)>
Definition: This field is the value that is to be used as the default factor for automatically diluting a specimen in case of rerun for this particular test code.

13.4.9.6 TCC-6 Pre-dilution factor default (SN) 01412

Components: <comparator (ST)> ^ <num1 (NM)> ^ <separator/suffix (ST)> ^ <num2 (NM)>
Definition: This field is the value that is to be used as the default factor for a specimen that is delivered to the laboratory automation system as pre-diluted for this particular test code.

13.4.9.7 TCC-7 Endogenous content of pre-dilution diluent (SN) 01413

Definition: This field represents a baseline value for the measured test that is inherently contained in the diluent. In the calculation of the actual result for the measured test, this baseline value is normally considered.

13.4.9.8 TCC-8 Inventory limits warning level (NM) 01414

Definition: This field is the value that is to be used as the threshold for initiating inventory warning-level messages.

13.4.9.9 TCC-9 Automatic rerun allowed (ID) 01415

Definition: This field identifies whether or not automatic reruns are to be initiated on specimens for this particular test code. Refer to HL7 Table 0136 -Yes/no indicator for valid values.

13.4.9.10 TCC-10 Automatic repeat allowed (ID) 01416

Definition: This field identifies whether or not automatic repeat testing is to be initiated on specimens for this particular test code. Refer to HL7 Table 0136 -Yes/no indicator for valid values.

13.4.9.11 TCC-11 Automatic reflex allowed (ID) 01417

Definition: This field identifies whether or not automatic or manual reflex testing is to be initiated on specimens for this particular test code. Refer to HL7 Table 0136 -Yes/no indicator for valid values.

13.4.9.12 TCC-12 Equipment dynamic range (SN) 01418

Components: <comparator (ST)> ^ <num1 (NM)> ^ <separator/suffix (ST)> ^ <num2 (NM)>
Definition: This is the range over which the equipment can produce results.

13.4.9.13 TCC-13 Units (CE) 00574

Components: <identifier (ST)> ^ <text (ST)> ^ <name of coding system (IS)> ^ <alternate identifier (ST)> ^ <alternate text (ST)> ^ <name of alternate coding system (IS)>
Definition: This field is the units that have a data type of CE. The default coding system for the units codes consists of the ISO+ abbreviation for a single case unit (ISO 2955-83) plus extensions, that do not collide with ISO abbreviations (see Section 4.1). We designate this coding system as ISO+. Both the ISO unit's abbreviations and the extensions are defined in Section TBD," and listed in Figure 7-13. The ISO+ abbreviations are the codes for the default coding system. Consequently, when ISO+ units are being used, only ISO+ abbreviations need be sent, and the contents of the units field will be backward compatible to HL7 Version 2.1. For more information on this field see reference Chapter 7, Section 7.4.2.6.
These units apply to fields "Endogenous content of pre-dilution diluent" and "Equipment dynamic range".

13.4.9.14 TCC-14 Processing type (CE) 01419

Components: <identifier (ST)> ^ <text (ST)> ^ <name of coding system (IS)> ^ <alternate identifier (ST)> ^ <alternate text (ST)> ^ <name of alternate coding system (IS)>
Definition: This field identifies the processing type that applies to this test code. If this attribute is omitted, then regular production is the default. Refer to HL7 Table 0388 - Processing type for valid values.

HL7 Table 0388 - Processing type

Value

Description

P

Regular Production

E

Evaluation

13.4.10 TCD - test code detail segment

The test code detail segment contains the data necessary to perform operations or calculations, or execute decisions by the laboratory automation system, and which are not supported by the original HL7 segments related to orders (ORC, OBR). For detail of use see messages of laboratory orders and observations in chapters 4 and 7.

HL7 Attribute Table - TCD - Test Code Detail

SEQ

LEN

DT

OPT

RP/#

TBL#

ITEM #

ELEMENT NAME

1

250

CE

R

00238

Universal Service Identifier

2

20

SN

O

01420

Auto-Dilution Factor

3

20

SN

O

01421

Rerun Dilution Factor

4

20

SN

O

01422

Pre-Dilution Factor

5

20

SN

O

01413

Endogenous Content of Pre-Dilution Diluent

6

1

ID

O

0136

01416

Automatic Repeat Allowed

7

1

ID

O

0136

01424

Reflex Allowed

8

250

CE

O

0389

01425

Analyte Repeat Status

13.4.10.0 TCD field definitions

13.4.10.1 TCD-1 Universal service Identifier (CE) 00238

Components: <identifier (ST)> ^ <text (ST)> ^ <name of coding system (IS)> ^ <alternate identifier (ST)> ^ <alternate text (ST)> ^ <name of alternate coding system (IS)>
Definition: This field identifies the test code that information is being transmitted about.

13.4.10.2 TCD-2 Auto-dilution factor (SN) 01420

Components: <comparator (ST)> ^ <num1 (NM)> ^ <separator/suffix (ST)> ^ <num2 (NM)>
Definition: This field is the value that is to be used as the factor for automatically diluting a particular specimen by an instrument for this particular test code. (See examples in definition of "Dilution factor" in the "Specimen and Container Detail Segment".)

13.4.10.3 TCD-3 Rerun dilution factor (SN) 01421

Components: <comparator (ST)> ^ <num1 (NM)> ^ <separator/suffix (ST)> ^ <num2 (NM)>
Definition: This field is the value that is to be used as the factor for automatically diluting a particular specimen in case of rerun for this particular test code.

13.4.10.4 TCD-4 Pre-dilution factor (SN) 01422

Components: <comparator (ST)> ^ <num1 (NM)> ^ <separator/suffix (ST)> ^ <num2 (NM)>
Definition: This field is the value that is to be used as the factor for a particular specimen that is delivered to the automated system as pre-diluted for this particular test code.

13.4.10.5 TCD-5 Endogenous content of pre-dilution diluent (SN) 01413

Components: <comparator (ST)> ^ <num1 (NM)> ^ <separator/suffix (ST)> ^ <num2 (NM)>
Definition: This field represents the rest concentration of the measured test in the diluent. It is the value that is to be used for calculation of the concentration of pre-diluted specimens for this particular test code.

13.4.10.6 TCD-6 Automatic repeat allowed (ID) 01416

Definition: This field identifies whether or not automatic repeats are to be initiated for this particular specimen for this particular test code. Refer to HL7 Table 0136 -Yes/no indicator for valid values.

13.4.10.7 TCD-7 Reflex allowed (ID) 01424

Definition: This field identifies whether or not automatic or manual reflex testing is to be initiated for this particular specimen. Refer to HL7 Table 0136 -Yes/no indicator for valid values

13.4.10.8 TCD-8 Analyte repeat status (CE) 01425

Components: <identifier (ST)> ^ <text (ST)> ^ <name of coding system (IS)> ^ <alternate identifier (ST)> ^ <alternate text (ST)> ^ <name of alternate coding system (IS)>
Definition: This field identifies the repeat status for the analyte/result (e.g. original, rerun, repeat, reflex). Refer to HL7 Table 0389 - Analyte repeat status for valid values.
For purpose of this chapter we assume the following:
Repeated test without dilution -- performed usually to confirm correctness of results (e.g., in case of results flagged as "Panic" or mechanical failures).
Repeated test with dilution -- performed usually in the case the original result exceeded the measurement range (technical limits).
Reflex test -- this test is performed as the consequence of rules triggered based on other test result(s)

HL7 Table 0389 - Analyte repeat status

Value

Description

O

Original, first run

R

Repeated without dilution

D

Repeated with dilution

F

Reflex test

13.4.11 SID - substance identifier segment

The Substance Identifier segment contains data necessary to identify the substance (e.g., reagents) used in the production of analytical test results. The combination of these fields must uniquely identify the substance, i.e., depending on the manufacturer all or some fields are required (this is the reason the optionality is `C' (conditional)). If the analysis requires multiple substances, this segment is repeated for each substance. The segment(s) should be attached to the TCD segment.
Another purpose of this segment is to transfer the control manufacturer, lot, etc. information for control specimens. In this case the SID segment should be attached to the SAC segment describing the container with the control specimen.

HL7 Attribute Table - SID - Substance Identifier

SEQ

LEN

DT

OPT

RP/#

TBL#

ITEM #

ELEMENT NAME

1

250

CE

C

01426

Application / Method Identifier

2

20

ST

C

01129

Substance Lot Number

3

200

ST

C

01428

Substance Container Identifier

4

250

CE

C

0385

01429

Substance Manufacturer Identifier

13.4.11.0 SID field definitions

13.4.11.1 SID-1 Application / method identifier (CE) 01426

Components: <identifier (ST)> ^ <text (ST)> ^ <name of coding system (IS)> ^ <alternate identifier (ST)> ^ <alternate text (ST)> ^ <name of alternate coding system (IS)>
Definition: This field identifies the application / method used for the analysis.
Example: GLUCOSE is an orderable test. GLUCOSE can be analyzed using various applications / methods, which have manufacturer specific identifiers.

13.4.11.2 SID-2 Substance lot number (ST) 01129

Definition: This field specifies the lot number assigned by the manufacturer during production of the substance.

13.4.11.3 SID-3 Substance container identifier (ST) 01428

Definition: This field specifies the container assigned by the manufacturer during production of the substance. This identifier should be unique within specific lot of specific application / method.

13.4.11.4 SID-4 Substance manufacturer identifier (CE) 01429

Components: <identifier (ST)> ^ <text (ST)> ^ <name of coding system (IS)> ^ <alternate identifier (ST)> ^ <alternate text (ST)> ^ <name of alternate coding system (IS)>
Definition: This field identifies the manufacturer of this substance. Refer to User-defined Table 0451 - Manufacturer identifier for suggested values.

13.4.12 EQP - equipment log/service segment

The equipment log/service segment is the data necessary to maintain an adequate audit trail of events that have occurred on a particular piece of equipment.

HL7 Attribute Table - EQP - Equipment/log Service

SEQ

LEN

DT

OPT

RP/#

TBL#

ITEM #

ELEMENT NAME

1

250

CE

R

0450

01430

Event type

2

20

ST

O

01431

File Name

3

26

TS

R

01202

Start Date/Time

4

26

TS

O

01432

End Date/Time

5

65536

FT

R

01433

Transaction Data

13.4.12.0 EQP field definitions

13.4.12.1 EQP-1 Event type (CE) 01430

Components: <identifier (ST)> ^ <text (ST)> ^ <name of coding system (IS)> ^ <alternate identifier (ST)> ^ <alternate text (ST)> ^ <name of alternate coding system (IS)>
Definition: This field identifies the type of event of the message. Refer to HL7 Table 0450 - Eve nt type for valid values.

HL7 Table 0450-Event type

Value

Description

LOG

Log Event

SER

Service Event

13.4.12.2 EQP-2 File name (ST) 01431

Definition: This field is the physical file name that is being used to store information about the transmitted log and/or service event.

13.4.12.3 EQP-3 Start date/time (TS) 01202

Definition: This field is the date/time that the event started.

13.4.12.4 EQP-4 End date/time (TS) 01432

Definition: This field is the date/time that the event was completed.

13.4.12.5 EQP-5 Transaction data (FT) 01433

Definition: This field is the data that the log and/or service event was about and is to be logged.

13.5 NOTES REGARDING USAGE

13.5.1 Other required original HL7 messages

The transaction for synchronization of system clocks must be supported by all equipment as receiver. The master (sender) of the time is either the LAS computer or the LIS.

13.5.2 Transfer of laboratory test orders and results

For the transfer of laboratory automation orders and results refer to 4.2.6 OML - laboratory order message (event O21) instead of ORM and 7.2.2 ORL - unsolicited laboratory observation message (event O20) instead of ORU.

13.5.3 Transfer of QC results

Use the 7th component of OBR-15-specimen source or SAC-6 -specimen source to indicate that this is a control specimen. Use SAC-3-container identifier for the identification of a control specimen container. The SID segment appended to this SAC segment specifies the manufacturer, lot identifiers, etc. for the control specimen.
The identification of the instrument performing the QC measurement, should be transferred with the OBX-18-equipment instance identifier), the measurement data/time with the OBX-19 date/time of the analysis.

13.5.4 Query for order information - triggers for download of test orders

There is no specific query for laboratory order information. Instead, the order information should be downloaded to the LAS either unsolicited (based on LIS internal triggers such as Sample Collected or Order Entered) or after an implicit trigger such as Sample Status Update - sample identified by the LAS.

13.5.5 Transfer of additional information for automated processing

Instruments requiring additional information for performing of automated processing based on automatic validation, such as Expected Date of Birth (Delivery Date), Menstrual Status, History of Medication Use, should consider using OBX segments and LOINC codes. For example, the LOINC code for Delivery Date is 11778-8, Menstrual status is 8678-5, History of Medication Use is 10160-0.Example Messages

13.5.6 Laboratory order message

Laboratory order with multiple containers and multiple test orders related to each container.
MSH|^~\&|INSTPROG|AUTINST|LASPROG|LASSYS|19980630080040|SECURITY |OML^O21|MSG00001|P|2.4|<cr>
PID|1||28514753||Joan^Howard^J||196303241225|F<CR>
SAC|991912376^EXTLAB|01039421^THISLAB|092321A^LAS|092321^LAS||SER |19980620080037|U^UNKNOWN<cr>
ORC|NW|5212400021A|||||^^^^^R<CR>
OBR|1|5212400021A||2951-2^SODIUM^LN|||199808101444||||A||||SER<CR>
ORC|NW|5212400021A|||||^^^^^R<CR>
OBR|1|5212400021A||2000-8^CALCIUM.TOTAL^LN|||199808101444||||A||||XXX<CR>
SAC|991912376^EXTLAB|01039421^THISLAB|092321B^LAS|092321^LAS||SER |19980620080037|U^UNKNOWN<cr>
ORC|NW|5212400021A|||||^^^^^R<CR>
OBR|1|5212400021A||4064-2^TRAZODONE^LN|||199808101444||||A||||SER<CR>
ORC|NW|5212400021A|||||^^^^^R<CR>
OBR|1|5212400021A||3042-9^TRICHLOROETHANOL^LN|||199808101444||||A||||SER<CR>
Laboratory order with test order requiring multiple containers (1st with special treatment, 2nd without).
MSH|^~\&|INSTPROG|AUTINST|LASPROG|LASSYS|19980630080040|SECURITY |OML^O21|MSG00001|P|2.4|<cr>
PID|1||28514753||Joan^Howard^J||196303241225|F<CR>
ORC|NW|5212400021A|||||^^^^^R<CR>
OBR|1|5212400021A||11054-4^CHOLESTEROL.LDL/CHOLESTEROL.HDL^LN|| |199808101444||||A||||XXX<CR>
SAC|991912376^EXTLAB|01039421^THISLAB|092321T^LAS|092321^LAS||ORH |19980620080037|I^IDENTIFIED|R5^5_HOLE_RACK|120|1||||BUF1^IN BUFFER 1 ||||||||||||||^1^:^1|LDLP<cr>
SAC|991912376^EXTLAB|01039421^THISLAB|092321A^LAS|092321^LAS||SER |19980620080037|I^IDENTIFIED|R5^5_HOLE_RACK|732|3||||BUF1^IN BUFFER 1 ||||||||||||||^1^:^1<cr>
Laboratory order with test order with previous result, where patient data did not change.
MSH|^~\&|INSTPROG|AUTINST|LASPROG|LASSYS|19980630080040|SECURITY |OML^O21|MSG00001|P|2.4|<cr>
PID|1||28514753||Joan^Howard^J||196303241225|F<CR>
SAC|991912376^EXTLAB|01039421^THISLAB|092321A^LAS|092321^LAS||BLDV |19980620080037|U^UNKNOWN<cr>
ORC|NW|5212400021A|||||^^^^^R<CR>
OBR|1|5212400021A||2951-2^SODIUM^LN|||199808101444||||A||||SER<CR>
ORC|RE|5212498721A|||||^^^^^R<CR>
OBR|1|5212498721A||2951-2^SODIUM^LN|||199807240826||||||||SER<CR>
OBX|1|NM|2951-2^SODIUM^LN||24.3|ug/g||N<CR>

13.5.7 Unsolicited laboratory observation message

Analysis results related to a particular container with patient sample.
MSH|^~\&|INSTPROG|AUTINST|LASPROG|LASSYS|19980630080040|SECURITY |OUL^R21|MSG00001|P|2.4|<cr>
PID|1||28514753||Joan^Howard^J||196303241225|F<CR>
SAC|991912376^EXTLAB|01039421^THISLAB|092321A^LAS|092321^LAS||SER |19980620080037|R^PROCESS COMPLETED<cr>
ORC|RE|5212498721A|||||^^^^^R<CR>
OBR|1|5212498721A||2951-2^SODIUM^LN|||199807240826||||||||SER<CR>
OBX|1|NM|2951-2^SODIUM^LN||24.3|ug/g||N<CR>
Analysis results related to a particular container with QC sample and the lot and manufacturer information about this sample (see use of SAC-SID segments).
MSH|^~\&|INSTPROG|AUTINST|LASPROG|LASSYS|19980630080040|SECURITY |OUL^R21|MSG00001|P|2.4|<cr>
SAC|||Q092321^LAS|||SER^^^^^^Q |19980620080037|R^PROCESS COMPLETED<cr>
SID|01230^Na|ABCDE-01234567890||04^RD<cr>
ORC|RE|5212498721A|||||^^^^^R<CR>
OBR|1|5212498721A||2951-2^SODIUM^LN|||199807240826||||||||SER^^^^^^Q<CR>
OBX|1|NM|2951-2^SODIUM^LN||24.3|ug/g||N<CR>
Analysis results of a reflex test for a patient sample with basic identification data (lot, manufacturer, etc.) of the reagent involved in the results generation (see TCD-SID segments).
MSH|^~\&|INSTPROG|AUTINST|LASPROG|LASSYS|19980630080040|SECURITY |OUL^R21|MSG00001|P|2.4|<cr>
PID|1||28514753||Joan^Howard^J||196303241225|F<CR>
SAC|991912376^EXTLAB|01039421^THISLAB|092321A^LAS|092321^LAS||SER |19980620080037|R^PROCESS COMPLETED<cr>
ORC|RE|5212498721A|||||^^^^^R<CR>
OBR|1|5212498721A||2951-2^SODIUM^LN|||199807240826||||||||SER<CR>
OBX|1|NM|2951-2^SODIUM^LN||24.3|ug/g||N<CR>
TCD|2951-2^SODIUM^LN|||||||F
SID|01230^Na|PQRST-01234567890||04^RD<cr>

13.5.8 Automated equipment status update

The chemistry analyzer 0001 was powered up directly by the operator (local control) and correctly performed the initialization process. This information is sent by the analyzer to the LAS.
MSH|^~\&|INSTPROG|AUTINST|LASPROG|LASSYS|19980630080040|SECURITY |ESU^U01|MSG00001|P|2.4|<cr>
EQU|0001^CHEMISTRYANALYZER|19980630080038|PU^POWERED_UP|L^LOCAL|N^NORMAL<cr>
ISD|123456789|IN^INIT|OK<cr>

13.5.9 Automated equipment status request

The LAS queries the chemistry analyzer 0001 for status information.
MSH|^~\&|LASPROG|LASSYS|INSTPROG|AUTINST|19980630080040|SECURITY |ESR^U02|MSG00001|P|2.4|<cr>
EQU|0001^CHEMISTRYANALYZER|19980630080038<cr>

13.5.10 Specimen status update

The chemistry analyzer 0001 recognized an aliquot container (id=092321A) with blood. This container is in a position 1 of carrier type R5 (id=120) and is located in the input buffer 1.
MSH|^~\&|INSTPROG|AUTINST|LASPROG|LASSYS|19980630080040|SECURITY |SSU^U03|MSG00001|P|2.4|<cr>
EQU|0001^CHEMISTRYANALYZER|19980630080038<cr>
SAC|991912376^EXTLAB|01039421^THISLAB|092321A^LAS|092321^LAS||BLD^BLOOD |19980620080037|I^IDENTIFIED|R5^5_HOLE_RACK|120|1||||BUF1^INPUT BUFFER 1<cr>
A pre-analytical instrument 0001 performed aliquoting and sorting operation.
(See Fig. 13-5 for visualization of positions and locations)
The carrier (id=2002) with primary/parent container (id=12345) at position 2 was transported in the location: output buffer 1, into position 4 of the output tray (id=A1203).
The aliquot container (id=12345A) was sorted into the manual transportable carrier (id=045), in row 3, column 2. This carrier is located in the sorter bed at location 4.
MSH|^~\&|PREANPROG|AUTPREAN|LASPROG|LASSYS|19980630080040|SECURITY |SSU^U03|MSG00002|P|2.4|<cr>
EQU|0001^AQS|19980630080043<cr>
SAC|991912376^EXTLAB|01039421^THISLAB|12345^LAS||||19980620080039|R^COMPLETED |R3^3_HOLE_RACK|2002|1|OT^OUTPUTTRAY|A1203^AQSTRAY|4|OB1^OUTPUTBUFFER<cr>
SAC|991912376^EXTLAB|01039421^THISLAB|12345A^LAS|12345^LAS|||19980620080039 |R^COMPLETED|R14^14_HOLE_RACK|045|3^2||||AQSBED||||||2|0.5||ml<cr>

13.5.11 Specimen status request

The chemistry analyzer 0001 queries the LAS for status of specimen/container (id=092321A).
MSH|^~\&|LASPROG|LASSYS|INSTPROG|AUTINST|19980630080040|SECURITY |SSR^U04|MSG00001|P|2.4|<cr>
EQU|0001^CHEMISTRYANALYZER|19980630080038<cr>
SAC|991912376^EXTLAB|01039421^THISLAB|092321A^LAS||||199806200823<cr>

13.5.12 Automated equipment inventory update

The chemistry analyzer 0001 sends to the LAS the status of a TSH reagent (id=MF01239) in bottle (id=12345).
MSH|^~\&|INSTPROG|AUTINST|LASPROG|LASSYS|19980630080040|SECURITY |INU^U05|MSG00001|P|2.4|<cr>
EQU|0001^CHEMISTRYANALYZER|19980630080038<cr>
INV|MF01239^REAGENT1|OK^OK_STATUS|SR^SINGLE_TEST_REAGENT |12345^BOTTLE_NUM|||||190||ML|20000101||^^D60|TSH|A12345678|PROD1<cr>

13.5.13 Automated equipment inventory request

The LAS queries the chemistry analyzer 0001 for status of all packages of the substance (id=MF01239).
MSH|^~\&|LASPROG|LASSYS|INSTPROG|AUTINST|19980630080040|SECURITY |INR^U06|MSG00001|P|2.4|<cr>
EQU|0001^CHEMISTRYANALYZER|19980630080038<cr>
INV|MF01239^REAGENT1|OK^OK_STATUS<cr>

13.5.14 Automated equipment command

The LAS sends command of "Clearing Notification" to the chemistry analyzer 0001.
MSH|^~\&|LASPROG|LASSYS|INSTPROG|AUTINST|19980630080040|SECURITY |EAC^U07|MSG00001|P|2.4|<cr>
EQU|0001^CHEMISTRYANALYZER|19980630080038<cr>
ECD|89421|CN^CLEAR NOTIFICATION|Y^YES<cr>
CNS|1209|1500|199806010800|199806300800<cr>

13.5.15 Automated equipment response

The chemistry analyzer confirms completion of the execution of the initialization command.
MSH|^~\&|INSTPROG|AUTINST|LASPROG|LASSYS|19980630080040|SECURITY |EAR^U08|MSG00001|P|2.4|<cr>
EQU|0001^CHEMISTRYANALYZER|19980630080038<cr>
ECD|89421|IN^INIT|Y^YES<cr>
ECR|OK^COMMAND_COMPLETE|19980630080035<cr>

13.5.16 Automated equipment notification

The chemistry analyzer sends a notification (warning) about drift in the detection unit.
MSH|^~\&|INSTPROG|AUTINST|LASPROG|LASSYS|19980630080040|SECURITY |EAN^U09|MSG00001|P|2.4|<cr>
EQU|0001^CHEMISTRYANALYZER|19980630080038<cr>
NDS|8923|199806300800|W^WARNING^|DU001^DETECTIO UNIT DRIFT<cr>

13.5.17 Automated equipment test code settings update

The LAS send update of configuration parameters for Glucose test.
MSH|^~\&|LASPROG|LASSYS|INSTPROG|AUTINST|19980630080040|SECURITY |TCU^U10|MSG00001|P|2.4|<cr>
EQU|0001^CHEMISTRYANALYZER|19980630080038<cr>
TCC|15074-8^GLUCOSE|GLU-HK^CHEMISTRYANALYZER|SER^SERUM|10|10|0|0|500| Y^YES|Y^YES|N^NO |^2^-^400|mg/dL|P<cr>

13.5.18 Automated equipment test code settings request

The chemistry analyzer 0001 queries the LAS for configuration parameters of the Glucose test.
MSH|^~\&|INSTPROG|AUTINST|LASPROG|LASSYS|19980630080040|SECURITY |TCR^U11|MSG00001|P|2.4|<cr>
EQU|0001^CHEMISTRYANALYZER|19980630080038<cr>
TCC|15074-8^GLUCOSE|GLU-HK^CHEMISTRYANALYZER<cr>

13.5.19 Automated equipment log/service update

The chemistry analyzer 0001 sends 1 record from the event log to the LAS.
MSH|^~\&|INSTPROG|AUTINST|LASPROG|LASSYS|19980630080040|SECURITY |LSU^U12|MSG00001|P|2.4|<cr>
EQU|0001^CHEMISTRYANALYZER|19980630080038<cr>
EQP|LOG^LOG_EVENT||199806300755|199806300800|I976 Instrument Initialization<cr>

13.5.20 Automated equipment log/service request

The LAS queries chemistry analyzer for log file of events occurring between 7am and 8am on 30th June 1998.
MSH|^~\&|LASPROG|LASSYS|INSTPROG|AUTINST|19980630080040|SECURITY |LSR^U13|MSG00001|P|2.4|<cr>
EQU|0001^CHEMISTRYANALYZER|19980630080038<cr>
EQP|LOG^LOG_EVENT||199806300700|199806300800<cr>

13.6 OUTSTANDING ISSUES

None.

[1]

NCCLS, 940 West Valley Road, Suite 1400, Wayne, PA 19087; www.nccls.org
[2] (NCCLS. Laboratory Automation: Communications With Automated Clinical Laboratory Systems, Instruments, Devices, and Information Systems; Approved Standard - NCCLS Document AUTO3-A [ISBN 1-56238-361-2}. NCCLS, 940 West Valley Road, Suite 1400, Wayne, PA 19087-1898 USA, 2000). www.nccls.org
[3] ANSI Standard X3.182-1990. Bar Code Print Quality Guidelines. New York, NY: American National Standards Institute; 1995
[4] ASTM E1013-93. Standard Terminology Relating to Computerized Systems. West Conshohocken, PA: American Society for Testing and Materials; 1993
[5] IEEE 100. Dictionary of Electrical and Electronics Terms. Institute of Electrical and Electronics Engineers, Inc.; 1996
[6] IEEE 610. Glossary of Computer Languages. Institute of Electrical and Electronics Engineers, Inc.; 1993
[7] ANSI X3.172-1996. Information Technology - American National Standards Dictionary of Information Technology (ANSDIT). New York, NY: American National Standards Institute; 1996[8] This error segment indicates the fields that caused a transaction to be rejected.
[9] Example of use of container ID fields for various sample types:

SAC fieldPrimary containerAliquot container
with Bar-codeAliquot container
without Bar-code, e.g. microtiter well"Container ID" (SAC-3)Primary container IDAliquot container ID--"Primary (parent) Container ID" (SAC-4)--Primary container IDPrimary container ID
