7. Observation Reporting |
|
Co-Chair:
Hans Buitendijk Siemens Healthcare
Co-Chair:
Lorraine Constable Constable Consulting
Co-Chair:
Robert Hausam Hausam Consulting
Co-Chair:
Patrick Loyd Gordon Point Informatics Ltd
Co-Chair
Ken McCaslin Quest Diagnostics
Editors
Hans Buitendijk Siemens Healthcare
Ken McCaslin Quest Diagnostics
Sponsoring Workgroup:
Orders & Observations
List Server:
ord@lists.hl7.org
This chapter describes the transaction set required for sending structured patient-oriented clinical data from one computer system to another. A common use of these transaction sets will be to transmit observations and results of diagnostic studies from the producing system (e.g., clinical laboratory system, EKG system) (the filler), to the ordering system (e.g., HIS order entry, physician's office system) (the placer). Observations can be sent from producing systems to clinical information systems (not necessarily the order placer) and from such systems to other systems that were not part of the ordering loop, e.g., an office practice system of the referring physician for inpatient test results ordered by an inpatient surgeon. This chapter also provides mechanisms for registering clinical trials and methods for linking orders and results to clinical trials and for reporting experiences with drugs and devices.
These transaction sets permit the transmission of clinical observations including (but not limited to) clinical laboratory results, measures of patient status and condition, vital signs, intake and output, severity and/or frequency of symptoms.
If the observation being reported meets one or more of the following criteria, then the content would qualify as a medical document management message (MDM) rather than an observation message (ORU). The reader is referred to the MDM message type in Chapter 9.
Documents/reports that require succession management to reflect the evolution of both document addenda and replacement documents. Succession management is described in Chapter 9.
Documents/reports where the Sender wants to indicate the availability of the report for use in patient care using the availability status present in the TXA segment, as described in Chapter 9.
Additional considerations that may affect the appropriateness of using an MDM message:
Documents/reports where the whole requires a signature as part of the message. While the ORU message does not support the inclusion of signature or authentication, some document content forms support these requirements. Of particular note, CDA documents provide for the inclusion of originator/signature. Thus, if a CDA document requires a signature but does not require succession management or report availability (as described above), then an ORU message may be appropriate. However, if the CDA document requires succession management or report availability, then an MDM message is required.
Documents/reports where the whole requires authentication as part of the message. As described for signatures, authentication may exist within the document content form. Again, CDA documents provide for the identification of an authenticator. Thus if a CDA document does not require succession management or report availability, then an ORU message may be appropriate. If succession management or report availability are necessary, then an MDM message is required.
Documents/reports where the content as a whole requires special confidentiality protection using the confidentiality status present in the TXA segment, as described in Chapter 9.
Documents/reports where document storage status is useful for archival and purging purposes using the storage status present in the TXA segment, as described in Chapter 9.
Using these criteria, the following examples of documents/reports would typically qualify as medical document management (MDM) messages. Note that as clinical content, the following documents/reports typically require succession management and/or report availability thus would require an MDM message even if the payload utilizes CSA.
History and Physical
Consultation reports
Discharge summaries
Surgical/anatomic pathology reports
Diagnostic imaging reports
Cardio-diagnostic reports
Operative reports
As an international example, microbiology reports may include clinical interpretation and require authentication. This may not be the case in all jurisdictions, but is an example that the use or requirement of MDM messages may be influenced by local considerations.
Usage Notes:
Transcription is not a defining quality for the selection of an MDM or ORU message. In an MDM message, the document/report is typically dictated or transcribed, but not always. Machine-generated or automated output is an example of a document/report that is appropriate to the MDM but is not transcribed.
Observations may be transmitted in a solicited (in response to a query) or unsolicited mode. In the solicited mode, a user requests a set of observations according to criteria transmitted by the user. The sending system responds with existing data to satisfy the query (subject to access controls). Queries do not elicit new observations by the target system, they simply retrieve old observations. (See Chapter 5 for full discussion of the query transmission.)
The unsolicited mode is used primarily to transmit the values of new observations. It is the mode used by producing services to return the values of observations requested by an ordering system. A laboratory system, for example, would usually send the results of an AM electrolytes to the ordering HIS via the unsolicited mode. An intensive care system would send the blood pressures to the same HIS by the same mode. Calling such transactions unsolicited may sound like a misnomer, but is not. The placing service solicits the producing service to make the observation. It could also (through a query) solicit the value of that observation after it has been made. However, such an approach would demand continuous polling of the producing system until the result was produced. Using the unsolicited mode, the producing service returns the value of an observation as soon as it is available. The unsolicited mode can also be used to transmit new results to a system (e.g., an archival medical record system) that did not order the observation. The transactions that define these modes are more fully described in Section 7.2, "General Trigger Events & Message Definitions."
Observations are usually ordered and reported as sets (batteries) of many separate observations. Physicians order electrolytes (consisting of sodium, potassium, chloride, bicarbonate) or vitals (consisting of diastolic blood pressure, systolic blood pressure, pulse, and temperature). Moreover, tests that we may think of as single entity, e.g., cardiac echo, usually yield multiple separate measurements, e.g., left ventricular diameter, left atrial diameter, etc. Moreover, observations that are usually reported as text (e.g., the review of systems from the history and physical) can also be considered a set of separately analyzable units (e.g., cardiac history, pulmonary history, genito-urinary history, etc.). We strongly suggest that all text clinical reports be broken down into such separate analyzable entities and that these individual entities be transmitted as separate OBX segments. Because many attributes of a set of observations taken at one time will be identical, one OBR segment serves as a header for the report and carries the information that applies to all of the individual observations in the set. In the case of ordered observations, the OBR segment is a "turn-around document" like the manual request forms it replaces. It carries information about the order to the producing service; a copy of the OBR with additional fields completed is returned with the observations to the requesting service. Alternately, text documents can be encoded as a CDA document and sent within a single OBX.
Not all observations are preceded by an order. However, all observations whether explicitly ordered or initiated without an order are reported with an OBR segment as the report header.
The major segments (OBR, OBX) defined in this chapter, their fields, and the code tables have been defined in collaboration with ASTM E31.11 with the goal of keeping HL7 observation transmission the same as ASTM E1238 in pursuit of the goals of ANSI HISPP and the Message Standards Developers Subcommittee. (Some sections of this chapter have been taken with permission directly from the E1238-91 document and vice versa in pursuit of those goals).
The OBR segment provides information that applies to all of the observations that follow. It includes a field that identifies a particular battery (or panel or set) of observations (e.g., electrolytes, vital signs or Admission H&P). For simplicity we will refer to the observation set as the battery. The battery usually corresponds to the entity that is ordered or performed as a unit. (In the case of a query, observation sets may be a more arbitrary collection of observations.) The OBX segment provides information about a single observation, and it includes a field that identifies that single observation (e.g., potassium, diastolic blood pressure or admission diagnosis). Both of these fields assume master tables that define coding systems (the universe of valid identifying codes) for batteries and observations, respectively. These tables will usually be part of the producing and sending services application and (usually) include many other useful pieces of information about the observation or battery. Segments for transmitting such master file information between systems that produce and systems that use clinical information are described in Chapter 8.
This Standard does not require the use of a particular coding system to identify either batteries or single observations In the past, local institutions tended to invent their own unique code systems for identifying test and other clinical observations because standard codes were not available. Such local code systems sufficed for transmitting information within the institutions but presented high barriers to pooling data from many sources for research or for building medical record systems. However, standard code systems such as LOINC® and SNOMED now exist for many of these purposes, and we strongly encourage their use in observation reporting. These codes can be sent either as the only code or they can be sent along with the local historic code as the second code system in a CWE or CNE coded field.
In past versions of the HL7 standard, Appendix A to Chapter 7 presented suggestions for constructing clinical codes from existing procedure code systems such as CPT4. Appendix A is now part of the Implementation Guide and contains LOINC® codes for most laboratory tests and many common clinical variables and codes for reporting observations from the laboratory, 12-lead EKG, cardiac echoes, obstetrical ultrasounds, radiology reports, history and physical findings, tumor registries, vital signs, intake and outputs, and more. The most recent version of the LOINC® database, which includes records for more than 26,000 observations and includes codes, names, synonyms and other attributes (such as the molecular weights of chemical moieties) for each observation, is available from the Regenstrief Institute at http://loinc.org/. Codes for Neurophysiologic variables (EEG, EMG, Evoked potentials) are provided in Appendix X2 of ASTM E1467. Some parts of this document (the discussion and tables defining units, the discussion of the rules of mapping observations to OBX segments, and some of the examples at the end of the chapter) have been copied (with permission) from ASTM E1238.
As is true throughout this Standard, the emphasis should be on the abstract messages, defined without regard to the encoding rules. The example messages, however, are based upon the HL7 encoding rules.
Following this Purpose and general information section, the remainder of this chapter is organized into four main subject areas; General, Clinical Trials, Product Experience and Waveform. Sections 7.1 to 7.5 document the trigger events, message definitions, segment definitions and examples for general observation reporting. Sections 7.6 to 7.9 include all information related to Clinical Trials. Sections 7.10 to 7.13 include all information related to Product Experience messaging, and sections 7.14 to 7.17 include Waveform messaging information. Large tables can be found in section 7.18 and outstanding issues are listed in section 7.19.
Person or service that requests (places order for) an observation battery, e.g., the physician, the practice, clinic, or ward service, that orders a lab test, X-ray, vital signs, etc. The meaning is synonymous with, and used interchangeably with, requestor. See ORC-2-placer order number, Chapter 4, section 4.5.1.2, "Placer order number."
Person, or service, who produces the observations (fills the order) requested by the requestor. The word is synonymous with "producer" and includes diagnostic services and clinical services and care providers who report observations about their patients. The clinical laboratory is a producer of lab test results (filler of a lab order), the nursing service is the producer of vital signs observations (the filler of orders to measure vital signs), and so on. See ORC-3-filler order number, Chapter 2, section 4.5.1.3, "Filler order number."
A set of one or more observations identified as by a single name and code number, and treated as a shorthand unit for ordering or retrieving results of the constituent observations. In keeping with the mathematical conventions about set, a battery can be a single observation. Vital signs, electrolytes, routine admission tests, and obstetrical ultrasound are all examples. Vital signs (conventionally) consist of diastolic and systolic blood pressure, pulse, and respiratory rate. Electrolytes usually consist of Na+, K+, Cl-, and HCO3-. Routine admission tests might contain CBC, Electrolytes, SMA12, and Urinalysis. (Note that the elements of a battery for our purposes may also be batteries.) Obstetrical ultrasound is a battery made up of traditional component measurements and the impression, all of which would be returned as separate results when returned to the requestor. A test involving waveform recording (such as an EKG) can be represented as a battery comprised of results of many categories, including digital waveform data, labels and annotations to the data, measurements, and the impression
The word battery is used in this specification synonymously with the word profile or panel. The individual observation elements within a battery may be characteristic of a physiologic system (e.g., liver function tests), or many different physiologic systems.
A measurement of a single variable or a single value derived logically and/or algebraically from other measured or derived values. A test result, a diastolic blood pressure, and a single chest X-ray impression are examples of observations. In certain circumstances, tracings and images may be treated by HL7 as individual observations and sent as a single OBX. These include waveform data described in section 7.14, "Waveform - Trigger Events & Message Definitions," and encapsulated data aggregates using the ED data type described in Chapter 2A, section 2.A.24, "ED - encapsulated data," (which can represent actual images, audio data, etc.).
The Health Level 7 Specification (ANSI/HL7 CDA R1.0-2000) for encoding and encapsulating clinical documents.
Narrative reports from services such as Radiology usually consist of a number of subcomponents (e.g., a chest X-ray report may consist of a description, an impression, and a recommendation). Other studies, such as echocardiograms, contain analogous components, as well as numeric observations (e.g., left ventricular and diastolic diameter). Surgical pathology reports may contain information about multiple specimens and reports: the anatomic source, the gross description, the microscopic description, and a diagnostic impression for each specimen.
The current Standard treats each component of a narrative report as a separate "test" or observation. Just as a CHEM12 is transmitted as an order segment (OBR) plus 12 OBX segments, a chest X-ray would be transmitted as an order (OBR) segment plus three OBX segments, one for the description, one for the impression, and one for the recommendations. Similarly, an EKG report would be transmitted as an order segment (OBR), two OBX segments for the impression and recommendation, and additional OBX segments for each EKG measurement, e.g., the PR interval, QR interval, QRS axis, and so on.
Retained for backwards compatability only in V2.7 and later, in favor of using LOINC codes that pre-coordinate the appropriate identifiers with the suffices.
We have defined code suffixes for constructing observation IDs for the common components of narrative reports (see Figure 7-1). The observation identifier for each such component is obtained by concatenating the observation battery ID (the ID in OBR-4-universal service ID of the preceding OBR from any coding system) with the appropriate suffix. The observation ID for a chest X-ray impression, for example, would be the chest X-ray observation ID (if CPT4, it would be 71020), a subcomponent delimiter, and the suffix, IMP, i.e., 71020&IMP.
This same combining rule applies to other coding systems including local and universal procedural codes (see Chapter 4). For example, if a local code for EKG was E793, and the locally agreed upon designation for that local code was EKG, the impression would be identified as E793&IMP^^99EKG.
Note: The "99EKG" in the 3rd component is included to indicate a local code. The EKG's description, in this case, would be E793&GDT^^99EKG.
Although it is strongly discouraged, the sender and receiver may agree to allow the omission of the observation ID component of a result segment when it is the same as the observation ID of the preceding OBR. In this case, only the ampersand and the suffix would have to be sent, e.g., &IMP or &REC, in OBX-3-observation identifier of a result segment. The full code would be assumed as the test identifier (recorded in the order segment) plus the category identifier recorded in the observation segment.
Figure 7-1. Observation ID suffixes
Coded Results | Suffix | Type |
---|---|---|
Diagnostic Impression | IMP | CWE |
Recommendation | REC | CWE |
Confirming procedures | CNP | CWE |
Procedure Medication | MED | CWE |
Anatomic Site | ANT | CWE |
Device/Instrument | DEV | CWE |
Serial # Device/Instrument | SER | ST |
|
|
|
Bulk Text Reports |
|
|
Gross Or General Description Of The Study | GDT | TX or FT |
Microscopic Or Secondary Description | MDT | TX or FT |
Technician's Comment | TCM | TX or FT |
Addendum Note | ADT | TX or FT |
|
|
|
Other |
|
|
Diagnosis Onset Date/Time | ITM | DTM |
Diagnosis Resolution Date/Time | RTM | DTM |
Comparison Study | CMS | CWE |
Comparison Date/Time | CMT | DTM |
Comparison Results | CMR | CWE |
Comparison Change | CMC | CWE |
Predicted Value | PRD | ST |
Percent Predicted | PPR | ST |
After Drug Observed | AFD | ST |
Predicted Value After Drug | ADP | ST |
Percent Predicted After Drug | APP | ST |
Timing Information | TIM | DTM |
Channel Definition Data | CHN | CD |
Waveform Digital Data | WAV | NA or MA |
Waveform Annotation | ANO | CWE |
The following subsections define each of the suffixes except for the specialized waveform suffixes, which are defined in section 7.13.1, "Specific Observation Id Suffixes."
When the suffix is IMP (OBX-3-observation identifier), the result is a diagnosis or finding, stored as a CWE data type. Multiple result segments with an IMP suffix can be used if there are multiple parts to the study and each have an associated diagnosis (for example, the awake and sleep portion of an EEG). Each of these would have a different observation sub-ID. Multiple result segments with an IMP suffix can also be used if there are separate diagnoses corresponding to separate anatomic sites; in this case, the site for each diagnosis (each result segment with an IMP suffix) must be specified by an immediately preceding result segment with a suffix of ANT (see section 7.1.4.5, "Anatomic site (ANT)"), which also has the same observation sub-ID. When multiple distinct diagnostic impressions are being reported, for example, mitral valve prolapse and aortic stenosis, each distinct impression should be sent in a separate OBX segment. More than one code may be included within one coded result segment, but only when such codes are modifiers of the principal impression, e.g., to report additional detail about the finding, not to report an entirely different finding. In this case, the OBX-5-observation value field may repeat, with each instance or repetition specifying one of the related coded impressions.
The coded data type for impressions does not mean that a reporting service must actually code all such impressions. The diagnostic impression can be sent as dictated text, but the text should be sent in the second component of the CWE data type without a code to distinguish it from code, i.e. it should be preceded by a component delimiter (e.g., "^congestive heart failure").
When multiple separate text impressions are being reported, they should be reported in separate OBX segments to indicate that they are distinct impressions.
When the suffix is REC (OBX-3-observation identifier), the value is a CWE result, representing the reading physician's recommendations about repeat testing, follow up or therapy. For example, when an ambiguous lesion result is seen on a mammogram, the reading physician might recommend a repeat mammogram in six months, or a needle biopsy immediately. The recommended procedures are recorded as codes and/or text descriptions in the coded identifier structure.
If more than one follow up study is recommended, each such recommendation is sent in a separate REC.
The confirming procedure OBX suffix identifies additional studies used to confirm the diagnosis reported in the IMP OBX. If, for example, electron microscopy was done to confirm a surgical pathology diagnosis, the identifier for electron microscopy OBX-3-observation identifier would be stored as the value field of an observation ID with a confirming procedure suffix. Confirming procedures are most important in surgical pathology reports. But they might also be used by services such as endoscopy, to record the fact that a biopsy, culture, etc., was taken during the procedure. If more than one confirming procedure was used, each is sent in a separate result segment with observation ID suffix CNP.
A coded result segment with a suffix of MED (OBX-3-observation identifier) indicates that the segment contained information about medication given as part of the procedure-contrast medication, medication intended to invoke a physiologic response (e.g., to be used in stress testing) or premedication. When patients receive more than one procedure medication, each medication should be reported in a separate OBX medication segment. If the transmitting system has codes available for medications, they would be recorded as the first component of OBX-3-observation identifier. The name and/or the dosages could be included in the second component of OBX-5-observation value.
A coded result segment with a suffix of MED (procedure medication) may also be used to define a medication administered during recording of digital waveform data or other extended diagnostic procedure, e.g., exercise test. These may be displayed by the receiving system overlaid with the other events reported. The procedure medication is assumed to pertain to and be associated with the data recorded at the time specified in OBX-14-date/time of the observation, of the OBX segment labeled with MED, when present.
Some diagnostic studies include observations about more than one anatomic site within one report. If, for example, a patient had an appendectomy incidental to gallbladder surgery, the pathologist's assessment of both specimens would usually be included under a single specimen number in one report. Each distinct anatomic site would be reported as a separate OBX segment with a suffix of ANT (OBX-3-observation identifier). More than one coded anatomic location may be included within a single OBX segment only when such additional codes are used to construct an identity for a single site. In this case only, the OBX-5-observation value field may repeat, with each instance or repetition specifying one of the related locations. Each OBX segment with an ANT suffix could be followed by one or more OBX segments with an IMP or other suffix to transmit the diagnostic impression(s) associated with the anatomic site. These impressions or recommendations would be associated with a single anatomic site via a common observation ID.
When required, the instrument or device which generated an observation can be transmitted as an additional result of the study. In this case, the suffix of OBX-3-observation identifier is DEV. Examples include: an automated instrument in the laboratory; an imaging device and model number in radiology; or an automatic blood pressure machine on the ward. The device is specified as a coded entry in anticipation that these identifiers could be specified as codes. Initially, we expect that most of the information about devices will be transmitted as text in the second component of the CWE identifier.
Vendor's serial number of the device which generated the observation.
The general description suffix identifies the description component of a diagnostic study. In the case of anatomic pathology, it applies to the macroscopic (gross) description of the specimen. If the description consists of multiple paragraphs, the paragraphs should be separated by repeat delimiters so that the receiving computer can display them as paragraphs. It will not be necessary to include a description segment for a report when the impression segment says it all, e.g., for normal studies or studies such as EKG, whose reports are traditionally terse.
For most studies, a secondary description will not be needed. In the case of surgical pathology, however, the microscopic description is a separate part of the report. It describes the histology as seen through the microscope. The microscopic description will be sent in a segment with the suffix MDT in OBX-3-observation identifier. If the microscopic description consists of multiple paragraphs, the paragraphs should be separated by repeat delimiters so that the receiving computer can display them as paragraphs.
This is free text stored in a result segment whose OBX-3-observation identifier has a suffix of TCM for technician comment. It is used to record information about technical performance of the procedure, usually recorded by the technician.
Use to report information that is added as an addendum after the original dictation and sent as a separate labeled section of the report.
Use to record the date-time that a problem was first perceived to exist.
Use to record the date-time that a problem became inactive, i.e., the problem was cured or remitted.
When the reader of a diagnostic report compares the results for the current study with those of a previous study, this suffix allows them to report the nature of the comparison study as a separate result, i.e., an OBX segment with a segment whose observation ID has a suffix of CMS. Ordinarily, this would not be required because the observation ID in the other comparison OBXs would identify the test, if any of the other comparison values were transmitted.
When the reader of a diagnostic procedure compares the current results with a previous study, this suffix allows them to report the date-time of the previous study (time optional) as a separate result within the current report.
When the reader of a diagnostic procedure compares the current results with those of a previous study on the same patient, this suffix allows them to report the results (impression) of the previous study as a discrete result within the current report.
When a diagnostic service reports a comparison between the current and a previous study, this suffix is used to report the degree of change (e.g., much worse, worse, minimal worsening, no change, slightly better, better, much better, returned to normal) as a separate result within the report.
In current dictation, information about comparison is usually contained in the descriptions of the study. The provision of the comparison suffixes listed above do not imply a requirement to send this information as separate components. The comparison variables are only meant to be enabling. When a system would like to transmit them as discrete report components, these suffixes give them the option.
When an observation has a predicted value as is the case for many spirometry tests, this suffix identifies the predicted observation as distinguished from the actual observation. The AS4 code for forced vital capacity is 94010.1 (see the HL7 Implementation Guide). The predicted forced vital capacity would be 94010.1&PRD.
This is a computed observation = (actual observation)/(predicted observation. For forced vital capacity the percent predicted would be identified as 94010.1&PPR.
An observation might be taken before and after a drug is given. This occurs especially in Spirometry. The predose observation is identified by the base ID. The post drug measure is identified by the AFD suffix. Using the AS4 base code for the forced vital capacity the post drug result would be identified by 94010.1&AFD.
The post drug predicted value is identified by the suffix, ADP. Following the pattern of the above example, it would be 94010.1&ADP.
The percent predicted after drug is identified by applying the suffix, APP to the base code - 94010.1&APP if using the AS4 code for forced vital capacity.
This suffix is used only for transmitting waveform data. It is fully described in section 7.13.1.1, "Timing information (TIM)."
This suffix is used only for transmitting waveform data. It is fully described in section 7.13.1.2, "Channel definition data (CHN)."
This suffix is used only for transmitting waveform data. It is fully described in section 7.13.1.3, "Waveform digital data (WAV)."
This suffix is used only for transmitting waveform data. It is fully described in section 7.13.1.4, "Waveform annotation (ANO)."
The recently introduced LOINC® codes may be more useful to many users. Code system information, including LOINC®, has been moved from Appendix 7A to the Implementation Guide.
The triggering events that follow are all served by the ORU (Observational report - Unsolicited) or the ORF (Observational Report Response) messages in combination with ACK and QRY. Each triggering event is listed below, along with the messages exchanged, and the segments that comprise the messages. The notation used to describe the sequence, optionality, and repeating of segments is described in Chapter 2, "Format for defining abstract messages."
The ORU message is for transmitting laboratory results to other systems. The OUL message is designed to accommodate the laboratory processes of laboratory automation systems.
With the segment (OBX) defined in this chapter, and the OBR defined in Chapter 4, one can construct almost any clinical report as a multi-level hierarchy, with the PID segment defined in Chapter 3 at the upper level, an order record (OBR) at the next level with one or more observation records (OBX), followed by the specimen information (SPM) and one or more observations (OBX) directly associated with the specimen.
One result segment (OBX) is transmitted for each component of a diagnostic report, such as an EKG or obstetrical ultrasound or electrolyte battery.
The CTD segment in this trigger is used to transmit temporary patient contact details specific to this order.
ORU^R01^ORU_R01: Observation Message
MSH | Message Header |
| 2 | DB |
[ { SFT } ] | Software Segment |
| 2 | DB |
[ UAC ] | User Authentication Credential |
| 2 | DB |
{ | --- PATIENT_RESULT begin |
|
|
|
[ | --- PATIENT begin |
|
|
|
PID | Patient Identification |
| 3 | DB |
[ PD1 ] | Additional Demographics |
| 3 | DB |
[ { PRT } ] | Participation (for Patient) |
| 7 | DB |
[ { NTE } ] | Notes and Comments |
| 2 | DB |
[ { NK1 } ] | Next of Kin/Associated Parties |
| 3 | DB |
[{ | --- PATIENT OBSERVATION begin |
|
|
|
OBX | Observation (for Patient ID) |
| 7 | DB |
[ { PRT } ] | Participation (Observation Participation) |
| 7 | DB |
}] | --- PATIENT OBSERVATION end |
|
|
|
[ | --- VISIT begin |
|
|
|
PV1 | Patient Visit |
| 3 | DB |
[ PV2 ] | Patient Visit - Additional Info |
| 3 | DB |
[ { PRT } ] | Participation (for Patient Visit) |
| 7 | DB |
] | --- VISIT end |
|
|
|
] | --- PATIENT end |
|
|
|
{ | --- ORDER_OBSERVATION begin |
|
|
|
[ ORC ] | Order common |
| 4 | DB |
OBR | Observations Request |
| 7 | DB |
[ { NTE } ] | Notes and comments |
| 2 | DB |
[ { PRT } ] | Participation (for Observation) |
| 7 | DB |
[{ | --- TIMING_QTY begin |
|
|
|
TQ1 | Timing/Quantity |
| 4 | DB |
[ { TQ2 } ] | Timing/Quantity Order Sequence |
| 4 | DB |
}] | --- TIMING_QTY end |
|
|
|
[ CTD ] | Contact Data |
| 11 | DB |
[{ | --- OBSERVATION begin |
|
|
|
OBX | Observation related to OBR |
| 7 | DB |
[ { PRT } ] | Participation (Observation Participation) |
| 7 | DB |
[ { NTE } ] | Notes and comments |
| 2 | DB |
}] | --- OBSERVATION end |
|
|
|
[ { FT1 } ] | Financial Transaction |
| 6 | DB |
[ { CTI } ] | Clinical Trial Identification |
| 7 | DB |
[{ | --- SPECIMEN begin |
|
|
|
SPM | Specimen |
|
|
DB |
[{ | --- SPECIMEN OBSERVATION begin |
|
|
|
OBX | Observation (for Patient ID) |
| 7 | DB |
[ { PRT } ] | Participation (Observation Participation) |
| 7 | DB |
}] | --- SPECIMEN OBSERVATION end |
|
|
|
}] | --- SPECIMEN end |
|
|
|
} | --- ORDER_OBSERVATION end |
|
|
|
} | --- PATIENT_RESULT end |
|
|
|
[ DSC ] | Continuation Pointer |
| 2 | DB |
ACK^R01^ACK : Observation Message
MSH | Message header |
| 2 | DB |
[ { SFT } ] | Software segment |
| 2 | DB |
[ UAC ] | User Authentication Credential |
| 2 | DB |
MSA | Message acknowledgment |
| 2 | DB |
[ { ERR } ] | Error |
| 2 | DB |
Note: The ORC is permitted but not required in this message. Any information that could be included in either the ORC or the OBR must be included in the OBR on reporting. Notice also that the ORU (and the QRY) messages accommodate reports about many patients.
Many report headers (OBR) may be sent beneath each patient segment, with many separate observation segments (OBX) related to the order / observation request beneath each OBR. OBX segments that are related to specimens immediately follow the SPM segments. Note segments (NTE) may be inserted at different locations in the message. The note segment applies to the entity that immediately precedes it, i.e., the patient if it follows the PID segment, the observation request if it follows the OBR segment, and the individual result if it follows the OBX segment.
Retained for backwards compatibility only as of v2.5.and withdrawn as of v2.7. Â
Retained for backwards compatibility only as of v2.4.and withdrawn as of v2.7.
This event trigger instructs the receiving system to create a new order for the observation(s) contained in the message.
One example of this trigger's use case occurs when a Doctor verbally instructs a nurse to perform a test. Looking at this use case from an information management perspective, one might expect that, the nurse would enter an order into laboratory information or ordering system before performing the test. However, there usually isn't time for order entry in these use cases. In fact, it is highly desirable for the POC measurement process to become automated so that the only action a user needs to take is to make a measurement on the POC Device, with all other processes for generating an order and tying it in to the observation handled by the "machines."
In order to allow for the passing of specific information relating to the Patient, responsible Doctor, placing doctor, patient location, etc., there is a requirement for the inclusion of a PV1 and PD1 segment in the ORU message type. One example of this trigger's use case occurs when a Doctor at a remote site without a shared Patient index instructs a nurse to perform a test. The testing is carried out without prior entry of a request into the LIS. Once performed, the results, along with the patient information are transmitted to the LIS. In some circumstances, the LIS may add clinical interpretation to this and report it back to the placing system and/or another system. In order to allow for this to take place, the requester, location, etc., information is required.
To allow the sending system to correlate every result with its associated order, the receiving system will return the placer order number in the ORC segment of the ORA^R33 message. If the receiving system cannot place an order it must returning an application level error description in the Application Acknowledgement Message MSA Text Message field.
The sending system must return a commit-level acknowledgement in response to the ORA^R33 message.
ORU^R30^ORU_R30: Observation Message:
MSH | Message Header |
| 2 | DB |
[ { SFT } ] | Software Segment |
| 2 | DB |
[ UAC ] | User Authentication Credential |
| 2 | DB |
PID | Patient Identification |
| 3 | DB |
[ PD1 ] | Additional Demographics |
| 3 | DB |
[ { PRT } ] | Participation (for Patient) |
| 7 | DB |
[{ | --- PATIENT OBSERVATION begin |
|
|
|
OBX | Observation (for Patient ID) |
| 7 | DB |
[ { PRT } ] | Participation (for Observation) |
| 7 | DB |
}] | --- PATIENT OBSERVATION end |
|
|
|
[ | --- VISIT begin |
|
|
|
PV1 | Patient Visit |
| 3 | DB |
[ PV2 ] | Patient Visit - Additional |
| 3 | DB |
[ { PRT } ] | Participation (for Patient Visit) |
| 7 | DB |
] | --- VISIT end |
|
|
|
ORC | Common Order information |
| 4 | DB |
OBR | Observation Request |
| 7 | DB |
[ { NTE } ] | Notes or Comments for order/result |
| 2 | DB |
[ { PRT } ] | Participation (for observation) |
| 7 | DB |
[{ | --- TIMING_QTY begin |
|
|
|
TQ1 | Timing/Quantity |
| 4 | DB |
[ { TQ2 } ] | Timing/Quantity Order Sequence |
| 4 | DB |
}] | --- TIMING_QTY end |
|
|
|
{ | --- OBSERVATION begin |
|
|
|
OBX | Observation Results, one per reported value |
| 7 | DB |
[ { PRT } ] | Participation (for Observation) |
| 7 | DB |
[ { NTE } ] | Notes or Comments for individual result |
| 2 | DB |
} | --- OBSERVATION end |
|
|
ACK^R30^ACK : Observation Message
MSH | Message Acknowledgment |
| 2 | DB |
[ { SFT } ] | Software segment |
| 2 | DB |
[ UAC ] | User Authentication Credential |
| 2 | DB |
MSA | Message Acknowledgment |
| 2 | DB |
[ { ERR } ] | Error |
| 2 | DB |
This event trigger instructs the receiving system to search for an existing order for the observation(s) contained in the message.
In this case, the sending system does not know if an order has been placed. This transaction instructs the receiving system to search for an existing order for the associated results. If the receiver finds an existing order, it should return the Placer ID to the sender in the ORC segment of an OML^O21 message. This information allows the Observation Reviewer to correlate every result with its associated order.
The institution's business rules will determine what the receiving system does if it can't find a matching order. Possibilities include automatically placing an order (as in trigger event R30), or returning an application level error description in the Application Acknowledgement MSA Text Message field..
If it is necessary to pass specific information related to the Patient, responsible Doctor, placing doctor, patient location etc, there is a requirement for the inclusion of a PV1 and PD1 segment in the ORU message type (see also ORU^R30 for description).
ORU^R31^ORU_R30: Observation Message
7.3.5 ORU - Unsolicited New Point-Of-Care Observation Message - Search for an Order (Event R31)
MSH | Message Header |
| 2 | DB |
[ { SFT } ] | Software Segment |
| 2 | DB |
[ UAC ] | User Authentication Credential |
| 2 | DB |
PID | Patient Identification |
| 3 | DB |
[ PD1 ] | Additional Demographics |
| 3 | DB |
[ { PRT } ] | Participation (for Patient) |
| 7 | DB |
[{ | --- PATIENT OBSERVATION begin |
|
|
|
OBX | Observation (for Patient ID) |
| 7 | DB |
[ { PRT } ] | Participation (for Observation) |
| 7 | DB |
}] | --- PATIENT OBSERVATION end |
|
|
|
[ | --- VISIT begin |
|
|
|
PV1 | Patient Visit |
| 3 | DB |
[ PV2 ] | Patient Visit - Additional |
|
|
DB |
[ { PRT } ] | Participation (for Patient Visit) |
| 7 | DB |
] | --- VISIT end |
|
|
|
ORC | Common Order information |
| 4 | DB |
OBR | Observation Request |
| 7 | DB |
[ { NTE } ] | Notes or Comments for order/result |
| 2 | DB |
[ { PRT } ] | Participation (for observation) |
| 7 | DB |
[{ | --- TIMING_QTY begin |
|
|
|
TQ1 | Timing/Quantity |
| 4 | DB |
[ { TQ2 } ] | Timing/Quantity Order Sequence |
| 4 | DB |
}] | --- TIMING_QTY end |
|
|
|
{ | --- OBSERVATION begin |
|
|
|
OBX | Observation Results, one per reported value |
| 7 | DB |
[ { PRT } ] | Participation (for Observation Results) |
| 7 | DB |
[ { NTE } ] | Notes or Comments for individual result |
| 2 | DB |
} | --- OBSERVATION end |
|
|
MSH | Message Acknowledgment |
| 2 | DB |
[ { SFT } ] | Software segment |
| 2 | DB |
[ UAC ] | User Authentication Credential |
| 2 | DB |
MSA | Message Acknowledgment |
| 2 | DB |
[ { ERR } ] | Error |
| 2 | DB |
This event trigger instructs the receiver to place the result with the order information included in the message.
From a traditional clinical laboratory perspective, this event trigger's use case is probably the predominant (if not exclusive) one. However, in the POC environment, it is actually uncommon to have an order already generated when a test is performed. It does happen sometimes, though. If it is necessary to pass specific information related to the Patient, responsible Doctor, placing doctor, patient location, etc., there is a requirement for the inclusion of a PV1 and PD1 segment in the ORU message type (see also ORU^R30 for description).
If the receiving system accepts both the order and the result, it will return an ORA^R33 Application Acknowledgement message with the acknowledgement code of AA. A comment may be included in the Acknowledgement Message MSA Text Message field.
If the receiving system is unable to accept both the order and the result, no order or result should be placed and an ACK^33 Application Acknowledgement message must be returned to the sender with the error identified in the MSA Text Message field.
The sending system must return a commit-level acknowledgement in response to the ORA^R33 message.
ORU^R32^ORU_R30: Observation Message
7.3.6 ORU - Unsolicited Pre-Ordered Point-Of-Care Observation (Event R32)
MSH | Message Header |
| 2 | DB |
[ { SFT } ] | Software Segment |
| 2 | DB |
[ UAC ] | User Authentication Credential |
| 2 | DB |
PID | Patient Identification |
| 3 | DB |
[ PD1 ] | Additional Demographics |
| 3 | DB |
[ { PRT } ] | Participation (for Patient) |
| 7 | DB |
[{ | --- PATIENT OBSERVATION begin |
|
|
|
OBX | Observation (for Patient ID) |
| 7 | DB |
[ { PRT } ] | Participation (for Observation) |
| 7 | DB |
}] | --- PATIENT OBSERVATION end |
|
|
|
[ | --- VISIT begin |
|
|
|
PV1 | Patient Visit |
| 3 | DB |
[ PV2 ] | Patient Visit - Additional |
|
|
DB |
[ { PRT } ] | Participation (for Patient Visit) |
| 7 | DB |
] | --- VISIT end |
|
|
|
ORC | Common Order information |
| 4 | DB |
OBR | Observation Request |
| 7 | DB |
[ { NTE } ] | Notes or Comments for order/result |
| 2 | DB |
[ { PRT } ] | Participation (for Observation Request) |
| 7 | DB |
[{ | --- TIMING_QTY begin |
|
|
|
TQ1 | Timing/Quantity |
| 4 | DB |
[ { TQ2 } ] | Timing/Quantity Order Sequence |
| 4 | DB |
}] | --- TIMING_QTY end |
|
|
|
{ | --- OBSERVATION begin |
|
|
|
OBX | Observation Results, one per reported value |
| 7 | DB |
[ { PRT } ] | Participation (for Observation Results) |
| 7 | DB |
[ { NTE } ] | Notes or Comments for individual result |
| 2 | DB |
} | --- OBSERVATION end |
|
|
ACK^R32^ACK: Observation Message
MSH | Message Acknowledgment |
| 2 | DB |
[ { SFT } ] | Software segment |
| 2 | DB |
[ UAC ] | User Authentication Credential |
| 2 | DB |
MSA | Message Acknowledgment |
| 2 | DB |
[ { ERR } ] | Error |
| 2 | DB |
This message enables a response to the ORU^R30 message to provide an application level acknowledgement that may include a placer order number.
ORA^R33^ORA_R33 : Observation Report Acknowledgement
7.3.7 ORA - Observation Report Acknowledgement (Event R33)
MSH | Message Acknowledgment |
| 2 | DB |
[ { SFT } ] | Software segment |
| 2 | DB |
[ UAC ] | User Authentication Credential |
| 2 | DB |
MSA | Message Acknowledgment |
| 2 | DB |
[ { ERR } ] | Error |
| 2 | DB |
[ ORC ] | Common Order Information |
| 4 | DB |
This message was designed to accommodate specimen oriented testing. It should be applicable to container-less testing (e.g., elephant on a table) and laboratory automation systems requiring container.
Generally this construct allows transfer of multiple results related to a specimen from a patient, where this specimen has been in none, one, or multiple containers.
In addition to the patient results themselves it permits the communication of the following kinds of information:
Analysis results of a non patient related sample (e.g., environmental) - patient related segments (e.g., PID, PD1, PV1, PV2) are optional.
Analysis results to a particular container with QC sample and the lot and manufacturer information about this sample (SAC-INV segments) - however for this purpose the "Unsolicited Specimen Container Oriented Observation Message" (OUL^R23) is recommended due to explicit relation between the observation and the container.
Basic identification data (lot, manufacturer, etc.) of the reagents and other substances involved in the generation of analysis results (TCD-SID segments).
Refer to Chapter 13 Laboratory Automation for additional examples of usage of SAC.
OUL^R22^OUL_R22: Observation Message
MSH | Message Header |
| 2 | DB |
[ { SFT } ] | Software Segment |
| 2 | DB |
[ UAC ] | User Authentication Credential |
| 2 | DB |
[ NTE ] | Notes and Comments |
| 2 | DB |
[ | --- PATIENT begin |
|
|
|
PID | Patient Identification |
| 3 | DB |
[ PD1 ] | Additional Demographics |
| 3 | DB |
[ { PRT } ] | Participation (for Patient) |
| 7 | DB |
[ { NTE } ] | Notes and Comments (for Patient ID) |
| 2 | DB |
[{ | --- PATIENT OBSERVATION begin |
|
|
|
OBX | Observation (for Patient ID) |
| 7 | DB |
[ { PRT } ] | Participation (for Observation) |
| 7 | DB |
}] | --- PATIENT OBSERVATION end |
|
|
|
[ | --- VISIT begin |
|
|
|
PV1 | Patient Visit |
| 3 | DB |
[ PV2 ] | Patient Visit - Additional Information |
| 3 | DB |
[ { PRT } ] | Participation (for Patient Visit) |
| 7 | DB |
] | --- VISIT end |
|
|
|
] | --- PATIENT end |
|
|
|
[ { NK1 } ] | Next of Kin |
| 3 | DB |
{ | --- SPECIMEN begin |
|
|
|
SPM | Specimen information |
| 7 | DB |
[{ | --- SPECIMEN OBSERVATION begin |
|
|
|
OBX | Observation Result (for Specimen) |
| 7 | DB |
[ { PRT } ] | Participation (for Specimen Observation) |
| 7 | DB |
}] | --- SPECIMEN OBSERVATION end |
|
|
|
[{ | --- CONTAINER begin |
|
|
|
SAC | Container information |
| 13 | DB |
[ INV ] | Detailed Substance information (e.g., id, lot, manufacturer, ... of QC specimen) |
| 13 | DB |
}] | --- CONTAINER end |
|
|
|
{ | --- ORDER begin |
|
|
|
OBR | Observation Order |
| 7 | DB |
[ ORC ] | Common Order |
| 4 | DB |
[ { NTE } ] | Notes and Comments (for Detail) |
| 2 | DB |
[ { PRT } ] | Participation (for observation) |
| 7 | DB |
[{ | --- TIMING_QTY begin |
|
|
|
TQ1 | Timing/Quantity |
| 4 | DB |
[ { TQ2 } ] | Timing/Quantity Order Sequence |
| 4 | DB |
}] | --- TIMING_QTY end |
|
|
|
[{ | --- RESULT begin |
|
|
|
OBX | Observation Result |
| 7 | DB |
[ { PRT } ] | Participation (for Observation Result) |
| 7 | DB |
[ TCD ] | Test Code Detail |
| 13 | DB |
[ { SID } ] | Substance Identifier (e.g., reagents used for testing) |
| 13 | DB |
[ { NTE } ] | Notes and Comments |
| 2 | DB |
}] | --- RESULT end |
|
|
|
[ { CTI } ] | Clinical Trial Identification |
| 7 | DB |
} | --- ORDER end |
|
|
|
} | --- SPECIMEN end |
|
|
|
[ DSC ] | Continuation Pointer |
| 2 | DB |
This message was designed to accommodate specimen oriented testing. It should be applicable to, for example, laboratory automation systems requiring container.
Generally this construct allows transfer of multiple results related to one or more specific containers with one or more specimens from a patient.
In addition to the patient results themselves it permits the communication of the following kinds of information:
Analysis results of a non patient related sample (e.g., environmental) - patient related segments (e.g., PID, PD1, PV1, PV2) are optional.
Analysis results to a particular container with QC sample and the lot and manufacturer information about this sample (SAC-INV segments).
Basic identification data (lot, manufacturer, etc.) of the reagents and other substances involved in the generation of analysis results (TCD-SID segments).
Refer to Chapter 13 Laboratory Automation for additional examples of usage of SAC.
OUL^R23^OUL_R23: Observation Message
7.3.9 OUL - Unsolicited Specimen Container Oriented Observation Message (Event R23)
MSH | Message Header |
| 2 | DB |
[ { SFT } ] | Software Segment |
| 2 | DB |
[ UAC ] | User Authentication Credential |
| 2 | DB |
[ NTE ] | Notes and Comments |
| 2 | DB |
[ | --- PATIENT begin |
|
|
|
PID | Patient Identification |
| 3 | DB |
[ PD1 ] | Additional Demographics |
| 3 | DB |
[ { PRT } ] | Participation (for Patient) |
| 7 | DB |
[ { NTE } ] | Notes and Comments (for Patient ID) |
| 2 | DB |
[{ | --- PATIENT OBSERVATION begin |
|
|
|
OBX | Observation (for Patient ID) |
| 7 | DB |
[ { PRT } ] | Participation (for Observation) |
| 7 | DB |
}] | --- PATIENT OBSERVATION end |
|
|
|
[ | --- VISIT begin |
|
|
|
PV1 | Patient Visit |
| 3 | DB |
[ PV2 ] | Patient Visit - Additional Information |
| 3 | DB |
[ { PRT } ] | Participation (for Patient Visit) |
| 7 | DB |
] | --- VISIT end |
|
|
|
] | --- PATIENT end |
|
|
|
[ { NK1 } ] | Next of Kin |
| 3 | DB |
{ | --- SPECIMEN begin |
|
|
|
SPM | Specimen information |
| 7 | DB |
[{ | --- SPECIMEN OBSERVATION begin |
|
|
|
OBX | Observation (for Specimen) |
| 7 | DB |
[ { PRT } ] | Participation (for Observation) |
| 7 | DB |
}] | --- SPECIMEN OBSERVATION end |
|
|
|
{ | --- CONTAINER begin |
|
|
|
SAC | Container information |
| 13 | DB |
[ INV ] | Detailed Substance information (e.g., id, lot, manufacturer, ... of QC specimen) |
| 13 | DB |
{ | --- ORDER begin |
|
|
|
OBR | Observation Order |
| 7 | DB |
[ ORC ] | Common Order |
| 4 | DB |
[ { NTE } ] | Notes and Comments (for Detail) |
| 2 | DB |
[ { PRT } ] | Participation (for observation) |
| 7 | DB |
[{ | --- TIMING_QTY begin |
|
|
|
TQ1 | Timing/Quantity |
| 4 | DB |
[ { TQ2 } ] | Timing/Quantity Order Sequence |
| 4 | DB |
}] | --- TIMING_QTY end |
|
|
|
[{ | --- RESULT begin |
|
|
|
OBX | Observation Result |
| 7 | DB |
[ { PRT } ] | Participation |
| 7 | DB |
[ TCD ] | Test Code Detail |
| 13 | DB |
[ { SID } ] | Substance Identifier (e.g., reagents used for testing) |
| 13 | DB |
[ { NTE } ] | Notes and Comments |
| 2 | DB |
}] | --- RESULT end |
|
|
|
[ { CTI } ] | Clinical Trial Identification |
| 7 | DB |
} | --- ORDER end |
|
|
|
} | --- CONTAINER end |
|
|
|
} | --- SPECIMEN end |
|
|
|
[ DSC ] | Continuation Pointer |
| 2 | DB |
This message was designed to accommodate multi-specimen oriented testing. It should be applicable to, e.g., laboratory automation systems requiring container.
Generally this construct allows transfer of multiple results, each one related to none, one or more specific containers with one or more specimens from a patient. (Example: Creatinine Clearance result with detailed information about the urine and serum specimens and their containers.)
In addition to the patient results themselves it permits the communication of the following kinds of information:
Analysis results of a non patient related sample (e.g., environmental) - patient related segments (e.g., PID, PD1, PV1, PV2) are optional.
Analysis results to a particular container with QC sample and the lot and manufacturer information about this sample (SAC-INV segments).
Basic identification data (lot, manufacturer, etc.) of the reagents and other substances involved in the generation of analysis results (TCD-SID segments).
Refer to Chapter 13 Laboratory Automation for additional examples of usage of SAC.
OUL^R24^OUL_R24: Observation Message
7.3.10 OUL - Unsolicited Order Oriented Observation Message (Event R24)
MSH | Message Header |
| 2 | DB |
[ { SFT } ] | Software Segment |
| 2 | DB |
[ UAC ] | User Authentication Credential |
| 2 | DB |
[ NTE ] | Notes and Comments |
| 2 | DB |
[ | --- PATIENT begin |
|
|
|
PID | Patient Identification |
| 3 | DB |
[ PD1 ] | Additional Demographics |
| 3 | DB |
[ { PRT } ] | Participation (for Patient) |
| 7 | DB |
[ { NTE } ] | Notes and Comments (for Patient ID) |
| 2 | DB |
[{ | --- PATIENT OBSERVATION begin |
|
|
|
OBX | Observation (for Patient ID) |
| 7 | DB |
[ { PRT } ] | Participation (for Observation) |
| 7 | DB |
}] | --- PATIENT OBSERVATION end |
|
|
|
[ | --- VISIT begin |
|
|
|
PV1 | Patient Visit |
| 3 | DB |
[ PV2 ] | Patient Visit - Additional Information |
| 3 | DB |
[ { PRT } ] | Participation (for Patient Visit) |
| 7 | DB |
] | --- VISIT end |
|
|
|
] | --- PATIENT end |
|
|
|
[ { NK1 } ] | Next of Kin |
| 3 | DB |
{ | --- ORDER begin |
|
|
|
OBR | Observation Order |
| 7 | DB |
[ ORC ] | Common Order |
| 4 | DB |
[ { NTE } ] | Notes and Comments (for Detail) |
| 2 | DB |
[ { PRT } ] | Participation (for observation) |
| 7 | DB |
[{ | --- TIMING_QTY begin |
|
|
|
TQ1 | Timing/Quantity |
| 4 | DB |
[ { TQ2 } ] | Timing/Quantity Order Sequence |
| 4 | DB |
}] | --- TIMING_QTY end |
|
|
|
[{ | --- SPECIMEN begin |
|
|
|
SPM | Specimen information |
| 7 | DB |
[{ | --- SPECIMEN OBSERVATION begin |
|
|
|
OBX | Observation (for Specimen) |
| 7 | DB |
[ { PRT } ] | Participation (for Observation) |
| 7 | DB |
}] |
|
|
|
|
[{ | --- CONTAINER begin |
|
|
|
SAC | Container information |
| 13 | DB |
[ INV ] | Detailed Substance information (e.g., id, lot, manufacturer, ... of QC specimen) |
| 13 | DB |
}] | --- CONTAINER end |
|
|
|
}] | --- SPECIMEN end |
|
|
|
[{ | --- RESULT begin |
|
|
|
OBX | Observation Result |
| 7 | DB |
[ { PRT } ] | Participation |
| 7 | DB |
[ TCD ] | Test Code Detail |
| 13 | DB |
[ { SID } ] | Substance Identifier (e.g., reagents used for testing) |
| 13 | DB |
[ { NTE } ] | Notes and Comments |
| 2 | DB |
}] | --- RESULT end |
|
|
|
[ { CTI } ] | Clinical Trial Identification |
| 7 | DB |
} | --- ORDER end |
|
|
|
[ DSC ] | Continuation Pointer |
| 2 | DB |
This message supports unsolicited population or location-based surveillance reporting to a central repository where the accession / visit may contain references to multiple patients, multiple specimens, non-patient specimens, and multiple orders per specimen.
This message structure represents the way most submissions to veterinary laboratories occur. There is a multi-tier hierarchy in which a single individual (for example, a veterinarian or an owner of a production facility) submits one or more specimen samples from one or more animals or non-living entity, such as environmental specimens or feed. This grouped submission of specimens from multiple animal 'patients' is usually referred to as an 'accession' which can be considered analogous to a 'visit' in the veterinary laboratory context. This is what accounts for the unusual structure where the PV1 segment precedes a repeatable ACCESSION_DETAIL group.
Since specimens can originate from non-patients the PATIENT group is optional. This allows for specimens that are both associated with patients as well as those associated with non-patients to be included under the same accession (visit). Each specimen may have one or more orders assigned, each of which may have one or more individual results.
The OBX segment at the visit level provides the reason for submission. The repeatable PRT segment at the visit level represents the person(s) or organization submitting the request and other interested parties and locations who (that) play a role in the disposition of the accession/visit.
The NK1 segment contains owner and/or responsible party information for the patient and/or specimen.
OPU^R25^OPU_R25: Observation Message
7.3.11 OPU - Unsolicited Population/Location-Based Laboratory Observation Message (Event R25 )
MSH | Message Header |
| 2 | DB |
[ { SFT } ] | Software Segment |
| 2 | DB |
[ UAC ] | User Authentication Credential |
| 2 | DB |
[ NTE ] | Notes and Comments |
| 2 | DB |
PV1 | Patient Visit |
| 3 | DB |
[ PV2 ] | Patient Visit - Additional Information |
| 3 | DB |
[ { PRT } ] | Participation (for Patient Visit) |
| 7 | DB |
[{ | --- PATIENT VISIT OBSERVATION begin |
|
|
|
OBX | Observation on the Visit |
| 7 | DB |
[ { NTE } ] | Notes and Comments on Visit |
| 3 | DB |
[ { PRT } ] | Participation |
| 7 | DB |
}] | --- PATIENT VISIT OBSERVATION end |
|
|
|
{ | --- ACCESSION_DETAIL begin |
|
|
|
{ NK1 } | Next of Kin |
| 3 | DB |
[ | --- PATIENT begin |
|
|
|
PID | Patient |
| 3 | DB |
[ PD1 ] | Additional Demographics |
| 7 | DB |
[ { PRT } ] | Participation (for Patient) |
| 7 | DB |
[{ | --- PATIENT_OBSERVATION begin |
|
|
|
OBX | Observations on Patient |
| 7 | DB |
[ { PRT } ] | Participation (for Observation on Patient) |
| 7 | DB |
[ { NTE } ] | Notes and Comments for Observation on Patient |
| 2 | DB |
}] | --- PATIENT_OBSERVATION end |
|
|
|
] | --- PATIENT end |
|
|
|
{ | --- SPECIMEN begin |
|
|
|
SPM | Specimen |
| 7 | DB |
[{ | --- SPECIMEN_OBSERVATION begin |
|
|
|
OBX | Observation on Specimen |
| 7 | DB |
[ { PRT } ] | Participation (for Observation) |
| 7 | DB |
[ { NTE } ] | Notes and Comments for Observation on Specimen |
| 2 | DB |
}] | --- SPECIMEN_OBSERVATION end |
|
|
|
[{ | --- CONTAINER begin |
|
|
|
SAC | Container information |
| 13 | DB |
[ INV ] | Detailed Substance information (e.g., id, lot, manufacturer, ... of QC specimen) |
| 13 | DB |
}] | --- CONTAINER end |
|
|
|
{ | --- ORDER begin |
|
|
|
OBR | Observation Order |
| 7 | DB |
[ ORC ] | Common Order |
| 4 | DB |
[ { NTE } ] | Notes and Comments (for Detail) |
| 2 | DB |
[ { PRT } ] | Participation (for observation) |
| 7 | DB |
[{ | --- TIMING_QTY begin |
|
|
|
TQ1 | Timing/Quantity |
| 4 | DB |
[ { TQ2 } ] | Timing/Quantity Order Sequence |
| 4 | DB |
}] | --- TIMING_QTY end |
|
|
|
{ | --- RESULT begin |
|
|
|
OBX | Observation Result |
| 7 | DB |
[ { PRT } ] | Participation |
| 7 | DB |
[ { NTE } ] | Notes and Comments |
| 2 | DB |
} | --- RESULT end |
|
|
|
} | --- ORDER end |
|
|
|
} | --- SPECIMEN end |
|
|
|
} | --- ACCESSION_DETAIL end |
|
|
The full definitions of many segments required for reporting clinical observations are included in other chapters. The patient identifying segment (PID) is provided in Chapter 3. The NTE segment is in Chapter 2.
In the reporting of clinical data, the OBR serves as the report header. It identifies the observation set represented by the following atomic observations. It includes the relevant ordering information when that applies. It contains many of the attributes that usually apply to all of the included observations.
When a set of observations is ordered, the order message contains an OBR segment. However, observations can be collected and reported without an antecedent order. When observations are reported, the report message also includes one or more OBR segments. So, the OBR segment is like a turn-around document. Some fields in the OBR segment apply only to the ordering message and some to the reporting message. To those familiar with healthcare procedures, these should be obvious from their names (e.g., transcriptionist or principal result interpreter could only apply to the reporting phase). However, we have also flagged them in the OBR HL7 Attribute Table to indicate whether placer, filler, or both may send data in a given field.
HL7 Attribute Table - OBR - Observation Request
7.4 GENERAL SEGMENTS
7.4.1 OBR - Observation Request Segment
SEQ | LEN | C.LEN | DT | OPT | RP/# | TBL# | ITEM # | ELEMENT NAME | DB Ref. |
---|---|---|---|---|---|---|---|---|---|
1 | 1..4 |
| SI | O |
|
| 00237 | Set ID - OBR | DB |
2 |
|
| EI | C |
|
| 00216 | Placer Order Number | DB |
3 |
|
| EI | C |
|
| 00217 | Filler Order Number | DB |
4 |
|
| CWE | R |
| 9999 | 00238 | Universal Service Identifier | DB |
5 |
|
|
| W |
|
| 00239 | Priority | DB |
6 |
|
|
| W |
|
| 00240 | Requested Date/Time | DB |
7 |
|
| DTM | C |
|
| 00241 | Observation Date/Time # | DB |
8 |
|
| DTM | O |
|
| 00242 | Observation End Date/Time # | DB |
9 |
|
| CQ | O |
|
| 00243 | Collection Volume * | DB |
10 |
|
| XCN | B | Y |
| 00244 | Collector Identifier * | DB |
11 | 1..1 |
| ID | O |
| 0065 | 00245 | Specimen Action Code * | DB |
12 |
|
| CWE | O |
| 9999 | 00246 | Danger Code | DB |
13 |
|
| CWE | O | Y |
| 00247 | Relevant Clinical Information | DB |
14 |
|
|
| W |
|
| 00248 | Specimen Received Date/Time * | DB |
15 |
|
|
| W |
|
| 00249 | Specimen Source | DB |
16 |
|
| XCN | B | Y |
| 00226 | Ordering Provider | DB |
17 |
|
| XTN | O | Y/2 |
| 00250 | Order Callback Phone Number | DB |
18 |
| 199= | ST | O |
|
| 00251 | Placer Field 1 | DB |
19 |
| 199= | ST | O |
|
| 00252 | Placer Field 2 | DB |
20 |
| 199= | ST | O |
|
| 00253 | Filler Field 1 + | DB |
21 |
| 199= | ST | O |
|
| 00254 | Filler Field 2 + | DB |
22 |
|
| DTM | C |
|
| 00255 | Results Rpt/Status Chng - Date/Time + | DB |
23 |
|
| MOC | O |
|
| 00256 | Charge to Practice + | DB |
24 | 2..3 |
| ID | O |
| 0074 | 00257 | Diagnostic Serv Sect ID | DB |
25 | 1..1 |
| ID | C |
| 0123 | 00258 | Result Status + | DB |
26 |
|
| PRL | O |
|
| 00259 | Parent Result + | DB |
27 |
|
|
| W | Y |
| 00221 | Quantity/Timing | DB |
28 |
|
| XCN | B | Y |
| 00260 | Result Copies To | DB |
29 |
|
| EIP | O |
|
| 00261 | Parent Result Observation Identifier | DB |
30 | 4..4 |
| ID | O |
| 0124 | 00262 | Transportation Mode | DB |
31 |
|
| CWE | O | Y | 9999 | 00263 | Reason for Study | DB |
32 |
|
| NDL | B |
|
| 00264 | Principal Result Interpreter + | DB |
33 |
|
| NDL | B | Y |
| 00265 | Assistant Result Interpreter + | DB |
34 |
|
| NDL | B | Y |
| 00266 | Technician + | DB |
35 |
|
| NDL | B | Y |
| 00267 | Transcriptionist + | DB |
36 |
|
| DTM | O |
|
| 00268 | Scheduled Date/Time + | DB |
37 |
| 16= | NM | O |
|
| 01028 | Number of Sample Containers * | DB |
38 |
|
| CWE | O | Y | 9999 | 01029 | Transport Logistics of Collected Sample * | DB |
39 |
|
| CWE | O | Y | 9999 | 01030 | Collector's Comment * | DB |
40 |
|
| CWE | O |
| 9999 | 01031 | Transport Arrangement Responsibility | DB |
41 | 1..1 |
| ID | O |
| 0224 | 01032 | Transport Arranged | DB |
42 | 1..1 |
| ID | O |
| 0225 | 01033 | Escort Required | DB |
43 |
|
| CWE | O | Y | 9999 | 01034 | Planned Patient Transport Comment | DB |
44 |
|
| CNE | O |
| 0088 | 00393 | Procedure Code | DB |
45 |
|
| CNE | O | Y | 0340 | 01316 | Procedure Code Modifier | DB |
46 |
|
| CWE | O | Y | 0411 | 01474 | Placer Supplemental Service Information | DB |
47 |
|
| CWE | O | Y | 0411 | 01475 | Filler Supplemental Service Information | DB |
48 |
|
| CWE | C |
| 0476 | 01646 | Medically Necessary Duplicate Procedure Reason | DB |
49 |
|
| CWE | O |
| 0507 | 01647 | Result Handling | DB |
50 |
|
| CWE | B |
|
| 02286 | Parent Universal Service Identifier | DB |
51 |
|
| EI | O |
|
| 02307 | Observation Group ID | DB |
52 |
|
| EI | O |
|
| 02308 | Parent Observation Group ID | DB |
53 |
|
| CX | O | Y |
| 03303 | Alternate Placer Order Number | DB |
54 |
|
| EIP | O |
|
| 00222 | Parent Order | DB |
The starred (*) fields are only relevant when an observation is associated with a specimen. These are completed by the placer when the placer obtains the specimen. They are completed by the filler when the filler obtains the specimen.
OBR-7-observation date/time and OBR-8-observation end date/time (flagged with #) are the physiologically relevant times. In the case of an observation on a specimen, they represent the start and end of the specimen collection. In the case of an observation obtained directly from a subject (e.g., BP, Chest X-ray), they represent the start and end time of the observation.
Definition: For the first order transmitted, the sequence number shall be 1; for the second order, it shall be 2; and so on.
Components: <Entity Identifier (ST)> ^ <Namespace ID (IS)> ^ <Universal ID (ST)> ^ <Universal ID Type (ID)>
Definition: This field is identical to ORC-2-Placer Order Number.
This field is a special case of the Entity Identifier data type (Section 2.A.28). The first component is a string that identifies an individual order (i.e., ORC segment and associated order detail segment). A limit of fifteen (15) characters is suggested but not required. It is assigned by the placer (ordering application). An implementation is HL7 compliant when the number of characters for this field is increased to accommodate applications that require a greater number of characters for the Placer order number. It identifies an order uniquely among all orders from a particular ordering application. The second through fourth components contain the application ID of the placing application in the same form as the HD data type (section 2.A.36, "HD - Hierarchic designator"). The second component, namespace ID, is a user-defined coded value that will be uniquely associated with an application. A limit of six (6) characters is suggested but not required. A given institution or group of intercommunicating institutions should establish a unique list of applications that may be potential placers and fillers and assign unique application IDs. The components are separated by component delimiters.
See ORC-2-placer order number (Chapter 4, section 4.5.1.2, "Placer Order Number") for information on when this field must be valued.
A given institution or group of intercommunicating institutions should establish a list of applications that may be potential placers and fillers of orders and assign each a unique application ID. The application ID list becomes one of the institution's master dictionary lists that is documented in Chapter 8. Since third-party applications (those other than the placer and filler of an order) can send and receive ORM and ORR messages, the placer application ID in this field may not be the same as any sending and receiving application on the network (as identified in the MSH segment).
ORC-2-placer order number is the same as OBR-2-placer order number. If the placer order number is not present in the ORC, it must be present in the associated OBR and vice versa. If both fields, ORC-2-placer order number and OBR-2-placer order number, are valued, they must contain the same value. When results are transmitted in an ORU message, an ORC is not required, and the identifying placer order number must be present in the OBR segments.
These rules apply to the few other fields that are present in both ORC and OBR for upward compatibility (e.g., quantity/timing, parent numbers, ordering provider, and ordering call back numbers).
Components: <Entity Identifier (ST)> ^ <Namespace ID (IS)> ^ <Universal ID (ST)> ^ <Universal ID Type (ID)>
Definition: This field is the order number associated with the filling application. This is a permanent identifier for an order and its associated observations. It is a special case of the Entity Identifier data type (see Chapter 2, section 2.A.28, "EI - entity identifier").
The first component is a string that identifies an individual order segment (i.e., ORC segment and associated order detail segment). It is assigned by the order filling (receiving) application. It identifies an order uniquely among all orders from a particular filling application (e.g., clinical laboratory). This uniqueness must persist over time.
The second through fourth components contain the filler application ID, in the form of the HD data type (see section 2.A.36, "HD - hierarchic designator"). The second component is a user-defined coded value that uniquely defines the application from other applications on the network. A limit of six (6) characters is suggested but not required. The second component of the filler order number always identifies the actual filler of an order.
See ORC-3-filler order number for information on when this field must be valued.
OBR-3-filler order number is identical to ORC-3-filler order number. If the filler order number is not present in the ORC, it must be present in the associated OBR. (This rule is the same for other identical fields in the ORC and OBR and promotes upward and ASTM compatibility.) This is particularly important when results are transmitted in an ORU message. In this case, the ORC is not required and the identifying filler order number must be present in the OBR segments.
The filler order number (OBR-3 or ORC-3) also uniquely identifies an order and its associated observations. For example, suppose that an institution collects observations from several ancillary applications into a common database and this common database is queried by yet another application for observations. In this case, the filler order number and placer order number transmitted by the common database application would be that of the original filler and placer, respectively, rather than a new one assigned by the common database application.
Similarly, if a third-party application, not the filler or placer, of an order were authorized to modify the status of an order (say, cancel it), the third-party application would send the filler an ORM message containing an ORC segment with ORC-1-order control equal to "CA" and containing the original placer order number and filler order number, rather than assign either itself.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This field contains the identifier code for the requested observation/test/battery. The identifier can come from either a local coding system or industry standards such as SNOMED and LOINC.
Attention: The OBR-5 element was retained for backward compatibilty only as of v2.4 and the detail was withdrawn and removed from the standard as of v2.7.
Attention: The OBR-6 element was retained for backward compatibilty only as of v2.4 and the detail was withdrawn and removed from the standard as of v2.7.
Definition: This field is the clinically relevant date/time of the observation. In the case of observations taken directly from a subject, it is the actual date and time the observation was obtained. In the case of a specimen-associated study, this field shall represent the date and time the specimen was collected or obtained. (This is a results-only field except when the placer or a third party has already drawn the specimen.) This field is conditionally required. When the OBR is transmitted as part of a report message, the field must be filled in. If it is transmitted as part of a request and a sample has been sent along as part of the request, this field must be filled in because this specimen time is the physiologically relevant date/time of the observation.
Definition: This field contains the end date and time of a study or timed specimen collection. If an observation takes place over a substantial period of time, it will indicate when the observation period ended. For observations made at a point in time, it will be null. This is a results field except when the placer or a party other than the filler has already drawn the specimen.
Components: <Quantity (NM)> ^ <Units (CWE)>
Subcomponents for Units (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Definition: For laboratory tests, the collection volume is the volume of a specimen. The default unit is ML. Specifically, units should be expressed in the ISO Standard unit abbreviations (ISO-2955, 1977). This is a results-only field except when the placer or a party has already drawn the specimen. (See Chapter 7 Section 7.4.2.6 for a full discussion regarding units.)
Components: <Person Identifier (ST)> ^ <Family Name (FN)> ^ <Given Name (ST)> ^ <Second and Further Given Names or Initials Thereof (ST)> ^ <Suffix (e.g., JR or III) (ST)> ^ <Prefix (e.g., DR) (ST)> ^ <WITHDRAWN Constituent> ^ <DEPRECATED-Source Table (CWE)> ^ <Assigning Authority (HD)> ^ <Name Type Code (ID)> ^ <Identifier Check Digit (ST)> ^ <Check Digit Scheme (ID)> ^ <Identifier Type Code (ID)> ^ <Assigning Facility (HD)> ^ <Name Representation Code (ID)> ^ <Name Context (CWE)> ^ <WITHDRAWN Constituent> ^ <Name Assembly Order (ID)> ^ <Effective Date (DTM)> ^ <Expiration Date (DTM)> ^ <Professional Suffix (ST)> ^ <Assigning Jurisdiction (CWE)> ^ <Assigning Agency or Department (CWE)> ^ <Security Check (ST)> ^ <Security Check Scheme (ID)>
Subcomponents for Family Name (FN): <Surname (ST)> & <Own Surname Prefix (ST)> & <Own Surname (ST)> & <Surname Prefix from Partner/Spouse (ST)> & <Surname from Partner/Spouse (ST)>
Subcomponents for Source Table (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Assigning Authority (HD): <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Subcomponents for Assigning Facility (HD): <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Subcomponents for Name Context (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Assigning Jurisdiction (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Assigning Agency or Department (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Definition: This field is retained for backward compatibility only as of v27. The reader is referred to the PRT segment described in chapter 7.
When a specimen is required for the study, this field will identify the person, department, or facility that collected the specimen. Either name or ID code, or both, may be present. If the person referenced in this field is also referenced in PRT segment, they must contain the same information. However, if there is a difference, then PRT segment takes precedence.
Definition: This field identifies the action to be taken with respect to the specimens that accompany or precede this order. The purpose of this field is to further qualify (when appropriate) the general action indicated by the order control code contained in the accompanying ORC segment. For example, when a new order (ORC - "NW") is sent to the lab, this field would be used to tell the lab whether or not to collect the specimen ("L" or "O"). Refer to HL7 Table 0065 - Specimen Action Code for valid values.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This field contains the code and/or text indicating any known or suspected patient or specimen hazards, e.g., patient with active tuberculosis or blood from a hepatitis patient. Either code and/or text may be absent. However, the code is always placed in the first component position and any free text in the second component. Thus, free text without a code must be preceded by a component delimiter.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition:This field contains additional clinical information about the patient or specimen. This field is used to report the supporting and/or suspected diagnosis and clinical findings on requests for interpreted diagnostic studies where a simple text string or code is sufficient. This field could use all appropriate code sets including SNOMED to message Relevant Clinical Information. If more information is needed, such as date/time of the observation, who observed it, abnormal ranges, etc., or must be provided in further structured format, e.g., structured numeric with units of measure encoded, the Observation/Result group following the OBR should be used. Examples include reporting the amount of inspired carbon dioxide for blood gasses, the point in the menstrual cycle for cervical pap tests, and other conditions that influence test interpretations.
See User Table 0916 - Relevant Clinical Information for a list of sample values.
Attention: The OBR-14 element was retained for backward compatibilty only as of v2.5 and the detail was withdrawn and removed from the standard as of v2.7.
Attention: The OBR-15 element was retained for backward compatibilty only as of v2.5 and the detail was withdrawn and removed from the standard as of v2.7.
Components: <Person Identifier (ST)> ^ <Family Name (FN)> ^ <Given Name (ST)> ^ <Second and Further Given Names or Initials Thereof (ST)> ^ <Suffix (e.g., JR or III) (ST)> ^ <Prefix (e.g., DR) (ST)> ^ <WITHDRAWN Constituent> ^ <DEPRECATED-Source Table (CWE)> ^ <Assigning Authority (HD)> ^ <Name Type Code (ID)> ^ <Identifier Check Digit (ST)> ^ <Check Digit Scheme (ID)> ^ <Identifier Type Code (ID)> ^ <Assigning Facility (HD)> ^ <Name Representation Code (ID)> ^ <Name Context (CWE)> ^ <WITHDRAWN Constituent> ^ <Name Assembly Order (ID)> ^ <Effective Date (DTM)> ^ <Expiration Date (DTM)> ^ <Professional Suffix (ST)> ^ <Assigning Jurisdiction (CWE)> ^ <Assigning Agency or Department (CWE)> ^ <Security Check (ST)> ^ <Security Check Scheme (ID)>
Subcomponents for Family Name (FN): <Surname (ST)> & <Own Surname Prefix (ST)> & <Own Surname (ST)> & <Surname Prefix from Partner/Spouse (ST)> & <Surname from Partner/Spouse (ST)>
Subcomponents for Source Table (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Assigning Authority (HD): <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Subcomponents for Assigning Facility (HD): <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Subcomponents for Name Context (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Assigning Jurisdiction (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Assigning Agency or Department (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Definition: This field is retained for backward compatibility only as of v27. The reader is referred to the PRT segment described in chapter 7.
This field identifies the provider who ordered the test. Either the ID code or the name, or both, may be present. This is the same as ORC-12-ordering provider. If the person referenced in this field is also referenced in PRT segment, they must contain the same information. However, if there is a difference, then PRT segment takes precedence.
Components: <WITHDRAWN Constituent> ^ <Telecommunication Use Code (ID)> ^ <Telecommunication Equipment Type (ID)> ^ <Communication Address (ST)> ^ <Country Code (SNM)> ^ <Area/City Code (SNM)> ^ <Local Number (SNM)> ^ <Extension (SNM)> ^ <Any Text (ST)> ^ <Extension Prefix (ST)> ^ <Speed Dial Code (ST)> ^ <Unformatted Telephone number (ST)> ^ <Effective Start Date (DTM)> ^ <Expiration Date (DTM)> ^ <Expiration Reason (CWE)> ^ <Protection Code (CWE)> ^ <Shared Telecommunication Identifier (EI)> ^ <Preference Order (NM)>
Subcomponents for Expiration Reason (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Protection Code (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Shared Telecommunication Identifier (EI): <Entity Identifier (ST)> & <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Definition: This field contains the telephone number for reporting a status or a result using the standard format with extension and/or beeper number when applicable.
Definition: This field is user field #1. Text sent by the placer will be returned with the results.
Definition: This field is similar to placer field #1.
Definition: This field is definable for any use by the filler (diagnostic service).
Definition: This field is similar to filler field #1.
Definition: This field specifies the date/time when the results were reported or status changed. This conditional field is required whenever the OBR-25 is valued. This field is used to indicate the date and time that the results are composed into a report and released, or that a status, as defined in ORC-5 order status, is entered or changed. (This is a results field only.) When other applications (such as office or clinical database applications) query the laboratory application for un-transmitted results, the information in this field may be used to control processing on the communications link. Usually, the ordering service would want only those results for which the reporting date/time is greater than the date/time the inquiring application last received results.
Components: <Monetary Amount (MO)> ^ <Charge Code (CWE)>
Subcomponents for Monetary Amount (MO): <Quantity (NM)> & <Denomination (ID)>
Subcomponents for Charge Code (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Definition: This field is the charge to the ordering entity for the studies performed when applicable. The first component is a dollar amount when known by the filler. The second is a charge code when known by the filler (results only).
Definition: This field is the section of the diagnostic service where the observation was performed. If the study was performed by an outside service, the identification of that service should be recorded here. Refer to HL7 Table 0074 - Diagnostic Service Section ID for valid entries.
Definition: This field contains the status of results for this order. This conditional field is required whenever the OBR is contained in a report message. It is not required as part of an initial order.
There are two methods of sending status information. If the status is that of the entire order, use ORC-15-order effective date/time and ORC-5-order status. If the status pertains to the order detail segment, use OBR-25-result status and OBR-22-results rpt/status chng - date/time. If both are present, the OBR values override the ORC values.
This field would typically be used in a response to an order status query where the level of detail requested does not include the OBX segments. When the individual status of each result is necessary, OBX-11-observ result status may be used. Refer to HL7 Table 0123 - Result Status for valid entries.
Components: <Parent Observation Identifier (CWE)> ^ <Parent Observation Sub-identifier (ST)> ^ <Parent Observation Value Descriptor (TX)>
Subcomponents for Parent Observation Identifier (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Definition: This field is defined to make it available for other types of linkages (e.g., toxicology). This important information, together with the information in OBR-29-parent or OBR-57 Parent Result ID, uniquely identifies the parent result's OBX segment related to this order. The value of this OBX segment in the parent result is the organism or chemical species about which this battery reports. For example, if the current battery is an antimicrobial susceptibility, the parent results identified OBX contains a result which identifies the organism on which the susceptibility was run. This indirect linkage is preferred because the name of the organism in the parent result may undergo several preliminary values prior to finalization.
The third component may be used to record the name of the microorganism identified by the parent result directly. The organism in this case should be identified exactly as it is in the parent culture.
We emphasize that this field does not take the entire result field from the parent. It is meant only for the text name of the organism or chemical subspecies identified. This field is included only to provide a method for linking back to the parent result for those systems that could not generate unambiguous Observation IDs and sub-IDs.
This field is present only when the parent result is identified by OBR-29-parent or OBR-57, Parent Result ID, and the parent spawns child orders or results for each of many results. (See Chapter 7 for more details about this linkage.)
A second mode of conveying this information is to use a standard observation result segment (OBX). If more than one organism is present, OBX-4-observation sub-ID is used to distinguish them. In this case, the first OBX with subID N will contain a value identifying the Nth microorganism, and each additional OBX with subID N will contain susceptibility values for a given antimicrobial test on this organism.
Attention: The OBR-27 element was retained for backward compatibilty only as of v2.5 and the detail was withdrawn and removed from the standard as of v2.7.
Components: <Person Identifier (ST)> ^ <Family Name (FN)> ^ <Given Name (ST)> ^ <Second and Further Given Names or Initials Thereof (ST)> ^ <Suffix (e.g., JR or III) (ST)> ^ <Prefix (e.g., DR) (ST)> ^ <WITHDRAWN Constituent> ^ <DEPRECATED-Source Table (CWE)> ^ <Assigning Authority (HD)> ^ <Name Type Code (ID)> ^ <Identifier Check Digit (ST)> ^ <Check Digit Scheme (ID)> ^ <Identifier Type Code (ID)> ^ <Assigning Facility (HD)> ^ <Name Representation Code (ID)> ^ <Name Context (CWE)> ^ <WITHDRAWN Constituent> ^ <Name Assembly Order (ID)> ^ <Effective Date (DTM)> ^ <Expiration Date (DTM)> ^ <Professional Suffix (ST)> ^ <Assigning Jurisdiction (CWE)> ^ <Assigning Agency or Department (CWE)> ^ <Security Check (ST)> ^ <Security Check Scheme (ID)>
Subcomponents for Family Name (FN): <Surname (ST)> & <Own Surname Prefix (ST)> & <Own Surname (ST)> & <Surname Prefix from Partner/Spouse (ST)> & <Surname from Partner/Spouse (ST)>
Subcomponents for Source Table (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Assigning Authority (HD): <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Subcomponents for Assigning Facility (HD): <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Subcomponents for Name Context (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Assigning Jurisdiction (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Assigning Agency or Department (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Definition: : This field is retained for backward compatibility only as of v27. Additional capabilities are now available through thePRT segment following the OBR using the "RCT" (Results Copy To) value in PRT-4 (Participation) from Table 912 - Participation and referencing the approriate participant information using other PRT Fields. The PRT segment is further described in Chapter 7 Section 7.3.4 "PRT - Participation Information Segment".
This field identifies the people who are to receive copies of the results. By local convention, either the ID number or the name may be absent.
Components: <Placer Assigned Identifier (EI)> ^ <Filler Assigned Identifier (EI)>
Subcomponents for Placer Assigned Identifier (EI): <Entity Identifier (ST)> & <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Subcomponents for Filler Assigned Identifier (EI): <Entity Identifier (ST)> & <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Definition: This field relates a child result to its parent result when a parent child result relationship exists. This field uniquely identifies the order number of the parent result; no other information is required to link the child result with its parent result.
Definition: This field identifies how (or whether) to transport a patient, when applicable. Refer to HL7 Table 0124 - Transportation Mode for valid codes.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This field is the code or text using the conventions for coded fields given in the Control chapter (Chapter 2). This is required for some studies to obtain proper reimbursement.
Components: <Name (CNN)> ^ <Start Date/time (DTM)> ^ <End Date/time (DTM)> ^ <Point of Care (IS)> ^ <Room (IS)> ^ <Bed (IS)> ^ <Facility (HD)> ^ <Location Status (IS)> ^ <Patient Location Type (IS)> ^ <Building (IS)> ^ <Floor (IS)>
Subcomponents for Name (CNN): <ID Number (ST)> & <Family Name (ST)> & <Given Name (ST)> & <Second and Further Given Names or Initials Thereof (ST)> & <Suffix (e.g., JR or III) (ST)> & <Prefix (e.g., DR) (ST)> & <Degree (e.g., MD) (IS)> & <Source Table (IS)> & <Assigning Authority - Namespace ID (IS)> & <Assigning Authority - Universal ID (ST)> & <Assigning Authority - Universal ID Type (ID)>
Subcomponents for Facility (HD): <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Definition: This field is retained for backward compatibility only as of v2.6. The reader is referred to the PRT segment described in Chapter 7.
This field identifies the physician or other clinician who interpreted the observation and is responsible for the report content.
As an example of the use of the PRT segment to replace OBR-32 Primary Result Interpreter, consider the following example:
Harold Hippocrates, MD, as a Primary Interpreter
Provider ID: HHIPP, issued by GoodHealth Hospital (GGH) which is set to expire on 31 December 2011
Dr Hippocrates performed the interpretation from 10:45 to 11 am on 15 April 2011 in the central laboratory (LAB01) at GoodHealth Hospital's main facility (HOSP-MAIN)
In the deprecated form, the message would include (not all of the above information can be represented in this form):
...
OBR|... |HHIPP&Hippocrates&Harold&&&&MD^201104151045^201104151100^LAB01^^^^^^HOSP-MAIN|...<cr>
...
The same information, recast using PRT would appear as:
...
OBR|...<cr>
PRT||AD||PI^Primary Interpreter^HL70443|HHIPP^Hippocrates^Harold^^^^GGH^L^^^PRN^^A^^^G^^20111231^MD||||LAB01^^^^^^HOSP-MAIN||201104151045|201104151100|||<cr>
...
Components: <Name (CNN)> ^ <Start Date/time (DTM)> ^ <End Date/time (DTM)> ^ <Point of Care (IS)> ^ <Room (IS)> ^ <Bed (IS)> ^ <Facility (HD)> ^ <Location Status (IS)> ^ <Patient Location Type (IS)> ^ <Building (IS)> ^ <Floor (IS)>
Subcomponents for Name (CNN): <ID Number (ST)> & <Family Name (ST)> & <Given Name (ST)> & <Second and Further Given Names or Initials Thereof (ST)> & <Suffix (e.g., JR or III) (ST)> & <Prefix (e.g., DR) (ST)> & <Degree (e.g., MD) (IS)> & <Source Table (IS)> & <Assigning Authority - Namespace ID (IS)> & <Assigning Authority - Universal ID (ST)> & <Assigning Authority - Universal ID Type (ID)>
Subcomponents for Facility (HD): <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Definition: This field is retained for backward compatibility only as of v2.6. The reader is referred to the PRT segment used relative to OBR as described in section 7.3.1.32, "Principal Result Interpreter."
This field identifies the clinical observer who assisted with the interpretation of this study.
Components: <Name (CNN)> ^ <Start Date/time (DTM)> ^ <End Date/time (DTM)> ^ <Point of Care (IS)> ^ <Room (IS)> ^ <Bed (IS)> ^ <Facility (HD)> ^ <Location Status (IS)> ^ <Patient Location Type (IS)> ^ <Building (IS)> ^ <Floor (IS)>
Subcomponents for Name (CNN): <ID Number (ST)> & <Family Name (ST)> & <Given Name (ST)> & <Second and Further Given Names or Initials Thereof (ST)> & <Suffix (e.g., JR or III) (ST)> & <Prefix (e.g., DR) (ST)> & <Degree (e.g., MD) (IS)> & <Source Table (IS)> & <Assigning Authority - Namespace ID (IS)> & <Assigning Authority - Universal ID (ST)> & <Assigning Authority - Universal ID Type (ID)>
Subcomponents for Facility (HD): <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Definition: This field is retained for backward compatibility only as of v2.6. The reader is referred to the PRTsegment used relative to OBR as described in section 7.3.1.32, "Principal Result Interpreter."
This field identifies the performing technician.
Components: <Name (CNN)> ^ <Start Date/time (DTM)> ^ <End Date/time (DTM)> ^ <Point of Care (IS)> ^ <Room (IS)> ^ <Bed (IS)> ^ <Facility (HD)> ^ <Location Status (IS)> ^ <Patient Location Type (IS)> ^ <Building (IS)> ^ <Floor (IS)>
Subcomponents for Name (CNN): <ID Number (ST)> & <Family Name (ST)> & <Given Name (ST)> & <Second and Further Given Names or Initials Thereof (ST)> & <Suffix (e.g., JR or III) (ST)> & <Prefix (e.g., DR) (ST)> & <Degree (e.g., MD) (IS)> & <Source Table (IS)> & <Assigning Authority - Namespace ID (IS)> & <Assigning Authority - Universal ID (ST)> & <Assigning Authority - Universal ID Type (ID)>
Subcomponents for Facility (HD): <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Definition: This field is retained for backward compatibility only as of v2.6. The reader is referred to the PRTsegment used relative to OBR as described in section 7.3.1.32, "Principal Result Interpreter."
This field identifies the report transcriber.
Definition: This field is the date/time the filler scheduled an observation, when applicable (e.g., action code in OBR-11-specimen action code = "S"). This is a result of a request to schedule a particular test and provides a way to inform the placer of the date/time a study is scheduled (result only).
Definition: This field identifies the number of containers for a given sample. For sample receipt verification purposes; may be different from the total number of samples which accompany the order.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This field is the means by which a sample reaches the diagnostic service provider. This information is to aid the lab in scheduling or interpretation of results. Possible answers: routine transport van, public postal service, etc. If coded, requires a user-defined table.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This field is for reporting additional comments related to the sample. If coded, requires a user-defined table. If only free text is reported, it is placed in the second component with a null in the first component e.g., ^difficulty clotting after venipuncture and ecchymosis.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This field is an indicator of who is responsible for arranging transport to the planned diagnostic service. Examples: Requester, Provider, Patient. If coded, requires a user-defined table.
Definition: This field is an indicator of whether transport arrangements are known to have been made. Refer to HL7 Table 0224 - Transport Arranged for valid codes.
Definition: This field is an indicator that the patient needs to be escorted to the diagnostic service department. Note: The nature of the escort requirements should be stated in OBR-43-planned patient transport comment. See HL7 Table 0225 - Escort Required for valid values.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This field is the code or free text comments on special requirements for the transport of the patient to the diagnostic service department. If coded, requires a user-defined table.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This field contains a unique identifier assigned to the procedure, if any, associated with the charge. Refer to Externally-defined table 0088 - Procedure code for suggested values. This field is a coded data type for compatibility with clinical and ancillary systems.
As of version 2.6, applicable external coding systems include those in the table below. If the code set used is in this table, then the coding scheme designation in the table shall be used.
Procedure Code Coding Systems (from HL7 Table 0396)
7.4.1.0 The daggered (+) items in this segment are created by the filler, not the placer. They are valued by the filler as needed when the OBR segment is returned as part of a report.
7.4.1.1 OBR-1 Set ID - OBR (SI) 00237
7.4.1.2 OBR-2 Placer order number (EI) 00216
7.4.1.3 OBR-3 Filler Order Number (EI) 00217
7.4.1.4 OBR-4 Universal Service Identifier (CWE) 00238
7.4.1.5 OBR-5 Priority
7.4.1.6 OBR-6 Requested Date/Time
7.4.1.7 OBR-7 Observation Date/Time (DTM) 00241
7.4.1.8 OBR-8 Observation End Date/Time (DTM) 00242
7.4.1.9 OBR-9 Collection Volume (CQ) 00243
7.4.1.10 OBR-10 Collector Identifier (XCN) 00244
7.4.1.11 OBR-11 Specimen Action Code (ID) 00245
7.4.1.12 OBR-12 Danger Code (CWE) 00246
7.4.1.13 OBR-13 Relevant Clinical Information (CWE) 00247
7.4.1.14 OBR-14 Specimen Received Date/Time
7.4.1.15 OBR-15 Specimen Source
7.4.1.16 OBR-16 Ordering Provider (XCN) 00226
7.4.1.17 OBR-17 Order Callback Phone Number (XTN) 00250
7.4.1.18 OBR-18 Placer Field 1 (ST) 00251
7.4.1.19 OBR-19 Placer Field 2 (ST) 00252
7.4.1.20 OBR-20 Filler Field 1 (ST) 00253
7.4.1.21 OBR-21 Filler Field 2 (ST) 00254
7.4.1.22 OBR-22 Results Rpt/Status Chng - Date/Time (DTM) 00255
7.4.1.23 OBR-23 Charge to Practice (MOC) 00256
7.4.1.24 OBR-24 Diagnostic Serv Sect ID (ID) 00257
7.4.1.25 OBR-25 Result Status (ID) 00258
7.4.1.26 OBR-26 Parent Result (PRL) 00259
7.4.1.27 OBR-27 Quantity/timing
7.4.1.28 OBR-28 Result Copies To (XCN) 00260
7.4.1.29 OBR-29 Parent Result Observation Identifier (EIP) 00261
7.4.1.30 OBR-30 Transportation Mode (ID) 00262
7.4.1.31 OBR-31 Reason for Study (CWE) 00263
7.4.1.32 OBR-32 Principal Result Interpreter (NDL) 00264
7.4.1.33 OBR-33 Assistant Result Interpreter (NDL) 00265
7.4.1.34 OBR-34 Technician (NDL) 00266
7.4.1.35 OBR-35 Transcriptionist (NDL) 00267
7.4.1.36 OBR-36 Scheduled Date/Time (DTM) 00268
7.4.1.37 OBR-37 Number of Sample Containers (NM) 01028
7.4.1.38 OBR-38 Transport Logistics of Collected Sample (CWE) 01029
7.4.1.39 OBR-39 Collector's Comment (CWE) 01030
7.4.1.40 OBR-40 Transport Arrangement Responsibility (CWE) 01031
7.4.1.41 OBR-41 Transport Arranged (ID) 01032
7.4.1.42 OBR-42 Escort Required (ID) 01033
7.4.1.43 OBR-43 Planned Patient Transport Comment (CWE) 01034
7.4.1.44 OBR-44 Procedure Code (CNE) 00393
Value | Description | Comment |
---|---|---|
C4 | CPT-4 | American Medical Association, P.O. Box 10946, Chicago IL 60610. |
C5 | CPT-5 | Deprecated. There is no CPT 5th edition. CPT-5 project added new codes to existing edition but did not create a new edition |
HCPCS | CMS (formerly HCFA) Common Procedure Coding System | HCPCS: contains codes for medical equipment, injectable drugs, transportation services, and other services not found in CPT4. |
HPC | CMS (formerly HCFA )Procedure Codes (HCPCS) | Health Care Financing Administration (HCFA) Common Procedure Coding System (HCPCS) including modifiers. |
I10P | ICD-10 Procedure Codes | Procedure Coding System (ICD-10-PCS.) See http://www.cms.hhs.gov/ICD10/ for more information. |
SCT | SNOMED CT | SNOMED procedure codes |
Value | Description | Comment |
---|---|---|
CPTM | CPT Modifier Code | Available for the AMA at the address listed for CPT above. These codes are found in Appendix A of CPT 2000 Standard Edition. (CPT 2000 Standard Edition, American Medical Association, Chicago, IL) |
HPC | CMS (formerly HCFA) Procedure Codes (HCPCS) | Health Care Financing Administration (HCFA) Common Procedure Coding System (HCPCS) including modifiers. |
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This field contains supplemental service information sent from the placer system to the filler system for the universal procedure code reported in OBR-4 Universal Service ID. This field will be used to provide ordering information detail that is not available in other specific fields in the OBR segment. Multiple supplemental service information elements may be reported. Refer to User-defined Table 0411 - Supplemental service information values.
This field can be used to describe details such as whether study is to be done on the right or left, for example, where the study is of the arm and the order master file does not distinguish right from left, or whether the study is to be done with or without contrast (when the order master file does not make such distinctions).
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This field contains supplemental service information sent from the filler system to the placer system for the procedure code reported in OBR-4 Universal Service ID. This field will be used to report ordering information detail that is not available in other specific fields in the OBR segment. Typically it will reflect the same information as was sent to the filler system in OBR-46-Placer supplemental service information unless the order was modified, in which case the filler system will report what was actually performed using this field. Multiple supplemental service information elements may be reported. Refer to User-Defined Table 0411 - Supplemental Service Information Values.
This field can be used to describe details such as whether study is to be done on the right or left, for example, where the study is of the arm and the order master file does not distinguish right from left, or whether the study is to be done with or without contrast (when the order master file does not make such distinctions).
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This field is used to document why the procedure found in OBR-44 - Procedure Code is a duplicate of one ordered/charged previously for the same patient within the same date of service and has been determined to be medically necessary. The reason may be coded or it may be a free text entry.
This field is intended to provide financial systems information on who to bill for duplicate procedures.
Refer to User-Defined Table 0476 - Medically Necessary Duplicate Procedure Reason for suggested values.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: Transmits information regarding the handling of the result. For example, an order may specify that the result (e.g., an x-ray film) should be given to the patient for return to the requestor. Refer to HL7 Table 0507 - Observation Result Handling for values. If this field is not populated populated or if it includes value "CC^Copies Requested", then routine handling is implied and PRT segments assocatied with OBR with PRT-4 value of "RCT^Result Copies To" identify additional recipients for the results. When this field includes the value "BCC^Blind Copy", those PRT segments, which are included in the order message and in the observation result message sent to the requestor, shall not be included in the observation result messages sent to the copied recipients.
.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This field is retained for backward compatibility only as of v2.7. Note that OBR-50 has been deprecated in V2.7 to enable message developers to adjust and be prepared for supporting the intended 1:1 relationship between Placer/Filler Order Number and Universal Service Identifier.
This field contains the identifier code for the parent order, as identified in ORC-8 Parent and/or OBR-29 Parent (if present), which caused this observation/test/battery to be performed. This can be based on local and/or "universal" codes. HL7 recommends the "universal" service identifier.
Note that ORC-8 Parent and/or OBR-29 Parent, does not have to be present for OBR-50 to be used. However, absence of ORC-8 Parent and/or OBR-29 Parent introduces potential ambiguity of the actual order being referenced.
Note that ORC-8 Parent and OBR-29 Parent identify an individual parent order (e.g., OBR) for ORC-31 Parent Universal Service Identifier and OBR-50 Parent Universal Service Identifier.
ORC-31 - parent universal service identifier is the same as OBR-50 - parent universal service identifier. If both fields are valued, they must contain the same value.
Components: <Entity Identifier (ST)> ^ <Namespace ID (IS)> ^ <Universal ID (ST)> ^ <Universal ID Type (ID)>
Definition: The Observation Group ID is the identifier assigned by the producer of a result to uniquely identify the results associated with this OBR segment. The Observation Group ID is intended to remain the same regardless of the change in status to the result (i.e., it is not a snapshot ID). This field is intended to promote forward compatibility with HL7 V3.
Components: <Entity Identifier (ST)> ^ <Namespace ID (IS)> ^ <Universal ID (ST)> ^ <Universal ID Type (ID)>
Definition: The Parent Observation Group ID field relates this child OBR to its parent OBR segment using the Observation Group ID of the parent result.
Components: <ID Number (ST)> ^ <Identifier Check Digit (ST)> ^ <Check Digit Scheme (ID)> ^ <Assigning Authority (HD)> ^ <Identifier Type Code (ID)> ^ <Assigning Facility (HD)> ^ <Effective Date (DT)> ^ <Expiration Date (DT)> ^ <Assigning Jurisdiction (CWE)> ^ <Assigning Agency or Department (CWE)> ^ <Security Check (ST)> ^ <Security Check Scheme (ID)>
Subcomponents for Assigning Authority (HD): <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Subcomponents for Assigning Facility (HD): <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Subcomponents for Assigning Jurisdiction (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Assigning Agency or Department (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Definition: This field enables a shorter number to be communicated that is unique within other identifiers.
Components: <Placer Assigned Identifier (EI)> ^ <Filler Assigned Identifier (EI)>
Subcomponents for Placer Assigned Identifier (EI): <Entity Identifier (ST)> & <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Subcomponents for Filler Assigned Identifier (EI): <Entity Identifier (ST)> & <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Definition: This field relates a child order to its parent order when a parent child order relationship exists. The parent child order mechanism is described in HL7 Table 0119 under order control code PA. This field uniquely identifies the parent order; no other information is required to link the child order with its parent order.
The first component has the same format as ORC-2-placer order number (Section Error! Reference source not found., "Error! Reference source not found."). The second component has the same format as ORC-3-filler order number (Section Error! Reference source not found., "Error! Reference source not found."). The components of the placer order number and the filler order number are transmitted in sub-components of the two components of this field.
ORC-8/OBR-54-parent order is not the same as OBR-29-parent result.
Condition: Where the message has matching ORC/OBR pairs, ORC-8 and OBR-54 must carry the same value.
The OBX segment is used to transmit a single observation or observation fragment. It represents the smallest indivisible unit of a report. The OBX segment can also contain encapsulated data, e.g., a CDA document or a DICOM image.
Its principal mission is to carry information about observations in report messages. But the OBX can also be part of an observation order (see Chapter 4, section 4.4, "General Trigger Events & Message Definitions"). In this case, the OBX carries clinical information needed by the filler to interpret the observation the filler makes. For example, an OBX is needed to report the inspired oxygen on an order for a blood oxygen to a blood gas lab, or to report the menstrual phase information which should be included on an order for a pap smear to a cytology lab. Appendix 7A includes codes for identifying many of pieces of information needed by observation producing services to properly interpret a test result. OBX is also found in other HL7 messages that need to include patient clinical information.
HL7 Attribute Table - OBX - Observation/Result
7.4.1.46 OBR-46 Placer Supplemental Service Information (CWE) 01474
7.4.1.47 OBR-47 Filler Supplemental Service Information (CWE) 01475
7.4.1.48 OBR-48 Medically Necessary Duplicate Procedure Reason (CWE) 01646
7.4.1.49 OBR-49 Result Handling (CWE) 01647
7.4.1.50 OBR-50 Parent Universal Service Identifier (CWE) 02286
7.4.1.51 OBR-51 Observation Group ID (EI) 02307
7.4.1.52 OBR-52 Parent Observation Group ID (EI) 02308
7.4.1.53 OBR-53 Alternate Placer Order Number (CX) 03303
7.4.1.54 OBR-54 Parent Order (EIP) 00222
7.4.2 OBX - Observation/Result Segment
SEQ | LEN | C.LEN | DT | OPT | RP/# | TBL# | ITEM# | ELEMENT NAME | DB Ref. |
---|---|---|---|---|---|---|---|---|---|
1 | 1..4 |
| SI | O |
|
| 00569 | Set ID - OBX | DB |
2 | 2..3 |
| ID | C |
| 0125 | 00570 | Value Type | DB |
3 |
|
| CWE | R |
| 9999 | 00571 | Observation Identifier | DB |
4 |
| 20= | ST | C |
|
| 00572 | Observation Sub-ID | DB |
5 |
|
| varies | C | Y |
| 00573 | Observation Value | DB |
6 |
|
| CWE | O |
| 9999 | 00574 | Units | DB |
7 |
| 60= | ST | O |
|
| 00575 | References Range | DB |
8 |
|
| CWE | O | Y |
| 00576 | Interpretation Codes | DB |
9 |
| 5# | NM | O |
|
| 00577 | Probability | DB |
10 | 1..2 |
| ID | O | Y | 0080 | 00578 | Nature of Abnormal Test | DB |
11 | 1..1 |
| ID | R |
| 0085 | 00579 | Observation Result Status | DB |
12 |
|
| DTM | O |
|
| 00580 | Effective Date of Reference Range | DB |
13 |
| 20= | ST | O |
|
| 00581 | User Defined Access Checks | DB |
14 |
|
| DTM | O |
|
| 00582 | Date/Time of the Observation | DB |
15 |
|
| CWE | B |
| 9999 | 00583 | Producer's ID | DB |
16 |
|
| XCN | B | Y |
| 00584 | Responsible Observer | DB |
17 |
|
| CWE | O | Y | 9999 | 00936 | Observation Method | DB |
18 |
|
| EI | B | Y |
| 01479 | Equipment Instance Identifier | DB |
19 |
|
| DTM | O |
|
| 01480 | Date/Time of the Analysis | DB |
20 |
|
| CWE | O | Y | 0163 | 02179 | Observation Site | DB |
21 |
|
| EI | O |
|
| 02180 | Observation Instance Identifier | DB |
22 |
|
| CNE | C |
| 0725 | 02182 | Mood Code | DB |
23 |
|
| XON | B | N |
| 02283 | Performing Organization Name | DB |
24 |
|
| XAD | B | N |
| 02284 | Performing Organization Address | DB |
25 |
|
| XCN | B | N |
| 02285 | Performing Organization Medical Director | DB |
26 | 1..10 |
| ID | O | N | 0909 | 02313 | Patient Results Release Category | DB |
Definition: This field contains the sequence number. For compatibility with ASTM.
Definition: This field defines the data type of OBX-5, Observation Value. This field is required if OBX-11-Observ result status is not valued with an "X". See HL7 Table 0125 - Value Types for valid values.
For example, if the value is 'CWE' then the result in OBX-5 must be a coded entry or text or both. As of v2.7, the ST data type may not be used to transmit data that can be more precisely transmitted using other data types, e.g. SN when comparative symbols are needed.
CQ is invalid because units for OBX-5-observation value are always specified explicitly in an OBX segment with OBX-6 units. SI is invalid because it only applies to HL7 message segments; ID is also invalid because it requires a constant field definition.
The RP value (reference pointer) must be used if the OBX-5 contains a pointer to the data e.g., a URL of an image. The receiving system can use this reference pointer whenever it needs access to the actual data through other interface standards, e.g., DICOM, or through appropriate data base servers.
The structured numeric (SN) data type provides for reporting ranges (e.g., 3-5 or 10-20), titres (e.g., 1:10), and out-of-range indicators (e.g., >50) in a structured and computer-interpretable way.
We allow the FT data type in the OBX segment, but its use is discouraged. Formatted text usually implies a meaningful structure, e.g., a list of three independent diagnoses reported on different lines. But ideally, the structure in three independent diagnostic statements would be reported as three separate OBX segments.
TX should not be used except to send large amounts of text. In the TX data type, the repeat delimiter can only be used to identify paragraph breaks. Use ST to send short, and possibly encodable, text strings.
CDA documents are to be exchanged in the OBX segment in any message that can exchange documents (such as MDM or ORU). Within the OBX segment, the MIME package is encoded as an encapsulated (ED) data type.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This field contains a unique identifier for the observation. The format is that of the Coded Element (CWE). Example: "8625-6^P-R interval^LN".
In most systems the identifier will point to a master observation table that will provide other attributes of the observation that may be used by the receiving system to process the observations it receives. A set of message segments for transmitting such master observation tables is described in Chapter 8. The relation of an observation ID to a master observation table is analogous to the relationship between a charge code (in a billing record) and the charge master.
When local codes are used as the first identifier in this field we strongly encourage sending a universal identifier as well to permit receivers to equivalence results from different providers of the same service (e.g., a hospital lab and commercial lab that provides serum potassium to a nursing home). LOINC® is one possible universal and HL7-approved code system for the Observation identifier. It covers observations and measurements, such as laboratory tests, physical findings, radiology studies, and claims attachments. See HL7 Table 0396 - Coding System, the HL7 www list server and Appendix X2 of ASTM E1467 for neurophysiology tests, or it can be obtained from www.regenstrief.org/loinc/loinc.htm.
The use of suffixes as described in section 7.1.3 and section 7.1.4 has been deprecated as of V2.7.
Definition: This field is used to distinguish between multiple OBX segments with the same observation ID organized under one OBR. For example, a chest X-ray report might include three separate diagnostic impressions. The standard requires three OBX segments, one for each impression. By putting a 1 in the Sub-ID of the first of these OBX segments, 2 in the second, and 3 in the third, we can uniquely identify each OBX segment for editing or replacement.
The sub-identifier is also used to group related components in reports such as surgical pathology. It is traditional for surgical pathology reports to include all the tissues taken from one surgical procedure in one report. Consider, for example, a single surgical pathology report that describes the examination of gallbladder and appendix tissue. This report would be transmitted roughly as shown in Figure 7-2.
Figure 7-2. Example of sub-identifier usage
OBR|1||1234^LAB|11529-5^Study report^LN|...<cr>
OBX|1|CWE|88304&ANT|1|T57000^GALLBLADDER^SNM|...<cr>
OBX|2|TX|22634-0^Path report.gross observation^LN|1|THIS IS A NORMAL GALLBLADDER|...<cr>
OBX|3|TX|22635-7^Path report.microscopic observation^LN|1|MICROSCOPIC EXAM SHOWS HISTOLOGICALLY
NORMAL GALLBLADDER TISSUE|...<cr>
OBX|4|CWE|34574-4^Path report.final diagnosis^LN|1|M-00100^NML^SNM|...<cr>
OBX|5|CWE|11529-5&ANT^Surgical Path Report^LN|2|T66000^APPENDIX^SNM|...<cr>
OBX|6|TX|22634-0^Path report.gross observation^LN|2|THIS IS A RED, INFLAMED, SWOLLEN, BOGGY APPENDIX|...<cr>
OBX|7|TX|22635-7^Path report.microscopic observation^LN|2|INFILTRATION WITH MANY PMN's - INDICATING INFLAMATORY CHANGE|...<cr>
OBX|8|CWE|34574-4^Path report.final diagnosis^LN|2|M-40000^INFLAMMATION NOS^SNM|...<cr>
The example in Figure 7-2 has two segments for each component of the report, one for each of the two tissues. Thus, there are two 88304&ANT segments; there are two "22634-0^Path report.gross observation^LN" segments, and there are two "22635-7^Path report.microscopic observation^LN" segments. Segments that apply to the gallbladder all have the sub-identifier 1. Segments that apply to the appendix all have sub-identifier 2.
The observation sub ID has other grouping uses. It can be used to organize the reporting of some kinds of fluid intakes and outputs. For example, when intake occurs through multiple intravenous lines, a number of separate observations (OBX segments), the intake volume, the type of intake (Blood, D5W, Plasma, etc.), the site of the IV line, etc. may be needed for each intravenous line, each requiring a separate OBX segment. If more than one IV line is running, we can logically link all of the OBX segments that pertain to the first IV line by assigning them an observation sub ID of 1. We can do the same with the second IV line by assigning them a sub ID 2 and so on. The same would apply to the outputs of surgical drains when there are multiple such drains.
The use of the sub ID to distinguish repeating OBXs for the same observation ID is really a special case of using the sub ID to group, as can be seen if we picture the OBX segments in Figure 7-2 as part of a table where the rows correspond to a particular species of observation and the cells correspond to the sub ID numbers that would be associated with each corresponding OBX.
7.4.2.0 OBX-1 Set ID - OBX (SI) 00569
7.4.2.1 OBX-2 Value Type (ID) 00570
7.4.2.2 OBX-3 Observation Identifier (CWE) 00571
7.4.2.3 OBX-4 Observation Sub-ID (ST) 00572
Distinct Observations | 88304&ANT | 22634-0^Path report.gross observation^LN | 22635-7^Path report.microscopic observation^LN | 34574-4^Path report.final diagnosis^LN |
Sub ID 1st Group | 1 | 1 | 1 | 1 |
Sub ID 2nd Group | 2 | 2 | 2 | 2 |
The use of Sub IDs to group results is equivalent to defining a table, and the use of sub IDs to distinguish repeats is just a special case, represented by one column in this table.
However, this approach introduces ambiguities if we have a set of repeating observations within a group, e.g., if the appendix observations include two impressions as in the 8th and 9th OBXs shown in Figure 7-3. This really represents the existence of a row nested within a single cell of the table given above.
Figure 7-3. Example of sub-identifier usage
OBX|1|CWE|880304&ANT|1|T57000^GALLBLADDER^SNM|...<cr>
OBX|2|TX|22634-0^Path report.gross observation^LN|1|THIS IS A NORMAL GALL BLADDER|...<cr>
OBX|3|TX|22635-7^Path report.microscopic observation^LN|1|MICROSCOPIC EXAMINATION SHOWS HISTOLOGICALLY
NORMAL GALLBLADDER TISSUE|...<cr>
OBX|4|CWE|34574-4^Path report.final diagnosis^LN|1|M-00100^NML^SNM|...<cr>
OBX|5|CWE|880304&ANT|2|T57000^APPENDIX^SNM|...<cr>
OBX|6|TX|22634-0^Path report.gross observation^LN|2|THIS IS A RED, INFLAMED APPENDIX|...<cr>
OBX|7|TX|22635-7^Path report.microscopic observation^LN|2|INFLAMMATION WITH MANY PUS CELLS-ACUTE INFLAMMATION|...<cr>
OBX|8|CWE|34574-4^Path report.final diagnosis^LN|2|M-40000^INFLAMMATION NOS^SNM|...<cr>
OBX|9|CWE|34574-4^Path report.final diagnosis^LN|2|M-30280^FECALITH^SNM|...<cr>
The text under OBX-5-observation value provides guidance about dealing with two OBXs with the same observation ID and observation sub IDs. They are sent and replaced as a unit. However, some systems will take this to mean that the set of OBXs is to be combined into one composite observation in the receiving system. We suggest the use of a dot and a string (similar to the Dewey Decimal system) when users wish to distinguish each of the repeats within one type, or results within a cell for editing and correction purposes. Using this system, Figure 7-3 would become 7-4. If there are cases where such nesting occurs at even deeper levels, this approach could be extended.
Figure 7-4. Example of sub-identifier usage
OBX|1|CWE|880304&ANT|1|T57000^GALLBLADDER^SNM|...<cr>
OBX|2|TX|22634-0^Path report.gross observation^LN|1|THIS IS A NORMAL GALL BLADDER|...<cr>
OBX|3|TX|22635-7^Path report.microscopic observation^LN|1|MICROSCOPIC EXAMINATION SHOWS HISTOLOGICALLY
NORMAL GALLBLADDER TISSUE|...<cr>
OBX|4|CWE|34574-4^Path report.final diagnosis^LN|1|M-00100^NML^SNM|...<cr>
OBX|5|CWE|880304&ANT|2|T57000^APPENDIX^SNM|...<cr>
OBX|6|TX|22634-0^Path report.gross observation^LN|2|THIS IS A RED, INFLAMED APPENDIX|...<cr>
OBX|7|TX|22635-7^Path report.microscopic observation^LN|2|INFLAMMATION WITH MANY PUS CELLS-ACUTE INFLAMMATION|...<cr>
OBX|8|CWE|34574-4^Path report.final diagnosis^LN|2.1|M-40000^INFLAMMATION NOS^SNM|...<cr>
OBX|9|CWE|34574-4^Path report.final diagnosis^LN|2.2|M-30280^FECALITH^SNM|...<cr>
Use a null or 1 when there is no need for multiples.
If the observation includes a number of OBXs with the same value for the observation ID OBX-3, then one must use different values for the sub-ID. This is in fact the case of the repeats depicted in Figure 7-4, but without any need to group sets of OBXs. Three such OBXs could be distinguished by using sub-IDs 1, 2 etc. alternatively, sub-IDs 1.1, 1.2, 1.3 could be used, as shown in Figure 7-4. Figure 7-5 shows and example of an electrocardiograph chest radiograph report with three diagnostic impressions, using 1,2,3 in the sub-ID field to distinguish the three separate results.
Figure 7-5. Example of Sub-ID used to distinguish three independent results with the same observation ID
OBX|1|CWE|8601-7^EKG IMPRESSION ^LN|1|^atrial fibrillation|...<cr>
OBX|2|CWE|8601-7^EKG IMPRESSION ^LN|2|^OLD SEPTAL MYOCARDIAL INFARCT|...<cr>
OBX|3|CWE|8601-7^EKG IMPRESSION ^LN|3|^poor R wave progression|...<cr>
Definition: This field contains the value observed by the observation producer. OBX-2-value type contains the data type for this field according to which observation value is formatted. It is not a required field because some systems will report only the Interpretation Codes (OBX-8), especially in product experience reporting. The length of the observation field is variable, depending upon OBX-3-value type. This field may repeat for multipart, single answer results.
Representation
This field contains the value of OBX-3-observation identifier of the same segment. Depending upon the observation, the data type may be a number (e.g., a respiratory rate), a coded answer (e.g., a pathology impression recorded as SNOMED), or a date/time (the date/time that a unit of blood is sent to the ward). An observation value is always represented as the data type specified in OBX-2-value type of the same segment. Whether numeric or short text, the answer shall be recorded in ASCII text.
Reporting logically independent observations
The main sections of dictated reports, such as radiologic studies or history and physicals, are reported as separate OBX segments. In addition, each logically independent observation should be reported in a separate OBX segment, i.e., one OBX segment should not contain the result of more than one logically independent observation. This requirement is included to assure that the contents of OBX-6-units, OBX-8-interpretation codes, and OBX-9-probability can be interpreted unambiguously. The electrolytes and vital signs batteries, for example, would each be reported as four separate OBX segments. Two diagnostic impressions, e.g., congestive heart failure and pneumonia, would also be reported as two separate OBX segments whether reported as part of a discharge summary or chest X-ray report. Similarly, two bacterial organisms isolated in a single bacterial culture would be reported as two separate OBX segments.
Though two independent diagnostic statements cannot be reported in one OBX segment, multiple categorical responses are allowed (usually as CWE data types separated by repeat delimiters), so long as they are fragments (modifiers) that together construct one diagnostic statement. Right upper lobe (recorded as one code) and pneumonia (recorded as another code), for example, could be both reported in one OBX segment. Such multiple "values" would be separated by repeat delimiters.
Multiple OBX segments with the same observation ID and Sub ID
In some systems, a single observation may include fragments of more than one data type. The most common example is a numeric result followed by coded comments (CWE). In this case, the logical observation can be sent in more than one OBX segment. For example, one segment of numeric or string data type for the numeric result and another segment of CWE data type for coded comments. If the producer was reporting multiple coded comments they would all be sent in one OBX segment separated by repeat delimiters because they all modified a single logical observation. Multiple OBX segments with the same observation ID and sub ID should always be sent in sequence with the most significant OBX segment (the one that has the normal flag/units and or reference range and status flag) first. The value of OBX-6 through 12 should be null in any following OBX segments with the same OBX-3-observation identifier and OBX-4-observation sub-ID. For the purpose of replacement or deletion, multiple OBX segments with the same observation ID and sub ID are treated as a unit. If any are replaced or deleted, they all are replaced.
Coded values
When an OBX segment contains values of CWE data types, the observations are stored as a combination of codes and/or text. In Section 7.7.3, "CSS - Clinical Study Data Schedule Segment," examples of results that are represented as CWE data types are shown in the first and second OBX segments of OBR 1 and the first and second OBX segments of OBR 2. The observation may be an observation battery ID (for recommended studies), a diagnostic code or finding (for a diagnostic impression), or an anatomic site for a pathology report, or any of the other kinds of coded results.
It is not necessary to always encode the information stored within a coded observation. For example, a chest X-ray impression could be transmitted as pure text even though it has a CWE data type. In this case, the test must be recorded as the second component of the result code, e.g.,
OBX|1|CWE|19005^X-Ray Impression^LN|1|^CONGESTIVE HEART FAILURE.|...<cr>
However, separate impressions, recommendations, etc., even if recorded as pure text, should be recorded in separate result segments. That is, congestive heart failure and pneumonia should not be sent as:
OBX|1|CWE|19005^X-Ray Impression^LN|1|^CONGESTIVE HEART FAILURE AND PNEUMONIA|...<cr>
but as:
OBX|1|CWE|19005^X-Ray Impression^LN|1|^CONGESTIVE HEART FAILURE|...<cr>
OBX|2|CWE|19005^X-Ray Impression^LN|2|^PNEUMONIA|....<cr>
Even better would be fully-coded results that include computer understandable codes (component 1) instead of, or in addition to, the text description (component 2). One may include multiple values in a CWE value and these can be mixtures of code and text, but only when they are needed to construct one diagnosis, impression, or concept. When text follows codes as an independent value it would be taken as a modifier or addenda to the codes. E.g.,
OBX|1|CWE|19005-8^X-ray impression^LN~29548-5^DiagnosisImpPatient^LN |1|428.0^CONGESTIVE HEART FAILURE^I9C~^MASSIVE HEART|...<cr>
The text in component 2 should be an accurate description of the code in component 1. Likewise, if used, the text in component 5 should be an accurate description of the code in component 4.
Insertion of CDA within an OBX:
CDA documents are to be exchanged in the OBX segment. The value of OBX-2-Value Type should be set to 'ED'. OBX-5-Observation Value contains the MIME package encoded as an encapsulated data type. The components should be valued as follows:
Set the value of OBX-5.2-Type of Data to 'multipart.'
Set the value of OBX-5.3-Data Subtype to '-hl7-cda-level-one.'
Set the value of OBX-5.4-Encoding to 'A'. (Note that a MIME package is not itself Base64-encoded. Rather entities within the MIME package are Base64-encoded. A MIME package is sent as ASCII text. Therefore, the correct value is 'A' not 'Base64.'
Set the value of OBX-5.5-Data to equal the MIME package. Every entity within the MIME package must be Base64-encoded. As stated in Chapter 2, "the data component must be scanned before transmission for HL7 delimiter characters (and other non-printing ASCII or non-ASCII characters such as LineFeed), and any found must be escaped by using the HL7 escape sequences defined in Section 2.7 'Use of escape sequences in text fields.' On the receiving application, the data field must be de-escaped after being parsed." As a result, CR/LF sequences required in the MIME package need to be escaped (i.e., converted to '\X0D0A\') prior to transmission. The content type of the first MIME entity is set to 'application/x-hl7-cda-level-one+xml', and should contain the CDA document itself. Multimedia objects referenced by the CDA document that need to be transmitted within the CDA document are to be placed in successive entities of the MIME package.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This field contains the units of measurement for the value in OBX-5, Observation Value. Coding system from which the values may be drawn include, UCUM, ISO+, ANSI X3.50 - 1986 and site specific (local) coding systems. Considering Version 3 direction and consistent use of V2 and V3 messages/documents within an organization, use of UCUM is strongly recommended.
Components: for numeric values in the format:
lower limit-upper limit (when both lower and upper limits are defined, e.g., for potassium 3.5 - 4.5)
> lower limit (if no upper limit, e.g., >10)
< upper limit (if no lower limit, e.g., <15)
alphabetical values: the normal value may be reported in this location
Definition: When the observation quantifies the amount of a toxic substance, then the upper limit of the range identifies the toxic limit. If the observation quantifies a drug, the lower limits identify the lower therapeutic bounds and the upper limits represent the upper therapeutic bounds above which toxic side effects are common.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: One or more codes specifying a categorical assessment of the observation value (OBX.5), such as "Normal", "Abnormal", "Positive", "Negative", "Resistant", "Susceptible", etc.
This field may also be used to convey an assessment of an observation where no legitimate result may be obtained. This includes laboratory assays that are rejected due to the presence of interfering substances, specimen toxicity or failure of quality control.
As a CWE data type, this field may be populated with either HL7-defined codes or codes derived from other code systems (such as SNOMED).
When the filler can discern the normal status of a textual report, such as chest X-ray reports or microbiologic culture, these should be reported as "N" when normal and "A"when abnormal. Multiple codes, e.g., abnormal and worse, would be separated by a repeat delimiter, e.g., "A~W".
Results may also be reported in shorthand by reporting the normalcy status without specifying the exact numeric value of the result. Such shorthand is quite common in clinical notes, where physicians will simply say that the glucose result was normal. Such shorthand reporting is also seen in drug experience reporting. In such cases, the result can be reported in the OBX by reporting the interpretation code in OBX-8-Interpretation Codes without specifying any value in OBX-5-observation value.
Definition: This field contains the probability of a result being true for results with categorical values. It mainly applies to discrete coded results. It is a decimal number represented as an ASCII string that must be between 0 and 1, inclusive.
Definition: This field contains the nature of the abnormal test. Refer to HL7 Table 0080 - Nature of abnormal testing for valid values. As many of the codes as apply may be included, separated by repeat delimiters. For example, normal values based on age, sex, and race would be codes as "A~S~R".
The constraints on the use of the codes in this table must be consistent with those defined in the PID segment, specifically PID-35-Species Code, PID-36-Breed Code and PID-37-Strain.
Definition: This field contains the observation result status. Refer to HL7 table 0085 - Observation result status codes interpretation for valid values. This field reflects the current completion status of the results for one Observation Identifier.
It is a required field. Previous versions of HL7 stated this implicitly by defining a default value of "F." Code F indicates that the result has been verified to be correct and final. Code W indicates that the result has been verified to be wrong (incorrect); a replacement (corrected) result may be transmitted later. Code C indicates that data contained in the OBX-5-observation value field are to replace previously transmitted (verified and) final result data with the same observation ID (including suffix, if applicable) and observation sub-ID usually because the previous results were wrong. Code D indicates that data previously transmitted in a result segment with the same observation ID (including suffix) and observation sub-ID should be deleted. When changing or deleting a result, multiple OBX segments with the same observation ID and observation sub-ID are replaced or deleted as a unit. Normal progression of results through intermediate (e.g., 'gram positive cocci') to final (e.g., 'staphylococcus aureus') should not be transmitted as C (correction); they should be transmitted as P (depending upon the specific case) until they are final.
If an observation involves multiple OBX segments with the same observation ID (including suffix) and observation sub-ID, the observation result status applies to all OBX segments, except where the value is D or X. The value of D or X is applicable only to the individual OBX. All other OBX segments with the same Observation ID and observation sub-ID must have the same value.
In the case of coding systems such as LOINC, the preceding rules typically mean that this field applies to a single OBX segment.
There are situations where the observation battery required for the order needs to be dynamically specified at the time of ordering. That is, this battery is then defined by the set of OBX segments transmitted along with the order and generated by the placing system. For example, timed measurements of serum glucose challenge tests may vary among laboratories. One institution may report them at -30, -15, 0, 30, 60, and 120 minutes, while another may report them at -30, 0, 30, 60, 90, and 120 minutes. Master file entries may exist for each individual element of the battery but not for the battery itself. Another example may be Renin Studies where the specification may be done upon ordering without having a master file definition for each permutation of the possible element. The OBX segments in the ORM message can be used to create dynamic specifications to accommodate these permutations without defining pre-existing master file definitions for the battery itself. The result status field in the OBX can be used to indicate whether the OBX in the ORM message is used to provide a dynamic specification or is used to communicate a result as context to the order. The status of O shall be used to indicate that the OBX segment is used for a dynamic specification of the required result. An OBX used for a dynamic specification must contain the detailed examination code, units, etc., with OBX-11 valued with O, and OBX-2 and OBX-5 valued with null.
Definition: This field contains the date (and, optionally, the time) on which the values in OBX-7-reference range went into effect.
Usage Rule: This field can be valued only if OBX-7-reference range is populated.
When this field is present, it facilitates comparison between identical results with different reference ranges. Reference range values may vary because of changes in laboratory practice over time. Such variances could reflect updated practice in laboratory medicine, or the use of updated instrumentation.
Definition: This field permits the producer to record results-dependent codes for classifying the observation at the receiving system. This field should be needed only rarely, because most classifications are fixed attributes of the observation ID and can be defined in the associated observation master file (see description in Chapter 8).
However, there are a few cases when such controls vary with the value of the observation in a complex way that the receiving system would not want to re-calculate. An example is an antimicrobial susceptibility result. Some systems prefer to display only the susceptibility results of inexpensive antimicrobials depending upon the organism, the source of the specimen and the patient's allergy status. The sending service wants to send all of the susceptibilities so that certain privileged users (e.g., Infectious Disease specialists) can review all of the results but non-privileged users would see only the "preferred" antimicrobials to which the organism was susceptible. We expect that other cases also occur.
Definition: This field is required in two circumstances. The first is when the observations reported beneath one report header (OBR) have different dates/times. This could occur in the case of queries, timed test sequences, or clearance studies where one measurement within a battery may have a different time than another measurement.
It is also needed in the case of OBX segments that are being sent by the placer to the filler, in which case the date of the observation being transmitted is likely to have no relation to the date of the requested observation. In France, requesting services routinely send a set of the last observations along with the request for a new set of observations. The date of these observations is important to the filler laboratories.
In all cases, the observation date-time is the physiologically relevant date-time or the closest approximation to that date-time. In the case of tests performed on specimens, the relevant date-time is the specimen's collection date-time. In the case of observations taken directly on the patient (e.g., X-ray images, history and physical), the observation date-time is the date-time that the observation was performed.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: Retained for backwards compatibility as of V2.7 only. This field is now represented through the PRT segment. This field contains a unique identifier of the responsible producing service. It should be reported explicitly when the test results are produced at outside laboratories, for example. When this field is null, the receiving system assumes that the observations were produced by the sending organization. This information supports CLIA regulations in the US. The code for producer ID is recorded as a CWE data type. In the US, the Medicare number of the producing service is suggested as the identifier.
Components: <Person Identifier (ST)> ^ <Family Name (FN)> ^ <Given Name (ST)> ^ <Second and Further Given Names or Initials Thereof (ST)> ^ <Suffix (e.g., JR or III) (ST)> ^ <Prefix (e.g., DR) (ST)> ^ <WITHDRAWN Constituent> ^ <DEPRECATED-Source Table (CWE)> ^ <Assigning Authority (HD)> ^ <Name Type Code (ID)> ^ <Identifier Check Digit (ST)> ^ <Check Digit Scheme (ID)> ^ <Identifier Type Code (ID)> ^ <Assigning Facility (HD)> ^ <Name Representation Code (ID)> ^ <Name Context (CWE)> ^ <WITHDRAWN Constituent> ^ <Name Assembly Order (ID)> ^ <Effective Date (DTM)> ^ <Expiration Date (DTM)> ^ <Professional Suffix (ST)> ^ <Assigning Jurisdiction (CWE)> ^ <Assigning Agency or Department (CWE)> ^ <Security Check (ST)> ^ <Security Check Scheme (ID)>
Subcomponents for Family Name (FN): <Surname (ST)> & <Own Surname Prefix (ST)> & <Own Surname (ST)> & <Surname Prefix from Partner/Spouse (ST)> & <Surname from Partner/Spouse (ST)>
Subcomponents for Source Table (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Assigning Authority (HD): <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Subcomponents for Assigning Facility (HD): <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Subcomponents for Name Context (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Assigning Jurisdiction (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Assigning Agency or Department (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Definition: Retained for backwards compatibility as of V2.7 only. This field is now represented through the PRT segment. When required, this field contains the identifier of the individual directly responsible for the observation (i.e., the person who either performed or verified it). In a nursing service, the observer is usually the professional who performed the observation (e.g., took the blood pressure). In a laboratory, the observer is the technician who performed or verified the analysis. The code for the observer is recorded as a CWE data type. If the code is sent as a local code, it should be unique and unambiguous when combined with OBX-15-producer ID.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
This optional field can be used to transmit the method or procedure by which an observation was obtained when the sending system wishes to distinguish among one measurement obtained by different methods and the distinction is not implicit in the test ID. Chemistry laboratories do not usually distinguish between two different methods used to measure a given serum constituent (e.g., serum potassium) as part of the test name. See the LOINC® Users Manual for a more complete discussion of these distinctions. If an observation producing service wanted to report the method used to obtain a particular observation, and the method was NOT embedded in the test name, they can use this field.
The EUCLIDES method codes provide a vocabulary to use, or user-defined tables may provide an alternative.
Components: <Entity Identifier (ST)> ^ <Namespace ID (IS)> ^ <Universal ID (ST)> ^ <Universal ID Type (ID)>
Definition: Retained for backwards compatibility as of V2.7 only. This field is now represented through the PRT segment. This field identifies the Equipment Instance (e.g., Analyzer, Analyzer module, group of Analyzers, etc.) responsible for the production of the observation. This is the identifier from an institution's master list of equipment, where the institution is specified by the namespace ID or if it is blank, then by the "Producer's ID" (OBX-15). It should be possible to retrieve from this master list the equipment type, serial number, etc., however it is not planned to transfer this information with every OBX. The repeating of this field allows for the hierarchical representation of the equipment (lowest level first), e.g., module of an instrument, instrument consisting of modules, cluster of multiple instruments, etc.
Definition: This field is used to transfer the time stamp associated with generation of the analytical result by the instrument specified in Equipment Instance Identifier (see above).
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This field typically contains the body site(s) where the measurement being reported was obtained. This field should not be used for a specimen source or specimen collection site.
This information is of particular importance if the clinical meaning of a value is modified either directly by the site (for example, is the temperature central or peripheral?) or if the site of one measurement impacts the value of another measurement (for example, is the finger SpO2 probe on the same arm as the NIBP cuff?). In most cases these observations are performed directly upon the patient and do not involve a specimen.
Any nationally recognized coding system might be used for this field including SNOMED or MDC; alternatively the HL7 Table 0163 - Body Site may be used. Veterinary medicine may choose the tables supported for the components of this field as decided by their industry.
Components: <Entity Identifier (ST)> ^ <Namespace ID (IS)> ^ <Universal ID (ST)> ^ <Universal ID Type (ID)>
Definition: This field contains a unique identifier for this observation. This instance identifier is persistent between messages.
Note: OBX-21 Observation Instance Identifier was introduced in v2.6 to support Patient Care messaging concepts and constructs. At this time, there are no documented use cases for this field in the context of messages as described in this chapter. This statement does not preclude the use of OBX-21, but implementers should exercise caution in using this field outside of the Patient Care context until the appropriate use cases are established. This identifier provides persistent reference to an object within or outside the message and represents an identifier established by external applications rather than temporal message considerations.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This field identifies the actuality of the observation (e.g., intent, request, promise, event). Refer to HL7 Table 0725 - Mood Codes for valid values. This field may only be used with new trigger events and new messages from v2.6 onward. When this field is not valued in a message that qualifies, then the Value is assumed to be 'EVN'.
Note: OBX-22 Mood Code was introduced in v2.6 to support Patient Care messaging concepts and constructs. At this time, there are no documented use cases for this field in the context messages as described in this chapter. This statement does not preclude the use of OBX-22, but implementers should exercise caution in using this field outside of the Patient Care context until appropriate use cases are established. While a similar note exists for OBX-21 Observation Instance Identifier, particular care should be taken with OBX-22 as this could modify the intent of the segment/message and create backward compatibility problems.
Components: <Organization Name (ST)> ^ <Organization Name Type Code (CWE)> ^ <WITHDRAWN Constituent> ^ <Identifier Check Digit (NM)> ^ <Check Digit Scheme (ID)> ^ <Assigning Authority (HD)> ^ <Identifier Type Code (ID)> ^ <Assigning Facility (HD)> ^ <Name Representation Code (ID)> ^ <Organization Identifier (ST)>
Subcomponents for Organization Name Type Code (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Assigning Authority (HD): <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Subcomponents for Assigning Facility (HD): <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Definition: Retained for backwards compatibility as of V2.7 only. This field is now represented through the PRT segment. This field contains the name of the organization/service responsible for performing the service. When this field is null, the receiving system assumes that the observations were produced by the sending organization. The information for performing organization is recorded as an XON data type. In the US, the Medicare number of the performing organization is suggested as the identifier (component 10).
For lab, this field specifies the laboratory that produced the test result described in this OBX segment. It should be reported explicitly when the test results are produced at outside laboratories, for example. This information supports CLIA regulations in the US. For the US producing laboratories, which are CLIA certified, the CLIA identifier should be used for the organization identifier (component 10).
Components: <Street Address (SAD)> ^ <Other Designation (ST)> ^ <City (ST)> ^ <State or Province (ST)> ^ <Zip or Postal Code (ST)> ^ <Country (ID)> ^ <Address Type (ID)> ^ <Other Geographic Designation (ST)> ^ <County/Parish Code (CWE)> ^ <Census Tract (CWE)> ^ <Address Representation Code (ID)> ^ <WITHDRAWN Constituent> ^ <Effective Date (DTM)> ^ <Expiration Date (DTM)> ^ <Expiration Reason (CWE)> ^ <Temporary Indicator (ID)> ^ <Bad Address Indicator (ID)> ^ <Address Usage (ID)> ^ <Addressee (ST)> ^ <Comment (ST)> ^ <Preference Order (NM)> ^ <Protection Code (CWE)> ^ <Address Identifier (EI)>
Subcomponents for Street Address (SAD): <Street or Mailing Address (ST)> & <Street Name (ST)> & <Dwelling Number (ST)>
Subcomponents for County/Parish Code (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Census Tract (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Expiration Reason (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Protection Code (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Address Identifier (EI): <Entity Identifier (ST)> & <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Definition: Retained for backwards compatibility as of V2.7 only. This field is now represented through the PRT segment. This field contains the address of the organization/service responsible for performing the service.
For labs, this field specifies the address of the laboratory that produced the test result described in this OBX segment. It should be reported explicitly when the test results are produced at outside laboratories, for example. This information supports CLIA regulations in the US.
Components: <Person Identifier (ST)> ^ <Family Name (FN)> ^ <Given Name (ST)> ^ <Second and Further Given Names or Initials Thereof (ST)> ^ <Suffix (e.g., JR or III) (ST)> ^ <Prefix (e.g., DR) (ST)> ^ <WITHDRAWN Constituent> ^ <DEPRECATED-Source Table (CWE)> ^ <Assigning Authority (HD)> ^ <Name Type Code (ID)> ^ <Identifier Check Digit (ST)> ^ <Check Digit Scheme (ID)> ^ <Identifier Type Code (ID)> ^ <Assigning Facility (HD)> ^ <Name Representation Code (ID)> ^ <Name Context (CWE)> ^ <WITHDRAWN Constituent> ^ <Name Assembly Order (ID)> ^ <Effective Date (DTM)> ^ <Expiration Date (DTM)> ^ <Professional Suffix (ST)> ^ <Assigning Jurisdiction (CWE)> ^ <Assigning Agency or Department (CWE)> ^ <Security Check (ST)> ^ <Security Check Scheme (ID)>
Subcomponents for Family Name (FN): <Surname (ST)> & <Own Surname Prefix (ST)> & <Own Surname (ST)> & <Surname Prefix from Partner/Spouse (ST)> & <Surname from Partner/Spouse (ST)>
Subcomponents for Source Table (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Assigning Authority (HD): <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Subcomponents for Assigning Facility (HD): <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Subcomponents for Name Context (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Assigning Jurisdiction (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Assigning Agency or Department (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Definition: Retained for backwards compatibility as of V2.7 only. This field is now represented through the PRT segment. This field contains the medical director of the organization/service responsible for performing the service.
For labs, this field specifies the medical director of the laboratory that produced the test result described in this OBX segment. This field is different than OBX-16 in that OBX-16 identifies the individual who performed the lab test (made the observation) whereas this field identifies the individual who is the medical director of the organization responsible for the result. It should be reported explicitly when the test results are produced at outside laboratories, for example. This information supports CLIA regulations in the US.
Definition: This field contains instructions on whether to share the results with the patient, and if so how.
Valid values are provided in HL7 Table 0909 - Patient Results Release Categorization Scheme.
The intent of this segment is to describe the characteristics of a specimen. It differs from the intent of the OBR in that the OBR addresses order-specific information. It differs from the SAC segment in that the SAC addresses specimen container attributes. An advantage afforded by a separate specimen segment is that it generalizes the multiple relationships among order(s), results, specimen(s) and specimen container(s).
A specimen is defined as "A physical entity that is an individual, a group, an item, or a part representative of a larger group, class or whole that is the target of an observation or analysis for the purpose of drawing conclusions about the group, class, or whole." Note that any physical entity in the universe has the potential to become a specimen
A specimen is collected or obtained from a source and may be representative of the source, or may represent a deviation within the source. A specimen may be wholly or partially consumed during an observation and any remaining portion of the specimen is persistent and can be stored.
This segment may also be used in limited cases to describe a "virtual" specimen. In particular, to identify the characteristics required for a specimen in the context of a specific observation or test.
In summary, SPM represents the attributes specific and unique to a specimen.
HL7 Attribute Table - SPM - Specimen
SEQ | LEN | C.LEN | DT | OPT | RP/# | TBL# | ITEM # | ELEMENT NAME | DB Ref. |
---|---|---|---|---|---|---|---|---|---|
1 | 1..4 |
| SI | O |
|
| 01754 | Set ID - SPM | DB |
2 |
|
| EIP | O |
|
| 01755 | Specimen ID | DB |
3 |
|
| EIP | O | Y |
| 01756 | Specimen Parent IDs | DB |
4 |
|
| CWE | R |
| 0487 | 01900 | Specimen Type | DB |
5 |
|
| CWE | O | Y | 0541 | 01757 | Specimen Type Modifier | DB |
6 |
|
| CWE | O | Y | 0371 | 01758 | Specimen Additives | DB |
7 |
|
| CWE | O |
| 0488 | 01759 | Specimen Collection Method | DB |
8 |
|
| CWE | O |
| 9999 | 01901 | Specimen Source Site | DB |
9 |
|
| CWE | O | Y | 0542 | 01760 | Specimen Source Site Modifier | DB |
10 |
|
| CWE | O |
| 0543 | 01761 | Specimen Collection Site | DB |
11 |
|
| CWE | O | Y | 0369 | 01762 | Specimen Role | DB |
12 |
|
| CQ | O |
|
| 01902 | Specimen Collection Amount | DB |
13 |
| 6= | NM | C |
|
| 01763 | Grouped Specimen Count | DB |
14 |
|
| ST | O | Y |
| 01764 | Specimen Description | DB |
15 |
|
| CWE | O | Y | 0376 | 01908 | Specimen Handling Code | DB |
16 |
|
| CWE | O | Y | 0489 | 01903 | Specimen Risk Code | DB |
17 |
|
| DR | O |
|
| 01765 | Specimen Collection Date/Time | DB |
18 |
|
| DTM | O |
|
| 00248 | Specimen Received Date/Time | DB |
19 |
|
| DTM | O |
|
| 01904 | Specimen Expiration Date/Time | DB |
20 | 1..1 |
| ID | O |
| 0136 | 01766 | Specimen Availability | DB |
21 |
|
| CWE | O | Y | 0490 | 01767 | Specimen Reject Reason | DB |
22 |
|
| CWE | O |
| 0491 | 01768 | Specimen Quality | DB |
23 |
|
| CWE | O |
| 0492 | 01769 | Specimen Appropriateness | DB |
24 |
|
| CWE | O | Y | 0493 | 01770 | Specimen Condition | DB |
25 |
|
| CQ | O |
|
| 01771 | Specimen Current Quantity | DB |
26 |
| 4= | NM | O |
|
| 01772 | Number of Specimen Containers | DB |
27 |
|
| CWE | O |
| 9999 | 01773 | Container Type | DB |
28 |
|
| CWE | O |
| 0544 | 01774 | Container Condition | DB |
29 |
|
| CWE | O |
| 0494 | 01775 | Specimen Child Role | DB |
30 |
|
| CX | O | Y |
| 02314 | Accession ID | DB |
31 |
|
| CX | O | Y |
| 02315 | Other Specimen ID | DB |
32 |
|
| EI | O | N |
| 02316 | Shipment ID | DB |
Definition: This field contains the sequence number. This field is used to identify SPM segment instances in message structures where the SPM segment repeats.
Components: <Placer Assigned Identifier (EI)> ^ <Filler Assigned Identifier (EI)>
Subcomponents for Placer Assigned Identifier (EI): <Entity Identifier (ST)> & <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Subcomponents for Filler Assigned Identifier (EI): <Entity Identifier (ST)> & <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Definition: This field contains a unique identifier for the specimen as referenced by the Placer application, the Filler application, or both.
This field is not required, as there are use cases in which a unique specimen identifier may not exist. In the first scenario, a placer application may initiate an observation request against an existing specimen without uniquely identifying the specimen. Additionally, in the case of the TCU_U10 message structure, used in Automated equipment test code settings messages, the SPM segment is used to define required characteristics of the specimen. As such, TCU_U10 uses SPM to define a virtual specimen, and a specific specimen ID would not exist. Filler applications would be expected to assign a Specimen ID and populate this field accordingly.
Components: <Placer Assigned Identifier (EI)> ^ <Filler Assigned Identifier (EI)>
Subcomponents for Placer Assigned Identifier (EI): <Entity Identifier (ST)> & <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Subcomponents for Filler Assigned Identifier (EI): <Entity Identifier (ST)> & <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Definition: This field contains the identifiers for the specimen or specimens that contributed to the specimen that is described by the segment instance.
If this field repeats, then SPM-11-Specimen Role should be valued with "L" (pooled). The repetitions of this field then carry the specimen IDs of the parent specimens contributing to the pool.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This field describes the precise nature of the entity that will be the source material for the observation.
Any physical entity that may have observations made about it may qualify as a specimen. The entry in this attribute describes the specific entity as precisely as possible, whether that is a complex organism (e.g., an ostrich) or a specific cellular mass (e.g., a specific muscle biopsy).
A nationally recognized coding system is to be used for this field. Valid coding sources for this field include:
HL7 Table 0487 - Specimen Type (replaces HL7 Table 0070 - Specimen source codes)
SNOMED, etc.
Veterinary medicine may choose the tables supported for the components of this field as decided by their industry.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This field contains modifying or qualifying description(s) about the specimen type
The use of this attribute is to modify, qualify or further specify, the entity described by SPM-4 -Specimen Type. This is particularly useful when the code set used in SPM-4-Specimen Type does not provide the precision required to fully describe the specimen. For example, if the specimen was precisely described as 'capillary venous blood' but the code set employed only provided 'venous blood,' this attribute could be employed to add the modifier 'capillary.'
Refer to User-Defined Table 0541 Specimen Type Modifier for suggested values.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This field identifies any additives introduced to the specimen before or at the time of collection. These additives may be introduced in order to preserve, maintain or enhance the particular nature or component of the specimen. Refer to HL7 Table 0371 - Additive/Preservative for valid values. When multiple additives are introduced and valid individual additive codes exist but a valid value for the combination does not exist, repeating the field with individual values is most appropriate.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: Describes the procedure or process by which the specimen was collected.
Any nationally recognized coding system might be used for this field including SNOMED; alternatively the HL7 Table 0488 - Specimen Collection Method may be used. Veterinary medicine may choose the tables supported for the components of this field as decided by their industry.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: specifies the source from which the specimen was obtained. For example, in the case where a liver biopsy is obtained via a percutaneous needle, the source would be 'liver.'
Any nationally recognized coding system might be used for this field including SNOMED; alternatively the HL7 Table 0163 - Body Site may be used. Veterinary medicine may choose the tables supported for the components of this field as decided by their industry.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This field contains modifying or qualifying description(s) about the specimen source site
The use of this attribute is to modify, qualify or further specify, the entity described by SPM-8 - Specimen Source Site. This is particularly useful when the code set used in SPM-8 does not provide the precision required to fully describe the site from which the specimen originated. For example, if the specimen source site was precisely described as 'left radial vein' but the code set employed only provided 'radial vein,' this attribute could be employed to add the modifier 'left.'
Veterinary medicine may choose the tables supported for the components of this field as decided by their industry. Refer to User-Defined Table 0542 - Specimen Source Type Modifier for suggested values.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This field differs from SPM-8-Specimen Source Site in those cases where the source site must be approached via a particular site (e.g., anatomic location). For example, in the case where a liver biopsy is obtained via a percutaneous needle, the collection site would be the point of entry of the needle. For venous blood collected from the left radial vein, the collection site could be "antecubital fossa".
Veterinary medicine may choose the tables supported for the components of this field as decided by their industry.
Refer to User-Defined Table 0543 - Specimen Collection Site for suggested values.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
This field indicates the role of the sample. Refer to User-defined Table 0369 - Specimen role for suggested values. Each of these values is normally identifiable by the systems and its components and can influence processing and data management related to the specimen.
If this field is not populated, then the specimen described has no special, or specific, role other than serving as the focus of the observation. Such specimens include patient, environmental and other specimens that are intended for analysis.
A grouped specimen consists of identical specimen types from multiple individuals that do not have individual identifiers and upon which the same services will be performed. If the specimen role value is "G" then the Grouped Specimen Count (SPM-13) must be valued with the total number of specimens contained in the group.
If the specimen role is "L", the repetitions of Parent Specimen ID (SPM-4) represent the individual parent specimens that contribute to the pooled specimen.
Components: <Quantity (NM)> ^ <Units (CWE)>
Subcomponents for Units (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Definition: This field specifies the volume or mass of the collected specimen. For laboratory tests, the collection volume is the volume of a specimen. Specifically, units should be expressed in the ISO Standard unit abbreviations (ISO-2955, 1977). This is a results-only field except when the placer or a party has already drawn the specimen. (See Chapter 7 for full details about units.)
Definition: This field refers to the number of individual specimens of a particular type represented by this instance of a specimen. The use of this field is restricted to specimens upon which all specimen related attributes are identical. This field would only be valued if the specimen role attribute has the value "G".
Definition: This is a text field that allows additional information specifically about the specimen to be sent in the message
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This describes how the specimen and/or container need to be handled from the time of collection through the initiation of testing. As this field is not required, no assumptions can be made as to meaning when this field is not populated.
Refer to User-defined Table 0376 - Special Handling Code for suggested values.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This field contains any known or suspected specimen hazards, e.g., exceptionally infectious agent or blood from a hepatitis patient. Either code and/or text may be absent. However, the code is always placed in the first component position and any free text in the second component. Thus, a component delimiter must precede free text without a code. Refer to User-defined Table 0489 - Risk Codes for suggested entries
Components: <Range Start Date/Time (DTM)> ^ <Range End Date/Time (DTM)>
Definition: The date and time when the specimen was acquired from the source. The use of the Date Range data type allows for description of specimens collected over a period of time, for example, 24-hour urine collection. For specimens collected at a point in time, only the first component (start date/time) will be populated.
Definition: The specimen received date/time is the time that the specimen is received at the diagnostic service. The actual time that is recorded is based on how specimen receipt is managed and may correspond to the time the sample is logged in. This is fundamentally different from SPM-17 Specimen Collection date/time.
Definition: This field is the date and time the specimen can no longer be used for the purpose implied by the order. For example, in the Blood Banking environment the specimen can no longer be used for pre-transfusion compatibility testing. The specimen segment will include an SPM-21-Specimen Reject Reason of 'EX' indicating 'Expired' for message instances created after this date and time.
Definition: This describes whether the specimen, as it exists, is currently available to use in an analysis. Refer to HL7 Table 0136 - Yes/No Indicator for valid values.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This describes one or more reasons the specimen is rejected for the specified observation/result/analysis. Refer to HL7 Table 0490 - Specimen Reject Reason for valid values.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: The degree or grade of excellence of the specimen at receipt. The filler populates this attribute. Refer to User-defined Table 0491 - Specimen Quality for suggested entries.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: The suitability of the specimen for the particular planned use as determined by the filler. Refer to User-defined Table 0492 - Specimen Appropriateness for suggested entries.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: A mode or state of being that describes the nature of the specimen. Refer to User-defined Table 0493 - Specimen Condition for suggested entries.
Components: <Quantity (NM)> ^ <Units (CWE)>
Subcomponents for Units (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Definition: This attributes contains the amount of specimen that currently exists or is available for use in further testing.
Definition: This field identifies the number of containers for a given sample. For sample receipt verification purposes; may be different from the total number of samples that accompany the order.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: The container in or on which a specimen is transported.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: In chain of custody cases where specimens are moved from lab to lab, the status of the container that the specimen is shipped in must be recorded at each receipt. If the container is compromised in any way (seal broken, container cracked or leaking, etc) then this needs to be recorded for legal reasons.
Refer to HL7 Table 0544 - Container Condition for suggested values.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: For child specimens, this field identifies the relationship between this specimen and the parent specimen. If this field is populated, then SPM-3-Specimen Parent ID must be populated. This field differs from SPM-15-Specimen Role in that this field refers to the role of this specimen relative to a parent role rather than the role of this specimen to the ordered service.
Refer to HL7 Table 0494 - Specimen Child Role for valid values.
Components: <ID Number (ST)> ^ <Identifier Check Digit (ST)> ^ <Check Digit Scheme (ID)> ^ <Assigning Authority (HD)> ^ <Identifier Type Code (ID)> ^ <Assigning Facility (HD)> ^ <Effective Date (DT)> ^ <Expiration Date (DT)> ^ <Assigning Jurisdiction (CWE)> ^ <Assigning Agency or Department (CWE)> ^ <Security Check (ST)> ^ <Security Check Scheme (ID)>
Subcomponents for Assigning Authority (HD): <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Subcomponents for Assigning Facility (HD): <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Subcomponents for Assigning Jurisdiction (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Assigning Agency or Department (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Definition: This field contains accession identifier(s) associated with the specimen. In many cases, applications involved in the collection, transportation or testing of the specimen will assign their own accession identifiers. This field allows communication of these accession identifiers.
An accession id may or may not, depending up laboratory practice, identify a single specimen. Best practice is to use accession identifiers that are globally unique (typically ID Number + Assigning Facility components). However, an accession id may or may not, depending up laboratory practice, identify a single specimen. In addition, accession ids are commonly re-used over time, so the accession id may not uniquely identify a specimen.
Components: <ID Number (ST)> ^ <Identifier Check Digit (ST)> ^ <Check Digit Scheme (ID)> ^ <Assigning Authority (HD)> ^ <Identifier Type Code (ID)> ^ <Assigning Facility (HD)> ^ <Effective Date (DT)> ^ <Expiration Date (DT)> ^ <Assigning Jurisdiction (CWE)> ^ <Assigning Agency or Department (CWE)> ^ <Security Check (ST)> ^ <Security Check Scheme (ID)>
Subcomponents for Assigning Authority (HD): <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Subcomponents for Assigning Facility (HD): <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Subcomponents for Assigning Jurisdiction (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Assigning Agency or Department (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Definition: This field contains other identifier(s) for the specimen as referenced an application. Normally this field is used to carry additional identifiers for the specimen in addition to those identified in SPM-2, Specimen ID. In may cases other applications involved in the collection, transportation or testing of the specimen will assign additional specimen identifiers. This field allows communication of those other specimen identifiers.
Components: <Entity Identifier (ST)> ^ <Namespace ID (IS)> ^ <Universal ID (ST)> ^ <Universal ID Type (ID)>
Definition: The shipment identifier is the identifier assigned by the shipment transportation provider that uniquely identifies this shipment from all other shipments by the same provider. The addressee for the shipment should be able to use this identifier to match a physical shipment with the electronic manifest for the shipment.
The Participation Information segment contains the data necessary to add, update, correct, and delete from the record persons, organizations, or locations (participants) participating in the activity being transmitted.
In general, the PRT segment is used to describe a participant playing a particular role within the context of the message. In OO, for example, in the results messages the PRT segment may be used to provide the performing provider, whether a person or organization. In a specimen shipment message it may be the waypoint location relevant for the shipment.
The positional location of the PRT segment indicates the relationship. When the segment is used following the OBX segment, then the participations relate to the relevant participations in the result.
HL7 Attribute Table - PRT - Participation Information
7.4.3.0 SPM -1 Set ID - SPM (SI) 01754
7.4.3.1 SPM-2 Specimen ID (EIP) 01755
7.4.3.2 SPM-3 Specimen Parent IDs (EIP) 01756
7.4.3.3 SPM-4 Specimen Type (CWE) 01900
7.4.3.4 SPM-5 Specimen Type Modifier (CWE) 01757
7.4.3.5 SPM-6 Specimen Additives (CWE) 01758
7.4.3.6 SPM-7 Specimen Collection Method (CWE) 01759
7.4.3.7 SPM-8 Specimen Source Site (CWE) 01901
7.4.3.8 SPM-9 Specimen Source Site Modifier (CWE) 01760
7.4.3.9 SPM-10 Specimen Collection Site (CWE) 01761
7.4.3.10 SPM-11 Specimen Role (CWE) 01762
7.4.3.11 SPM-12 Specimen Collection Amount (CQ) 01902
7.4.3.12 SPM-13 Grouped Specimen Count (NM) 01763
7.4.3.13 SPM-14 Specimen Description (ST) 01764
7.4.3.14 SPM-15 Specimen Handling Code (CWE) 01908
7.4.3.15 SPM-16 Specimen Risk Code (CWE) 01903
7.4.3.16 SPM-17 Specimen Collection Date/Time (DR) 01765
7.4.3.17 SPM-18 Specimen Received Date/Time (DTM) 00248
7.4.3.18 SPM-19 Specimen Expiration Date/Time (DTM) 01904
7.4.3.19 SPM-20 Specimen Availability (ID) 01766
7.4.3.20 SPM-21 Specimen Reject Reason (CWE) 01767
7.4.3.21 SPM-22 Specimen Quality (CWE) 01768
7.4.3.22 SPM-23 Specimen Appropriateness (CWE) 01769
7.4.3.23 SPM-24 Specimen Condition (CWE) 01770
7.4.3.24 SPM-25 Specimen Current Quantity (CQ) 01771
7.4.3.25 SPM-26 Number of Specimen Containers (NM) 01772
7.4.3.26 SPM-27 Container Type (CWE) 01773
7.4.3.27 SPM-28 Container Condition (CWE) 01774
7.4.3.28 SPM-29 Specimen Child Role (CWE) 01775
7.4.3.29 SPM-30 Accession ID (CX) 02314
7.4.3.30 SPM-31 Other Specimen ID (CX) 02315
7.4.3.31 SPM-32 Shipment ID (EI) 02316
7.4.4 PRT - Participation Information Segment
SEQ | LEN | C.LEN | DT | OPT | RP/# | TBL# | ITEM # | ELEMENT NAME | DB Ref. |
---|---|---|---|---|---|---|---|---|---|
1 | 1..4 |
| EI | C | N |
| 02379 | Participation Instance ID | DB |
2 | 2..2 |
| ID | R |
| 0287 | 00816 | Action Code | DB |
3 |
|
| CWE | O |
|
| 02380 | Action Reason | DB |
4 |
|
| CWE | R |
| 0912 | 02381 | Participation | DB |
5 |
|
| XCN | C | Y |
| 02382 | Participation Person | DB |
6 |
|
| CWE | C |
|
| 02383 | Participation Person Provider Type | DB |
7 |
|
| CWE | C |
| 0406 | 02384 | Participant Organization Unit Type | DB |
8 |
|
| XON | C | Y |
| 02385 | Participation Organization | DB |
9 |
|
| PL | C | Y |
| 02386 | Participant Location | DB |
10 |
|
| EI | C | Y |
| 02348 | Participation Device | DB |
11 |
|
| DTM | O |
|
| 02387 | Participation Begin Date/Time (arrival time) | DB |
12 |
|
| DTM | O |
|
| 02388 | Participation End Date/Time (departure time) | DB |
13 |
|
| CWE | O |
|
| 02389 | Participation Qualitative Duration | DB |
14 |
|
| XAD | C | Y |
| 02390 | Participation Address | DB |
15 |
|
| XTN | O | Y |
| 02391 | Participant Telecommunication Address | DB |
Components: <Entity Identifier (ST)> ^ <Namespace ID (IS)> ^ <Universal ID (ST)> ^ <Universal ID Type (ID)>
Definition: This field contains a unique identifier of the specific participation record.
In the case of waypoints tracked for a shipment, it identifies the waypoint.
Condition: The identifier is required when known, but there are times we may only know a name but do not have an identifier.
Definition: This field reveals the intent of the message. Refer to HL7 Table 0287 - Problem/goal action code for valid values.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This field indicates the reason why the person, organization, location, or device is assuming (or changing) the role (e.g., shift change, new primary nurse, etc.).
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This field indicates the functional involvement with the activity being transmitted (e.g., Case Manager, Evaluator, Transcriber, Nurse Care Practitioner, Midwife, Physician Assistant, etc.). Refer to HL7 Table 0912 - Participation for valid values.
Components: <Person Identifier (ST)> ^ <Family Name (FN)> ^ <Given Name (ST)> ^ <Second and Further Given Names or Initials Thereof (ST)> ^ <Suffix (e.g., JR or III) (ST)> ^ <Prefix (e.g., DR) (ST)> ^ <WITHDRAWN Constituent> ^ <DEPRECATED-Source Table (CWE)> ^ <Assigning Authority (HD)> ^ <Name Type Code (ID)> ^ <Identifier Check Digit (ST)> ^ <Check Digit Scheme (ID)> ^ <Identifier Type Code (ID)> ^ <Assigning Facility (HD)> ^ <Name Representation Code (ID)> ^ <Name Context (CWE)> ^ <WITHDRAWN Constituent> ^ <Name Assembly Order (ID)> ^ <Effective Date (DTM)> ^ <Expiration Date (DTM)> ^ <Professional Suffix (ST)> ^ <Assigning Jurisdiction (CWE)> ^ <Assigning Agency or Department (CWE)> ^ <Security Check (ST)> ^ <Security Check Scheme (ID)>
Subcomponents for Family Name (FN): <Surname (ST)> & <Own Surname Prefix (ST)> & <Own Surname (ST)> & <Surname Prefix from Partner/Spouse (ST)> & <Surname from Partner/Spouse (ST)>
Subcomponents for Source Table (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Assigning Authority (HD): <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Subcomponents for Assigning Facility (HD): <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Subcomponents for Name Context (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Assigning Jurisdiction (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Assigning Agency or Department (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Definition: This field contains the identity of the person who is represented in the participation that is being transmitted.
If this attribute repeats, all instances must represent the same person.
Condition: At least one of the Participation Person, Participation Organization, Participation Location, or Participation Device fields must be valued.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This field contains a code identifying the provider type for the participating person. This attribute correlates to the following master file attribute: STF-4 Staff Type. Coded values from the correlated master file table are used; the user defined master file table is used as the coding system for this attribute. For example, if you are using values from STF-2 Staff Type, the coding system would be HL70182 which is the table number for the user defined Staff Type table. This field is included in this segment to support international requirements. When ROL is used in an encounter message, it is not intended as a master file update.
Condition: This field may only be valued if PRT-5 Participation Person is valued.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This field identifies the environment in which the participant acts in the role specified in PRT-3 Action Reason. In the case of a person, the environment is not the specialty for the provider. The specialty information for the provider is defined in the PRA segment.
This attribute is included in the PRT segment to allow communication of this data when the participant information may not have been communicated previously in a master file or to provide better context. Refer to User-defined table 0406 - Organization unit type. This field is included in this segment to support international requirements, and is not intended as a master file update.
Condition: This field may only be valued if PRT-5 Participation Person is valued.
Components: <Organization Name (ST)> ^ <Organization Name Type Code (CWE)> ^ <WITHDRAWN Constituent> ^ <Identifier Check Digit (NM)> ^ <Check Digit Scheme (ID)> ^ <Assigning Authority (HD)> ^ <Identifier Type Code (ID)> ^ <Assigning Facility (HD)> ^ <Name Representation Code (ID)> ^ <Organization Identifier (ST)>
Subcomponents for Organization Name Type Code (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Assigning Authority (HD): <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Subcomponents for Assigning Facility (HD): <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Definition: The organization that is involved in the participation. If PRT-5 Participation Person is valued, it reflects the affiliation of the individual participating as identified in PRT-4 Participation. Otherwise the organization is directly participating as identified in PRT-4 Participation.
If this attribute repeats, all instances must represent the same organization.
Condition: At least one of the Participation Person, Participation Organization, Participation Location, or Participation Device fields must be valued.
Components: <Point of Care (HD)> ^ <Room (HD)> ^ <Bed (HD)> ^ <Facility (HD)> ^ <Location Status (IS)> ^ <Person Location Type (IS)> ^ <Building (HD)> ^ <Floor (HD)> ^ <Location Description (ST)> ^ <Comprehensive Location Identifier (EI)> ^ <Assigning Authority for Location (HD)>
Subcomponents for Point of Care (HD): <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Subcomponents for Room (HD): <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Subcomponents for Bed (HD): <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Subcomponents for Facility (HD): <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Subcomponents for Building (HD): <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Subcomponents for Floor (HD): <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Subcomponents for Comprehensive Location Identifier (EI): <Entity Identifier (ST)> & <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Subcomponents for Assigning Authority for Location (HD): <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Definition: This field specifies the physical location (e.g., nurse station, ancillary service location, clinic, or floor) that is participating. If either PRT-5 Participation Person or PRT-8 Participation Organization is valued, it reflects the location of the individual or organization participating as identified in PRT-4 Participation. Otherwise the location is directly participating as identified in PRT-4 Participation.
If this attribute repeats, all instances must represent the same organization.
Condition: At least one of the Participation Person, Participation Organization, Participation Location, or Participation Device fields must be valued.
Components: <Entity Identifier (ST)> ^ <Namespace ID (IS)> ^ <Universal ID (ST)> ^ <Universal ID Type (ID)>
Definition: Identifier for the device participating.
Example: The device used to register the shipment at the waypoint.
If this attribute repeats, all instances must represent the same device.
Condition: At least one of the Participation Person, Participation Organization, Participation Location, or Participation Device fields must be valued.
Definition: This field contains the date/time when the participation began.
In the case of waypoints, this reflects the time a shipment arrives at the waypoint.
Definition: This field contains the date/time when the participation ended.
In the case of waypoints, this reflects the time a shipment departs from the waypoint.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This field contains the qualitative length of time for participation (e.g., until the next assessment, four days, until discharge, etc.).
Components: <Street Address (SAD)> ^ <Other Designation (ST)> ^ <City (ST)> ^ <State or Province (ST)> ^ <Zip or Postal Code (ST)> ^ <Country (ID)> ^ <Address Type (ID)> ^ <Other Geographic Designation (ST)> ^ <County/Parish Code (CWE)> ^ <Census Tract (CWE)> ^ <Address Representation Code (ID)> ^ <WITHDRAWN Constituent> ^ <Effective Date (DTM)> ^ <Expiration Date (DTM)> ^ <Expiration Reason (CWE)> ^ <Temporary Indicator (ID)> ^ <Bad Address Indicator (ID)> ^ <Address Usage (ID)> ^ <Addressee (ST)> ^ <Comment (ST)> ^ <Preference Order (NM)> ^ <Protection Code (CWE)> ^ <Address Identifier (EI)>
Subcomponents for Street Address (SAD): <Street or Mailing Address (ST)> & <Street Name (ST)> & <Dwelling Number (ST)>
Subcomponents for County/Parish Code (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Census Tract (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Expiration Reason (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Protection Code (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Address Identifier (EI): <Entity Identifier (ST)> & <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Definition: This field contains addresses associated with the participation. The address can repeat to indicate alternate addresses or an alternate expression of the same address.
Condition: The address must be present if the Participation is Performing Organization Medical Director.
Components: <WITHDRAWN Constituent> ^ <Telecommunication Use Code (ID)> ^ <Telecommunication Equipment Type (ID)> ^ <Communication Address (ST)> ^ <Country Code (SNM)> ^ <Area/City Code (SNM)> ^ <Local Number (SNM)> ^ <Extension (SNM)> ^ <Any Text (ST)> ^ <Extension Prefix (ST)> ^ <Speed Dial Code (ST)> ^ <Unformatted Telephone number (ST)> ^ <Effective Start Date (DTM)> ^ <Expiration Date (DTM)> ^ <Expiration Reason (CWE)> ^ <Protection Code (CWE)> ^ <Shared Telecommunication Identifier (EI)> ^ <Preference Order (NM)>
Subcomponents for Expiration Reason (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Protection Code (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Shared Telecommunication Identifier (EI): <Entity Identifier (ST)> & <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Definition: The waypoint telecommunication address field carries telecommunications addresses for the waypoint. These telecommunications addresses are used to contact the waypoint for additional information regarding the receipt of the shipment. The address can repeat to indicate alternate addresses or an alternate expression of the same address.
Retained for backwards compatibility only as of v2.4.and withdrawn as of v2.7.
The following is an unsolicited transmission of radiology data.
MSH|^~\&|XRAY||CDB||200006021411||ORU^R01^ORU_R01|K172|P|...<cr>
PID|...<cr>
OBR|1|X89-1501^OE|78912^RD|71020^CHEST XRAY AP \T\ LATERAL|||198703290800||||...<cr>
OBX|1|CWE|19005-8^X-ray impression^LN|4|^MASS LEFT LOWER LOBE|||A|||F|...<cr>
OBX|2|CWE|19005-8^X-ray impression^LN|2|^INFILTRATE RIGHT LOWER LOBE|||A|||F|...<cr>
OBX|3|CWE|19005-8^X-ray impression^LN|3|^HEART SIZE NORMAL|||N|||F|...<cr>
OBX|4|FT|36687-2^Chest XR AP+Lat ^LN|1|circular density (2 x 2 cm) is seen in the posterior segment of
the LLL. A second, less well-defined infiltrated circulation density is
seen in the R mid lung field and appears to cross the minor fissure#||||||F|...<cr>
OBX|5|CWE|71020&REC|5|71020^Follow up CXR 1 month||30-45||||F|...<cr>
Laboratory message: electrolytes, CBC, sed rate, blood cultures and susceptibilities
MSH|...<cr>
PID|...<cr>
Electrolytes:
OBR|1|870930010^OE|CM3562^LAB|2432-6^ELECTROLYTES HCFA 98 PANEL^LN| ||198703290800|||
401-0^INTERN^IRVING^I^^^MD^L| ||||SER|^HIPPOCRATES^HAROLD^H^^DR|(555)555-1003|
This is requestor field #1.|Requestor field #2|Diag.serv.field #1.|
Diag.serv.field #2.|198703311400|||F|...<cr>
OBX|1|NM|2951-2^SODIUM^LN||150|mmol/L|136-148|H||A|F|19850301|...<cr>
OBX|2|NM|2823-3^POTASSIUM^LN||4.5|mmol/L|3.5-5|N||N|F|19850301|...<cr>
OBX|3|NM|2075-0^CHLORIDE^LN||102|mmol/L|94-105|N||N|F|19850301|...<cr>
OBX|4|NM|2028-9^CARBON DIOXIDE^LN||27|mmol/L|24-31|N||N|F|19850301|...<cr>
CBC:
OBR|2|870930011^OE|HEM3268^LAB|24359-2^HEMOGRAM+DIFFERENTIAL PANEL^LN| ||198703290800|||401-0 ^
INTERN^IRVING^I^^^MD^L|||||BLDV|^HIPPOCRATES^HAROLD^H^^DR|(555)555-1003|This is requestor field #1.|This is Requestor field #2.|This is lab field #1.|Lab field #2.|198703311400|||F|...<cr>
OBX|1|NM|718-7^HEMOGLOBIN^LN||13.4|GM/DL|14-18|N||S|F|19860522|...<cr>
OBX|2|NM|4544-3^HEMATOCRIT^LN||40.3|%|42-52|L||S|F|19860522|...<cr>
OBX|3|NM|789-8^ERYTHROCYTES^LN||4.56|10*6/ml|4.7-6.1|L||S|F|19860522|...<cr>
OBX|4|NM|787-2^ERYTHROCYTE MEAN CORPUSCULAR VOLUME:^LN
||88|fl|80-94|N||S|F|19860522|...<cr>
OBX|5|NM|785-6^ERYTHROCYTE MEAN CORPUSCULAR HEMOGLOBIN:^LN
||29.5|pg|27-31|N||N|F|19860522|...<cr>
OBX|6|NM|786-4^ERYTHROCYTE MEAN CORPUSCULAR HEMOGLOBIN CONCENTRATION:^LN
||33|%|33-37|N||N|F|19860522|...<cr>
OBX|7|NM|6690-2^LEUKOCYTES^LN||10.7|10*3/ml|4.8-10.8|N||N|F|19860522|...<cr>
OBX|8|NM|770-8^NEUTROPHILS/100 LEUKOCYTES^LN||68|%|||||F|...<cr>
OBX|9|NM|736-9^LYMPHOCYTES/100 LEUKOCYTES:^LN||29|%|||||F|...<cr>
OBX|10|NM|5905-5^MONOCYTES/100 LEUKOCYTES:^LN||1|%|||||F|...<cr>
OBX|11|NM|713-8^EOSINOPHILS/100 LEUKOCYTES:^LN||2|%|||||F|...<cr>
Sed rate:
OBR|3|870930011^OE|HEM3269^LAB|4537-7^ERYTHROCYTE SEDIMENTATION RATE^LN
|||198703290800|||
401-0^INTERN^IRVING^I^^^MD^L|||||BLDV|^HIPPOCRATES^HAROLD^H^^DR|(555)555-1003|
This is requestor field #1.|This is Requestor field #2.|This is lab field
#1.|Lab field #2.|198703311400|||F|...<cr>
OBX|1|NM|4537-7^ERYTHROCYTE SEDIMENTATION RATE:^LN|
|7|MM/HR|0-10|N||S|F|19860522|...<cr>
Parent micro result, identifies organism
OBR|4|2740X^OE|BC376^MIC|87040^Blood culture| ||198703290800|||
99-2^SPINNER^SAM^S||^Hepatitis risk||198703290830|BLDV|
4010^INTERN^IRVING^I^^^MD^L|555-1022 X3472^^^^^^^3472|Requestor field 1|Requestor field 2|
Producer's field 1|Producer's field 2|198703301000|35.00|MB|F|...<cr>
OBX|1|CWE|600-7^MICROORGANISM IDENTIFIED^LN|1|^E Coli|||A|||F|...<cr>
OBX|2|CWE|600-7^MICROORGANISM IDENTIFIED^LN|2|^S Aureus|||A|||F|...<cr>
Child micro result, gives antimicrobials susceptibilities for organism identified in first OBX of parent
OBR|5|2740X^OE|BC402^MIC|87186^Antibiotic MIC||
|198703290800||||G|^Hepatitis Risk||198703290830|BLDB
|401.0^INTERN^IRVING^I^^^MD^L|555-1022 X3472^^^^^^^3472|||||198703310900|40.00
|MB|F|600-7&MICROORGANISM IDENTIFIED&LN^1|||2740X&OE^BC376&MIC|...<cr>
OBX|1|ST|28-1^AMIPICILLIN:SUSC:PT:ISLT:QN:MIC^LN||<2|ug/ml||S|||F|...<cr>
OBX|2|ST|60-4^CARBENICILLIN:SUSC:PT:ISLT:QN:MIC^LN||<16|ug/ml||S|||F|...<cr>
OBX|3|ST|267-5^GENTAMICIN:SUSC:PT:ISLT:QN:MIC^LN||<2|ug/ml||S|||F|...<cr>
OBX|4|ST|496-0^TETRACYCLINE:SUSC:PT:ISLT:QN:MIC^LN||<1|ug/ml||S|||F|...<cr>
OBX|5|ST|408-5^PIPERACILLIN:SUSC:PT:ISLT:QN:MIC^LN||<8|ug/ml||S|||F|...<cr>
OBX|6|ST|145-3^CEFUROXIME:SUSC:PT:ISLT:QN:MIC^LN||<2|ug/ml||S|||F|...<cr>
OBX|7|ST|161-0^CEPHALOTHIN:SUSC:PT:ISLT:QN:MIC^LN||<8|ug/ml||S|||F|...<cr>
OBX|8|ST|20-8^AMOXICILLIN+CLAVULANATE:SUSC:PT:ISLT:QN:MIC^LN
||<4|ug/ml||S|||F|...<cr>
OBX|9|ST|173-5^CHLORAMPHENICOL:SUSC:PT:ISLT:QN:MIC^LN||<4|ug/ml||S|||F|...<cr>
OBX|10|ST|508-2^TOBRAMYCIN:SUSC:PT:ISLT:QN:MIC^LN||<2|ug/ml||S|||F|...<cr>
OBX|11|ST|12-5^AMIKACIN:SUSC:PT:ISLT:QN:MIC^LN||<4|ug/ml||S|||F|...<cr>
OBX|12|ST|516-5^TRIMETHOPRIM+SULFMOETHOXAZOLE:SUSC:PT:ISLT:QN:MIC^LN|
|<2/38|ug/ml||S|||F|...<cr>
OBX|13|ST|76-0^CEFAZOLIN:SUSC:PT:ISLT:QN:MIC^LN||<2|ug/ml||S|||F|...<cr>
OBX|14|ST|116-4^CEFOXITIN:SUSC:PT:ISLT:QN:MIC^LN||<2|ug/ml||S|||F|...<cr>
OBX|15|ST|141-2^CEFTRIAXONE:SUSC:PT:ISLT:QN:MIC^LN||<4|ug/ml||S|||F|...<cr>
OBX|16|ST|133-9^CEFTAZIDIME:SUSC:PT:ISLT:QN:MIC^LN||<2|ug/ml||S|||F|...<cr>
OBX|17|ST|185-9^CIPROFLOXACIN:SUSC:PT:ISLT:QN:MIC^LN||<1|ug/ml||S|||F|...<cr>
Second micro child result, gives susceptibilities or organism identified by Second OBX of parent
OBR|6|2740X^OE|BC403^MIC|87186^Antibiotic MIC| ||198703290800||||G|
^Hepatitis risk||198703290830|BLDV|401.0^INTERN^IRVING^I^^^MD^L|321-4321 X3472^^^^^^^3472|||||
198703310900|40.00|MB|F|600-7&MICROORGANISM IDENTIFIED &LN^2|
||2740X&OE^BC376&MIC|...<cr>
OBX|1|ST|28-1^AMPICILLIN:SUSC:PT:ISLT:QN:MIC^LN||<8|ug/ml||R|||F|...<cr>
OBX|2|ST|193-3^CLINDAMYCIN:SUSC:PT:ISLT:QN:MIC^LN||<.25|ug/ml||S|||F|...<cr>
OBX|3|ST|267-5^GENTAMICIN:SUSC:PT:ISLT:QN:MIC^LN||<1|ug/ml||S|||F|...<cr>
OBX|4|ST|233-7^ERYTHROMYCIN:SUSC:PT:ISLT:QN:MIC^LN||<.5|ug/ml||S|||F|...<cr>
OBX|5|ST|383-0^OXACILLIN:SUSC:PT:ISLT:QN:MIC^LN||<.5|ug/ml||S|||F|...<cr>
OBX|6|ST|524-9^VANCOMYCIN:SUSC:PT:ISLT:QN:MIC^LN||<2|ug/ml||S|||F|...<cr>
OBX|7|ST|6932-8^PENICILLIN:SUSC:PT:ISLT:QN:MIC^LN||<8|ug/ml||R|||F|...<cr>
OBX|8|ST|161-0^CEPHALOTHIN:SUSC:PT:ISLT:QN:MIC^LN||<2|ug/ml||S|||F|...<cr>
OBX|9|ST|173-5^CHLORAMPHENICOL:SUSC:PT:ISLT:QN:MIC^LN||<4|ug/ml||S|||F|...<cr>
OBX|10|ST|12-5^AMIKACIN:SUSC:PT:ISLT:QN:MIC^LN||<16|ug/ml||S|||F|...<cr>
OBX|11|ST|185-9^CIPROFLOXACIN:SUSC:PT:ISLT:QN:MIC^LN||<1|ug/ml||S|||F|...<cr>
OBX|12|ST|428-3^RIFAMPIN:SUSC:PT:ISLT:QN:MIC^LN||<1|ug/ml||S|||F|...<cr>
This example of the body of reports shows the following observation from what are usually free text reports. The text within these examples that begins with **-- and ends with --** are explanatory comments, not a formal part of the message. The following outline shows the segments that are included in this example message.
patient identifying record (PID)
order record for chest x-ray (OBR)
two diagnostic impressions for CXR (OBX)
description record for CXR (OBX)
a recommendation record for CXR (OBX)
an order record for surgical pathology (OBR)
a gross description record for pathology showing use of anatomy fields (OBX)
a microscopic description record for pathology (OBX)
vital signs request (OBR)
six vital signs (OBX)
part of the physical history (OBR & OBX)
end record
MSH|...<cr>
PID|...<cr>
Order record for CXR
OBR|2|P8754^OE|XR1501^XR|24646-2^CXR PA+LAT^LN|||198703290800|||
401-0^INTERN^IRVING^I^^^MD^L|...<cr>
Two CXR diagnostic impressions
OBX|1|CWE|24646-2&IMP^CXR PA+LAT^LN
|1|.61^RUL^ACR~.212^Bronchopneumonia^ACR|||A|||F|...<cr>
OBX|2|CWE|24646-2&IMP^CXR PA+LAT^LN |2|51.71^Congestive heart failure^ACR|||A|||F|...<cr>
CXR Description with continuation records
OBX|3|TX|24646-2&GDT^CXR PA+LAT^LN||Infiltrate probably representing bronchopneumonia in the right lower lobe. Also pulmonary venous congestion cardiomegaly and cephalization, indicating early congestive heart failure.|...<cr>
Recommendations about CXR report to follow up one month with a repeat CXR
OBX|4|CWE|24646-2&REC^CXR PA+LAT^LN||71020^Followup CXR 1 month^AS4||||||F|...<cr>
Order record for pathology report
OBR|3|P8755^OE|SP89-739^SP|11529-5^Surgical Path
Report^LN|||198703290800|||401-0^INTERN^IRVING^I^^^MD^L|...<cr>
OBX|1|CWE|11529-5&ANT^Surgical Path Report^LN|1|Y0480-912001^orbital region^SNM||||||F|...<cr>
Gross description record (with overflow) for pathology
OBX|2|TX|22634-0^Path report.gross observation^LN||The specimen is received in four containers. The first is labeled with the patient's name and consists of three fragments of reddish-brown tissue each of which measures 2 mm in greatest dimension. They are wrapped in tissue paper and submitted in toto in a single cassette|...<cr>
Microscopic description record for pathology
OBX|3|TX|22635-7^Path report.microscopic observation^LN|1|Sections of the first specimen received for frozen section diagnosis reveal thick walled, ramifying vessels lined by a single layer of flattened endothelial cells. The thick smooth muscle walls exhibit no malignant cytologic features nor do the endothelial lining cells. Within the same specimen are also found fragments of fibrous connective tissue, bone, and nerve which are histologically unremarkable||||||F|...<cr>
Vital signs using LOINC® codes as observation identifiers
OBR|4|P8756^OE|N2345^NR|29274-8^VITAL SIGNS^LN| ||198703290800|||401-0^INTERN^IRVING^I^^^MD^L|...<cr>
OBX|1|NM|8462-4^INTRAVASCULAR DIASTOLIC:PRES^LN||90|mm(hg)|60-90||||F|...<cr>
OBX|2|NM|8479-8^INTRAVASCULAR SYSTOLIC:PRES^LN||120|mm(hg)
|100-160||||F|...<cr>
OBX|3|NM|8478-0^INTRAVASCULAR MEAN:PRES^LN||100|mm(hg)|80-120|N|||F|...<cr>
OBX|4|NM|8867-4^HEART BEAT RATE^LN||74|/min|60-100|N|||F|...<cr>
OBX|5|ST|8357-6^BLOOD PRESSURE METHOD^LN||MANUAL BY CUFF||||||F|...<cr>
OBX|6|ST|8886-4^HEART RATE METHOD^LN||MANUAL BY PALP||||||F|...<cr>
Part of the patient's history
OBR|5|P8568^OE|HX2230^^CLN||2000^HISTORY| ||198703290800||401
0^INTERN^IRVING^I^^^MD^L||...<cr>
OBX|1|CWE|8661-1^CHIEF COMPLAINT^LN||...<cr>
OBX|2|ST|8674-4^HISTORY SOURCE^LN||PATIENT||||||F|...<cr>
OBX|3|TX|8684-3^PRESENT ILLNESS^LN||SUDDEN ONSET OF CHEST PAIN. 2 DAYS,
PTA ASSOCIATED WITH NAUSEA, VOMITING \T\ SOB. NO RELIEF WITH ANTACIDS
OR NTG. NO OTHER SX. NOT PREVIOUSLY ILL.||||||F|...<cr>
.
.
and so on.
Organisms and other observations/tests are reported using multiple OBX segments. The granularity expected for HL7culture reports is one observation per organism.
All OBX segments which have the same observation ID and sub-ID are part of a single observation.
Each organism in a culture battery is assigned a unique OBX-4 Observation Sub-ID (and is therefore a separate observation). The organism name is given in OBX-5 Observation Value (results). It is recommended, but not required, that the organism name may change over time, but the corresponding observation sub-ID never changes. (The observation ID will be identical for all organisms reported.)
Recommended:
OBX|1|CWE|600-7^Micro Organism Identified^LN|1|^E. Coli||||||F|...<cr>
OBX|2|CWE|600-7^Micro Organism Identified^LN |2|^S. Aureus||||||F|...<cr>
Not recommended:
OBX|1|CWE|600-7^Micro Organism Identified^LN |1|^E. Coli||||||F|...<cr>
OBX|2|CWE|600-7^Micro Organism Identified^LN |1|^S. Aureus||||||F|...<cr>
Each antimicrobial should be reported as a separate (OBX) observation where the Observation ID is a code for the antimicrobial. (OBXs for non-antimicrobials observations and related information may be present in the same battery.)
MIC and disk diffusion (Kirby Bauer) susceptibility results can be combined in the same OBX segment. An OBX can contain a MIC value (in OBX-5 Observation Value (results)) and OBX-8 Interpretation Codes that indicates whether the organism is sensitive, resistant, or intermediate (see HL7 Table 0078 - Interpretation Codes under abnormal flag fields).
Or, an OBX can contain a disk diffusion result string (e.g., sensitive) in the Observation Results field and the disk diffusion interpretation in OBX-8 Interpretation Codes (e.g., S).
A susceptibility battery may only contain results corresponding to a single organism that has been previously reported in a culture battery.
The following is the preferred, but not required method of organizing data about antimicrobial susceptibility.
A susceptibility battery may only contain results corresponding to a single organism that has been previously reported in a culture battery.
A susceptibility battery is always a child order to a culture battery. OBR-29 Parent (parent's filler order number) in the susceptibility OBR is equal to OBR-3 Filler Order Number in the parent culture OBR and is used to link the two batteries logically.
The susceptibility battery also contains a linkage back to a particular organism in the culture battery. OBR-26 Parent Result of the susceptibility OBR contains two components--OBX-3 Observation Identifier (code only) and OBX -4 Observation Sub-ID of the OBX in the culture battery which contains the organism name.
The identity of an organism/isolate is expected to be refined over time. When an organism identification changes, the parent culture battery can be resent without resending the child susceptibility battery.
The case may occur where a susceptibility battery is reported on an organism which has not yet been identified. In this case, it is required that a placeholder OBX for the organism name be reported in the corresponding culture battery so that OBR-26 Parent Result in the susceptibility OBR will point to a valid organism OBX in the culture battery. Transmission of an organism OBX (in the culture battery) with the Sub-ID field valued must precede the susceptibility battery which uses the identical Sub-ID in OBR-26 Parent Result.
Discussion and examples:
Order micro results (blood culture)
MSH|^~\&|LAB1||DESTINATION||19910127105114||ORU^R01^ORU_R01|LAB1003929|...<cr>
PID|...<cr>
PV1|...<cr>
ORC|NW|...<cr>
OBR|1|A485388^OE|H29847^LAB1|17928-3^BLOOD CULTURE^LN|||...<cr>
Result for culture
ORC|RE|...<cr>
OBR|1|A485388^OE|H29847^LAB1|17928-3^BLOOD CULTURE ^LN||...<cr>
OBX|1|FT|SDES^SOURCE||BLOOD-RAPID||||||F|...<cr>
OBX|2|FT|664-3^GRAM STAIN SMEAR^LN||GRAM POSITIVE COCCI IN GROUPS||||||F|...<cr>
OBX|3|FT|600-7^MICROORGANISM IDENTIFIED^LN|1|ISOLATE 1||||||F|...<cr>
Result for susceptibility
ORC|RE|...<cr>
OBR|1|A485388^OE|H29848^LAB1|BT1^SUSCEPTIBILITY BATTERY||||||123^MANSFIELD^CHARLES| ||||||||||||||||600-7&MICROORGANISM IDENTIFIED&LN ^1|||A485388&OE^H29847&LAB1|...<cr>
OBX|1|NM|6932-8^PENICILLIN MIC^LN||0.5|||R|||F|...<cr>
OBX|2|NM|347-5^NAFCILLIN MIC^LN||1|||R|||F|...<cr>
OBX|3|ST|193-3^CLINDAMYCIN MIC^LN||<=0.1|||S|||F|...<cr>
Result for Culture ID
ORC|RE|...<cr>
OBR|1|A485388^OE|H29847^LAB1|17928-3^BLOOD CULTURE ^LN||...<cr>
OBX|1|FT|600-7^ MICROORGANISM IDENTIFIED^LN |1|STAPH EPI||||||F|...<cr>
New result for culture ID
ORC|RE|...<cr>
OBR|1|A485388^OE|H29847^LAB1|17928-3^BLOOD CULTURE ^LN||...<cr>
OBX|1|FT|600-7^MICROORGANISM IDENTIFIED^LN|1|STAPH EPI SERO TYPE 3||||||F|...<cr>
Assumptions
All OBXs in the parent order must employ the same coding scheme.
The Sub-ID of the parent OBXs (result) cannot change.
Suppose an order has been placed to the EKG system for three EKGs to be performed on successive days. These results can be reported in various ways.
The EKG application needs to communicate to anyone the results of the 1st EKG:
ORU message:
MSH|...<cr>
PID|...<cr>
Order record for EKG
OBR|1|P8753^OE|EK5230^EKG|8601-7^EKG impression^LN|||198703290800|||401
0^INTERN^IRVING^I^^^MD^L|...<cr>
Two interpretation records for EKG
OBX|1|CWE|8601-7^EKG impression^LN|1|^Sinus bradycardia|||A|||F|...<cr>
OBX|2|CWE|8601-7^EKG impression^LN |2|^Occasional PVCs|||A|||F|...<cr>
Four numeric results for EKG
OBX|3|NM|8897-1^QRS COMPLEX RATE ^LN|
|80|/min|60-100|||||F|...<cr>
OBX|4|NM|8894-8^PULSE RATE^LN||80|/min
|60-100||||F|...<cr>
OBX|5|NM|8633-0^QRS DURATION ^LN||.08|msec
|.06-.10||||F|...<cr>
OBX|6|NM|8625-6^P-R INTERVAL ^LN||.22|msec
|.18-.22||||F|...<cr>
Notice that this report is without reference to the original order.
No ORC is required because the identifying Fillers Order Number (and other ORC fields) is carried in the OBR segment.
The EKG application needs to communicate to anyone the original order information, the details of the child orders, the fact of the child spin off, and the results of all three EKGs:
ORU message:
MSH|...<cr>
PID|...<cr>
ORC|PA|A226677^OE|89-450^EKG|...<cr> // original order's ORC.
OBR|1|||8601-7^EKG REPORT|...<cr> // original order segment
ORC|CH|A226677^OE|89-451^EKG|...<cr> // 1st child ORC.
OBR|1|||8601-7^EKG REPORT|...<cr> // 1st EKG child OBR.
OBX|1|ST|...<cr> // 1st EKG report
OBX|2|ST|...<cr>
...
OBX|14|FT|...<cr>
ORC|CH|A226677^OE|89-452^EKG|...<cr> // 2nd child ORC.
OBR|1|||8601-7^EKG REPORT|...<cr> // 2nd EKG child OBR.
OBX|1|ST|...<cr> // 2nd EKG report
OBX|2|ST|...<cr>
...
OBX|14|FT|...<cr>
ORC|CH|A226677^OE|89-453^EKG|...<cr> // 3rd child ORC.
OBR|1|||8601-7^EKG REPORT|...<cr> // 3rd EKG child OBR.
OBX|1|ST|...<cr> // 3rd EKG report
OBX|2|ST|...<cr>
...
OBX|14|FT|...<cr>
... // Other parts of message might follow.
In this case, we are transmitting the information about the fact of child spin off, the original order and the results all at the same time. Thus, this form of the ORU message reports not only the results of an order, but all of its associated ordering information including the original OBR for three EKGs that was replaced by three separate OBR EKG segments.
Reporting body weight and height with a creatinine clearance.
MSH|...<cr>
PID|...<cr>
ORC|NW|...<cr> // New order.
OBR|1|P42^PC||2164-2^CREATININE RENAL CLEARANCE: QN^LN|...<cr>
OBX|1|NM|3141-9^BODY WEIGHT^LN||62|kg|...<cr>
OBX|2|NM|3137-7^BODY HEIGHT^LN||190|cm|...<cr>
ORC|NW|...<cr> // Next order.
Information acquired from patient-connected medical devices may be relatively simple, such as monitored values from a pulse-oximeter or infusion pump, or highly complex and rich such as comprehensive data from a multi-parameter physiological monitor or ventilator. In acute care contexts, many devices may be associated with a single patient and are often added and removed during an episode of care. Though point-of-care devices typically use non-HL7 protocols for their communication interfaces, data acquired from these devices are often aggregated and periodically published to enterprise applications using an HL7-based interface.
In order to enhance interoperability between point-of-care medical device systems and enterprise applications, there have been a number of collaborative projects to establish a consistent mapping of information acquired from these devices to HL7 messages. This clause provides an overview and examples of such a project by the IHE Patient Care Device ("PCD") group that defines a consistent mapping from specialized device semantics to HL7 messages.
Standardized representation of device semantics is provided by the ISO/IEEE 11073 ("X73") family of standards. Specifically the ISO/IEEE 11073-10101 standard provides a nomenclature or terminology for the representation of device information and is referenced in HL7 Table 0396 - Coding System as "MDC." Though other terminological systems may contain similar concepts (e.g., SNOMED or LOINC), the X73 nomenclature tends to have a higher level of precision that more accurately indicates the exact components of a device semantic.
Additionally, a device-specific information model is defined, ISO/IEEE 11073-10201 Domain Information Model ("DIM"), to support the specialized, real-time communication needs of medical devices. The following diagram presents a simplified example of the X73 objects in which a given observation or Metric::Numeric are contained. The MDS, VMD, and Channel objects provide the information that is often necessary to identify specific devices and their configuration (e.g., serial numbers or internal time settings), as well as the association of data items that come from the same device subsystem (VMD or Channel) and shouldn't be confused with other observations that may have the same identifier.

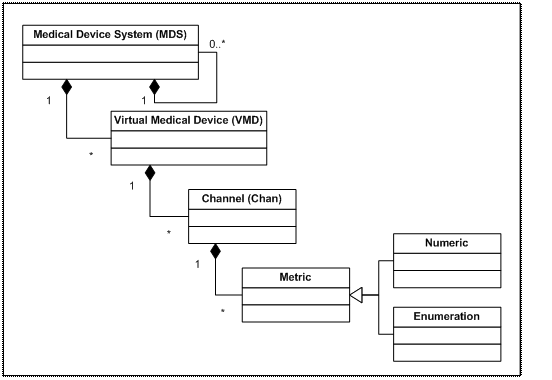

Figure 7-5 Basic ISO/IEEE 11073-10201 Containment Tree
The IHE PDC Device-to-Enterprise ("DEC") profile defines a single HL7 message, ORU^R01, that maps X73 abstract device semantics to specific message segments and fields. The message specification includes the following:
Device terms should be communicated using their "MDC" code; additional secondary codes (e.g., SNOMED or LOINC equivalents) could also be used as appropriate.
Units of measurement may be either those defined in the ISO/IEEE 11073-10101 Nomenclature, or UCUM. Carrying both is recommended.
Devices and device-related applications and systems are identified using the 64-bit IEEE EUI-64 identifier (Table 0301) that is specified in the X73 standards.
OBX-4 is used with a dotted nomenclature to indicate containment of specific measurements within Channels, Virtual Medical Devices and Medical Device Systems.
Complete details of this message profile are defined in the IHE PCD DEC framework. The following message examples illustrate how device information is communicated using this profile.
Message Example from a Single Simple Device
MSH|^~\&|PAT_DEVICE_PUMPCO^0012210000000001^EUI-64|PUMPCO|CIS_HITCO|HITCO|20071204153604-0600||ORU^R01^ORU_R01|11|P|2.7|||NE|AL||ASCII|EN^English^ISO659||IHE PCD ORU-R01 2006^HL7^2.16.840.1.113883.9.n.m^HL7
PID|||CD60002^^^IHE^PI||Darwin^Charles^^^^^L|Emerine|19620101000000-0600|M
PV1||I|3 West ICU^3002^1
OBR|0|AB12345^HL7^ACDE48234567ABCD^EUI-64|CD12345^HL7^ACDE48234567ABCD^EUI-64|69985^MDC_DEV_PUMP_INFUS_MDS^MDC|||20071204153602-0600
OBX|1||69985^MDC_DEV_PUMP_INFUS_MDS^MDC|1000002.0.0.0|||||||X|||||N60002||^^A0002^PUMPCO
OBX|2||69986^MDC_DEV_PUMP_INFUS_VMD^MDC|1000002.1.0.0|||||||X
OBX|3||126978^MDC_DEV_PUMP_INFUS_CHAN_DELIVERY^MDC|1000002.1.1.0|||||||X
OBX|4||126977^MDC_DEV_PUMP_INFUS_CHAN_SOURCE^MDC|1000002.1.2.0|||||||X
OBX|5||126977^MDC_DEV_PUMP_INFUS_CHAN_SOURCE^MDC|1000002.1.3.0|||||||X
OBX|6|NM|68063^MDC_ATTR_PT_WEIGHT^MDC|1000002.0.0.2|95.0|1731^kg^UCUM^263875^MDC_DIM_X_KILO_G^MDC|||||R|||20071204153602-0600|||||20071204153602-0600
OBX|7|ST|184504^MDC_PUMP_MODE^MDC|1000002.1.1.101|pump-mode-drug-dosing||||||R|||20071204153602-0600|||||20071204153602-0600
OBX|8|ST|184508^MDC_PUMP_STAT^MDC|1000002.1.1.102|pump-status-infusing||||||R|||20071204153602-0600|||||20071204153602-0600
OBX|9|NM|157784^MDC_FLOW_FLUID_PUMP^MDC|1000002.1.1.103|24.9|3122^mL/h^UCUM^265266^MDC_DIM_MILLI_L_PER_HR^MDC|||||R|||20071204153602-0600|||||20071204153602-0600
OBX|10|NM|157784^MDC_FLOW_FLUID_PUMP^MDC|1000002.1.2.201|24.9|3122^mL/h^UCUM^265266^MDC_DIM_MILLI_L_PER_HR^MDC|||||R|||20071204153602-0600|||||20071204153602-0600
OBX|11|NM|157872^MDC_VOL_FLUID_TBI_REMAIN^MDC|1000002.1.2.202|250.0|1618^mL^UCUM^263762^MDC_DIM_MILLI_L^MDC|||||R|||20071204153602-0600|||||20071204153602-0600
OBX|12|NM|157916^MDC_TIME_PD_REMAIN^MDC|1000002.1.2.203|601|2208^min^UCUM^264352^MDC_DIM_MIN^MDC|||||R|||20071204153602-0600|||||20071204153602-0600
OBX|13|ST|184330^MDC_DRUG_NAME_TYPE^MDC|1000002.1.2.204|DOPamine||||||R|||20071204153602-0600|||||20071204153602-0600
OBX|14|NM|157760^MDC_CONC_DRUG^MDC|1000002.1.2.205|1.6|2162^mg/mL^UCUM^264306^MDC_DIM_MILLI_G_PER_ML^MDC|||||R|||20071204153602-0600|||||20071204153602-0600
OBX|15|NM|157924^MDC_RATE_DOSE^MDC|1000002.1.2.206|7.00|3475^ug/kg/min^UCUM^265619^MDC_DIM_MICRO_G_PER_KG_PER_MIN^MDC|1-20||||R|||20071204153602-0600|||||20071204153602-0600
Message Example for Multiple Devices
MSH|^~\&|CIS_HITCO ^ACDE48234567ABCD^EUI-64||||20061220214210-0500||ORU^R01^ORU_R01|D1220214210609b5f9aa|P|2.7|||NE|AL
PID|||LM60005^^^Health IT Co^PI||Montgomery^Larry^^^^^L||19560101000000|M
PV1||I|UNIT_1^^Bed1
OBR|1|D1220214210609b5f9aa^CIS_HITCO^ACDE48234567ABCD^EUI-64|D1220214210609b5f9aa^CIS_HITCO^ACDE48234567ABCD^EUI-64|69640^MDC_DEV_ANALY_SAT_O2^MDC|||20061220213500
OBX|1|NM|150456^MDC_PULS_OXIM_SAT_O2^MDC|1.1.1.150456|99|262688^MDC_DIM_PERCENT^MDC||N|||F|||20061220213500
OBR|2|D1220214210609b5f9aa^CIS_HITCO^ACDE48234567ABCD^EUI-64|D1220214210609b5f9aa^CIS_HITCO^ACDE48234567ABCD^EUI-64|69636^MDC_DEV_ANALY^MDC|||20061220213500
OBX|1|NM|147842^MDC_ECG_HEART_RATE^MDC|1.1.1.147842|133|264864^MDC_DIM_BEAT_PER_MIN^MDC||A|||F|||20061220213500
OBR|3|D1220214210609b5f9aa^CIS_HITCO^ACDE48234567ABCD^EUI-64|D1220214210609b5f9aa^CIS_HITCO^ACDE48234567ABCD^EUI-64|69708^MDC_DEV_ANALY_PRESS_BLD^MDC|||20061220213500
OBX|1|NM|150037^MDC_PRESS_BLD_ART_ABP_SYS^MDC|1.1.1.150037|126|266016^MDC_DIM_MMHG^MDC||N|||F|||20061220213500
OBX|2|NM|150038^MDC_PRESS_BLD_ART_ABP_DIA^MDC|1.1.1.150038|76|266016^MDC_DIM_MMHG^MDC||N|||F|||20061220213500
OBX|3|NM|150039^MDC_PRESS_BLD_ART_ABP_MEAN^MDC|1.1.1.150039|92|266016^MDC_DIM_MMHG^MDC||N|||F|||20061220213500
OBR|4|D1220214210609b5f9aa^CIS_HITCO^ACDE48234567ABCD^EUI-64|D1220214210609b5f9aa^CIS_HITCO^ACDE48234567ABCD^EUI-64|69708^MDC_DEV_ANALY_PRESS_BLD^MDC|||20061220213500
OBX|1|NM|150087^MDC_PRESS_BLD_VEN_CENT_MEAN^MDC|1.1.1.150087|12|266048^MDC_DIM_CM_H2O^MDC||N|||F|||20061220213500
OBR|5|D1220214210609b5f9aa^CIS_HITCO^ACDE48234567ABCD^EUI-64|D1220214210609b5f9aa^CIS_HITCO^ACDE48234567ABCD^EUI-64|69708^MDC_DEV_ANALY_PRESS_BLD^MDC|||20061220213500
OBX|1|NM|150045^MDC_PRESS_BLD_ART_PULM_SYS^MDC|1.1.1.150045|26|266016^MDC_DIM_MMHG^MDC||A|||F|||20061220213500
OBX|2|NM|150046^MDC_PRESS_BLD_ART_PULM_DIA^MDC|1.1.1.150046|9|266016^MDC_DIM_MMHG^MDC||A|||F|||20061220213500
OBX|3|NM|150047^MDC_PRESS_BLD_ART_PULM_MEAN^MDC|1.1.1.150047|14|266016^MDC_DIM_MMHG^MDC||A|||F|||20061220213500
Academic medical institutions, academic research coordinating centers, and industry-based research organizations often have computer systems that support registration, compliance and safety monitoring, and outcomes analysis for clinical trials. Patients on these trials may receive their treatment and evaluation at one research facility or at many different medical facilities. Clinical trials systems could message other applications that a patient is registered on a clinical trial. Several functional examples follow:
(1) Some of the data required to monitor or analyze outcomes on the trial are generated in other medical computer systems, such as pharmacy, laboratory, or clinical applications. These applications may tag patients on clinical trials so that data may be sent back to the clinical trials system.
(2) Order entry systems could also use patient registration information: they could display standard order sets for the protocol or particular treatment/evaluation phases of a complex protocol. They could pass the clinical trials status on to service provider applications to initiate a results report to the clinical trials system. It could also be passed to billing applications that may use specialized procedures for research-related costs.
(3) Nursing and pharmacy systems can use information on patients' clinical trials status for care plans or dispensing authorization (auxiliary to the physician's prescription), respectively. There could be many other uses of this message since a patient's involvement on a clinical trial affects all concurrent medical care.
To meet monitoring and analysis requirements, patient registration, treatment, diagnostic, and study summary data are reported to study sponsors like pharmaceutical or medical device companies, regulatory agencies, and data management centers for collaborative studies. Automated procedures must be used to transfer these voluminous data among the participant computer systems in a cost-efficient and timely manner. The following additions to HL7 aim to specify standard messaging transactions to automate such reporting as well as to enable communication of clinical trials registration data to relevant medical applications as described above.
The objectives of the clinical trials messages and segments are to identify that patients are registered on clinical trials, have entered a study-specific phase of treatment or evaluation, or to indicate the study protocol's data schedule. Messages include OBR (section 4.5.3, "OBR - Observation Request Segment"), OBX (section 7.3.2, "OBX - Observation/Result Segment"), RXA (section 4.14.7, "RXA - Pharmacy /Treatment Administration Segment"), and RXR (section 4.14.2, "RXR - pharmacy/Treatment Route Segment") segments to report observations or drug administration that are relevant to the study. In addition to study-related clinical data, OBX segments may contain the results of study variables according to master code tables such as the Health Outcomes Variables (HL7 Implementation Guide). There are also master segments to describe the clinical trial, its treatment phases, and its scheduled date-time points for message recipients. These are analogous to the Test/Observation Master Segments (Chapter 8), with the trials, phases, or scheduled time points treated as the OMX treats observation identifiers.
A scientifically rigorous study of individual outcomes to some process of healthcare intervention. Clinical trials usually involve medical treatments so this document will use the term treatment, rather than the broader term intervention. A clinical trial design may randomly assign and compare one treatment approach with another, or generate safety and efficacy data on a single treatment approach. The clinical trial has a protocol for the patient's course of treatment and/or evaluation. There is usually a schedule for collection of data to measure compliance, safety, and outcomes.
A treatment and/or observation interval of a clinical trial. A phase may represent an interval with a specific treatment regimen assigned randomly or otherwise, with each regimen of a progression of treatments, or with an evaluation component only. Generally, for each phase, there is an explicit patient management, evaluation, and data collection schedule. Each of these phases may have associated safety, outcome, and quality-control variables. A simpler study design need not use the phase structures.
The phase structure serves several purposes in the clinical trials messages. Other computer systems may need to know that the patient has begun a phase with a particular treatment regimen or diagnostic schedule, such as the pharmacy or order entry systems. When reporting study data, observations and variables often describe particular phase instances. For example, each course of treatment may have its own values for the same set of observations or variables. Phase instances may also have distinct data schedules that need to be linked to submitted data.
Several examples follow with each line depicting a phase.
Alternating treatment plus observation intervals:
__________> _________> _________> _________> ...
Rx A Rx B Rx A Rx B
Random assignment to two courses each of treatment A or B, all responding patients to treatment C, continue with observation and a diagnostic regimen after all treatment phases are completed. Treatment phases include the evaluation component for that course of treatment:
___________> __________
Rx A Crs 1 Rx A Crs 2
\> __________> __________> _______
/ Rx C Crs 1 Rx C Crs 2
Observe
___________> __________/
Rx B Crs 1 Rx B Crs 2
Random assignment to placebo or treatment A, both taken daily and evaluated monthly.
___________> __________> __________> __________> . . .
Month 1 Month 2 Month 3 Month 4
The treatment, diagnostic, and procedural requirements, as well as data collection due dates, scheduled on a timeline for most clinical trials. As data are reported, they may need to reflect the scheduled time point that they satisfy. Clinical trials quality control requires attention to compliance between the protocol's schedule and patient data records.
The data schedule will be keyed by time points relative to the study. Some data may be due prior to and at the conclusion of the study and/or one or more of its phases. Some are interim within the study or its phases depending on protocol events such as administration of treatment, arbitrary time intervals instated to make and record assessments, or some clinical milestone such as relapse of disease. Often, multiple data parameters are scheduled at the same time point. Several examples follow:
Treatment 1st - 3rd Years | ||||||||||||||||||
| Reg | Rand | Months | |||||||||||||||
|
|
| 3 | 6 | 9 | 12 | 18 | 24 | 30 | 36 | 42 | 48 | 54 | 60 | 66 | 72 | 78 | 84 |
Disease Staging | X |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
H & P | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X |
Assess Adverse Events and Outcome Variables | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X |
Chest PAL X-ray | X |
|
| X | X | X | X | X | X | X | X | X | X | X | X | X | X | X |
CBC, Diff, Plt | X |
|
| X | X | X | X | X | X | X |
| X |
| X |
| X |
| X |
SMA 12 | X |
| X | X | X | X | X | X | X | X |
| X |
| X |
| X |
| X |
Cholesterol and Triglyceride | X |
| X | X | X | X | X | X | X | X |
|
|
|
|
|
|
|
|
Electrolytes | X |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Plasma Retinoic Acid | X | X |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Cotinine Level (nonsmokers) |
| X |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
7.6.1.2.2 Schedule for a cancer chemotherapy trial
| Prestudy | Prior to Each Cycle | During Cycle | Every 3 Cycles | End Study |
Informed Consent | X | X |
|
|
|
H & P Neurologic | X1 |
|
|
| X |
Vital Signs | X1 |
| X2 |
| X |
Disease Staging | X | X3 |
|
| X |
ECG | X1 |
| X4 |
|
|
Radiology* |
| X |
| X5 | X |
Chest X-ray | X | X |
|
| X |
Bone Marrow Bx. | X6 |
|
|
|
|
HCG | X1 |
|
|
|
|
Assess Adverse Events |
| X |
|
| X |
CBC, Diff, Plt | X1 |
|
| X7 | X |
UA, PT, PTT | X1 |
|
|
| X |
SMA12, Mg, CEA | X1 | X |
|
| X |
Within 3 days prior to start of infusion.
At 0,10,30, and 60 minutes after start of drug administration and one-half hour after test drug infusion ends for cycles 1 and 2. For subsequent cycles at 0 and 10 minutes after start of drug administration, and at the end of infusion.
Record tumor measurements at the end of every cycle if assessable clinically by physical examination or with simple X-ray.
Continuous ECG monitoring during infusion if necessary, due to bradycardia (<50 beats/min) or other significant cardiac findings.
When measurable disease requires complex radiologic studies such as CT or radionucleide scans.
To be done at baseline (if clinically indicated) at the option of the investigator and also during study if patient has prolonged myelosuppression (WBC<2000 cells/mm3>14 days).
Blood counts will be done twice weekly during cycles 1 and 2, then weekly.
* Radionucleide scan and X-ray of the bones, CT scans of the chest, pelvis, and brain only when clinically indicated.
| Day 1 Before RX | Day 1 After RX | Daily | Day 30 |
H & P | X |
|
| X |
Creat, Bili, SGOT | X |
|
|
|
Urinalysis | X |
|
|
|
Pain Diagnosis | X |
|
|
|
Opioid Dose Strand | X | X | X | X |
Non-opioid Analgesic |
| X | X | X |
Medications for Side Effects |
| X | X | X |
Phone Report: Pain and Side Effects |
|
| X |
|
Visual Analog Scales | X | X | X | X |
Pain Evaluation Form | X |
|
| X |
The event type will be carried in the message header segment.
The data are entered in a clinical trials or other patient data system and broadcast to other facility systems such as order entry, pharmacy, accounting, and nursing systems. They can be transmitted in batch mode or broadcast to outside-facility computer systems, including diagnostic and patient management systems. It is assumed that proper routing and security mechanisms are in place.
The general acknowledgement message as defined in Chapter 2 should be used for any acknowledgements.
7.7 CLINICAL TRIALS - TRIGGER EVENTS AND MESSAGE DEFINITIONS
7.7.1 CRM - Clinical Study Registration Message (Events C01-C08)
Event | Description |
---|---|
C01 | Register a patient on a clinical trial |
C02 | Cancel a patient registration on clinical trial (for clerical mistakes since an intended registration should not be canceled) |
C03 | Correct/update registration information |
C04 | Patient has gone off a clinical trial |
C05 | Patient enters phase of clinical trial |
C06 | Cancel patient entering a phase (clerical mistake) |
C07 | Correct/update phase information |
C08 | Patient has gone off phase of clinical trial |
CRM^C01-C08^CRM_C01: Clinical Trial Message
MSH | Message Header |
| 2 | DB |
[ { SFT } ] | Software Segment |
| 2 | DB |
[ UAC ] | User Authentication Credential |
| 2 | DB |
{ | --- PATIENT begin |
|
|
|
PID | Patient Identification |
| 3 | DB |
[ { PRT } ] | Participation (for Patient |
| 7 | DB |
[ | --- PATIENT VISIT begin |
|
|
|
PV1 | Patient Visit |
| 3 | DB |
[ { PRT } ] | Participation (for Patient Visit |
| 7 | DB |
] | --- PATIENT VISIT end |
|
|
|
CSR | Clinical Study Registration |
| 7 | DB |
[ { CSP } ] | Clinical Study Phase |
| 7 | DB |
} | --- PATIENT end |
|
|
Event | Description |
---|---|
C09 | Automated time intervals for reporting, like monthly |
C10 | Patient completes the clinical trial |
C11 | Patient completes a phase of the clinical trial |
C12 | Update/correction of patient order/result information |
CSU^C09-C12^CSU_C09: Clinical Trial Message
MSH | Message Header |
| 2 | DB |
[ { SFT } ] | Software Segment |
| 2 | DB |
[ UAC ] | User Authentication Credential |
| 2 | DB |
{ | --- PATIENT begin |
|
|
|
PID | Patient Identification |
| 3 | DB |
[ PD1 ] | Additional Demographics |
| 3 | DB |
[ { PRT } ] | Participation (for Patient) |
| 7 | DB |
[ { NTE } ] | Notes and comments |
| 2 | DB |
[ | --- VISIT begin |
|
|
|
PV1 | Patient Visit |
| 3 | DB |
[ PV2 ] | Patient Visit - Additional Info |
| 3 | DB |
[ { PRT } ] | Participation (for Patient Visit) |
| 7 | DB |
] | --- VISIT End |
|
|
|
CSR | Clinical Study Registration |
| 7 | DB |
{ | --- STUDY_PHASE begin |
|
|
|
[ CSP ] | Clinical Study Phase |
| 7 | DB |
{ | --- STUDY_SCHEDULE begin |
|
|
|
[ CSS ] | Clinical Study Data Schedule |
| 7 | DB |
{ | --- STUDY_OBSERVATION begin |
|
|
|
[ ORC ] | Common Order |
| 4 | DB |
OBR | Observation Battery |
| 7 | DB |
[ { PRT } ] | Participation (for observation) |
| 7 | DB |
[{ | --- TIMING_QTY begin |
|
|
|
TQ1 | Timing/Quantity |
| 4 | DB |
[ { TQ2 } ] | Timing/Quantity Order Sequence |
| 4 | DB |
}] | --- TIMING_QTY end |
|
|
|
OBX | Observation Results |
| 7 | DB |
[ { PRT } ] | Participaton (for Observation Results) |
| 7 | DB |
} | --- STUDY_OBSERVATION end |
|
|
|
{ | --- STUDY_PHARM begin |
|
|
|
[ | --- COMMON_ORDER begin |
|
|
|
ORC | Common Order |
| 4 | DB |
[ { PRT } ] | Participation (for Common Order) |
| 7 | DB |
] | --- COMMON ORDER end |
|
|
|
{ | --- RX_ADMIN begin |
|
|
|
RXA | Pharmacy Administration |
| 4 | DB |
RXR | Pharmacy Route |
| 4 | DB |
[ { PRT } ] | Participation (for Pharmacy Administration) |
| 7 | DB |
} | --- RX_ADMIN end |
|
|
|
} | --- STUDY_PHARM end |
|
|
|
} | --- STUDY_SCHEDULE end |
|
|
|
} | --- STUDY_PHASE end |
|
|
|
} | --- PATIENT end |
|
|
The CSR segment will contain fundamental administrative and regulatory information required to document a patient's enrollment on a clinical trial. This segment is all that is required if one needs to message another system that an enrollment has taken place, i.e., from clinical trials to pharmacy, accounting, or order entry systems. The CSR segment may also be used to identify that OBR, OBX, RXA, and RXR segments that follow represent data applicable to the identified study.
HL7 Attribute Table - CSR - Clinical Study Registration
7.8 CLINICAL TRIALS - SEGMENT DEFINITIONS
7.8.1 CSR - Clinical Study Registration Segment
SEQ | LEN | C.LEN | DT | OPT | RP/# | TBL# | ITEM# | ELEMENT NAME | DB Ref. |
---|---|---|---|---|---|---|---|---|---|
1 |
|
| EI | R |
|
| 01011 | Sponsor Study ID | DB |
2 |
|
| EI | O |
|
| 01036 | Alternate Study ID | DB |
3 |
|
| CWE | O |
| 9999 | 01037 | Institution Registering the Patient | DB |
4 |
|
| CX | R |
|
| 01038 | Sponsor Patient ID | DB |
5 |
|
| CX | O |
|
| 01039 | Alternate Patient ID - CSR | DB |
6 |
|
| DTM | R |
|
| 01040 | Date/Time of Patient Study Registration | DB |
7 |
|
| XCN | O | Y |
| 01041 | Person Performing Study Registration | DB |
8 |
|
| XCN | R | Y |
| 01042 | Study Authorizing Provider | DB |
9 |
|
| DTM | C |
|
| 01043 | Date/Time Patient Study Consent Signed | DB |
10 |
|
| CWE | C |
| 9999 | 01044 | Patient Study Eligibility Status | DB |
11 |
|
| DTM | O | Y/3 |
| 01045 | Study Randomization Date/time | DB |
12 |
|
| CWE | O | Y/3 | 9999 | 01046 | Randomized Study Arm | DB |
13 |
|
| CWE | O | Y/3 | 9999 | 01047 | Stratum for Study Randomization | DB |
14 |
|
| CWE | C |
| 9999 | 01048 | Patient Evaluability Status | DB |
15 |
|
| DTM | C |
|
| 01049 | Date/Time Ended Study | DB |
16 |
|
| CWE | C |
| 9999 | 01050 | Reason Ended Study | DB |
Components: <Entity Identifier (ST)> ^ <Namespace ID (IS)> ^ <Universal ID (ST)> ^ <Universal ID Type (ID)>
Definition: The field contains the universal identifier for the clinical trial. Since many clinical trials are collaborative and multi-centered, and since one goal of these standards is to promote automated data exchange among sites, the primary identifier should come from the sponsor. The coding system component may reference the sponsor. Example:
T93-0807^NCI (where NCI refers to the National Cancer Institute).
Components: <Entity Identifier (ST)> ^ <Namespace ID (IS)> ^ <Universal ID (ST)> ^ <Universal ID Type (ID)>
Definition: This field contains an alternate identifier that may be used as agreed upon by messaging parties. For example, the sending application may code its internal study number here.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This field distinguishes the institution where registration occurred. The legal approval to give patients access to a trial lies with the Internal Review Board for the institution. Universal healthcare provider facility codes should be used when they exist. Currently coding systems must be devised by users.
Components: <ID Number (ST)> ^ <Identifier Check Digit (ST)> ^ <Check Digit Scheme (ID)> ^ <Assigning Authority (HD)> ^ <Identifier Type Code (ID)> ^ <Assigning Facility (HD)> ^ <Effective Date (DT)> ^ <Expiration Date (DT)> ^ <Assigning Jurisdiction (CWE)> ^ <Assigning Agency or Department (CWE)> ^ <Security Check (ST)> ^ <Security Check Scheme (ID)>
Subcomponents for Assigning Authority (HD): <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Subcomponents for Assigning Facility (HD): <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Subcomponents for Assigning Jurisdiction (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Assigning Agency or Department (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Definition: This field contains the main patient identification for the study. The sponsor patient ID allows automation of records on patients treated at various institutions. The sponsor patient ID should be unique for each patient participating on the study identified in CSR-1 Sponsor Study ID.
Components: <ID Number (ST)> ^ <Identifier Check Digit (ST)> ^ <Check Digit Scheme (ID)> ^ <Assigning Authority (HD)> ^ <Identifier Type Code (ID)> ^ <Assigning Facility (HD)> ^ <Effective Date (DT)> ^ <Expiration Date (DT)> ^ <Assigning Jurisdiction (CWE)> ^ <Assigning Agency or Department (CWE)> ^ <Security Check (ST)> ^ <Security Check Scheme (ID)>
Subcomponents for Assigning Authority (HD): <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Subcomponents for Assigning Facility (HD): <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Subcomponents for Assigning Jurisdiction (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Assigning Agency or Department (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Definition: This field may be the sending application's patient identification. Coding conventions may be used as agreed upon by users.
Definition: This field containing the date of the patient registration is mandatory. The time component is optional. The time stamp for a registration may be useful. For example, patients may be randomized at the pharmacy according to the order in which they were registered.
Components: <Person Identifier (ST)> ^ <Family Name (FN)> ^ <Given Name (ST)> ^ <Second and Further Given Names or Initials Thereof (ST)> ^ <Suffix (e.g., JR or III) (ST)> ^ <Prefix (e.g., DR) (ST)> ^ <WITHDRAWN Constituent> ^ <DEPRECATED-Source Table (CWE)> ^ <Assigning Authority (HD)> ^ <Name Type Code (ID)> ^ <Identifier Check Digit (ST)> ^ <Check Digit Scheme (ID)> ^ <Identifier Type Code (ID)> ^ <Assigning Facility (HD)> ^ <Name Representation Code (ID)> ^ <Name Context (CWE)> ^ <WITHDRAWN Constituent> ^ <Name Assembly Order (ID)> ^ <Effective Date (DTM)> ^ <Expiration Date (DTM)> ^ <Professional Suffix (ST)> ^ <Assigning Jurisdiction (CWE)> ^ <Assigning Agency or Department (CWE)> ^ <Security Check (ST)> ^ <Security Check Scheme (ID)>
Subcomponents for Family Name (FN): <Surname (ST)> & <Own Surname Prefix (ST)> & <Own Surname (ST)> & <Surname Prefix from Partner/Spouse (ST)> & <Surname from Partner/Spouse (ST)>
Subcomponents for Source Table (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Assigning Authority (HD): <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Subcomponents for Assigning Facility (HD): <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Subcomponents for Name Context (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Assigning Jurisdiction (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Assigning Agency or Department (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Definition: This field contains the healthcare facility employee who actually phoned, submitted a form, or interactively registered the patient on the clinical trial. This is generally done under authorization from the attending physician or a principal or collaborating investigator.
Components: <Person Identifier (ST)> ^ <Family Name (FN)> ^ <Given Name (ST)> ^ <Second and Further Given Names or Initials Thereof (ST)> ^ <Suffix (e.g., JR or III) (ST)> ^ <Prefix (e.g., DR) (ST)> ^ <WITHDRAWN Constituent> ^ <DEPRECATED-Source Table (CWE)> ^ <Assigning Authority (HD)> ^ <Name Type Code (ID)> ^ <Identifier Check Digit (ST)> ^ <Check Digit Scheme (ID)> ^ <Identifier Type Code (ID)> ^ <Assigning Facility (HD)> ^ <Name Representation Code (ID)> ^ <Name Context (CWE)> ^ <WITHDRAWN Constituent> ^ <Name Assembly Order (ID)> ^ <Effective Date (DTM)> ^ <Expiration Date (DTM)> ^ <Professional Suffix (ST)> ^ <Assigning Jurisdiction (CWE)> ^ <Assigning Agency or Department (CWE)> ^ <Security Check (ST)> ^ <Security Check Scheme (ID)>
Subcomponents for Family Name (FN): <Surname (ST)> & <Own Surname Prefix (ST)> & <Own Surname (ST)> & <Surname Prefix from Partner/Spouse (ST)> & <Surname from Partner/Spouse (ST)>
Subcomponents for Source Table (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Assigning Authority (HD): <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Subcomponents for Assigning Facility (HD): <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Subcomponents for Name Context (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Assigning Jurisdiction (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Assigning Agency or Department (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Definition: This field contains the healthcare provider, generally the attending physician, who is accountable that the patient is eligible for the trial and has signed an informed consent. National standard healthcare provider codes should be used when they exist. This field is required for the patient registration trigger event (C01).
Definition: This field contains the consent form signing date is collected to provide a checkpoint that the consent form was obtained. Since many trials involve unapproved drugs and other treatment modalities, the consent form is highly important to document and store. This field is required for the patient registration trigger event (C01). The time component is optional.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This field indicates whether the patient was an appropriate candidate for the trial. It is important for quality control and data analysis. The code set will vary among clinical trials. An example answer set is: Yes, No, By Approval, Not Assessed, Unknown. This field is required for the patient registration trigger event (C01).
Definition: This field contains the date the patient was randomized. The time component is optional. Up to three randomizations are supported. Sequential randomizations are listed in chronological order.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This field contains codes that must be developed by users. The blind treatment assignment may be communicated as a dummy text: ^blind or if a coded treatment assignment must also be communicated: 1^blind^local_code. If more than one randomization occurs, the second and third repetitions will correspond to the second and third repetitions of CSR-11 Study Randomization Date/Time, if they exist.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: Many studies have stratified randomization schemas. The strata codes must be developed for each clinical trial. This field is important for statistical analysis of the study results. The second and third repetitions will correspond to the second and third repetitions of CSR-11 Study Randomization Date/Time and CSR-12 Randomized Study Arm, if they exist.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This field categorizes the inclusion of this patient's data for various analyses. The patient's data may be evaluable for analysis of adverse events but not for outcomes. Or it may be evaluable for some outcomes and not others. The coding systems will vary among trials. This field is required for the off-study trigger event (C04).
Definition: This field contains the date the patient completes or is otherwise removed from the study. This field is required for the off-study event (C04). The time component is optional.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This information is important for quality control and data analysis. The coding systems will vary among trials. An example answer set is: Adverse Events, Completed Trial, Death, Drug Resistance, Intercurrent Illness, Lost to Follow up, No Response to Therapy, Noncompliance, Progression of Disease, Protocol Violation, Refused Further Therapy. This field is required for the off-study trigger event (C04).
The CSP segment contains information on a patient's status for a particular phase of the study. This segment is optional and is useful when a study has different evaluation intervals within it. (See section 7.7.1, "HL7 Attribute Table - CSR - Clinical Study Registration," and section 7.5.1.2, "Phase of a clinical trial:.") The CSP segment is implemented on a study-specific basis for messaging purposes. The fact that the patient has entered a phase of the study that represents a certain treatment approach may need to be messaged to other systems, like pharmacy, nursing, or order entry. It is also important to sponsors and data management centers for tracking patient progress through the study and monitoring the data schedule defined for each phase. It may subsume OBR and OBX segments that follow it to indicate that these data describe the phase.
HL7 Attribute Table - CSP - Clinical Study Phase
7.8.1.0 CSR-1 Sponsor Study ID (EI) 01011
7.8.1.1 CSR-2 Alternate Study ID (EI) 01036
7.8.1.2 CSR-3 Institution Registering the Patient (CWE) 01037
7.8.1.3 CSR-4 Sponsor Patient ID (CX) 01038
7.8.1.4 CSR-5 Alternate Patient ID - CSR (CX) 01039
7.8.1.5 CSR-6 Date/Time Patient of Patient Study Registration (DTM) 01040
7.8.1.6 CSR-7 Person Performing Study Registration (XCN) 01041
7.8.1.7 CSR-8 Study Authorizing Provider (XCN) 01042
7.8.1.8 CSR-9 Date/Time Patient Study Consent Signed (DTM) 01043
7.8.1.9 CSR-10 Patient Study Eligibility Status (CWE) 01044
7.8.1.10 CSR-11 Study Randomization Date/Time (DTM) 01045
7.8.1.11 CSR-12 Randomized Study Arm (CWE) 01046
7.8.1.12 CSR-13 Stratum for Study Randomization (CWE) 01047
7.8.1.13 CSR-14 Patient Evaluability Status (CWE) 01048
7.8.1.14 CSR-15 Date/Time Ended Study (DTM) 01049
7.8.1.15 CSR-16 Reason Ended Study (CWE) 01050
7.8.2 CSP - Clinical Study Phase Segment
SEQ | LEN | C.LEN | DT | OPT | RP/# | TBL# | ITEM# | ELEMENT NAME | DB Ref. |
---|---|---|---|---|---|---|---|---|---|
1 |
|
| CWE | R |
| 9999 | 01022 | Study Phase Identifier | DB |
2 |
|
| DTM | R |
|
| 01052 | Date/time Study Phase Began | DB |
3 |
|
| DTM | O |
|
| 01053 | Date/time Study Phase Ended | DB |
4 |
|
| CWE | C |
| 9999 | 01054 | Study Phase Evaluability | DB |
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This field identifies the phase of the study that a patient has entered. The set of codes will generally be developed for each clinical trial, although there are patterns that trials in particular disease or prevention categories may follow. The phase structure will be based on data collation and reporting needs for the study. It is an operational structure and need not be discussed in the clinical trial protocol documentation or even made known to patient care or data collection personnel. The coding system will usually be developed by the sponsor for multicentered clinical trials to standardize the receipt of automated data. Local codes could be added if an additional local message is desired. Otherwise, local coding conventions will be used. Example: 2^Init Rx, Crs 1^NCI T93-0807 Phases
Definition: This field contains the date the patient began this phase interval. The time is optional.
Definition: This field contains the date the patient ended this phase interval.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This field contains the disposition of the patient's data for this phase interval for quality control and data analysis purposes. The set of codes will vary across clinical trials. An example answer set: Complete, Adverse Events Only, Outcome Only, None, Unknown.
The Clinical Study Data Schedule (CSS) segment is optional depending on whether messaging of study data needs to be linked to the scheduled data time points for the study. (See Section 7.5.1.3, "Data schedule:".) The CSS segment enables communication of data schedules and adherence that ranges from the basic to the elaborate. Use of the segment must be planned for each implementation. Each CSS segment will subsume observation and drug administration segments that follow, indicating that they satisfy this scheduled time point.
HL7 Attribute Table - CSS - Clinical Study Data Schedule Segment
7.8.2.0 CSP-1 Study Phase Identifier (CWE) 01022
7.8.2.1 CSP-2 Date/Time Study Phase Began (DTM) 01052
7.8.2.2 CSP-3 Date/Time Study Phase Ended (DTM) 01053
7.8.2.3 CSP-4 Study Phase Evaluability (CWE) 01054
7.8.3 CSS - Clinical Study Data Schedule Segment
SEQ | LEN | C.LEN | DT | OPT | RP/# | TBL# | ITEM# | ELEMENT NAME | DB Ref. |
---|---|---|---|---|---|---|---|---|---|
1 |
|
| CWE | R |
| 9999 | 01055 | Study Scheduled Time Point | DB |
2 |
|
| DTM | O |
|
| 01056 | Study Scheduled Patient Time Point | DB |
3 |
|
| CWE | O | Y/3 | 9999 | 01057 | Study Quality Control Codes | DB |
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This field contains the time point for which some instance of data for the clinical trial was scheduled. The time point may be expressed in any coded format. Some examples of time point values are: Prestudy, Pretreatment, 4 times/day, Weekly, Every 3 days, Every course, At Relapse, At Off Study. Alternatively, frequency values from Section 2.A.81.2, "Interval component (RI)," (the Interval component of the TQ Timing/Quantity data type could be used; however, note that as of version 2.5, the TQ data type is retained only for backward compatibility). Time point naming conventions and usage must be specified by implementers.
Definition: This field contains the date/time that the scheduled time point should occur for this patient. The date/time may be used for a reference in reviewing the actual dates on which scheduled items that follow in OBR segments occur for the patient. The time component is optional.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: In clinical settings, the actual date of a treatment or procedure may vary considerably from the due date. Various coding systems may be used to evaluate the adherence to the schedule or acceptability of the data. Coding systems will vary among trials.
The CTI segment is an optional segment that contains information to identify the clinical trial, phase and time point with which an order or result is associated.
HL7 Attribute Table - CTI - Clinical Trial Identification
7.8.3.0 CSS-1 Study Scheduled Time Point (CWE) 01055
7.8.3.1 CSS-2 Study Scheduled Patient Time Point (DTM) 01056
7.8.3.2 CSS-3 Study Quality Control Codes (CWE) 01057
7.8.4 CTI - Clinical Trial Identification Segment
SEQ | LEN | C.LEN | DT | OPT | RP/# | TBL# | ITEM# | ELEMENT NAME | DB Ref. |
---|---|---|---|---|---|---|---|---|---|
1 |
|
| EI | R |
|
| 01011 | Sponsor Study ID | DB |
2 |
|
| CWE | C |
| 9999 | 01022 | Study Phase Identifier | DB |
3 |
|
| CWE | O |
| 9999 | 01055 | Study Scheduled Time Point | DB |
Components: <Entity Identifier (ST)> ^ <Namespace ID (IS)> ^ <Universal ID (ST)> ^ <Universal ID Type (ID)>
Definition: This field contains the universal identifier for the clinical trial. The coding system is as described in CSR-1 Sponsor Study ID.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This field identifies the phase of the study that a patient has entered. See CSP-1 Study Phase Identifier for details of coding systems.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This field identifies a time point in the clinical trial phase. CTI-2 Study Phase Identifier must be valued if CTI-3 Study Scheduled Time Point is valued. Should correspond to CSS-1 Study Scheduled Time Point.
The clinical study master segment (CMO) is described in Chapter 8 section 8.11.2.
The clinical study phase master segment (CMI) is described in Chapter 8, section 8.11.3.
The clinical study schedule master segment is described in Chapter 8, section 8.11.4.
MSH|^~\&|PDMS|MDACC|ORDER ENTRY|MDACC|200006021649||CRM^C01^CRM_C01|...<cr>
PID|1||2222||Everywoman^Eve^E||19530117|...<cr>
CSR|DM94-004^MDACC||MDACC|3||19941013||342^^^^^^^PDMS| |||||1005^^^^^^^MDACC|19941013|Y^Meets All Requirements^PDMS|...<cr>
MSH|^~\&|PDMS|MDACC|PHARM|MDACC|200006050925||CRM^C05^CRM_C05|...<cr>
PID|1||2222||Everywoman^Eve^E||19230213|...<cr>
CSR|ID91-025^MDACC||MDACC|301||19941005||342^^^^^^^PDMS |||19941201|2^blind^PDMS| 12^Smoker,Stage II,<60^PDMS|...<cr>
CSP|2^Treatment^PDMS|19941201|...<cr>
MSH|^~\&|PDMS|MDACC|CTMS|NCI|200006050927||CSU^C09^CRM_C09|...<cr>
PID|1||235925||J^F^M||19350616|...<cr> [note:anonymous]
CSR|T93-080^NCI|ID93-030^^MDACC|MDACC|14||19941205|...<cr>
CSS|^Prestudy|19941204|C^compliant^NCI<cr>
OBR|1|1234|1234|3^EligibilChecklist^StudyFormsList|||19941205|...<cr>
Note: The clinical trials section probably needs its own definition of OBR. OBR-2&3 have condition rules indicating that the placer and filler numbers must be present in either the ORC or the OBR. Since an ORC is not present, then these fields must be populated in the OBR. My guess is that clinical trials aren't interested in the placer and filler number.
OBX|1|CWE|ELIG1^Elig Crit 1^NCI|Text Elig Crit 1|Y|...<cr>
OBX|2|CWE|ELIG2^Elig Crit 2^NCI||Y|...<cr>
OBR|2|1235|1235|4^Prestudy Form^StudyFormsList|||19941205|...<cr>
OBX|1|CWE|QOL^Quality of Life^NCI||2\T\3\T\2\T\4\T\2^SPITZER|...<cr>
OBX|2|CWE|PRICHEM^Prior Chemo^NCI||Yes|...<cr>
OBX|3|CWE|PRIBIOL^Prior Biologics^NCI||No|...<cr>
OBX|4|NM|NUMREM^Number Prior Remissions^NCI||2|...<cr>
OBR|3|932^OE|243789^LAB|88304^SURG PATH REPORT|||19940101|...<cr>
OBX|1|CWE|88304&ANT|1|9999^PANCREAS^SNM|...<cr>
OBX|2|CWE|88304&IMP|2|9999^ADENOCARCINOMA^SNM|...<cr>
OBR|4|933^OE|243790^LAB|85022^CBC|||199412050800|...<cr>
OBX|1|NM|718-7^HEMOGLOBIN:^LN||13.4|GM/DL|14-18|N||S|F|19860522|...<cr>
[cbc values]
OBX|2|NM|4544-3^HEMATOCRIT:^LN||40.3|%|42-52|L||S|F|19860522|...<cr>
OBX|3|NM|789-8^ERYTHROCYTES:^LN||4.56|10*6/ml|4.7-6.1|L||S|F|19860522|...<cr>
OBX|4|NM|787-22^ERYTHROCYTE MEAN CORPUSCULAR VOLUME:^LN||88|fl |80-94|N||S|F|19860522|...<cr>
OBX|5|NM|785-6^ERYTHROCYTE MEAN CORPUSCULAR HEMOGLOBIN:^LN||29.5|pg |27-31|N||N|F|19860522|...<cr>
OBX|6|NM|786-4^ERYTHROCYTE MEAN CORPUSCULAR HEMOGLOBIN CONCENTRATION:^LN||33|%|33-37|N||N|F|19860522|...<cr>
OBX|7|NM|6690-2^LEUKOCYTES:^LN||10.7|10*3/ml|4.8-10.8|N||N|F|19860522|...<cr>
OBX|8|NM|764-1^NEUTROPHILS BAND FORM/100 LEUKOCYTES:^LN||2|%|||||F|...<cr>
OBX|9|NM|769-0^NEUTROPHILS SEGMENTED/100 LEUKOCYTES:^LN||67|%|||||F |...<cr>
OBX|10|NM|736-9^LYMPHOCYTES/100 LEUKOCYTES:^LN||29|%|||||F|...<cr>
OBX|11|NM|5905-5^MONOCYTES/100 LEUKOCYTES:^LN||1|%|||||F|...<cr>
OBX|12|NM|713-8^EOSINOPHILS/100 LEUKOCYTES:^LN||2|%|||||F|...<cr>
OBR|5|934^OE|243791^LAB|80004^ELECTROLYTES|||199412050800|...<cr>
OBX|1|NM|2947-0^SODIUM:^LN||150|mmol/l|136-148|H||A|F|19850301 |...<cr>
OBX|2|NM|2823-3^POTASSIUM:^LN||4.5|mmol/l|3.5-5|N||N|F|19850301|...<cr>
[electrolytes values]
OBX|3|NM|2069-3^CHLORIDE:^LN||102|mmol/l|94-105|N||N|F|19850301|...<cr>
OBX|4|NM|2028-9^CARBON DIOXIDE.TOTAL:^LN||27|mmol/l|24-31|N||N|F |19850301|...<cr>
CSP|^Course 1|19941205|19950120|Y^Toxicity and Response^NCI |...<cr>
CSS|^Course Completion|19950120|...<cr>
OBR|1|935^OE|243791^LAB|2039-6^CARCINOEMBRYONIC AG:^LN|||19941008|...<cr>
OBX|1|NM|2039-6^CARCINOEMBRYONIC AG:^LN||15.2|IU |...<cr>
OBR|2|1236|1236|10^Course Completion Form^StudyPhaseFormsList|||19950120 |...<cr>
OBX|1|CWE|CRSRESP^Course Response^NCI||4^Partial Response|...<cr>
OBX|2|NM|DRUGDISP^Capsules Dispensed^NCI||60|...<cr>
OBX|3|NM|DRUGRETN^Capsules Returned^NCI||5|...<cr>
OBX|4|ID|DXCOMP^Diagnostic Tests Compliance^NCI||Y|...<cr>
OBX|5|CWE|PERSTAT^Performance Status^NCI||3^ZUBRODS|...<cr>
OBR|3|1237|1237|9999^Adverse Events|...<cr>
OBX|1|CWE|9999&EVENT|1|45^Vomiting^NCI|...<cr>
OBX|2|DT|9999&ONSET|1|19941215|...<cr>
OBX|3|DT|9999&RESOLUTION|1|19941217|...<cr>
[Note: Needs to maintain compatibility with ongoing product experience message efforts.]
OBX|4|CWE|9999&GRADE|1|M^MODERATE|...<cr>
OBX|5|CWE|9999&RELATION_TO_RX|1|L^LIKELY|...<cr>
OBX|6|CWE|9999&EVENT|2|303^Dyspnea^NCI|...<cr>
OBX|7|DT|9999&ONSET|2|19941231|...<cr>
OBX|8|DT|9999&RESOLUTION|2|...<cr>
OBX|9|CWE|9999&GRADE|2|MI^MILD|...<cr>
OBX|10|CWE|9999&RELATION_TO_RX|2|U^UNLIKELY|...<cr>
[Note2: There are other possible OBX suffixes defined by FDA: APEX/ NADIR, ACTION, THERAPY, OUTCOME, RECHALLENGE.]
Patients experience symptoms, manifest signs or develop diseases or syndromes while exposed to medical devices and/or drugs. Evidence suggests that some of these symptoms, signs, diseases or syndromes may develop as a consequence of the products used. Examples include the development of clear cell adenocarcinoma of the vagina in the daughters of mothers treated with diethylstilbestrol during pregnancy and gastrointestinal bleeding in patients treated with non-steroidal anti-inflammatory drugs. While it is difficult to prove causality, strong evidence exists in many cases.
It is important to document such experiences during the development and testing of products to identify potential adverse effects but also during routine use of the product to identify serious adverse effects which occur infrequently. The latter is the realm of pharmacoepidemiology and post-marketing surveillance.
Adverse events are important for product manufacturers as signal generating hypotheses concerning drug kinetics or dynamics, often in special populations of patients. Adverse events are important for regulators in ensuring that manufacturers protect the public health in assessments of risk and benefits, including special populations, and that they promptly and thoroughly investigate individual events and clusters of events. Adverse events are especially important for practitioners and patients who always deal with a special population of one individual who may be having an event and a practitioner seeking information about related events seen with the same or similar products.
Reporting has usually focused on serious and unexpected events. Serious, if defined unambiguously, focuses attention on those events of most importance to the patient and practitioner. Expected events are those which prior experience has demonstrated to be probabilistically linked to the product and are generally included in product labeling.
Because of the risks associated with the uses of drugs and medical devices, a system of surveillance has been established in most developed countries. With globalization of the marketplace, the need to share this information across national boundaries has increased. Currently most reporting is performed using a series of forms, including CIOMS, yellow cards, the FDA's 1639 and MedWatch forms and the Japanese form, which are sent:
from identified reporting sources to regulatory bodies
from identified reporting sources to product manufacturers
between regulatory bodies
within product manufacturers
within regulatory bodies
from product manufacturers to regulatory bodies
from regulatory bodies to the WHO Collaborative Drug Surveillance Center
Figure 7-6. - Flow of product experience information
Regardless of who originates a drug experience report, documentation of the experience eventually reaches the regulatory agencies. The manufacturer is mandated to alert the regulatory agency.
Electronic interchange of these data would reduce errors, decrease costs and speed communications.
Any chemical compound that may be used on or administered to humans or animals as an aid in the diagnosis, treatment or prevention of disease or other abnormal condition, for the relief of pain or suffering, or to control or improve any physiological condition (Dorland's Illustrated Medical Dictionary 27th edition).
Something contrived for or used in the diagnosis (vascular catheters), treatment (thermotherapy units) or prevention of disease or other abnormal condition, for the relief of pain or suffering or to control or improve any physiologic condition, including instrumentation and implanted devices (prosthetic cardiac valves, pacemakers, hip prostheses).
A drug or medical device.
Drug name that is not protected by a trademark, usually descriptive of its chemical structure; sometimes called a public name. In the US, most generic drug names are assigned by the US Adopted Name Council (USAN). Other generic names in common use are the National Formulary (NF) and the US Pharmacopoeia (USP) names. Figure 7-3 lists other available drug coding systems.
Proprietary names that are registered to protect the name for the sole use of the manufacturer holding the trademark.
Pre-marketing: Any untoward medical occurrence in a patient or clinical investigation subject administered a pharmaceutical product and which does not necessarily have a causal relationship with this treatment.
Post-marketing/European Union: Any undesirable experience occurring to a patient treated with a pharmaceutical product whether or not considered related to the medicinal product.
Post-marketing/US: Any adverse event associated with the use of a drug in humans, whether or not considered drug related, including the following: An adverse event occurring in the course of the use of a drug product in professional practice; an adverse event occurring from drug overdose; an adverse event occurring from drug withdrawal; and any failure of expected pharmacologic action.
WHO: Any untoward medical occurrence that may present during treatment with a pharmaceutical product but which does not necessarily have a causal relationship with this product.
Pre-marketing: All noxious and unintended responses to a medicinal product related to any dose.
Post-marketing/WHO: A response to a drug which is noxious and unintended, and which occurs at doses normally used in man for prophylaxis, diagnosis, or therapy of disease or for the modification of physiologic function
Post-marketing/European Union: A reaction which is harmful and unintended and which occurs at doses normally used in man for the prophylaxis, diagnosis, or treatment of disease or the modification of physiological function.
Post-marketing/US: Any undesirable effect reasonably associated with the use of the drug that may occur as part of the pharmacological action of the drug or may be unpredictable.
An exposure which truly does increase or decrease the probability of a certain outcome.
When an event occurs a product may be suspected as causing the event but rarely can it be proven particularly at an early stage of the product's life. Certain information about the relationship between the product and the event can reinforce the belief in a causal relationship between the product and the event while others can decrease the probability that there is a causal relationship.
Many geopolitical entities have established agencies/authority responsible for regulating products used in health care. The agencies are collectively referred to as regulatory agencies.
The organization which is responsible for the manufacture of a product. This will usually be the entity, which holds the marketing authorization for the product.
The organization which holds the authority to market a product. This will often be the organization, which manufactures the product.
An adverse product reaction which:
is fatal (results in death)
is life threatening
requires hospitalization or prolongation of a hospitalization
results in persistent or significant disability/incapacity
results in a congenital anomaly/birth defect.
Medical and scientific judgment should be exercised in deciding whether expedited reporting is appropriate in other situations, such as important medical events that may not be immediately life threatening or result in hospitalization but may jeopardize the patient or may require intervention to prevent one of the other outcomes listed in the definition above. These should also be considered serious.
Expected events are those which prior experience has demonstrated to be probabilistically linked to the product and are generally included in product labeling.
Pre-marketing: An adverse reaction, the nature or severity of which is not consistent with the applicable product information (e.g., Investigator's Brochure for an unapproved investigational product).
Post-marketing/European Union: This relates to an adverse reaction which is not mentioned in any EC summary of product characteristics (SPC). In the absence of any European SPC, an international document prepared by the marketing authorization holder containing all relevant safety information which the marketing authorization holder considers should be listed for the medicinal product in all countries where the medicinal product is marketed (Care Data Sheet).
Post-marketing/US current: Unexpected means an adverse drug experience that is not listed in the current labeling for the drug product and includes an event that may be symptomatically and pathophysiologically related to an event listed in the labeling but differs from the event because of greater severity or specificity.
Post-marketing/US (proposed): The applicant's core safety data sheet shall be a document prepared by the applicant that contains all relevant safety information, including adverse drug experiences, which the applicant believes should e listed for the drug in all countries where the drug is marketed. It may be used by the applicant as the reference document by which an adverse drug experience is judged to be expected or unexpected for purposes of this post-marketing periodic report.
Post-marketing/WHO: An adverse reaction, the nature or severity of which is not consistent with domestic labeling or market authorization, or expected from characteristics of the drug.
Gabrielli ER. Standard specification for drug therapy documentation. ASTM Committee E31.12 July (1993).
Kessler DA. Introducing MEDWatch. JAMA 269: 2765-2768(1993).
Kurata JH, Overhage JM, Gabrielli E, Jones JK. International Data Standards for Hospital-based Drug Surveillance. M.D. Computing 12(1) 50-57 (1995).
Moore N, Montera d, Coulson R, DeAbajo F, Kreft-Jais C, Biron A, Monteaugudo J. The single case format: proposal for a structured message for the telematic transmission of information on individual case reports in pharmacovigilance. Pharmacoepidemiology and Drug Safety 3: 157-162 (1994)
Thompson WL. A modest proposal for enhancing the safety and effectiveness of use of human drugs, biologics and devices and animal health products with human health implications through cost-effective health informatics tools supporting a global database of safety reports as a joint ICH E2, M1 and M2 initiative. Private communication. March (1995)
The message header segment will care one of three event types at MSH-9-message type.
7.8.4.0 CTI-1 Sponsor Study ID (EI) 01011
7.8.4.1 CTI-2 Study Phase Identifier (CWE) 01022
7.8.4.2 CTI-3 Study Scheduled Time Point (CWE) 01055
7.8.5 CM0 Clinical Study Master Segment
7.8.6 CM1 Clinical Study Phase Master Segment
7.8.7 CM2 Clinical Study Schedule Master Segment
7.9 CLINICAL TRIALS - EXAMPLES OF USE
7.9.1 CRM - Message When Patient Registered on a Clinical Trial
7.9.2 CRM - Message When Patient Begins a Phase of a Clinical Trial
7.9.3 CSU - Message Reporting Monthly Patient Data Updates to the Sponsor
7.10 PRODUCT EXPERIENCE
7.10.1 Glossary
7.10.1.0 Drug:
7.10.1.1 Medical device:
7.10.1.2 Product:
7.10.1.3 Non-proprietary (generic) name:
7.10.1.4 Trade (brand) name:
7.10.1.5 Adverse event/adverse experience:
7.10.1.6 Adverse drug reaction:
7.10.1.7 Causation:
7.10.1.8 Causal relationship:
7.10.1.9 Regulatory agency:
7.10.1.10 Product manufacturer:
7.10.1.11 Holder of marketing authorization:
7.10.1.12 Serious adverse product reaction:
7.10.1.13 Expected adverse product reaction:
7.10.2 References
7.11 PRODUCT EXPERIENCE - TRIGGER EVENTS AND MESSAGE DEFINITIONS
Event | Description |
---|---|
P07 | PEX - Unsolicited initial individual product experience report |
P08 | PEX - Unsolicited update individual product experience report |
P09 | SUR - Summary product experience report |
The primary application of this message is to transfer information related to an adverse event occurring while a patient was exposed to a product.
PEX^P07-P08^PEX_P07: Product Experience Message
7.11.1 PEX - Product Experience Message (Events P07, P08)
MSH | Message Header |
| 2 | DB |
[ { SFT } ] | Software Segment |
| 2 | DB |
[ UAC ] | User Authentication Credential |
| 2 | DB |
EVN | Event Type |
| 3 | DB |
PID | Patient Identification |
| 3 | DB |
[ PD1 ] | Additional Demographics |
| 3 | DB |
[ { PRT } ] | Participation (for Patient) |
| 7 | DB |
[ { NTE } ] | Notes and comments |
| 2 | DB |
[ | --- VISIT begin |
|
|
|
PV1 | Patient Visit |
| 3 | DB |
[ PV2 ] | Patient Visit - Additional Info |
| 3 | DB |
[ { PRT } ] | Participation (for Patient Visit) |
| 7 | DB |
] | --- VISIT end |
|
|
|
{ | --- EXPERIENCE begin |
|
|
|
PES | Product Experience Sender |
| 7 | DB |
{ | --- PEX_OBSERVATION begin |
|
|
|
PEO | Product Experience Observation |
| 7 | DB |
{ | --- PEX_CAUSE begin |
|
|
|
PCR | Potential Causal Relationship |
| 7 | DB |
[ | --- RX_ORDER begin |
|
|
|
RXE | Pharmacy/Treatment Encoded Order |
| 4A | DB |
[ { PRT } ] | Participation (for Pharmacy/Treatment) |
| 7 | DB |
{ | --- TIMING_QTY begin |
|
|
|
TQ1 | Timing/Quantity |
| 4 | DB |
[ { TQ2 } ] | Timing/Quantity Order Sequence |
| 4 | DB |
} | --- TIMING_QTY end |
|
|
|
[ { RXR } ] | Pharmacy/Treatment Route |
| 4A | DB |
] | --- RX_ORDER end |
|
|
|
[{ | --- RX_ADMINISTRATION begin |
|
|
|
RXA | Pharmacy/Treatment Administration |
| 4A | DB |
[ RXR ] | Pharmacy/Treatment Route |
| 4A | DB |
[ { PRT } ] | Participation (for Pharmacy Administration) |
| 7 | DB |
}] | --- RX_ADMINISTRATION end |
|
|
|
[ { PRB } ] | Detail problem segment |
| 12 | DB |
[{ | --- OBSERVATION begin |
|
|
|
OBX | Observation/Result Segment |
| 7 | DB |
[ { PRT } ] | Participation (for Observation Result) |
| 7 | DB |
}] | --- OBSERVATION end |
|
|
|
[ { NTE } ] | Notes and comments |
| 2 | DB |
[ | --- ASSOCIATED_PERSON begin |
|
|
|
NK1 | Associated parties segment |
| 2 | DB |
[ | --- ASSOCIATED_RX_ORDER begin |
|
|
|
RXE | Pharmacy/Treatment Encoded Order |
| 4A | DB |
[ { PRT } ] | Participation (for Pharmacy/Treatment) |
| 7 | DB |
{ | --- NK1_TIMING_QTY begin |
|
|
|
TQ1 | Timing/Quantity |
| 4 | DB |
[ { TQ2 } ] | Timing/Quantity Order Sequence |
| 4 | DB |
} | --- NK1_TIMING_QTY end |
|
|
|
[ { RXR } ] | Pharmacy/Treatment Route |
| 4 | DB |
] | --- ASSOCIATED_RX_ORDER end |
|
|
|
[{ | --- ASSOCIATED_RX_ADMIN begin |
|
|
|
RXA | Pharmacy/Treatment Administration |
| 4A | DB |
[ RXR ] | Pharmacy/Treatment Route |
| 4A | DB |
[ { PRT } ] | Participation (for Pharmacy Administration) |
| 7 | DB |
}] | --- ASSOCIATED_RX_ADMIN end |
|
|
|
[ { PRB } ] | Detail Problem Segment |
| 12 | DB |
[{ | --- ASSOCIATED_OBSERVATION begin |
|
|
|
OBX | Observation/Results Segment |
| 7 | DB |
[ { PRT } ] | Participation (for Observation Result) |
| 7 | DB |
}] | --- ASSOCIATED_OBSERVATION end |
|
|
|
] | --- ASSOCIATED_PERSON end |
|
|
|
[{ | --- STUDY begin |
|
|
|
CSR | Clinical study registration |
| 7 | DB |
[ { CSP } ] | Clinical study phase segment |
| 7 | DB |
}] | --- STUDY end |
|
|
|
} | --- PEX_CAUSE end |
|
|
|
} | --- PEX_OBSERVATION end |
|
|
|
} | --- EXPERIENCE end |
|
|
The PID segment provides the patient identification information including institutional identification numbers, date of birth and in the case of patients who die, information about their death. Patients are frequently identified only by their initials which can be represented in the PID segment, e.g., the initials JMO would appear as J^M^O in the name field of the PID segment. The EVN segment identifies the type of transaction that is being sent -- primarily it specifies who the sender is and implies which information is expected to be included in the message. A message sent from a healthcare provider, for example, might contain minimal information, while a message from a pharmaceutical manufacturer might contain nearly complete information.
The PES or Product Experience Sender segment provides information about the message sender and its knowledge of the event. The heart of the product experience message is the product experience observation (PEO) segment and the PCR segments clustered under it. The PEO segment identifies a clinical event and the PCR segments identify products which are potentially causally related to the event. There may be more than one product which is potentially related to the event so multiple PCR segments can be included. RXE and RXR segments can be repeated and provide information about the products the patient was exposed to at the time of the event (typically excluding those used to treat the event). Details about the administration of the products identified in the PCR segments should be described with RXE and RXR segments. Repeated PRB segments provide information about diagnoses which represent comorbid conditions. The repeated OBX segments are used to send patient observations such as height, weight, last menstrual period, and laboratory results. Analytical commentary can be included in the NTE segment. This commentary will typically be the sender's analysis of the event and the potentially causally related products. Finally, the CSR and CSP segments can optionally be included if the event occurred during a formal clinical trial in order to describe the trial.
When a product experience relates to an exposure which occurred indirectly (transmammary or transplacentally for example), the individual experiencing the adverse effect - the fetus or child - would be described in the PID segment and the individual via which they are exposed in the NK1 segment. The first set of RXE segments would typically indicate the drugs which to which the fetus or child was exposed. Additional codes for the route are defined in this Appendix to allow the suspected routes of exposure to be represented. The second set of RXE/RXR segment - those clustered under the NK1 segment - would represent the route by which the mother or father was exposed to the drug. Early spontaneous abortion would normally be treated as an adverse effect on the mother rather than on the fetus, and the PID would refer to the mother. The second set of PRB/OBX segments reflects the problems/observations associated with the individual via which they were exposed.
Each message contains information about a single case including one patient (PID), at least one sender (PES), one or more events (PEO) and one or more suspected products (PCR and RXE/RXA) for a minimal message. The structure of the message allows actual administration information to be sent in the RXA if known; if administration information is unavailable, or the adverse reaction cannot be related to a single administration event, the RXE segment can be used to send prescription level information. Additional information may be included based on availability and regulatory requirements.
The MSH segment specifies the character set (MSH-18) and the language (MSH-19) used in the PEX message.
The PEX message is designed to accommodate required reporting of adverse product events to the responsible regulatory agencies. In the United States, the paper version of this report is Medwatch.
Retained for backwards compatibility only as of v2.5.and withdrawn as of v2.7. Â
HL7 Attribute Table - PES - Product Experience Sender
SEQ | LEN | C.LEN | DT | OPT | RP/ # | TBL # | ITEM # | ELEMENT NAME | DB Ref. |
---|---|---|---|---|---|---|---|---|---|
1 |
|
| XON | O | Y |
| 01059 | Sender Organization Name | DB |
2 |
|
| XCN | O | Y |
| 01060 | Sender Individual Name | DB |
3 |
|
| XAD | O | Y |
| 01062 | Sender Address | DB |
4 |
|
| XTN | O | Y |
| 01063 | Sender Telephone | DB |
5 |
|
| EI | O |
|
| 01064 | Sender Event Identifier | DB |
6 |
| 16= | NM | O |
|
| 01065 | Sender Sequence Number | DB |
7 |
| 600= | FT | O | Y |
| 01066 | Sender Event Description | DB |
8 |
| 600= | FT | O |
|
| 01067 | Sender Comment | DB |
9 |
|
| DTM | O |
|
| 01068 | Sender Aware Date/Time | DB |
10 |
|
| DTM | R |
|
| 01069 | Event Report Date | DB |
11 | 2..3 |
| ID | O | Y/2 | 0234 | 01070 | Event Report Timing/Type | DB |
12 | 1..1 |
| ID | O |
| 0235 | 01071 | Event Report Source | DB |
13 | 1..1 |
| ID | O | Y | 0236 | 01072 | Event Reported To | DB |
Components: <Organization Name (ST)> ^ <Organization Name Type Code (CWE)> ^ <WITHDRAWN Constituent> ^ <Identifier Check Digit (NM)> ^ <Check Digit Scheme (ID)> ^ <Assigning Authority (HD)> ^ <Identifier Type Code (ID)> ^ <Assigning Facility (HD)> ^ <Name Representation Code (ID)> ^ <Organization Identifier (ST)>
Subcomponents for Organization Name Type Code (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Assigning Authority (HD): <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Subcomponents for Assigning Facility (HD): <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Definition: This field contains the name of the organization sending the message. Coded lists of manufacturers such as that from the World Health Organization database might be used in the component of the coded name to identify the source code type. If sent from an individual, this field may not be sent.
Components: <Person Identifier (ST)> ^ <Family Name (FN)> ^ <Given Name (ST)> ^ <Second and Further Given Names or Initials Thereof (ST)> ^ <Suffix (e.g., JR or III) (ST)> ^ <Prefix (e.g., DR) (ST)> ^ <WITHDRAWN Constituent> ^ <DEPRECATED-Source Table (CWE)> ^ <Assigning Authority (HD)> ^ <Name Type Code (ID)> ^ <Identifier Check Digit (ST)> ^ <Check Digit Scheme (ID)> ^ <Identifier Type Code (ID)> ^ <Assigning Facility (HD)> ^ <Name Representation Code (ID)> ^ <Name Context (CWE)> ^ <WITHDRAWN Constituent> ^ <Name Assembly Order (ID)> ^ <Effective Date (DTM)> ^ <Expiration Date (DTM)> ^ <Professional Suffix (ST)> ^ <Assigning Jurisdiction (CWE)> ^ <Assigning Agency or Department (CWE)> ^ <Security Check (ST)> ^ <Security Check Scheme (ID)>
Subcomponents for Family Name (FN): <Surname (ST)> & <Own Surname Prefix (ST)> & <Own Surname (ST)> & <Surname Prefix from Partner/Spouse (ST)> & <Surname from Partner/Spouse (ST)>
Subcomponents for Source Table (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Assigning Authority (HD): <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Subcomponents for Assigning Facility (HD): <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Subcomponents for Name Context (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Assigning Jurisdiction (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Assigning Agency or Department (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Definition: This field contains the name of the contact individual. If sent by an organization, the individuals in the organization who serve as primary contact points correspondence regarding this event.
Components: <Street Address (SAD)> ^ <Other Designation (ST)> ^ <City (ST)> ^ <State or Province (ST)> ^ <Zip or Postal Code (ST)> ^ <Country (ID)> ^ <Address Type (ID)> ^ <Other Geographic Designation (ST)> ^ <County/Parish Code (CWE)> ^ <Census Tract (CWE)> ^ <Address Representation Code (ID)> ^ <WITHDRAWN Constituent> ^ <Effective Date (DTM)> ^ <Expiration Date (DTM)> ^ <Expiration Reason (CWE)> ^ <Temporary Indicator (ID)> ^ <Bad Address Indicator (ID)> ^ <Address Usage (ID)> ^ <Addressee (ST)> ^ <Comment (ST)> ^ <Preference Order (NM)> ^ <Protection Code (CWE)> ^ <Address Identifier (EI)>
Subcomponents for Street Address (SAD): <Street or Mailing Address (ST)> & <Street Name (ST)> & <Dwelling Number (ST)>
Subcomponents for County/Parish Code (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Census Tract (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Expiration Reason (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Protection Code (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Address Identifier (EI): <Entity Identifier (ST)> & <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Definition: This field contains the postal address of the message sender to which correspondence regarding the experience being reported should be directed.
Components: <WITHDRAWN Constituent> ^ <Telecommunication Use Code (ID)> ^ <Telecommunication Equipment Type (ID)> ^ <Communication Address (ST)> ^ <Country Code (SNM)> ^ <Area/City Code (SNM)> ^ <Local Number (SNM)> ^ <Extension (SNM)> ^ <Any Text (ST)> ^ <Extension Prefix (ST)> ^ <Speed Dial Code (ST)> ^ <Unformatted Telephone number (ST)> ^ <Effective Start Date (DTM)> ^ <Expiration Date (DTM)> ^ <Expiration Reason (CWE)> ^ <Protection Code (CWE)> ^ <Shared Telecommunication Identifier (EI)> ^ <Preference Order (NM)>
Subcomponents for Expiration Reason (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Protection Code (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Shared Telecommunication Identifier (EI): <Entity Identifier (ST)> & <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Definition: This field contains the telephone number of the message sender to which telephone communications regarding the experience being reported should be directed. An electronic mail address can be specified in this field.
Components: <Entity Identifier (ST)> ^ <Namespace ID (IS)> ^ <Universal ID (ST)> ^ <Universal ID Type (ID)>
Definition: The first component of this field contains the product manufacturer's unique alphanumeric identifier for this specific event. This identifier will be used on all subsequent communications regarding this event. For events reported to the FDA, the identifier is: the FDA assigned manufacturer or distributor number; a hyphen; the 4-digit year; a hyphen; and a consecutive 5-digit sequence number for each report filled by the sender that year. For example, the event identifier for the third event reported in 1996 by a manufacturer whose FDA-assigned registration number is 1234567 would be 1234567-1993-3. Organizations without a FDA-assigned registration number should use 0000000 until assigned a number. Reports from other facilities should use the 10-digit HCFA number left padded with zeros in place of the FDA-assigned registration number. The second through fourth components are defined in exactly the same way as the three components of the hierarchic designator (HD) data type (Section 2.8.18, "HD - hierarchic designator").
Definition: This field contains sequentially assigned integer values which distinguish messages which share the same sender event identification element. 0 for initial report, 1 for second, and so on.
Definition: This field contains the summary narrative text description of the event that occurred written by the sender, which may include a description of the nature of the event, how the product was involved, any environmental conditions that may have influenced the event, and patient follow-up or required treatment. Note that laboratory results can be encoded as OBX segments rather then including them in the narrative. By representing clinical information in OBX segments rather than in the narrative, these data become much more useful and flexible.
Definition: This field contains the text commentary regarding the report being made, such as disclaimers, which is not necessarily part of the report.
Definition: This field identifies the date the sender became aware of the event.
Definition: This field contains the date the message was originally sent to the regulatory agency.
Definition: This field contains the timing type of report as required by regulatory agency. Refer to HL7 Table 0234 - Report Timing for valid values.
Definition: This field identifies the source from which the sender learned about the event. Multiple sources may be reported by repeating the element.
If the source of the report is a clinical trial, the CSR and CSP segments can be included to define the study. Refer to HL7 Table 0235 - Report Source for valid values.
Definition: This field indicates all the entities to whom the entity submitting the report has reported the event. Repeat the element if the report was submitted to more than one entity. Refer to HL7 Table 0236 - Event reported to for valid values.
Details related to a particular clinical experience or event are embodied in the PEO segment. This segment can be used to characterize an event which might be attributed to a product to which the patient was exposed. Products with a possible causal relationship to the observed experience are described in the following PCR (possible causal relationship) segments. The message format was designed to be robust and includes many optional elements which may not be required for a particular regulatory purpose but allow a complete representation of the drug experience if needed.
A PEX message can contain multiple PEO segments if the patient experienced more than one event but must contain at least one PEO segment.
HL7 Attribute Table - PEO - Product Experience Observation
7.12.1.0 PES-1 Sender Organization Name (XON) 01059
7.12.1.1 PES-2 Sender Individual Name (XCN) 01060
7.12.1.2 PES-3 Sender Address (XAD) 01062
7.12.1.3 PES-4 Sender Telephone (XTN) 01063
7.12.1.4 PES-5 Sender Event Identifier (EI) 01064
7.12.1.5 PES-6 Sender Sequence Number (NM) 01065
7.12.1.6 PES-7 Sender Event Description (FT) 01066
7.12.1.7 PES-8 Sender Comment (FT) 01067
7.12.1.8 PES-9 Sender Aware Date/Time (DTM) 01068
7.12.1.9 PES-10 Event Report Date (DTM) 01069
7.12.1.10 PES-11 Event Report Timing/Type (ID) 01070
7.12.1.11 PES-12 Event Report Source (ID) 01071
7.12.1.12 PES-13 Event Reported To (ID) 01072
7.12.2 PEO - Product Experience Observation Segment
SEQ | LEN | C.LEN | DT | OPT | RP/ # | TBL # | ITEM # | ELEMENT NAME | DB Ref. |
---|---|---|---|---|---|---|---|---|---|
1 |
|
| CWE | O | Y | 9999 | 01073 | Event Identifiers Used | DB |
2 |
|
| CWE | O | Y | 9999 | 01074 | Event Symptom/Diagnosis Code | DB |
3 |
|
| DTM | R |
|
| 01075 | Event Onset Date/Time | DB |
4 |
|
| DTM | O |
|
| 01076 | Event Exacerbation Date/Time | DB |
5 |
|
| DTM | O |
|
| 01077 | Event Improved Date/Time | DB |
6 |
|
| DTM | O |
|
| 01078 | Event Ended Data/Time | DB |
7 |
|
| XAD | O | Y |
| 01079 | Event Location Occurred Address | DB |
8 | 1..1 |
| ID | O | Y | 0237 | 01080 | Event Qualification | DB |
9 | 1..1 |
| ID | O |
| 0238 | 01081 | Event Serious | DB |
10 | 1..1 |
| ID | O |
| 0239 | 01082 | Event Expected | DB |
11 | 1..1 |
| ID | O | Y | 0240 | 01083 | Event Outcome | DB |
12 | 1..1 |
| ID | O |
| 0241 | 01084 | Patient Outcome | DB |
13 |
| 600= | FT | O | Y |
| 01085 | Event Description from Others | DB |
14 |
| 600= | FT | O | Y |
| 01086 | Event Description from Original Reporter | DB |
15 |
| 600= | FT | O | Y |
| 01087 | Event Description from Patient | DB |
16 |
| 600= | FT | O | Y |
| 01088 | Event Description from Practitioner | DB |
17 |
| 600= | FT | O | Y |
| 01089 | Event Description from Autopsy | DB |
18 |
|
| CWE | O | Y | 9999 | 01090 | Cause Of Death | DB |
19 |
|
| XPN | O | Y |
| 01091 | Primary Observer Name | DB |
20 |
|
| XAD | O | Y |
| 01092 | Primary Observer Address | DB |
21 |
|
| XTN | O | Y |
| 01093 | Primary Observer Telephone | DB |
22 | 1..1 |
| ID | O |
| 0242 | 01094 | Primary Observer's Qualification | DB |
23 | 1..1 |
| ID | O |
| 0242 | 01095 | Confirmation Provided By | DB |
24 |
|
| DTM | O |
|
| 01096 | Primary Observer Aware Date/Time | DB |
25 | 1..2 |
| ID | O |
| 0243 | 01097 | Primary Observer's identity May Be Divulged | DB |
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This field may be used to transmit the event identifier used by other entities for this event. The entry would typically contain a unique alphanumeric identifier assigned by an entity with the text component null or repeating the unique alphanumeric identifier followed by the organization's identifier. An event identifier might be GB1234^GB1234^PharmaGiant for example.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This field is the coded diagnosis or problem description which best describes the event. A text representation of the coded item should routinely be included. MEDDRA and WHO-ART are examples of appropriate coding schemes, as are the patient and device codes included in the FDA Center for Devices and Radiologic Health's coding manual for Form 3500A.
Definition: This field contains a report or best estimate of the date/time of onset of the event. The date/time can be recorded to any level of precision it is known (hour, day, month, year).
Definition: This field identifies the best estimate of the date/time the event was exacerbated.
Definition: This field identifies the best estimate of the date/time the event improved.
Definition: This field identifies the best estimate of the date/time the event resolved.
Components: <Street Address (SAD)> ^ <Other Designation (ST)> ^ <City (ST)> ^ <State or Province (ST)> ^ <Zip or Postal Code (ST)> ^ <Country (ID)> ^ <Address Type (ID)> ^ <Other Geographic Designation (ST)> ^ <County/Parish Code (CWE)> ^ <Census Tract (CWE)> ^ <Address Representation Code (ID)> ^ <WITHDRAWN Constituent> ^ <Effective Date (DTM)> ^ <Expiration Date (DTM)> ^ <Expiration Reason (CWE)> ^ <Temporary Indicator (ID)> ^ <Bad Address Indicator (ID)> ^ <Address Usage (ID)> ^ <Addressee (ST)> ^ <Comment (ST)> ^ <Preference Order (NM)> ^ <Protection Code (CWE)> ^ <Address Identifier (EI)>
Subcomponents for Street Address (SAD): <Street or Mailing Address (ST)> & <Street Name (ST)> & <Dwelling Number (ST)>
Subcomponents for County/Parish Code (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Census Tract (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Expiration Reason (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Protection Code (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Address Identifier (EI): <Entity Identifier (ST)> & <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Definition: This field identifies the location at which the event started. Often this will specify only the country in which the event started.
Definition: This field is contains a classification of the type of product experience this event is considered to represent. Refer to HL7 Table 0237 - Event Qualification for valid values.
Unexpected beneficial effects would not often be reported but are required by certain countries.
Definition: This field indicates whether the event was judged as serious. If the event did not meet the criteria for seriousness but the sender judges the event significant on other grounds, the event can be identified as significant [but not serious]. Refer to HL7 Table 0238 - Event Seriousness for valid values.
Definition: This field indicates whether the observed event was expected or unexpected as judged. Refer to HL7 Table 0239 - Event Expected for valid values.
Definition: This field identifies the consequence of the event on the patient. If the consequence of the event is not understood or not available, the patient outcome element may be used although neither is required. May be repeated if more than one is appropriate. Refer to HL7 Table 0240 - Event Consequence for valid values.
When an event specific outcome is not available, the patient outcome element may be used to represent the patient's overall outcome if that information is known. Refer to HL7 Table 0241 - Patient Outcome for valid values.
Definition: This field contains a summary narrative text description of the event that occurred written by the sender. Note that laboratory results can be encoded as OBX segments rather then including them in the narrative. By representing clinical information in OBX segments rather than in the narrative, these data become much more useful and flexible.
Definition: This field contains a summary narrative text description of the event provided by the original reporter. Note that laboratory results can be encoded as OBX segments rather then including them in the narrative.
Definition: This field contains a summary narrative text description of the event obtained directly from the patient. Note that laboratory results can be encoded as OBX segments rather then including them in the narrative, which will allow the data to be more readily represented and manipulated.
Definition: This field contains a summary narrative text description of the event provided by the practitioner most familiar with the event. Note that laboratory results can be encoded as OBX segments rather then including them in the narrative.
Definition: This field contains a summary narrative text description of the autopsy results. Note that laboratory results can be encoded as OBX segments rather then including them in the narrative.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This field identifies the coded cause of death. May be repeated as necessary to list multiple contributing causes. A text description can be included by including text but no code or coding system. For example, if the cause of death is to be determined at autopsy but results are not yet available, the cause of death element could be ^Pending autopsy^. The date/time of death can be sent in the PID and the autopsy results sent in the event description from autopsy element of the PEO segment.
Components: <Family Name (FN)> ^ <Given Name (ST)> ^ <Second and Further Given Names or Initials Thereof (ST)> ^ <Suffix (e.g., JR or III) (ST)> ^ <Prefix (e.g., DR) (ST)> ^ <WITHDRAWN Constituent> ^ <Name Type Code (ID)> ^ <Name Representation Code (ID)> ^ <Name Context (CWE)> ^ <WITHDRAWN Constituent> ^ <Name Assembly Order (ID)> ^ <Effective Date (DTM)> ^ <Expiration Date (DTM)> ^ <Professional Suffix (ST)> ^ <Called By (ST)>
Subcomponents for Family Name (FN): <Surname (ST)> & <Own Surname Prefix (ST)> & <Own Surname (ST)> & <Surname Prefix from Partner/Spouse (ST)> & <Surname from Partner/Spouse (ST)>
Subcomponents for Name Context (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Definition: This field identifies the name of the person who initially described the event.
Components: <Street Address (SAD)> ^ <Other Designation (ST)> ^ <City (ST)> ^ <State or Province (ST)> ^ <Zip or Postal Code (ST)> ^ <Country (ID)> ^ <Address Type (ID)> ^ <Other Geographic Designation (ST)> ^ <County/Parish Code (CWE)> ^ <Census Tract (CWE)> ^ <Address Representation Code (ID)> ^ <WITHDRAWN Constituent> ^ <Effective Date (DTM)> ^ <Expiration Date (DTM)> ^ <Expiration Reason (CWE)> ^ <Temporary Indicator (ID)> ^ <Bad Address Indicator (ID)> ^ <Address Usage (ID)> ^ <Addressee (ST)> ^ <Comment (ST)> ^ <Preference Order (NM)> ^ <Protection Code (CWE)> ^ <Address Identifier (EI)>
Subcomponents for Street Address (SAD): <Street or Mailing Address (ST)> & <Street Name (ST)> & <Dwelling Number (ST)>
Subcomponents for County/Parish Code (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Census Tract (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Expiration Reason (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Protection Code (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Address Identifier (EI): <Entity Identifier (ST)> & <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Definition: This field identifies the address of the person who initially described the event.
Components: <WITHDRAWN Constituent> ^ <Telecommunication Use Code (ID)> ^ <Telecommunication Equipment Type (ID)> ^ <Communication Address (ST)> ^ <Country Code (SNM)> ^ <Area/City Code (SNM)> ^ <Local Number (SNM)> ^ <Extension (SNM)> ^ <Any Text (ST)> ^ <Extension Prefix (ST)> ^ <Speed Dial Code (ST)> ^ <Unformatted Telephone number (ST)> ^ <Effective Start Date (DTM)> ^ <Expiration Date (DTM)> ^ <Expiration Reason (CWE)> ^ <Protection Code (CWE)> ^ <Shared Telecommunication Identifier (EI)> ^ <Preference Order (NM)>
Subcomponents for Expiration Reason (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Protection Code (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Shared Telecommunication Identifier (EI): <Entity Identifier (ST)> & <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Definition: This field identifies the telephone number of the person who initially described the event.
Definition: This field contains the qualification of the primary observer which may assist in assessing the validity of the observations. Refer to HL7 Table 0242 - Primary Observer's Qualification for valid values.
Definition: This field contains the qualification of the health professional who confirmed the observation if the primary observer was not a health professional. Refer to HL7 Table 0242 - Primary Observer's Qualification for valid values.
Definition: This field identifies the date/time the primary observer became aware of event.
Definition: Indicates whether or not the primary observer, if known to the sender, grants permission to disclose his or her identity to the product manufacturer for the purpose of further investigating the event. If the element is absent, the assumption should be made that permission is not granted. Refer to HL7 Table 0243 - Identity May Be Divulged for valid values.
The PCR segment is used to communicate a potential or suspected relationship between a product (drug or device) or test and an event with detrimental effect on a patient. This segment identifies a potential causal relationship between the product identified in this segment and the event identified in the PEO segment.
More than one PCR segment can be included in the message if more than one product is possibly causally related to the event.
HL7 Attribute Table - PCR - Possible Causal Relationship
7.12.2.0 PEO-1 Event Identifiers Used (CWE) 01073
7.12.2.1 PEO-2 Event Symptom/Diagnosis Code (CWE) 01074
7.12.2.2 PEO-3 Event Onset Date/Time (DTM) 01075
7.12.2.3 PEO-4 Event Exacerbation Date/Time (DTM) 01076
7.12.2.4 PEO-5 Event Improved Date/Time (DTM) 01077
7.12.2.5 PEO-6 Event Ended Data/Time (DTM) 01078
7.12.2.6 PEO-7 Event Location Occurred Address (XAD) 01079
7.12.2.7 PEO-8 Event Qualification (ID) 01080
7.12.2.8 PEO-9 Event Serious (ID) 01081
7.12.2.9 PEO-10 Event Expected (ID) 01082
7.12.2.10 PEO-11 Event Outcome (ID) 01083
7.12.2.11 PEO-12 Patient Outcome (ID) 01084
7.12.2.12 PEO-13 Event Description from Others (FT) 01085
7.12.2.13 PEO-14 Event Description from Original Reporter (FT) 01086
7.12.2.14 PEO-15 Event Description from Patient (FT) 01087
7.12.2.15 PEO-16 Event Description from Practitioner (FT) 01088
7.12.2.16 PEO-17 Event Description from Autopsy (FT) 01089
7.12.2.17 PEO-18 Cause of Death (CWE) 01090
7.12.2.18 PEO-19 Primary Observer Name (XPN) 01091
7.12.2.19 PEO-20 Primary Observer Address (XAD) 01092
7.12.2.20 PEO-21 Primary Observer Telephone (XTN) 01093
7.12.2.21 PEO-22 Primary Observer's Qualification (ID) 01094
7.12.2.22 PEO-23 Confirmation Provided By (ID) 01095
7.12.2.23 PEO-24 Primary Observer Aware Date/Time (DTM) 01096
7.12.2.24 PEO-25 Primary Observer's Identity May Be Divulged (ID) 01097
7.12.3 PCR - Possible Causal Relationship Segment
SEQ | LEN | C.LEN | DT | OPT | RP/ # | TBL # | ITEM # | ELEMENT NAME | DB Ref. |
---|---|---|---|---|---|---|---|---|---|
1 |
|
| CWE | R |
| 9999 | 01098 | Implicated Product | DB |
2 |
| 1= | IS | O |
| 0249 | 01099 | Generic Product | DB |
3 |
|
| CWE | O |
| 9999 | 01100 | Product Class | DB |
4 |
|
| CQ | O |
|
| 01101 | Total Duration Of Therapy | DB |
5 |
|
| DTM | O |
|
| 01102 | Product Manufacture Date | DB |
6 |
|
| DTM | O |
|
| 01103 | Product Expiration Date | DB |
7 |
|
| DTM | O |
|
| 01104 | Product Implantation Date | DB |
8 |
|
| DTM | O |
|
| 01105 | Product Explantation Date | DB |
9 |
|
| CWE | O |
| 0244 | 01106 | Single Use Device | DB |
10 |
|
| CWE | O |
| 9999 | 01107 | Indication For Product Use | DB |
11 |
|
| CWE | O |
| 0245 | 01108 | Product Problem | DB |
12 |
| 199= | ST | O | Y/3 |
| 01109 | Product Serial/Lot Number | DB |
13 |
|
| CWE | O |
| 0246 | 01110 | Product Available For Inspection | DB |
14 |
|
| CWE | O |
| 9999 | 01111 | Product Evaluation Performed | DB |
15 |
|
| CWE | O |
| 0247 | 01112 | Product Evaluation Status | DB |
16 |
|
| CWE | O |
| 9999 | 01113 | Product Evaluation Results | DB |
17 | 1..1 |
| ID | O |
| 0248 | 01114 | Evaluated Product Source | DB |
18 |
|
| DTM | O |
|
| 01115 | Date Product Returned To Manufacturer | DB |
19 | 1..1 |
| ID | O |
| 0242 | 01116 | Device Operator Qualifications | DB |
20 | 1..1 |
| ID | O |
| 0250 | 01117 | Relatedness Assessment | DB |
21 | 1..2 |
| ID | O | Y/6 | 0251 | 01118 | Action Taken In Response To The Event | DB |
22 | 2..2 |
| ID | O | Y/6 | 0252 | 01119 | Event Causality Observations | DB |
23 | 1..1 |
| ID | O | Y/3 | 0253 | 01120 | Indirect Exposure Mechanism | DB |
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This field contains the coded identity of the product (drug, device, etc.) which is possibly causally related to the event. Includes the product identity number such as NDC, model or catalogue numbers. If a coded value is not available for the product a text description can be included as the second component of the CWE data. See Chapter 2 for a listing of some recognized coding systems for drugs and devices.
Definition: This field indicates whether the product used was a generic or a branded product. Refer to User-defined Table 0249 - Generic Product for suggested values.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This field contains the coded classification of the implicated product. For drugs, this would usually be the drug class - calcium channel blocking agents for nifedipine, for example. For other products it would be the generic type of device, e.g., urinary catheter, cardiac pacemaker. If a coded value is not available for the class, a text description can be included.
Components: <Quantity (NM)> ^ <Units (CWE)>
Subcomponents for Units (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Definition: This field represents the total duration of therapy with product listed. The treatment at the current dose and schedule are indicted in the quantity timing attribute of the RXE segment but the patient may have been treated for some time previously at a different dose or on a different schedule. The quantity in the second component of the CQ should be a time quantity.
Definition: This field indicates the date the product was manufactured.
Definition: This field contains the expiration date indicated on the product packaging.
Definition: If an implantable medical device, this field identifies the date device was implanted.
Definition: If an implantable medical device and it was removed, the field identifies the date it was removed.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This field indicates whether the product was designed for a single use. Refer to User-defined Table 0244 - Single Use Device for suggested values.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This field contains coded representation of the problem or diagnosis for which the product was used. See Chapter 2 for some coding systems which might be chosen to transmit diagnoses or problems.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: A product problem would exist if a product malfunction could lead to death or serious injury. Refer to User-defined Table 0245 - Product Problem for suggested values.
Definition: This field is an alphanumeric descriptor which identifies the specific item or lot of drug. This descriptor would normally be obtained from the package labeling or item itself.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This field indicates that the product is available for analysis. User-defined Table 0246 -Product Available for Inspection is used as the HL7 identifier for the user-defined table of values for this field. If the product was returned to the manufacturer, this would be indicated by including the date it was returned in the date product returned to manufacturer element.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This field indicates the type of product evaluation performed. The evaluation codes listed in SubPart B of the Coding Manual for FDA Form 3500A, "Type of Evaluation Performed," may be used. If no codes are available, text may be sent in the second component of the field.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This field identifies the status of product evaluation. Subpart A Item H.3 of the Coding Manual for FDA Form 3500A may also be used. If no codes are available, text may be sent in the second component of the field. Refer to HL7 Table 0247 - Status of Evaluation for valid values.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This field contains the results of the product evaluation.
Definition: This field contains the source of the product evaluated. Refer to HL7 Table 0248 - Product Source for valid values.
Definition: If the product was returned to the manufacturer, this field contains the date it was returned.
Definition: This field identifies the qualification of the person operating the device when the event occurred. Refer to HL7 Table 0242 - Primary Observer's Qualification for valid values.
Definition: This field represents the assessment of relatedness of the product to the event. Refer to HL7 Table 0250 - Relatedness Assessment for valid values.
Definition: This field indicates the action taken as a result of the event. Segment may repeat if multiple categories of evidence are relevant. Refer to HL7 Table 0251 - Action Taken in Response to the Event for valid values.
Definition: This field contains observations made about the event which may bear on causality. Refer to HL7 Table 0252 - Causality Observations for valid values. Segment may repeat if multiple categories of evidence are relevant.
Definition: The patient identified in the PID segment, who experienced the event, might have been exposed to the potential causal product via an intermediary, e.g., a child might be exposed to a product through the placenta or in breast milk, or a transfusion recipient might be exposed via a blood product. If this is the case, the mechanism of product transmission is identified in this field, using the valid values in HL7 Table 0253 - Indirect Exposure Mechanism. If this field is populated, the identity of the person through whom the product was transmitted is contained in NK1 and RXE segments which follow.
This segment is maintained for backwards compatibility only as of V2.7.
HL7 Attribute Table - PSH -Product Summary Header
7.12.3.0 PCR-1 Implicated Product (CWE) 01098
7.12.3.1 PCR-2 Generic Product (IS) 01099
7.12.3.2 PCR-3 Product Class (CWE) 01100
7.12.3.3 PCR-4 Total Duration of Therapy (CQ) 01101
7.12.3.4 PCR-5 Product Manufacture Date (DTM) 01102
7.12.3.5 PCR-6 Product Expiration Date (DTM) 01103
7.12.3.6 PCR-7 Product Implantation Date (DTM) 01104
7.12.3.7 PCR-8 Product Explantation Date (DTM) 01105
7.12.3.8 PCR-9 Single Use Device (CWE) 01106
7.12.3.9 PCR-10 Indication for Product Use (CWE) 01107
7.12.3.10 PCR-11 Product Problem (CWE) 01108
7.12.3.11 PCR-12 Product Serial/Lot Number (ST) 01109
7.12.3.12 PCR-13 Product Available for Inspection (CWE) 01110
7.12.3.13 PCR-14 Product Evaluation Performed (CWE) 01111
7.12.3.14 PCR-15 Product Evaluation Status (CWE) 01112
7.12.3.15 PCR-16 Product Evaluation Results (CWE) 01113
7.12.3.16 PCR-17 Evaluated Product Source (ID) 01114
7.12.3.17 PCR-18 Date Product Returned to Manufacturer (DTM) 01115
7.12.3.18 PCR-19 Device Operator Qualifications (ID) 01116
7.12.3.19 PCR-20 Relatedness Assessment (ID) 01117
7.12.3.20 PCR-21 Action Taken in Response to the Event (ID) 01118
7.12.3.21 PCR-22 Event Causality Observations (ID) 01119
7.12.3.22 PCR-23 Indirect Exposure Mechanism (ID) 01120
7.12.4 PSH - Product Summary Header Segment
SEQ | LEN | C.LEN | DT | OPT | RP/ # | TBL # | ITEM # | ELEMENT NAME | DB Ref. |
---|---|---|---|---|---|---|---|---|---|
1 |
| 60= | ST | R |
|
| 01233 | Report Type | DB |
2 |
| 60= | ST | O |
|
| 01297 | Report Form Identifier | DB |
3 |
|
| DTM | R |
|
| 01235 | Report Date | DB |
4 |
|
| DTM | O |
|
| 01236 | Report Interval Start Date | DB |
5 |
|
| DTM | O |
|
| 01237 | Report Interval End Date | DB |
6 |
|
| CQ | O |
|
| 01238 | Quantity Manufactured | DB |
7 |
|
| CQ | O |
|
| 01239 | Quantity Distributed | DB |
8 | 1..1 |
| ID | O |
| 0329 | 01240 | Quantity Distributed Method | DB |
9 |
| 600= | FT | O |
|
| 01241 | Quantity Distributed Comment | DB |
10 |
|
| CQ | O |
|
| 01242 | Quantity in Use | DB |
11 | 1..1 |
| ID | O |
| 0329 | 01243 | Quantity in Use Method | DB |
12 |
| 600= | FT | O |
|
| 01244 | Quantity in Use Comment | DB |
13 |
| 16= | NM | O | Y/8 |
| 01245 | Number of Product Experience Reports Filed by Facility | DB |
14 |
| 16= | NM | O | Y/8 |
| 01246 | Number of Product Experience Reports Filed by Distributor | DB |
Definition: This field contains the name, title, or other description of the report. Typically, the field will include the agency name (e.g., FDA), agency component if applicable (e.g., CDRH) and the report type (e.g., Medical Device Reporting Baseline Report).
Definition: This field contains the form descriptor which describes the report. Typically, the field will include the agency name (e.g., FDA), agency component if applicable (e.g., CDRH) and the form number (e.g., 3417).
Definition: This field contains the date as assigned by the sender.
Definition: This field contains the date that marks the beginning of the time interval covered by the current report.
Definition: This field contains the date which marks the inclusive end of the time interval covered by the current report.
Components: <Quantity (NM)> ^ <Units (CWE)>
Subcomponents for Units (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Definition: This field is used to send the number of units of the product manufactured during the reporting interval. The second component can be used to specify the units for the quantity.
Components: <Quantity (NM)> ^ <Units (CWE)>
Subcomponents for Units (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Definition: This field is used to send the number of units of the product which was distributed during the reporting interval. The second component can be used to specify the units for the quantity.
Definition: This field is used for measuring the quantity distributed. An explanation of the method used for estimation can be included in PSH-9 Quantity Distributed Comment. Refer to HL7 Table 0329 - Quantity Method for valid values.
Definition: This field is used for any explanatory text needed but in particular should provide a description of the estimation method used. If referring to the description used in a previous report, the comment should include the product identifier and data of that report.
Components: <Quantity (NM)> ^ <Units (CWE)>
Subcomponents for Units (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Definition: This field is used to send the number of units of the product which were in use during the reporting interval. The second component can be used to specify the units for the quantity.
Definition: This field contains the method used for measuring the quantity in use. An explanation of the method used for estimation can be included in PSH-12-quantity in use comment. Refer to HL7 Table 0329 - Quantity Method for valid values.
Definition: This field can be used for any explanatory text needed but in particular should provide a description of the estimation method used. If referring to the description used in a previous report, the comment should include the product identifier and data of the report.
Definition: The field contains the number of product experience reports filed by facility.
Definition: This field contains the number of product experience reports filed by distributor.
This segment is maintained for backwards compatibility only as of V2.7.
HL7 Attribute Table - PDC - Product Detail Country
7.12.4.0 PSH-1 Report Type (ST) 01233
7.12.4.1 PSH-2 Report Form Identifier (ST) 01297
7.12.4.2 PSH-3 Report Date (DTM) 01235
7.12.4.3 PSH-4 Report Interval Start Date (DTM) 01236
7.12.4.4 PSH-5 Report Interval End Date (DTM) 01237
7.12.4.5 PSH-6 Quantity Manufactured (CQ) 01238
7.12.4.6 PSH-7 Quantity Distributed (CQ) 01239
7.12.4.7 PSH-8 Quantity Distributed Method (ID) 01240
7.12.4.8 PSH-9 Quantity Distributed Comment (FT) 01241
7.12.4.9 PSH-10 Quantity in Use (CQ) 01242
7.12.4.10 PSH-11 Quantity in Use Method (ID) 01243
7.12.4.11 PSH-12 Quantity in Use Comment (FT) 01244
7.12.4.12 PSH-13 Number of Product Experience Reports Filed by Facility (NM) 01245
7.12.4.13 PSH-14 Number of Product Experience Reports Filed by Distributor (NM) 01246
7.12.5 PDC - Product Detail Country Segment
SEQ | LEN | C.LEN | DT | OPT | RP/ # | TBL # | ITEM # | ELEMENT NAME | DB Ref. |
---|---|---|---|---|---|---|---|---|---|
1 |
|
| XON | R | Y |
| 01247 | Manufacturer/Distributor | DB |
2 |
|
| CWE | R |
| 9999 | 01248 | Country | DB |
3 |
| 60= | ST | R |
|
| 01249 | Brand Name | DB |
4 |
| 60= | ST | O |
|
| 01250 | Device Family Name | DB |
5 |
|
| CWE | O |
| 9999 | 01251 | Generic Name | DB |
6 |
| 60= | ST | O | Y |
| 01252 | Model Identifier | DB |
7 |
| 60= | ST | O |
|
| 01253 | Catalogue Identifier | DB |
8 |
| 60= | ST | O | Y |
| 01254 | Other Identifier | DB |
9 |
|
| CWE | O |
| 9999 | 01255 | Product Code | DB |
10 | 3..4 |
| ID | O |
| 0330 | 01256 | Marketing Basis | DB |
11 |
| 60= | ST | O |
|
| 01257 | Marketing Approval ID | DB |
12 |
|
| CQ | O |
|
| 01258 | Labeled Shelf Life | DB |
13 |
|
| CQ | O |
|
| 01259 | Expected Shelf Life | DB |
14 |
|
| DTM | O |
|
| 01260 | Date First Marketed | DB |
15 |
|
| DTM | O |
|
| 01261 | Date Last Marketed | DB |
Components: <Organization Name (ST)> ^ <Organization Name Type Code (CWE)> ^ <WITHDRAWN Constituent> ^ <Identifier Check Digit (NM)> ^ <Check Digit Scheme (ID)> ^ <Assigning Authority (HD)> ^ <Identifier Type Code (ID)> ^ <Assigning Facility (HD)> ^ <Name Representation Code (ID)> ^ <Organization Identifier (ST)>
Subcomponents for Organization Name Type Code (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Assigning Authority (HD): <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Subcomponents for Assigning Facility (HD): <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Definition: This field contains the identity of the manufacturer/distributor.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This field contains the country to which this product detail is relevant. ISO 3166 provides a list of country codes that may be used.
Definition: This field contains the name under which the product is marketed by this manufacturer.
Definition: This field contains the name used by the manufacturer to describe the family of products to which this product belongs.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This field contains the name generically used to identify the product.
Definition: This field contains the manufacturer's model identifier for the product.
Definition: This field contains the manufacturer's catalogue identifier for the product.
Definition: This field contains any other identifier used to for the product.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This field contains the product code from an external coding system such as that used by the CDRH at the FDA.
Definition: This field contains the basis for marketing approval. Refer to HL7 Table 0330 - Marketing Basis for valid values.
Definition: This field contains the designation or description of the marketing basis.
Components: <Quantity (NM)> ^ <Units (CWE)>
Subcomponents for Units (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Definition: This field contains the shelf life of the product as labeled. This will usually be in months or years. If there is no shelf life indicated in the product labeling, this field will be empty.
Components: <Quantity (NM)> ^ <Units (CWE)>
Subcomponents for Units (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Definition: This field contains the shelf life of the product expected by the manufacturer. This will usually be in months or years.
Definition: This field contains the date the product was first marketed in the country.
Definition: This field contains the date the product was last marketed in the country. This field will be omitted if the product is still being marketed.
This segment is maintained for backwards compatibility only as of V2.7.
HL7 Attribute Table - FAC - Facility
7.12.5.0 PDC-1 Manufacturer/Distributor (XON) 01247
7.12.5.1 PDC-2 Country (CWE) 01248
7.12.5.2 PDC-3 Brand Name (ST) 01249
7.12.5.3 PDC-4 Device Family Name (ST) 01250
7.12.5.4 PDC-5 Generic Name (CWE) 01251
7.12.5.5 PDC-6 Model Identifier (ST) 01252
7.12.5.6 PDC-7 Catalogue Identifier (ST) 01253
7.12.5.7 PDC-8 Other Identifier (ST) 01254
7.12.5.8 PDC-9 Product Code (CWE) 01255
7.12.5.9 PDC-10 Marketing Basis (ID) 01256
7.12.5.10 PDC-11 Marketing Approval ID (ST) 01257
7.12.5.11 PDC-12 Labeled Shelf Life (CQ) 01258
7.12.5.12 PDC-13 Expected Shelf Life (CQ) 01259
7.12.5.13 PDC-14 Date First Marketed (DTM) 01260
7.12.5.14 PDC-15 Date Last Marketed (DTM) 01261
7.12.6 FAC - Facility Segment
SEQ | LEN | C.LEN | DT | OPT | RP/ # | TBL # | ITEM # | ELEMENT NAME | DB Ref. |
---|---|---|---|---|---|---|---|---|---|
1 |
|
| EI | R |
|
| 01262 | Facility ID-FAC | DB |
2 | 1..1 |
| ID | O |
| 0331 | 01263 | Facility Type | DB |
3 |
|
| XAD | R | Y |
| 01264 | Facility Address | DB |
4 |
|
| XTN | R |
|
| 01265 | Facility Telecommunication | DB |
5 |
|
| XCN | O | Y |
| 01266 | Contact Person | DB |
6 |
| 60= | ST | O | Y |
| 01267 | Contact Title | DB |
7 |
|
| XAD | O | Y |
| 01166 | Contact Address | DB |
8 |
|
| XTN | O | Y |
| 01269 | Contact Telecommunication | DB |
9 |
|
| XCN | R | Y |
| 01270 | Signature Authority | DB |
10 |
| 199= | ST | O |
|
| 01271 | Signature Authority Title | DB |
11 |
|
| XAD | O | Y |
| 01272 | Signature Authority Address | DB |
12 |
|
| XTN | O |
|
| 01273 | Signature Authority Telecommunication | DB |
Components: <Entity Identifier (ST)> ^ <Namespace ID (IS)> ^ <Universal ID (ST)> ^ <Universal ID Type (ID)>
Definition: This field contains the facility identifier.
Definition: This field contains the type of facility. Refer to HL7 Table 0331 - Facility Type for valid values.
Components: <Street Address (SAD)> ^ <Other Designation (ST)> ^ <City (ST)> ^ <State or Province (ST)> ^ <Zip or Postal Code (ST)> ^ <Country (ID)> ^ <Address Type (ID)> ^ <Other Geographic Designation (ST)> ^ <County/Parish Code (CWE)> ^ <Census Tract (CWE)> ^ <Address Representation Code (ID)> ^ <WITHDRAWN Constituent> ^ <Effective Date (DTM)> ^ <Expiration Date (DTM)> ^ <Expiration Reason (CWE)> ^ <Temporary Indicator (ID)> ^ <Bad Address Indicator (ID)> ^ <Address Usage (ID)> ^ <Addressee (ST)> ^ <Comment (ST)> ^ <Preference Order (NM)> ^ <Protection Code (CWE)> ^ <Address Identifier (EI)>
Subcomponents for Street Address (SAD): <Street or Mailing Address (ST)> & <Street Name (ST)> & <Dwelling Number (ST)>
Subcomponents for County/Parish Code (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Census Tract (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Expiration Reason (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Protection Code (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Address Identifier (EI): <Entity Identifier (ST)> & <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Definition: This field contains the facility's address.
Components: <WITHDRAWN Constituent> ^ <Telecommunication Use Code (ID)> ^ <Telecommunication Equipment Type (ID)> ^ <Communication Address (ST)> ^ <Country Code (SNM)> ^ <Area/City Code (SNM)> ^ <Local Number (SNM)> ^ <Extension (SNM)> ^ <Any Text (ST)> ^ <Extension Prefix (ST)> ^ <Speed Dial Code (ST)> ^ <Unformatted Telephone number (ST)> ^ <Effective Start Date (DTM)> ^ <Expiration Date (DTM)> ^ <Expiration Reason (CWE)> ^ <Protection Code (CWE)> ^ <Shared Telecommunication Identifier (EI)> ^ <Preference Order (NM)>
Subcomponents for Expiration Reason (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Protection Code (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Shared Telecommunication Identifier (EI): <Entity Identifier (ST)> & <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Definition: This field contains the facility's telecommunication information.
Components: <Person Identifier (ST)> ^ <Family Name (FN)> ^ <Given Name (ST)> ^ <Second and Further Given Names or Initials Thereof (ST)> ^ <Suffix (e.g., JR or III) (ST)> ^ <Prefix (e.g., DR) (ST)> ^ <WITHDRAWN Constituent> ^ <DEPRECATED-Source Table (CWE)> ^ <Assigning Authority (HD)> ^ <Name Type Code (ID)> ^ <Identifier Check Digit (ST)> ^ <Check Digit Scheme (ID)> ^ <Identifier Type Code (ID)> ^ <Assigning Facility (HD)> ^ <Name Representation Code (ID)> ^ <Name Context (CWE)> ^ <WITHDRAWN Constituent> ^ <Name Assembly Order (ID)> ^ <Effective Date (DTM)> ^ <Expiration Date (DTM)> ^ <Professional Suffix (ST)> ^ <Assigning Jurisdiction (CWE)> ^ <Assigning Agency or Department (CWE)> ^ <Security Check (ST)> ^ <Security Check Scheme (ID)>
Subcomponents for Family Name (FN): <Surname (ST)> & <Own Surname Prefix (ST)> & <Own Surname (ST)> & <Surname Prefix from Partner/Spouse (ST)> & <Surname from Partner/Spouse (ST)>
Subcomponents for Source Table (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Assigning Authority (HD): <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Subcomponents for Assigning Facility (HD): <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Subcomponents for Name Context (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Assigning Jurisdiction (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Assigning Agency or Department (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Definition: This field contains the primary contact person's name.
Definition: This field contains the primary contact person's title.
Components: <Street Address (SAD)> ^ <Other Designation (ST)> ^ <City (ST)> ^ <State or Province (ST)> ^ <Zip or Postal Code (ST)> ^ <Country (ID)> ^ <Address Type (ID)> ^ <Other Geographic Designation (ST)> ^ <County/Parish Code (CWE)> ^ <Census Tract (CWE)> ^ <Address Representation Code (ID)> ^ <WITHDRAWN Constituent> ^ <Effective Date (DTM)> ^ <Expiration Date (DTM)> ^ <Expiration Reason (CWE)> ^ <Temporary Indicator (ID)> ^ <Bad Address Indicator (ID)> ^ <Address Usage (ID)> ^ <Addressee (ST)> ^ <Comment (ST)> ^ <Preference Order (NM)> ^ <Protection Code (CWE)> ^ <Address Identifier (EI)>
Subcomponents for Street Address (SAD): <Street or Mailing Address (ST)> & <Street Name (ST)> & <Dwelling Number (ST)>
Subcomponents for County/Parish Code (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Census Tract (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Expiration Reason (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Protection Code (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Address Identifier (EI): <Entity Identifier (ST)> & <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Definition: This field contains the primary contact person's address.
Components: <WITHDRAWN Constituent> ^ <Telecommunication Use Code (ID)> ^ <Telecommunication Equipment Type (ID)> ^ <Communication Address (ST)> ^ <Country Code (SNM)> ^ <Area/City Code (SNM)> ^ <Local Number (SNM)> ^ <Extension (SNM)> ^ <Any Text (ST)> ^ <Extension Prefix (ST)> ^ <Speed Dial Code (ST)> ^ <Unformatted Telephone number (ST)> ^ <Effective Start Date (DTM)> ^ <Expiration Date (DTM)> ^ <Expiration Reason (CWE)> ^ <Protection Code (CWE)> ^ <Shared Telecommunication Identifier (EI)> ^ <Preference Order (NM)>
Subcomponents for Expiration Reason (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Protection Code (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Shared Telecommunication Identifier (EI): <Entity Identifier (ST)> & <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Definition: This field contains the primary contact person's telecommunication information.
Components: <Person Identifier (ST)> ^ <Family Name (FN)> ^ <Given Name (ST)> ^ <Second and Further Given Names or Initials Thereof (ST)> ^ <Suffix (e.g., JR or III) (ST)> ^ <Prefix (e.g., DR) (ST)> ^ <WITHDRAWN Constituent> ^ <DEPRECATED-Source Table (CWE)> ^ <Assigning Authority (HD)> ^ <Name Type Code (ID)> ^ <Identifier Check Digit (ST)> ^ <Check Digit Scheme (ID)> ^ <Identifier Type Code (ID)> ^ <Assigning Facility (HD)> ^ <Name Representation Code (ID)> ^ <Name Context (CWE)> ^ <WITHDRAWN Constituent> ^ <Name Assembly Order (ID)> ^ <Effective Date (DTM)> ^ <Expiration Date (DTM)> ^ <Professional Suffix (ST)> ^ <Assigning Jurisdiction (CWE)> ^ <Assigning Agency or Department (CWE)> ^ <Security Check (ST)> ^ <Security Check Scheme (ID)>
Subcomponents for Family Name (FN): <Surname (ST)> & <Own Surname Prefix (ST)> & <Own Surname (ST)> & <Surname Prefix from Partner/Spouse (ST)> & <Surname from Partner/Spouse (ST)>
Subcomponents for Source Table (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Assigning Authority (HD): <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Subcomponents for Assigning Facility (HD): <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Subcomponents for Name Context (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Assigning Jurisdiction (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Assigning Agency or Department (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Definition: This field contains the name of the individual with signature authority or who is responsible for the report.
Definition: This field contains the title of the individual with signature authority or who is responsible for this report.
Components: <Street Address (SAD)> ^ <Other Designation (ST)> ^ <City (ST)> ^ <State or Province (ST)> ^ <Zip or Postal Code (ST)> ^ <Country (ID)> ^ <Address Type (ID)> ^ <Other Geographic Designation (ST)> ^ <County/Parish Code (CWE)> ^ <Census Tract (CWE)> ^ <Address Representation Code (ID)> ^ <WITHDRAWN Constituent> ^ <Effective Date (DTM)> ^ <Expiration Date (DTM)> ^ <Expiration Reason (CWE)> ^ <Temporary Indicator (ID)> ^ <Bad Address Indicator (ID)> ^ <Address Usage (ID)> ^ <Addressee (ST)> ^ <Comment (ST)> ^ <Preference Order (NM)> ^ <Protection Code (CWE)> ^ <Address Identifier (EI)>
Subcomponents for Street Address (SAD): <Street or Mailing Address (ST)> & <Street Name (ST)> & <Dwelling Number (ST)>
Subcomponents for County/Parish Code (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Census Tract (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Expiration Reason (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Protection Code (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Address Identifier (EI): <Entity Identifier (ST)> & <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Definition: This field contains the address of the individual with signature authority or who is responsible for this report.
Components: <WITHDRAWN Constituent> ^ <Telecommunication Use Code (ID)> ^ <Telecommunication Equipment Type (ID)> ^ <Communication Address (ST)> ^ <Country Code (SNM)> ^ <Area/City Code (SNM)> ^ <Local Number (SNM)> ^ <Extension (SNM)> ^ <Any Text (ST)> ^ <Extension Prefix (ST)> ^ <Speed Dial Code (ST)> ^ <Unformatted Telephone number (ST)> ^ <Effective Start Date (DTM)> ^ <Expiration Date (DTM)> ^ <Expiration Reason (CWE)> ^ <Protection Code (CWE)> ^ <Shared Telecommunication Identifier (EI)> ^ <Preference Order (NM)>
Subcomponents for Expiration Reason (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Protection Code (CWE): <Identifier (ST)> & <Text (ST)> & <Name of Coding System (ID)> & <Alternate Identifier (ST)> & <Alternate Text (ST)> & <Name of Alternate Coding System (ID)> & <Coding System Version ID (ST)> & <Alternate Coding System Version ID (ST)> & <Original Text (ST)> & <Second Alternate Identifier (ST)> & <Second Alternate Text (ST)> & <Name of Second Alternate Coding System (ID)> & <Second Alternate Coding System Version ID (ST)> & <Coding System OID (ST)> & <Value Set OID (ST)> & <Value Set Version ID (DTM)> & <Alternate Coding System OID (ST)> & <Alternate Value Set OID (ST)> & <Alternate Value Set Version ID (DTM)> & <Second Alternate Coding System OID (ST)> & <Second Alternate Value Set OID (ST)> & <Second Alternate Value Set Version ID (DTM)>
Subcomponents for Shared Telecommunication Identifier (EI): <Entity Identifier (ST)> & <Namespace ID (IS)> & <Universal ID (ST)> & <Universal ID Type (ID)>
Definition: This field contains the telecommunication information of the individual with signature authority of who is responsible for this report.
MSH|^-&|SAP||RAP||200006051512||PEX^P07|...<cr>
EVN|...<cr>
PID||1||A^A^A||19230616|F|||||||||||||||||Y|...<cr>
Note: This section probably needs to have its own definition of the PID. PID-3 is a required field in chapter 3, but in the context of this section probably shouldn't be required. I also removed PID-23, Birthplace (19950710). A date is not a birthplace.
PES|MakeADrug, Inc||Manufacturer Mall^^Ann Arbor^MI^99999|| GB95070448A|0|||19950704|19950710|10D|...<cr>
PEO||^Awaiting results of autopsy|19950704||||^^^^^GBR||S|N|D~H~O||Patient admitted via casualty with increased shortness of breath and left sided chest pain on 04 JUL 95 for assessment.~11-JUL-95 Patient admitted 09-JUL-95 at 11:30 PM with an 18 hour history of diarrhoea followed by collapse. On admission, patient was exhausted and dehydrated. She had a rash on both breasts and abdomen. Patient found to have deteriorating renal function. Patient commenced IV fluid, however patient was found dead on 10-JUL-95 morning. Query vomited and aspirated. Post mortem requested. Events possibly related to study drug.|...<cr>
PCR|xxxxx^Wonder Drug 1^ATC|N|^antineoplastic|||||||^NON SMALL CELL LUNG CANCER|...<cr>
RXE|1^^^19950629^19950710|xxxxx^Wonder Drug 1^ATC|1||TAB|||||||||||||||||M1|3||||NON SMALL CELL LUNG CANCER|...<cr>
RXR|PO|...<cr>
Note: The message structure for the PEX does not allow repeating RXE/RXR groups within a PCR group. This is probably a mistake in the message definition table for the PEX messages.
PRB|AD|19950704|705^DYSPNEA^MEDR|...<cr>
PRB|AD|19950710|20143^DEATH^MEDR|...<cr>
PRB|AD|19950704|18330^CHEST PAIN^MEDR|...<cr>
PRB|AD|19950709|21197^DIARRHEA^MEDR|...<cr>
PRB|AD|19950709|6432^SYNCOPE^MEDR|...<cr>
PRB|AD|19950709|4966^DEHYDRATION^MEDR|...<cr>
PRB|AD|19950709|20544^KIDNEY FUNCTION ABNORMAL^MEDR|...<cr>
OBX|1|NM|804-5^lEUKOCYTES^LN||2300|10*3/ml|||||F|19940704|...<cr>
OBX|2|NM|770-8^NEUTROPHILS/100 LEUKOCYTES^LN||1.9|%|||||F|19950704|...<cr>
OBX|3|NM|6299-2^UREA NITROGEN^LN||22.3|mg%|||||F|19950709|...<cr>
OBX|4|NM|2160-0^CREATININE^LN||247|mmole|||||F|19950709|...<cr>
NTE|||Additional details must be obtained from the affiliate in order to assess causality. A three day alert phone call was made to the FDA on 12-JUL-95|...<cr>
Retained for backwards compatibility only in V2.7 and later. Implementers are encouraged to use V3 constructs to support waveform messages.
HL7 support for waveform data is intended to provide access to waveform data in a variety of situations. Needs include remote access to waveform data, research, and input to clinical decision making, as well as obtaining snippets of waveform data to complete waveform data sets. In some cases, predominantly in research oriented environments, a physician may want to manually interpret, scale the raw data, and/or apply alternative algorithms to the raw data values. In these environments, the review of waveform data includes the processing of the raw data. The HL7 waveform data capabilities allow for these applications, including data collection information such as skew between channels, in-band with the waveform.
Waveform observations, like other results, can be transmitted in solicited mode (in response to a query) or in unsolicited mode - see Section 7.14.1, "W01 - Waveform Result, Unsolicited Transmission Of Requested Information," for discussion. In either mode of transmission the timing information, channel definition, annotations, and digital time series data in the waveform recording are treated as individual "observations" within a result "battery." For a given "battery," each of the result fragments is transmitted in a separate OBX segment, where the Observation ID suffix for the OBX is used to identify the result fragment. To reduce ambiguity, an explicit framework for defining the structure of waveform result messages is provided. The elements of that framework include the following:
Waveform specific data types which enable transmission of channel definition and waveform data. See Section 2.16 for data type definitions.
Waveform specific Observation ID suffixes (OBX-3 Observation Identifier) which uniquely identify the category of waveform result in a given OBX segment
Fixed rules for combining OBX segments of each category in the waveform response messages
Explicit definition of which OBX fields may be populated for each category of waveform result
Unique trigger events which identify result messages which contain batteries of waveform result OBX segments
Each waveform channel in a recording contains timing, channel definition and digital time series data. The category of waveform result transmitted in a given OBX segment is determined by the Observation ID Suffix contained in OBX-3 Observation Identifier. Four suffixes are provided for the different categories of waveform result:
7.12.6.0 FAC-1 Facility ID-FAC (EI) 01262
7.12.6.1 FAC-2 Facility Type (ID) 01263
7.12.6.2 FAC-3 Facility Address (XAD) 01264
7.12.6.3 FAC-4 Facility Telecommunication (XTN) 01265
7.12.6.4 FAC-5 Contact Person (XCN) 01266
7.12.6.5 FAC-6 Contact Title (ST) 01267
7.12.6.6 FAC-7 Contact Address (XAD) 01166
7.12.6.7 FAC-8 Contact Telecommunication (XTN) 01269
7.12.6.8 FAC-9 Signature Authority (XCN) 01270
7.12.6.9 FAC-10 Signature Authority Title (ST) 01271
7.12.6.10 FAC-11 Signature Authority Address (XAD) 01272
7.12.6.11 FAC-12 Signature Authority Telecommunication (XTN) 01273
7.13 PRODUCT EXPERIENCE - EXAMPLES OF USE
7.14 WAVEFORM
7.14.1 Specific Observation Id Suffixes
Observation | Suffix | Data Type |
---|---|---|
Timing Information | TIM | DTM |
Channel Definition | CHN | CD |
Waveform Data | WAV | NA or MA |
Waveform Annotation | ANO | CWE |
The Observation Sub-ID is used to associate the TIM, CHN, and subsequent WAV, and ANO category result segments for a given channel or channels in a waveform response message.
Definition: The TIM category OBX result segment establishes the date and time of the first data point in a given Observation Sub-ID grouping of waveform channels. If there is a gap in the time sequence of waveform data, this should be indicated by the transmission of a new TIM category result segment prior to subsequent WAV category result segments with the same Observation Sub-ID. The data type is DTM.
Definition: The CHN category OBX result segment defines recording channels for digitally sampled time-series waveforms. Subsequent WAV category result segments carry the actual waveform samples. Each CHN category result segment defines one or more channels; the OBX-5 Observation Value field may repeat to define additional channels. Each instance or repetition is formatted as a CD data type.
Each channel has a number (which generally defines its position in a multichannel display) and an optional name or label (also used in displays). One or two named waveform sources may also be associated with a channel (providing for the use of differential amplifiers with two inputs). A channel also has an associated sensitivity, calibration parameters (sensitivity correction factor, baseline, and time skew), sampling frequency, and minimum and maximum values. The sampling frequency refers to the number of samples per unit time for the data reported in the subsequent WAV category result segments.
When multiple channels are defined within a single CHN category result segment, if the channel sensitivity/units (third component), sensitivity correction factor (first subcomponent of component 4), baseline (second subcomponent), time skew (third subcomponent), sampling frequency (fifth component), minimum data value (first subcomponent of component 6), or maximum data value (second subcomponent) is not present in any repetition of the OBX-5 Observation Value field, the value given in the last repetition in which the item was present may used by the receiver system. This is referred to as a "sticky default." For example, if all channels have the same sensitivity, sensitivity correction factor/baseline/time skew, sampling frequency, and minimum/maximum data values, these may be specified for the first channel but omitted in all subsequent channel definitions in the same CHN category result segment, thus reducing the length of the segment. If the sensitivity correction factor, baseline, or time skew is not present in the first channel being defined, values of 1, 0, and 0 (respectively) may be used. No other default values are assumed for components which are not present.
Definition: The WAV category OBX result segment is used to transmit the actual waveform data (the time-series digitized values from an analog-to-digital converter (ADC) or other source of sampled digital data). WAV category result segments are associated with their corresponding channel definitions (CHN category OBX result segment) via the Observation Sub-ID. The number of channels defined in the CHN category result segment specifies the number of channels of multiplexed data contained in the WAV category result segments associated with it. For example, if a CHN category result segment contains only a single channel definition, then each WAV category result segment with the same Observation Sub-ID contains only one channel of data. However, if a CHN category result segment contains three channel definitions then each WAV category result segment with the same Observation Sub-ID must contain three channels of data. A given set of waveform data for all channels and at multiple successive times may be transmitted in a single WAV category result segment (provided that the length of the observation value field does not exceed the maximum defined field length for OBX segments, 65536), or in multiple successive WAV category result segments, possibly with interspersed result segments of other types (for example, containing annotations, or comments).
The data type of the WAV category result segment can be NA (Numeric Array) or MA (Multiplexed Array). Using the NA data type, the data values are formatted in "channel-block", or "unmultiplexed" format. The digital samples for each channel are separated using component delimiters, and successive channels are separated using the repeat delimiter. Using the MA data type, the data values are formatted in "channel multiplexed" format, i.e., the values for the first time sample (all channels) are transmitted first, then the values for the second time sample (all channels) are transmitted, and so on until all samples have been transmitted. The digital samples for each channel are separated by the component delimiter, and successive samples are separated by the repeat delimiter. Channel multiplexed format can only be used if all of the multiplexed channels have the same effective sampling frequency.
Definition: The ANO category OBX segment is used to transmit waveform annotations (coded entry associated with a given point in time during the waveform recording). The ANO category result segments are referenced to their corresponding channel definitions (CHN category OBX result segment ) via the Observation Sub-ID. The number of channels defined in the CHN category result segment specifies the number of channels of annotation contained in any ANO category result segments associated with it. For example, if a CHN category result segment contains only a single channel definition, then any ANO category result segments with the same Observation Sub-ID will contain only one annotation coded entry. However, if a CHN category result segment contains three channel definitions then any ANO category result segments with the same Observation Sub-ID must contain three separate annotation coded entries.
The data type of the ANO category result segment is CWE. The annotation coded entries for successive channels are separated using the repeat delimiter. Adjacent repeat delimiters are used when there is no annotation coded entry for a channel in a multichannel result segment. Refer to User-defined Table 0317 - Annotations for suggested values.
Retained for backwards compatibility only in V2.7. Implementers are encouraged to start to use V3 as it expands its use cases in this space, while using older V2 versions until that point.
Response messages containing waveform results are identified by the trigger event provided in the message header segment (MSH-09, second component of message type). Separate trigger events have been defined to differentiate the solicited and unsolicited modes of transmission.
The waveform response unsolicited trigger event identifies ORU messages used to transmit waveform data which are results of an ordered test or series of observations. The W01 trigger event may also be used to identify ORU messages sent as the eventual response to a QRY message specifying a deferred mode query for waveform results/observations with record-oriented format (similar to the deferred response display mode DSR message type described in Chapter 2). One or more ORU messages with the W01 trigger event may result from this type of QRY message.
The W02 trigger event identifies QRF messages which are a response to a QRY message specifying an immediate mode query for waveform results/observations with record-oriented format.
Retained for backwards compatibility only in V2.7. Implementers are encouraged to start to use V3 as it expands its use cases in this space, while using older V2 versions until that point.
A waveform result "battery" may contain one or more channels of digital waveform data. The Observation Sub-ID is used to logically associate the TIM, CHN and WAV category OBX segments which pertain to a given set of channels in the result "battery." Each Sub-ID group must contain at least one TIM, one CHN and one WAV category segment and at least one of the TIM category result segments must precede the first WAV category result segment in that group.
The result category for a given OBX segment determines how specific fields in that segment are valued. The following tables indicate the use of the OBX segment for waveform components. The data types, lengths, optionality, and repeat values listed do not replace the basic definition of the OBX segment in Section 7.3.2, "OBX - Observation/Result Segment."
The OPT/X column can take the values of R = Required, O = Optional, or X = Ignored and not valued. OBX Fields marked with an X should not be valued in Waveform response messages of specified Suffix type. Valuation of the fields must match the value provided in the associated wave category OBX segments, i.e., OBX with the same sub-ID must share the same result status.
When using the OBX for the TIM category, OBX-2 Value Type should be valued to DTM. Consequently, OBX-5 Observation Value should have a length of 26 given the format of the DTM data type. Note the expectations on which fields are required as well as the fields that should not be valued.
HL7 Attribute Table - OBX - Observation/Result Example - TIM Category
SEQ | LEN | C.LEN | DT | OPT | RP/# | TBL# | ITEM# | ELEMENT NAME | DB Ref. |
---|---|---|---|---|---|---|---|---|---|
1 | 1..4 |
| SI | O |
|
| 00569 | Set ID - OBX | DB |
2 | 3..3 |
| ID | R |
| 0125 | 00570 | Value Type | DB |
3 |
|
| CWE | R |
| 9999 | 00571 | Observation Identifier | DB |
4 |
| 20= | ST | R |
|
| 00572 | Observation Sub-ID | DB |
5 |
|
| DTM | R |
|
| 00573 | Observation Value | DB |
6 |
|
| CWE | X |
| 9999 | 00574 | Units | DB |
7 |
| 60= | ST | X |
|
| 00575 | References Range | DB |
8 |
|
| CWE | X | Y | 0078 | 00576 | Interpretation Codes | DB |
9 |
| 5# | NM | X |
|
| 00577 | Probability | DB |
10 | 1..2 |
| ID | X | Y | 0080 | 00578 | Nature of Abnormal Test | DB |
11 | 1..1 |
| ID | R |
| 0085 | 00579 | Observation Result Status | DB |
12 |
|
| DTM | X |
|
| 00580 | Effective Date of Reference Range | DB |
13 |
| 20= | ST | X |
|
| 00581 | User Defined Access Checks | DB |
14 |
|
| DTM | X |
|
| 00582 | Date/Time of the Observation | DB |
15 |
|
| CWE | X |
| 9999 | 00583 | Producer's ID | DB |
16 |
|
| XCN | X | Y |
| 00584 | Responsible Observer | DB |
17 |
|
| CWE | X | Y | 9999 | 00936 | Observation Method | DB |
18 |
|
| EI | O | Y |
| 01479 | Equipment Instance Identifier | DB |
19 |
|
| DTM | O |
|
| 01480 | Date/Time of the Analysis | DB |
20 |
|
| CWE | O | Y | 0163 | 02179 | Observation Site | DB |
21 |
|
| EI | O |
|
| 02180 | Observation Instance Identifier | DB |
22 |
|
| CNE | C |
| 0725 | 02182 | Mood Code | DB |
23 |
|
| XON | O | N |
| 02283 | Performing Organization Name | DB |
24 |
|
| XAD | O | N |
| 02284 | Performing Organization Address | DB |
25 |
|
| XCN | O | N |
| 02285 | Performing Organization Medical Director | DB |
When using the OBX for the CHN category, OBX-2 Value Type should be valued to CD. Consequently, OBX-5 Observation Value could have a length of up to 65536 given the format of the CD data type. Note the expectations on which fields are required as well as the fields that should not be valued.
HL7 Attribute Table - OBX - Observation/Result Example - CHN Category
7.16.4 OBX Segment - CHN Category
SEQ | LEN | C.LEN | DT | OPT | RP/# | TBL# | ITEM# | ELEMENT NAME | DB Ref. |
---|---|---|---|---|---|---|---|---|---|
1 | 1..4 |
| SI | O |
|
| 00569 | Set ID - OBX | DB |
2 | 2..2 |
| ID | R |
| 0125 | 00570 | Value Type | DB |
3 |
|
| CWE | R |
| 9999 | 00571 | Observation Identifier | DB |
4 |
|
| ST | R | 20= |
| 00572 | Observation Sub-ID | DB |
5 |
|
| CD | R |
|
| 00573 | Observation Value | DB |
6 |
|
| CWE | X |
|
| 00574 | Units | DB |
7 |
|
| ST | X |
|
| 00575 | References Range | DB |
8 |
|
| CWE | X | Y | 0078 | 00576 | Interpretation Codes | DB |
9 |
|
| NM | X |
|
| 00577 | Probability | DB |
10 | 1..2 |
| ID | X | Y | 0080 | 00578 | Nature of Abnormal Test | DB |
11 | 1..1 |
| ID | R |
| 0085 | 00579 | Observation Result Status | DB |
12 |
|
| DTM | X |
|
| 00580 | Effective Date of Reference Range | DB |
13 |
|
| ST | X | 20= |
| 00581 | User Defined Access Checks | DB |
14 |
|
| DTM | X |
|
| 00582 | Date/Time of the Observation | DB |
15 |
|
| CWE | X |
| 9999 | 00583 | Producer's ID | DB |
16 |
|
| XCN | X | Y |
| 00584 | Responsible Observer | DB |
17 |
|
| CWE | X | Y | 9999 | 00936 | Observation Method | DB |
18 |
|
| EI | O | Y |
| 01479 | Equipment Instance Identifier | DB |
19 |
|
| DTM | O |
|
| 01480 | Date/Time of the Analysis | DB |
20 |
|
| CWE | O | Y | 0163 | 02179 | Observation Site | DB |
21 |
|
| EI | O |
|
| 02180 | Observation Instance Identifier | DB |
22 |
|
| CNE | C |
| 0725 | 02182 | Mood Code | DB |
23 |
|
| XON | O | N |
| 02283 | Performing Organization Name | DB |
24 |
|
| XAD | O | N |
| 02284 | Performing Organization Address | DB |
25 |
|
| XCN | O | N |
| 02285 | Performing Organization Medical Director | DB |
Note: The length of the observation value field is variable, depending upon number of channels defined.
When using the OBX for the WAV category, OBX-2 can be valued as either NA or MA. The length of OBX-5 Observation Value depends on the data type chosen. NA is a repeating data type, and the length will depend on the number of repeats. Note the expectations on which fields are required as well as the fields that should not be valued.
HL7 Attribute Table - OBX - Observation/Result Example - WAV Category
SEQ | LEN | C.LEN | DT | OPT | RP/# | TBL# | ITEM# | ELEMENT NAME | DB Ref. |
---|---|---|---|---|---|---|---|---|---|
1 | 1..4 |
| SI | O |
|
| 00569 | Set ID - OBX | DB |
2 | 2..2 |
| ID | R |
| 0125 | 00570 | Value Type | DB |
3 |
|
| CWE | R |
| 9999 | 00571 | Observation Identifier | DB |
4 |
| 20= | ST | R | 20= |
| 00572 | Observation Sub-ID | DB |
5 |
|
| NA or MA | C |
|
| 00573 | Observation Value | DB |
6 |
|
| CWE | X |
| 9999 | 00574 | Units | DB |
7 |
| 60= | ST | X |
|
| 00575 | References Range | DB |
8 |
|
| CWE | O | Y | 0078 | 00576 | Interpretation Codes | DB |
9 |
| 5# | NM | X |
|
| 00577 | Probability | DB |
10 | 1..2 |
| ID | X | Y | 0080 | 00578 | Nature of Abnormal Test | DB |
11 | 1..1 |
| ID | R |
| 0085 | 00579 | Observation Result Status | DB |
12 |
|
| DTM | X |
|
| 00580 | Effective Date of Reference Range | DB |
13 |
| 20= | ST | X |
|
| 00581 | User Defined Access Checks | DB |
14 |
|
| DTM | X |
|
| 00582 | Date/Time of the Observation | DB |
15 |
|
| CWE | X |
| 9999 | 00583 | Producer's ID | DB |
16 |
|
| XCN | O | Y |
| 00584 | Responsible Observer | DB |
17 |
|
| CWE | X | Y | 9999 | 00936 | Observation Method | DB |
18 |
|
| EI | O | Y |
| 01479 | Equipment Instance Identifier | DB |
19 |
|
| DTM | O |
|
| 01480 | Date/Time of the Analysis | DB |
20 |
|
| CWE | O | Y | 0163 | 02179 | Observation Site | DB |
21 |
|
| EI | O |
|
| 02180 | Observation Instance Identifier | DB |
22 |
|
| CNE | C |
| 0725 | 02182 | Mood Code | DB |
23 |
|
| XON | O | N |
| 02283 | Performing Organization Name | DB |
24 |
|
| XAD | O | N |
| 02284 | Performing Organization Address | DB |
25 |
|
| XCN | O | N |
| 02285 | Performing Organization Medical Director | DB |
Notes:
1. The length of the observation value field is variable, depending upon number of channels and number of data points sampled.
2. Fields 8, 11 and 16 apply exclusively to the set of data points in the OBX. They do not map to a particular data point or channel.
When using the OBX for the ANO category, OBX-2 Value Type should be valued to CWE. Consequently, OBX-5 Observation Value could have a length of up the 65536 given the format of the data types. Note the expectations on which fields are required as well as the fields that should not be valued.
HL7 Attribute Table - OBX - Observation/Result Example - ANO Category
SEQ | LEN | C.LEN | DT | OPT | RP/# | TBL# | ITEM# | ELEMENT NAME | DB Ref. |
---|---|---|---|---|---|---|---|---|---|
1 | 1..4 |
| SI | O |
|
| 00569 | Set ID - OBX | DB |
2 | 3..3 |
| ID | R |
| 0125 | 00570 | Value Type | DB |
3 |
|
| CWE | R |
| 9999 | 00571 | Observation Identifier | DB |
4 |
| 20= | ST | R |
|
| 00572 | Observation Sub-ID | DB |
5 |
|
| CWE | C |
| 9999 | 00573 | Observation Value | DB |
6 |
|
| CWE | X |
| 9999 | 00574 | Units | DB |
7 |
| 60= | ST | X |
|
| 00575 | References Range | DB |
8 |
|
| CWE | O | Y | 0078 | 00576 | Interpretation Codes | DB |
9 |
| 5# | NM | X |
|
| 00577 | Probability | DB |
10 | 1..2 |
| ID | X | Y | 0080 | 00578 | Nature of Abnormal Test | DB |
11 | 1..1 |
| ID | R |
| 0085 | 00579 | Observation Result Status | DB |
12 |
|
| DTM | X |
|
| 00580 | Effective Date of Reference Range | DB |
13 |
| 20= | ST | X |
|
| 00581 | User Defined Access Checks | DB |
14 |
|
| DTM | O |
|
| 00582 | Date/Time of the Observation | DB |
15 |
|
| CWE | X |
| 9999 | 00583 | Producer's ID | DB |
16 |
|
| XCN | O | Y |
| 00584 | Responsible Observer | DB |
17 |
|
| CWE | X | Y | 9999 | 00936 | Observation Method | DB |
18 |
|
| EI | O | Y |
| 01479 | Equipment Instance Identifier | DB |
19 |
|
| DTM | O |
|
| 01480 | Date/Time of the Analysis | DB |
20 |
|
| CWE | O | Y | 0163 | 02179 | Observation Site | DB |
21 |
|
| EI | O |
|
| 02180 | Observation Instance Identifier | DB |
22 |
|
| CNE | C |
| 0725 | 02182 | Mood Code | DB |
23 |
|
| XON | O | N |
| 02283 | Performing Organization Name | DB |
24 |
|
| XAD | O | N |
| 02284 | Performing Organization Address | DB |
25 |
|
| XCN | O | N |
| 02285 | Performing Organization Medical Director | DB |
Note: The length of the observation value field is variable, depending upon number of channels defined.
Retained for backwards compatibility only in V2.7. Implementers are encouraged to start to use V3 as it expands its use cases in this space, while using older V2 versions until that point.
This section gives four example messages of type ORU (unsolicited) that each contain a three-channel waveform recording, with the same waveform in each channel. These examples contain data for one patient. In these example message transmissions, <cr> indicates an ASCII carriage return character (ASCII 13).
The following is a detailed explanation of each of the segments contained in the example messages:
Message Header (MSH) Segment - This specifies the delimiters (|^~\&), sending application (SVL, meaning Sunnyville Laboratory), receiving application (SVC, meaning Sunnyville Clinic), date and time of transmission (March 24, 1990 at 10:12:15), message type (ORU) and trigger event (W01), a message control ID that identifies this message uniquely among all messages transmitted by this sender (19264), processing ID (P, meaning production), and specification version ID (2.3).
Patient ID (PID) Segment - This contains a sequence number (1), external and internal patient IDs (both 4567890), and a patient name (Mr. John Q Doe, Jr).
Order (OBR) Segment - This contains a sequence number (1), placer order number (5678) and placer ID (SVC, meaning Sunnyville Clinic), filler order number (1234) and filler ID (SVL, meaning Sunnyville Laboratory), and test/observation ID (5, using a local coding system that is known to the intended receiver, meaning a three-channel waveform recording).
CHN Category Result (OBX) Segments - Using a value type of CD (channel definition), these define each of the three data channels by number and specify a label (waveform source) for each. The channel sensitivity (0.5 mV), sampling frequency (200), and minimum and maximum data values (-2048 to 2047) are specified for each channel in examples 1 and 2 and 4. In example 3, these are specified only for channel 1, but apply by default to all subsequent channels. No baseline or calibration parameters are specified, so defaults are used for all channels.
TIM Category Result (OBX) Segments - Using the data type DTM (Date/Time), these define the start of the waveform data at a time 525 ms past 8:12:37 on March 24, 1990.
WAV Category Result (OBX) Segments - The data may be transmitted in either "channel-block" (unmultiplexed) format using the NA data type, or in "channel-multiplexed" format using the MA data type. The three examples demonstrate different ways of transmitting 3 waveform channels, with 25 samples from each waveform channel. Note that in these examples, each waveform channel is identical.
ANO Category Result (OBX) Segments - Annotation segments with a single channel definition contain a single annotation string. Annotation segments with multiple channel definitions contain a separate annotation string for each defined channel - successive annotation strings are separated from each other by the repeat delimiter. In the following examples, channel 1 has been annotated at a time 565 ms past 8:12:37 on March 24, 1990; channel 3 has been annotated at a time 605 ms past 8:12:37 on March 24, 1990.
MSH|^~\&|SVL||SVC||19900324101215||ORU^W01^ORU_R01|...<cr>
PID|1||4567890||Everyman^Adam^A^Jr^Mr|...<cr>
OBR|1|5678^SVC|1234^SVL|5^three-channel waveform recording^99SVL|...<cr>
OBX|1|CD|5&CHN^^99SVL|1|1^ONE^0.5&mv^^200^-2048&2047||||||F|...<cr>
OBX|2|DTM|5&TIM^^99SVL|1|19900324081237.525||||||F|...<cr>
OBX|3|NA|5&WAV^^99SVL|1|0^1^2^3^4^5^6^7^8^7^6^5^4^3^2^1^0^-1^-2^-3^-4^-5^-6^-7^-8||||||F|...<cr>
OBX|4|CWE|5&ANO^^99SVL|1|^Channel passing through maxima||||||F|||19900324081237.565|...<cr>
OBX|5|CD|5&CHN^^99SVL|2|2^TWO^0.5&mv^^200^-2048&2047||||||F|...<cr>
OBX|6|DTM|5&TIM^^99SVL|2|19900324081237.525||||||F|...<cr>
OBX|7|NA|5&WAV^^99SVL|2|0^1^2^3^4^5^6^7^8^7^6^5^4^3^2^1^0^-1^-2^-3^-4^-5^-6^-7^-8||||||F|...<cr>
OBX|8|CD|5&CHN^^99SVL|3|3^THREE^0.5&mv^^200^-2048&2047||||||F|...<cr>
OBX|9|DTM|5&TIM^^99SVL|3|19900324081237.525||||||F|...<cr>
OBX|10|NA|5&WAV^^99SVL|3|0^1^2^3^4^5^6^7^8^7^6^5^4^3^2^1^0^-1^-2^-3^-4^-5^-6^-7^-8||||||F|...<cr>
OBX|11|CWE|5&ANO^^99SVL|3|^Channel passing through zero||||||F|||19900324081237.605|...<cr>
...
MSH|^~\&|SVL||SVC||19900324101215||ORU^W01^ORU_R01|...<cr>
PID|1||4567890||Everyman^Adam^A^Jr^Mr|...<cr>
OBR|1|5678^SVC|1234^SVL|5^three-channel waveform recording^99SVL|...<cr>
OBX|1|CD|5&CHN^^99SVL|1|1^ONE^0.5&mv^^200^-2048&2047~2^TWO^0.5&mv^^200^-2048&2047~3^THREE^0.5&mv^^200^-2048&2047||||||F|...<cr>
OBX|2|DTM|5&TIM^^99SVL|1|19900324081237.525||||||F|...<cr>
OBX|3|NA|5&WAV^^99SVL|1|
0^1^2^3^4^5^6^7^8^7^6^5^4^3^2^1^0^-1^-2^-3^-4^-5^-6^-7^-8~
0^1^2^3^4^5^6^7^8^7^6^5^4^3^2^1^0^-1^-2^-3^-4^-5^-6^-7^-8~
0^1^2^3^4^5^6^7^8^7^6^5^4^3^2^1^0^-1^-2^-3^-4^-5^-6^-7^-8||||||F|...<cr>
OBX|4|CWE|5&ANO^^99SVL|1|^Channel passing through maxima||||||F|||19900324081237.565|...<cr>
OBX|5|CWE|5&ANO^^99SVL|1|~~^Channel passing through zero||||||F|||19900324081237.605|...<cr>
Note: This is an illegal construct per the message construction rules from chapter 1: the repetition separator is used only if more than one occurrence is transmitted. There is only one occurrence being sent here.
...
MSH|^~\&|SVL||SVC||19900324101215||ORU^W01^ORU_R01|...<cr>
PID|1||4567890||Everyman^Adam^A^Jr^Mr|...<cr>
OBR|1|5678^SVC|1234^SVL|5^three-channel waveform recording^99SVL|...<cr>
OBX|1|CD|5&CHN^^99SVL|1|1^ONE^0.5&mv^^200^-2048&2047~2^TWO~3^THREE||||||F|...<cr>
OBX|2|DTM|5&TIM^^99SVL|1|19900324081237.525||||||F|...<cr>
OBX|3|MA|5&WAV^^99SVL|1|0^0^0~1^1^1~2^2^2~3^3^3~4^4^4~5^5^5~6^6^6~7^7^7~8^8^8~7^7^7~6^6^6~5^5^5~4^4^4~3^3^3~2^2^2~1^1^1~0^0^0~-1^-1^-1~-2^-2^-2~-3^-3^-3~-4^-4^-4~-5^-5^-5~-6^-6^-6~-7^-7^-7~-8^-8^-8||||||F|...<cr>
OBX|4|CWE|5&ANO^^99SVL|1|^Channel passing through maxima||||||F|||19900324081237.565|...<cr>
OBX|5|CWE|5&ANO^^99SVL|1|~~^Channel passing through zero||||||F|||19900324081237.605|...<cr>
Note: This is an illegal construct per the message construction rules from chapter 1: "the repetition separator is used only if more than one occurrence is transmitted." There is only one occurrence being sent here.
...
MSH|^~\&|SVL||SVC||19900324101215||ORU^W01^ORU_R01|...<cr>
PID|1||4567890||Everyman^Adam^A^Jr^Mr|...<cr>
OBR|1|5678^SVC|1234^SVL|5^three-channel waveform recording^99SVL|...<cr>
OBX|1|CD|5&CHN^^99SVL|1|1^ONE^0.5&mv^^200^-2048&2047||||||F|...<cr>
OBX|2|DTM|5&TIM^^99SVL|1|19900324081237.525||||||F|...<cr>
OBX|3|NA|5&WAV^^99SVL|1|0^1^2^3^4^5^6^7^8||||||F|...<cr>
OBX|4|CWE|5&ANO^^99SVL|1|^Channel passing through maxima||||||F|||19900324081237.565|...<cr>
OBX|5|NA|5&WAV^^99SVL|1|7^6^5^4^3^2^1^0^-1^-2^-3^-4^-5^-6^-7^-8||||||F|...<cr>
OBX|6|CD|5&CHN^^99SVL|2|2^TWO^0.5&mv^^200^-2048&2047||||||F|...<cr>
OBX|7|DTM|5&TIM^^99SVL|2|19900324081237.525||||||F|...<cr>
OBX|8|NA|5&WAV^^99SVL|2|0^1^2^3^4^5^6^7^8^7^6^5^4^3^2^1^0^-1^-2^-3^-4^-5^-6^-7^-8||||||F|...<cr>
OBX|9|CD|5&CHN^^99SVL|3|3^THREE^0.5&mv^^200^-2048&2047||||||F|...<cr>
OBX|10|DTM|5&TIM^^99SVL|3|19900324081237.525||||||F|...<cr>
OBX|11|NA|5&WAV^^99SVL|3|0^1^2^3^4^5^6^7^8^7^6^5^4^3^2^1^0||||||F|...<cr>
OBX|12|CWE|5&ANO^^99SVL|3|^Channel passing through zero||||||F|||19900324081237.605|...<cr>
OBX|13|NA|5&WAV^^99SVL|3|-1^-2^-3^-4^-5^-6^-7^-8||||||F|...<cr>
...
The OSM^R26 Unsolicited Specimen Shipment Manifest message is used to communicate the contents of a specimen shipment to a specimen receiver (typically a laboratory). The message documents details regard the following:
Shipment information including sender, receiver, shipper, shipping container, etc.;
Specimens in the shipment;
Specimen containers; and,
Identification of persons/places/things associated with the specimens.
OSM^R26^OSM_R26: Specimen Shipment Message
MSH | Message Header |
| 2 | DB |
[ { SFT } ] | Software Segment |
| 2 | DB |
[ UAC ] | User Authentication Credential |
| 2 | DB |
{ | --- SHIPMENT begin |
|
|
|
SHP | Shipment Segment |
| 7 | DB |
{ PRT } | Participation (for Shipment) |
| 7 | DB |
[{ | --- SHIPPING_OBSERVATION begin |
|
|
|
OBX | Observation/Result Segment (Additional Shipping Information) |
| 7 | DB |
[ { PRT } ] | Participation (for Shipping Observation) |
| 7 | DB |
}] | --- SHIPPING_OBSERVATION end |
|
|
|
{ | --- PACKAGE begin |
|
|
|
PAC | Shipping Package Segment |
| 7 | DB |
[ { PRT } ] | Participation (for Shipping Package) |
| 7 | DB |
[{ | --- SPECIMEN begin |
|
|
|
SPM | Specimen Information |
| 7 | DB |
[ { PRT } ] | Participation (for Specimen) |
| 7 | DB |
[{ | --- SPECIMEN_OBSERVATION begin |
|
|
|
OBX | Observation/Result Segment (For Specimen) |
| 7 | DB |
[ { PRT } ] | Participation (for Specimen Observation) |
| 7 | DB |
}] | --- SPECIMEN_OBSERVATION end |
|
|
|
[{ | --- CONTAINER begin |
|
|
|
SAC | Container Information |
| 13 | DB |
[{ | --- CONTAINER_OBSERVATION begin |
|
|
|
OBX | Observation/Result Segment (For Container) |
| 7 | DB |
[ { PRT } ] | Participation (for Observation Result) |
| 7 | DB |
}] | --- CONTAINER_OBSERVATION end |
|
|
|
}] | --- CONTAINER end |
|
|
|
[ | --- SUBJECT PERSON/ANIMAL IDENTIFICATION begin |
|
|
|
PID | Patient Identification (For Person/Animal) |
| 3 | DB |
[ { PRT } ] | Participation (for Patient) |
| 7 | DB |
[{ | --- PATIENT_OBSERVATION begin |
|
|
|
OBX | Observation/Result Segment (For Patient) |
| 7 | DB |
[ { PRT } ] | Participation (for Observation) |
| 7 | DB |
}] | --- PATIENT_OBSERVATION end |
|
|
|
[ { NK1 } ] | Next of Kin/Associated Parties (For Person/Animal) |
|
|
DB |
] | --- SUBJECT PERSON/ANIMAL IDENTIFICATION end |
|
|
|
[ | --- SUBJECT POPULATION/LOCATION IDENTIFICATION begin |
|
|
|
PV1 | Patient Visit (For Population/Location) |
| 3 | DB |
[ { PRT } ] | Participation (for Patient Visit) |
| 7 | DB |
[{ | --- PATIENT_VISIT_OBSERVATION begin |
|
|
|
OBX | Observation/Result Segment (For Visit) |
| 7 | DB |
[ { PRT } ] | Participation (for Patient Visit Observation) |
| 7 | DB |
}] | --- PATIENT_VISIT_OBSERVATION end |
|
|
|
[ PID ] | Patient Identification (For Population) |
| 3 | DB |
[ { PRT } ] | Participation (for Patient) |
| 7 | DB |
[ { NK1 } ] | Next of Kin/Associated Parties (For Population/Location) |
| 3 | DB |
] | --- SUBJECT POPULATION/LOCATION IDENTIFICATION end |
|
|
|
}] | --- SPECIMEN end |
|
|
|
} | --- PACKAGE end |
|
|
|
} | --- SHIPMENT end |
|
|
The Specimen Shipper actor is an application capable of sending specimen shipments and transmitting the specimen shipment manifest message.
The Specimen Shipment Receiver actor is an application capable of receiving specimen shipments as well as specimen shipment manifest messages. Typically this application is associated with a Laboratory.
The following activity diagram illustrates the usage of this message. The message is initially sent from the Specimen Shipper at the point the specimen is shipped. The actual point of transmission of the message could occur as soon as all the contents of the shipment have been identified, and the transporters shipment id has been assigned to the shipment. The specimen shipment receiver will send back transaction using the Specimen Shipment Manifest message indicating the specimen shipment has been accepted or rejected. This normally will occur after the shipment has been physically received and evaluated. Note that this response back is not considered and application acknowledgment, and is certainly not required. Its purpose is to update the shipper with the status of the shipment.
Unsolicited Specimen Shipment Manifest Message Description
Segment
Name
Usage
Cardinality
Description
MSH
Message Header
R
[1..1]
The message header (MSH) segment contains information describing how to parse and process the message. This includes identification of message delimiters, sender, receiver, message type, timestamp, etc.
[{SFT}]
Software Segment
O
[0..*]
The Software Segment (SFT) provides information about the software product being used as the Sending Application in this message instance. The information will be provided for diagnostic purposes by the receiving application.
[ UAC ]
User Authentication Credential
O
[0..1]
The user authentication credential (UAC) segment is used when the receiving application system requires the sending system to provide end-user identification for accountability or access control in interactive applications.
{
Shipment begin
R
[1..*]
SHP
Shipment Segment
R
[1..1]
The Shipment (SHP) is used to carry information regarding the specimen shipment. This includes any shipment tracking identifiers, shipper, contacts, etc.
{PRT}
Participation (for Shipment)
R
[1..*]
Used to document participants in a shipment. A minimum of one Participant segment is required for documenting the destination of the shipment. Other participants including shipment originator, shipment packer, shipment waypoints, etc. can be documented using the Participation segment.
[{
SHIPPING_OBSERVATION begin
O
[0..*]
OBX
Observation/Result Segment (Additional Shipping Information)
R
[1..1]
The Observation/Result Segment (OBX) is used to carry any additional shipping information or observations that are not carried in the Specimen Transport Segment.
[{PRT}]
Participation (for Shipping Observation)
O
[0..*]
}]
SHIPPING_OBSERVATION end
{
Package Begin
R
[1..*]
PAC
Shipping Package Segment
R
[1..1]
The Shipping Package segment (PAC) contains information regarding the packaging for a group of specimens.
[{PRT}]
Participation (for Shipping Package)
O
[0..*]
[{
Specimen Begin
O
[0..*]
The Specimen Group carries information about all the specimens found in the shipping package.
SPM
Specimen Information
R
[1..1]
The Specimen Information (SPM) segment describes the characteristics of a single sample. The SPM segment carries information regarding the type of specimen, where and how it was collected, and some basic characteristics of the specimen.
[{PRT}]
Participation (for Shipping)
O
[0..*]
The Participation segment associated with the Specimen is used to identify the person(s) who collected the specimen.
[{
SPECIMEN_OBSERVATION begin
O
[0..*]
OBX
Observation/Result Segment (For Specimen)
R
[1..1]
The Observation/Result (OBX) segment will be used to document any additional shipping information that isn't conveyed in the SPM.
[{ PRT }]
Participation (for Specimen Observation)
O
[0..*]
The Participation segment associated with the Specimen Observation can be used to identify any participants in the observation.
}]
SPECIMEN_OBSERVATION end
[{
Container Begin
O
[0..*]
The Container Group carries information about the containers of a specimen.
SAC
Container Information
R
[1..1]
The specimen container segment is used to document the containers for a specimen. If it is necessary to document where in a package (PAC) a particular specimen container is found, use SAC.11 (position in carrier) to convey this position. SAC.10 (carrier ID) can be used to carry the identifier of the package (PAC) within which the specimen container is located.
[{
CONTAINER_OBSERVATION begin
O
[0..*]
OBX
Observation/Result Segment (For Container)
R
[1..1]
The Observation/Result (OBX) segment following the SAC is used to document observations regarding the specimen container.
[{PRT}]
Participation (for Container Observation)
O
[0..*]
]}
CONTAINER_OBSERVATION end
}]
Container End
[
Subject Person/Animal Identification Begin
O
[0..1]
The Subject Person/Animal Identification group is used to associate a specimen with the person or animal the specimen was obtained from. If the specimen was obtained from a population of animals or a location then the Subject Population/Location Group should be used instead.
PID
Patient Identification (For Person/Animal)
O
[0..1]
The patient identification (PID) segment is used to provide basic demographics regarding the subject the specimen was taken from.
[{PRT}]
Participation (for Patient)
O
[0..*]
[{
PATIENT_OBSERVATION begin
O
[0..*]
OBX
Observation/Result Segment (For Patient)
O
[0..*]
The Observation/Result (OBX) segment following the PID is used to document observations regarding the patient.
[{PRT}]
Participation (for Observation)
O
[0..*]
}]
PATIENT_OBSERVATION end
[{ NK1 }]
Next of Kin/Associated Parties (For Person/Animal)
O
[0..*]
If the subject of the testing is something other than a person, the NK1 will document the person or organization responsible or owning the subject. For patients who are persons, the NK1 documents the next of kin of the patient.
]
Subject Person/Animal Identification End
[
Subject Population/Location Identification Begin
O
[0..1]
The Subject Population/Location Identification Group is used to associate a specimen with the population or location the specimen was obtained from. If the specimen was obtained from a person or animal then the Subject Person/Animal Group should be used instead.
PV1
Patient Visit (For Population/Location)
O
[0..1]
The patient visit (PV1) segment is used to provide basic information about a patient encounter where the specimen was taken.
[{PRT}]
Participation (for Patient Visit)
O
[0..*]
[{
PATIENT_VISIT_OBSERVATION begin
O
[0..*]
OBX
Observation/Result Segment (For Visit)
R
[1..1]
The Observation/Result (OBX) segment following the PV1 is used to document observations regarding the visit.
[{PRT}]
Participation (for Patient Visit Observation)
O
[0..*]
}]
PATIENT_VISIT_OBSERVATION end
[ PID ]
Patient Identification (For Population)
O
[0..1]
The Patient Identification (PID) segment is included to carry the species, breed and strain information for a population.
[{PRT}]
Participation (for Population)
O
[0..*]
[{ NK1 }]
Next of Kin/Associated Parties (For Population/Location)
O
[0..*]
The Next of Kin Segment is included to convey information regarding the owner or responsible party for a population of animals or a location.
]
Subject Population/Location Identification End
}]
Specimen End
}
Package End
}
Shipment End
The intent of this segment is to describe the information associated with the transportation of the shipment.
HL7 Attribute Table - SHP - Shipment
7.18.1.0 Actors
7.18.1.1 Specimen Shipper
7.18.1.2 Specimen Shipment Receiver
7.18.1.3 Activity Diagram
7.18.2 SHP - Shipment Segment
SEQ | LEN | C.LEN | DT | OPT | RP/# | TBL# | ITEM # | ELEMENT NAME | DB Ref. |
---|---|---|---|---|---|---|---|---|---|
1 |
|
| EI | R | N |
| 02317 | Shipment ID | DB |
2 |
|
| EI | O | Y |
| 02318 | Internal Shipment ID | DB |
3 |
|
| CWE | O | N | 0905 | 02319 | Shipment Status | DB |
4 |
|
| DTM | R | N |
| 02320 | Shipment Status Date/Time | DB |
5 |
|
| TX | O | N |
| 02321 | Shipment Status Reason | DB |
6 |
|
| CWE | O | N | 0906 | 02322 | Shipment Priority | DB |
7 |
|
| CWE | O | Y | 0907 | 02323 | Shipment Confidentiality | DB |
8 |
| 4= | NM | O | N |
| 02324 | Number of Packages in Shipment | DB |
9 |
|
| CWE | O | Y | 0544 | 02325 | Shipment Condition | DB |
10 |
|
| CWE | O | Y | 0376 | 02326 | Shipment Handling Code | DB |
11 |
|
| CWE | O | Y | 0489 | 02327 | Shipment Risk Code | DB |
Components: <Entity Identifier (ST)> ^ <Namespace ID (IS)> ^ <Universal ID (ST)> ^ <Universal ID Type (ID)>
Definition: The shipment id is the identifier assigned by the shipment transportation provider that uniquely identifies this shipment from all other shipments by the same provider. The addressee for the shipment should be able to use this identifier to match a physical shipment with the electronic manifest for the shipment.
Components: <Entity Identifier (ST)> ^ <Namespace ID (IS)> ^ <Universal ID (ST)> ^ <Universal ID Type (ID)>
Definition: The internal shipment id is an identifier assigned to the shipment by the sender or addressee of the shipment. The field repeats allowing multiple identifiers to be transmitted.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: The shipment status specifies where in the shipment process the package is at the time of messaging. Refer to HL7 Table 0905 - Shipment Status for specific values:
Definition: The shipment status date/time carries the date and time the status in SHP-3 Shipment Status occurred.
Definition: The shipment status reason is used to document the reason for the status in SHP-3 Shipment Status. This reason field is of particular importance when a shipment is rejected.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: The shipment priority documents the priority the shipment has been given by the sender. Refer to HL7 Table 0906 - ActPriority for specific values.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: The shipment confidentiality documents any confidentiality that may be associated with this particular shipment. Refer to HL7 Table 0907 - Confidentiality for specific values.
Definition: The number of packages in shipment field documents the total number of separate packages that are contained in the shipment. This total should not include packages that are nested inside of one another. For instance if a shipment consisted of 3 separate boxes, this field would contain the value
"...|3|...".
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: The shipment condition field allows the receiver of the shipment to document the condition of the shipment when it was received. Refer to HL7 Table 0544 - Container Condition for suggested values. Many of the values found in Table 0544 are associated with values found in Table 0376 (Special Handling Codes). Values from Table 0376 have had an X placed in front of them, and the meaning of the code has been changed to indicate that the type of handling has failed during shipment. For instance if a handling code indicated that the shipment was to be kept at body temperature (C37), and the shipment arrived at some other temperature, the XC37 condition code would be used to indicate the shipment arrived with a temperature outside the range indicated by the handling code.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This describes how the shipment needs to be handled during transport. Refer to User-defined Table 0376 - Special Handling Code for suggested values.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This field contains any known or suspected hazards associated with this shipment, e.g., exceptionally infectious agent or blood from a hepatitis patient. Refer to User-defined Table 0489 - Risk Codes for suggested values.
The intent of this segment is to describe the information associated with the shipping package specimens are sent in.
HL7 Attribute Table - PAC - Shipment Package
7.18.2.0 SHP-1 Shipment ID (EI) 02317
7.18.2.1 SHP-2 Internal Shipment ID (EI) 02318
7.18.2.2 SHP-3 Shipment Status (CWE) 02319
7.18.2.3 SHP-4 Shipment Status Date/Time (DTM) 02320
7.18.2.4 SHP-5 Shipment Status Reason (TX) 02321
7.18.2.5 SHP-6 Shipment Priority (CWE) 02322
7.18.2.6 SHP-7 Shipment Confidentiality (CWE) 02323
7.18.2.7 SHP-8 Number of Packages in Shipment (NM) 02324
7.18.2.8 SHP-9 Shipment Condition (CWE) 02325
7.18.2.9 SHP-10 Shipment Handling Code (CWE) 02326
7.18.2.10 SHP-11 Shipment Risk Code (CWE) 02327
7.18.3 PAC - Shipment Package Segment
SEQ | LEN | C.LEN | DT | OPT | RP/# | TBL# | ITEM # | ELEMENT NAME | DB Ref. |
---|---|---|---|---|---|---|---|---|---|
1 | 1..4 |
| SI | R | N |
| 02350 | Set Id - PAC | DB |
2 |
|
| EI | C | N |
| 02351 | Package ID | DB |
3 |
|
| EI | O | N |
| 02352 | Parent Package ID | DB |
4 |
|
| NA | O | N |
| 02353 | Position in Parent Package | DB |
5 |
|
| CWE | R | N | 0908 | 02354 | Package Type | DB |
6 |
|
| CWE | O | Y | 0544 | 02355 | Package Condition | DB |
7 |
|
| CWE | O | Y | 0376 | 02356 | Package Handling Code | DB |
8 |
|
| CWE | O | Y | 0489 | 02357 | Package Risk Code | DB |
Definition: This field contains the sequence number. This field is used to identify PAC segment instances in message structures where the PAC segment repeats
Components: <Entity Identifier (ST)> ^ <Namespace ID (IS)> ^ <Universal ID (ST)> ^ <Universal ID Type (ID)>
Definition: The Package ID uniquely identifies this package from all other packages within its shipment.
Condition: If SHP-8 Number of Packages in Shipment is greater then 1, then Package ID must be valued.
Components: <Entity Identifier (ST)> ^ <Namespace ID (IS)> ^ <Universal ID (ST)> ^ <Universal ID Type (ID)>
Definition: The parent package id identifies the package which contains this package. This is used to link a nested set of packages. For instance a shipping container may itself contain several smaller packages. These contained packages would identify the shipping container as their parent package. Multiple layers of nested packaging can be documented in this fashion.
Components: <Value1 (NM)> ^ <Value2 (NM)> ^ <Value3 (NM)> ^ <Value4 (NM)> ^ < ()>
Definition: The position in parent package field is used when it is important to communicate specifically where in the parent package this package resides. Each position is identified with a position number. The NA (numeric array) data type is used to allow, if necessary, to transfer multiple axis information, e.g., 2-dimensional tray (X^Y).
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: The package type field identifies the type of container. See User-defined Table 0908 - Package Type for values.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: The package condition field describes the condition of the package at the time of the message. Refer to HL7 Table 0544 - Container Condition for suggested values.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This describes how the package needs to be handled during transport. Refer to User-defined Table 0376 - Special Handling Code for suggested values.
Components: <Identifier (ST)> ^ <Text (ST)> ^ <Name of Coding System (ID)> ^ <Alternate Identifier (ST)> ^ <Alternate Text (ST)> ^ <Name of Alternate Coding System (ID)> ^ <Coding System Version ID (ST)> ^ <Alternate Coding System Version ID (ST)> ^ <Original Text (ST)> ^ <Second Alternate Identifier (ST)> ^ <Second Alternate Text (ST)> ^ <Name of Second Alternate Coding System (ID)> ^ <Second Alternate Coding System Version ID (ST)> ^ <Coding System OID (ST)> ^ <Value Set OID (ST)> ^ <Value Set Version ID (DTM)> ^ <Alternate Coding System OID (ST)> ^ <Alternate Value Set OID (ST)> ^ <Alternate Value Set Version ID (DTM)> ^ <Second Alternate Coding System OID (ST)> ^ <Second Alternate Value Set OID (ST)> ^ <Second Alternate Value Set Version ID (DTM)>
Definition: This field contains any known or suspected hazards associated with this package, e.g., exceptionally infectious agent or blood from a hepatitis patient. Refer to User-defined Table 0489 - Risk Codes for suggested values.
Figure 7-10. Common ISO derived units and ISO+ extensions
7.18.3.0 PAC-1 Set Id - PAC (SI) 02350
7.18.3.1 PAC-2 Package ID (EI) 02351
7.18.3.2 PAC-3 Parent Package ID (EI) 02352
7.18.3.3 PAC-4 Position in Parent Package (NA) 02353
7.18.3.4 PAC-5 Package Type (CWE) 02354
7.18.3.5 PAC-6 Package Condition (CWE) 02355
7.18.3.6 PAC-7 Package Handling Code (CWE) 02356
7.18.3.7 PAC-8 Package Risk Code (CWE) 02357
7.19 TABLES LISTINGS
7.19.1 Common ISO Derived Units & ISO+ Extensions
Code/Abbr. | Name |
---|---|
/(arb_u) | *1 / arbitrary unit |
/iu | *1 / international unit |
/kg | *1 / kilogram |
/L | 1 / liter |
1/mL | *1 / milliliter |
10.L/min | *10 x liter / minute |
10.L /(min.m2) | *10 x (liter / minute) / meter2 = liter / (minute ï?´ meter2) |
10*3/mm3 | *103 / cubic millimeter (e.g., white blood cell count) |
10*3/L | *103 / Liter |
10*3/mL | *103 / milliliter |
10*6/mm3 | *106 / millimeter3 |
10*6/L | *106 / Liter |
10*6/mL | *106 / milliliter |
10*9/mm3 | *109 / millimeter3 |
10*9/L | *109 / Liter |
10*9/mL | *109 / milliliter |
10*12/L | *1012 / Liter |
10*3(rbc) | *1000 red blood cellsâ? |
a/m | Ampere per meter |
(arb_u) | *Arbitrary unit |
bar | Bar (pressure; 1 bar = 100 kilopascals) |
/min | Beats or Other Events Per Minute |
bq | Becquerel |
(bdsk_u) | *Bodansky Units |
(bsa) | *Body surface area |
(cal) | *Calorie |
1 | *Catalytic Fraction |
/L | Cells / Liter |
cm | Centimeter |
cm_h20 | * Centimeters of water =H20 (pressure) |
cm_h20.s/L | Centimeters H20 / (liter / second) = (centimeters H20 ï?´ second) / liter (e.g., mean pulmonary resistance) |
cm_h20/(s.m) | (Centimeters H20 / second) / meter = centimeters H20 / (second ï?´ meter) (e.g., pulmonary pressure time product) |
(cfu) | *Colony Forming Units |
m3/s | Cubic meter per second |
d | Day |
db | Decibels |
dba | *Decibels a Scale |
cel | Degrees Celsius |
deg | Degrees of Angle |
(drop) | Drop |
10.un.s/cm5 | Dyne ï?´ Second / centimeter5 (1 dyne = 10 micronewton = 10 un) (e.g., systemic vascular resistance) |
10.un.s/(cm5.m2) | ((Dyne ï?´ second) / centimeter5) / meter2 = (Dyne ï?´ second) / (centimeter5 ï?´ meter2) (1 dyne = 10 micronewton = 10 un) (e.g., systemic vascular resistance/body surface area) |
ev | Electron volts (1 electron volt = 160.217 zeptojoules) |
eq | Equivalent |
f | Farad (capacitance) |
fg | Femtogram |
fL | Femtoliter |
fmol | Femtomole |
/mL | *Fibers / milliliter |
g | Gram |
g/d | *Gram / Day |
g/dL | Gram / Deciliter |
g/hr | Gram / Hour |
g/(8.hr) | *Gram / 8 Hour Shift |
g/kg | Gram / Kilogram (e.g., mass dose of medication per body weight) |
g/(kg.d) | (Gram / Kilogram) / Day = gram / (kilogram ï?´ day) (e.g., mass dose of medication per body weight per day) |
g/(kg.hr) | (Gram / Kilogram) / Hour = gram / (kilogram ï?´ hour) (e.g., mass dose of medication per body weight per hour) |
g/(8.kg.hr) | (Gram / Kilogram) /8 Hour Shift = gram / (kilogram ï?´ 8 hour shift) (e.g., mass dose of medication per body weight per 8 hour shift) |
g/(kg.min) | (Gram / Kilogram) / Minute = gram / (kilogram ï?´ minute) (e.g., mass dose of medication per body weight per minute) |
g/L | Gram / Liter |
g/m2 | Gram / Meter2 (e.g., mass does of medication per body surface area) |
g/min | Gram / Minute |
g.m/(hb) | Gram ï?´ meter / heart beat (e.g., ventricular stroke work) |
g.m/((hb).m2) |
(Gram ï?´ meter/ heartbeat) / meter2 = (gram ï?´ meter) / (heartbeat ï?´ meter2)
(e.g., ventricular stroke work/body surface area, ventricular stroke work index) |
g(creat) | *Gram creatinine |
g(hgb) | *Gram hemoglobin |
g.m | Gram meter |
g(tot_nit) | *Gram total nitrogen |
g(tot_prot) | *Gram total protein |
g(wet_tis) | *Gram wet weight tissue |
gy | Grey (absorbed radiation dose) |
hL | Hectaliter = 102 liter |
h | Henry |
in | Inches |
in_hg | Inches of Mercury (=Hg) |
iu | *International Unit |
iu/d | *International Unit / Day |
iu/hr | *International Unit / Hour |
iu/kg | International Unit / Kilogram |
iu/L | *International Unit / Liter |
iu/mL | *International Unit / Milliliter |
iu/min | *International Unit / Minute |
j/L | Joule/liter (e.g., work of breathing) |
kat | *Katal |
kat/kg | *Katal / Kilogram |
kat/L | *Katal / Liter |
k/watt | Kelvin per watt |
(kcal) | Kilocalorie (1 kcal = 6.693 kilojoule) |
(kcal)/d | *Kilocalorie / Day |
(kcal)/hr | *Kilocalorie / Hour |
(kcal)/(8.hr) | *Kilocalorie / 8 Hours Shift |
kg | Kilogram |
kg(body_wt) | * kilogram body weight |
kg/m3 | Kilogram per cubic meter |
kh/h | Kilogram per hour |
kg/L | Kilogram / liter |
kg/min | Kilogram per minute |
kg/mol | Kilogram / mole |
kg/s | Kilogram / second |
kg/(s.m2) | (Kilogram / second)/ meter2 = kilogram / (second ï?´ meter2) |
kg/ms | Kilogram per square meter |
kg.m/s | Kilogram meter per second |
kpa | Kilopascal (1 mmHg = 0.1333 kilopascals) |
ks | Kilosecond |
(ka_u) | King-Armstrong Unit |
(knk_u) | *Kunkel Units |
L | Liter |
L/d | *Liter / Day |
L/hr | Liter / hour |
L/(8.hr) | *Liter / 8 hour shift |
L/kg | Liter / kilogram |
L/min | Liter / minute |
L/(min.m2) |
(Liter / minute) / meter2 = liter / (minute ï?´ meter2)
(e.g., cardiac output/body surface area = cardiac index) |
L/s | Liter / second (e.g., peak expiratory flow) |
L.s | Liter / second / second2 = liter ï?´ second |
lm | Lumen |
lm/m2 | Lumen / Meter2 |
(mclg_u) | *MacLagan Units |
mas | Megasecond |
m | Meter |
m2 | Meter2 (e.g., body surface area) |
m/s | Meter / Second |
m/s2 | Meter / Second2 |
ueq | *Microequivalents |
ug | Microgram |
ug/d | Microgram / Day |
ug/dL | Microgram / Deciliter |
ug/g | Microgram / Gram |
ug/hr | *Microgram / Hour |
ug(8hr) | Microgram / 8 Hour Shift |
ug/kg | Microgram / Kilogram |
ug/(kg.d) | (Microgram / Kilogram) /Day = microgram / (kilogram ï?´ day) (e.g., mass dose of medication per patient body weight per day) |
ug/(kg.hr) | (Microgram / Kilogram) / Hour = microgram / (kilogram ï?´ hours) (e.g., mass dose of medication per patient body weight per hour) |
ug/(8.hr.kg) |
(Microgram / Kilogram) / 8 hour shift = microgram / (kilogram ï?´ 8 hour shift)
(e.g., mass dose of medication per patient body weight per 8 hour shift) |
ug/(kg.min) |
(Microgram / Kilogram) / Minute = microgram / (kilogram ï?´ minute)
(e.g., mass dose of medication per patient body weight per minute) |
ug/L | Microgram / Liter |
ug/m2 | Microgram / Meter2 (e.g., mass dose of medication per patient body surface area) |
ug/min | Microgram / Minute |
uiu | *Micro international unit |
ukat | *Microkatel |
um | Micrometer (Micron) |
umol | Micromole |
umol/d | Micromole / Day |
umol/L | Micromole / Liter |
umol/min | Micromole / Minute |
us | Microsecond |
uv | Microvolt |
mbar | Millibar (1 millibar = 100 pascals) |
mbar.s/L | Millibar / (liter / second) =(millibar ï?´ second) / liter (e.g., expiratory resistance) |
meq | *Milliequivalent |
meq/d | *Milliequivalent / Day |
meq/hr | *Milliequivalent / Hour |
meq/(8.hr) | Milliequivalent / 8 Hour Shift |
meq/kg | Milliequivalent / Kilogram (e.g., dose of medication in milliequivalents per patient body weight) |
meq/(kg.d) | (Milliequivalents / Kilogram) / Day = milliequivalents / (kilogram ï?´ day) (e.g., dose of medication in milliequivalents per patient body weight per day) |
meq/(kg.hr) | (Milliequivalents / Kilogram) / Hour = milliequivalents / (kilogram ï?´ hour) (e.g., dose of medication in milliequivalents per patient body weight per hour) |
meq/(8.hr.kg) | (Milliequivalents / Kilogram) / 8 Hour Shift = milliequivalents / (kilogram ï?´ 8 hour shift) (e.g., dose of medication in milliequivalents per patient body weight per 8 hour shift) |
meq/(kg.min) | (Milliequivalents / Kilogram) / Minute = milliequivalents / (kilogram ï?´ minute) (e.g., dose of medication in milliequivalents per patient body weight per minute) |
meq/L | Milliequivalent / Liter |
| Milliequivalent / Meter2 (e.g., dose of medication in milliequivalents per patient body surface area) |
meq/min | Milliequivalent / Minute |
mg | Milligram |
mg/m3 | Milligram / Meter3 |
mg/d | Milligram / Day |
mg/dL | Milligram / Deciliter |
mg/hr | Milligram / Hour |
mg/(8.hr) | Milligram / 8 Hour shift |
mg/kg | Milligram / Kilogram |
mg/(kg.d) | (Milligram / Kilogram) / Day = milligram / (kilogram ï?´ day) (e.g., mass dose of medication per patient body weight per day) |
mg/(kg.hr) | (Milligram / Kilogram) / Hour = milligram/ (kilogram ï?´ hour) (e.g., mass dose of medication per patient body weight per hour) |
mg/(8.hr.kg) | (Milligram / Kilogram) /8 Hour Shift = milligram / (kilogram ï?´ 8 hour shift) (e.g., mass dose of medication per patient body weight per 8 hour shift) |
mg/(kg.min) | (Milligram / Kilogram) / Minute = milligram / (kilogram ï?´ minute) (e.g., mass dose of medication per patient body weight per hour) |
mg/L | Milligram / Liter |
mg/m2 | Milligram / Meter2 (e.g., mass dose of medication per patient body surface area) |
mg/min | Milligram / Minute |
mL | Milliliter |
mL/cm_h20 | Milliliter / Centimeters of Water (H20) (e.g., dynamic lung compliance) |
mL/d | *Milliliter / Day |
mL/(hb) | Milliliter / Heart Beat (e.g., stroke volume) |
mL/((hb).m2) | (Milliliter / Heart Beat) / Meter2 = Milliliter / (Heart Beat ï?´ Meter2) (e.g., ventricular stroke volume index) |
mL/hr | *Milliliter / Hour |
mL/(8.hr) | *Milliliter / 8 Hour Shift |
mL/kg | Milliliter / Kilogram (e.g., volume dose of medication or treatment per patient body weight) |
mL/(kg.d) | (Milliliter / Kilogram) / Day = milliliter / (kilogram ï?´ day) (e.g., volume dose of medication or treatment per patient body weight per day) |
mL/(kg.hr) | (Milliliter / Kilogram) / Hour = milliliter / (kilogram ï?´ hour) (e.g., volume dose of medication or treatment per patient body weight per hour) |
mL/(8.hr.kg) | (Milliliter / Kilogram) / 8 Hour Shift = milliliter / (kilogram ï?´ 8 hour shift) (e.g., volume dose of medication or treatment per body weight per 8 hour shift) |
mL/(kg.min) | (Milliliter / Kilogram) / Minute = milliliter / (kilogram ï?´ minute) (e.g., volume dose of medication or treatment per patient body weight per minute) |
mL/m2 | Milliliter / Meter2 (e.g., volume of medication or other treatment per patient body surface area) |
mL/mbar | Milliliter / Millibar (e.g., dynamic lung compliance) |
mL/min | Milliliter / Minute |
mL/(min.m2) | (Milliliter / Minute) / Meter2 = milliliter / (minute ï?´ meter2) (e.g., milliliters of prescribed infusion per body surface area; oxygen consumption index) |
mL/s | Milliliter / Second |
mm | Millimeter |
mm(hg) | *Millimeter (HG) (1 mm Hg = 133.322 kilopascals) |
mm/hr | Millimeter/ Hour |
mmol/kg | Millimole / Kilogram (e.g., molar dose of medication per patient body weight) |
mmol/(kg.d) | (Millimole / Kilogram) / Day = millimole / (kilogram ï?´ day) (e.g., molar dose of medication per patient body weight per day) |
mmol/(kg.hr) | (Millimole / Kilogram) / Hour = millimole / (kilogram ï?´ hour) (e.g., molar dose of medication per patient body weight per hour) |
mmol/(8.hr.kg) | (Millimole / Kilogram) / 8 Hour Shift = millimole / (kilogram ï?´ 8 hour shift) (e.g., molar dose of medication per patient body weight per 8 hour shift) |
mmol/(kg.min) | (Millimole / Kilogram) / Minute = millimole / (kilogram ï?´ minute) (e.g., molar dose of medication per patient body weight per minute) |
mmol/L | Millimole / Liter |
mmol/hr | Millimole / Hour |
mmol/(8hr) | Millimole / 8 Hour Shift |
mmol/min | Millimole / Minute |
mmol/m2 | Millimole / Meter2 (e.g., molar dose of medication per patient body surface area) |
mosm/L | *Milliosmole / Liter |
ms | Milliseconds |
mv | Millivolts |
miu/mL | *Milliunit / Milliliter |
mol/m3 | Mole per cubic meter |
mol/kg | Mole / Kilogram |
mol/(kg.s) | (Mole / Kilogram) / Second = mole / (kilogram ï?´ second) |
mol/L | Mole / Liter |
mol/s | Mole / Second |
ng | Nanogram |
ng/d | Nanogram / Day |
ng/hr | *Nanogram / Hour |
ng/(8.hr) | Nanogram / 8 Hour shift |
ng/L | Nanogram / Liter |
ng/kg | Nanogram / Kilogram (e.g., mass dose of medication per patient body weight) |
ng/(kg.d) | (Nanogram / Kilogram) / Day = nanogram / (kilogram ï?´ day) (e.g., mass dose of medication per patient body weight per day) |
ng/(kg.hr) | (Nanogram / Kilogram) / Hour = nanogram / (kilogram ï?´ hour) (e.g., mass dose of medication per patient body weight per hour) |
ng/(8.hr.kg) | (Nanogram / Kilogram) / 8 Hour Shift = nanogram / (kilogram ï?´ 8 hour shift) (e.g., mass dose of medication per patient body weight per 8 hour shift) |
ng/(kg.min) | (Nanogram / Kilogram) / Minute = nanogram / (kilogram ï?´ minute) (e.g., mass dose of medication per patient body weight per minute) |
ng/m2 | Nanogram / Meter2 (e.g., mass dose of medication per patient body surface area) |
ng/mL | Nanogram / Milliliter |
ng/min | *Nanogram / Minute |
ng/s | *Nanogram / Second |
nkat | *Nanokatel |
nm | Nanometer |
nmol/s | Nanomole / Second |
ns | Nanosecond |
n | Newton (force) |
n.s | Newton second |
(od) | *O.D. (optical density) |
ohm | Ohm (electrical resistance) |
ohm.m | Ohm meter |
osmol | Osmole |
osmol/kg | Osmole per kilogram |
osmol/L | Osmole per liter |
/m3 | *Particles / Meter3 |
/L | *Particles / Liter |
/(tot) | *Particles / Total Count |
(ppb) | *Parts Per Billion |
(ppm) | *Parts Per Million |
(ppth) | Parts per thousand |
(ppt) | Parts per trillion (10^12) |
pal | Pascal (pressure) |
/(hpf) | *Per High Power Field |
(ph) | *pH |
pa | Picoampere |
pg | Picogram |
pg/L | Picogram / Liter |
pg/mL | Picogram / Milliliter |
pkat | *Picokatel |
pm | Picometer |
pmol | *Picomole |
ps | Picosecond |
pt | Picotesla |
(pu) | *P.U. |
% | Percent |
dm2/s2 | Rem (roentgen equivalent man) = 10-2 meter2 / second2 = decimeter2 / second2 Dose of ionizing radiation equivalent to 1 rad of x-ray or gamma ray) [From Dorland's Medical Dictionary] |
sec | Seconds of arc |
sie | Siemens (electrical conductance) |
sv | Sievert |
m2/s | Square meter / second |
cm2/s | Square centimeter / second |
t | Tesla (magnetic flux density) |
(td_u) | Todd Unit |
v | Volt (electric potential difference) |
1 | Volume Fraction |
wb | Weber (magnetic flux) |
*Starred items are not genuine ISO, but do not conflict.
â? This approach to units is discouraged by IUPAC. We leave them solely for backward compatibility |
Figure 7-11. ISO single case units abbreviations
Units | Abbreviation | Units | Abbreviation | Units | Abbreviation |
---|---|---|---|---|---|
Base units code/abbreviations | |||||
Ampere | a | kelvin | K | meter | m |
Candela | cd | Kilogram | Kg | mole | mol |
|
|
|
| second | s |
Derived units with specified name and abbreviation | |||||
coulomb | c | hour | Hr | pascal | pal |
day | d | joule | J | volt | v |
degree Celsius | cel | minute (ti) | Min | watt | w |
farad | f | newton | N | weber | wb |
hertz | hz | ohm | Ohm | year | ann |
Other units | |||||
atomic mass unit | u | grey | gy | minute of arc | mnt |
Bel | b | henry | h | radian | rad |
Decibel | db | liter | l | siemens | sie |
Degree | deg | lumen | Lm | steradian | sr |
Gram | g | lux | Lx | tesla | t |
See ISO 2955-1983 for full set |
Figure 7-12. ANSI+ unit codes for some U.S. customary units
Units | Abbreviation | Units | Abbreviation | Units | Abbreviation |
---|---|---|---|---|---|
LENGTH | VOLUME | TIME | |||
Inch | In | cubic foot | Cft | Year | yr |
Foot | Ft | cubic inch | Cin | Month | mo |
Mile (statute) | Mi | cubic yard | Cyd | Week | wk |
nautical mile | Nmi | tablespoon | Tbs | Day | d |
Rod | Rod | teaspoon | Tsp | Hour | hr |
Yard | Yd | pint | Pt | minute | min |
|
| quart | Qt | second | sec |
|
| gallon | Gal |
|
|
|
| ounce (fluid) | Foz |
|
|
AREA | MASS |
|
|
||
square foot | Sqf | dram | Dr |
|
|
square inch | Sin | grain | gr (avoir) |
|
|
square yard | Syd | ounce (weight) | Oz |
|
|
|
| pound | Lb |
|
|
Other ANSI units, derived units, and miscellaneous | |||||
**British thermal unit | Btu | **degrees Fahrenheit | Degf | **millirad | mrad |
cubic feet/minute | cft/min | **feet/minute | ft/min | **RAD | rad |
Note: The abbreviations for conventional U.S. units of time are the same as ISO, except for year. ISO = ANN, AMSI = yr. The metric units in X3.50 are the same as ISO, except for: pascal ("pa" in ANSI, "pal" in ISO); ANSI uses "min" for both time and arc while ISO uses "mnt" for minutes of arc; and in ISA seconds are abbreviated "s", in ANSI, "sec". | |||||
Caution: Because the ANS+ specification includes both ISO and US customary units, as well as miscellaneous non-metric units, some of the abbreviations are ambiguous. Although there should be little confusion, in the context of a particular observation, this ambiguity is a good reason for a voiding ANS+ unit codes when possible. | |||||
This list is not exhaustive. Refer to ANSI X3.50-1986, Table 1, for other metric and standard U.S. units. | |||||
**Non-metric units not explicitly listed in ANSI |
The ISO abbreviations for multiplier prefixes are given in Figure 7-13. Prefixes ranging from 10-24 (1/billion billionth) to 1024 (a billion billion) are available. The single case abbreviation for kilo (x1000) is k. A unit consisting of 1000 seconds would be abbreviated as ks, 1000 grams as kg, 1000 meters as km, and so on. Some prefixes share the abbreviation of a base unit. Farad and femto, for example, (10-18) both have the abbreviation of f. To avoid confusion, ISO forbids the use of solitary prefixes. It also deprecates the use of two prefixes in one complex unit. Thus, f always means farad, ff would mean 1 million billionth of a farad. Compound prefixes are not allowed.
A unit can be raised to an exponential power. Positive exponents are represented by a number immediately following a unit's abbreviation, i.e., a square meter would be denoted by m2. Negative exponents are signified by a negative number following the base unit, e.g., 1/m2 would be represented as m-2. Fractional exponents are expressed by a numeric fraction in parentheses: the square root of a meter would be expressed as m(1/2). The multiplication of units is signified by a period (.) between the units, e.g., meters X seconds would be denoted m.s. Notice that spaces are not permitted. Division is signified by a slash (/) between two units, e.g. meters per second would be denoted as m/s. Algebraic combinations of ISO unit abbreviations constructed by dividing, multiplying, or exponentiating base ISO units, are also valid ISO abbreviations units. Exponentiation has precedence over multiplication or division. For example, microvolts squared per hertz (a unit of spectral power) would be denoted uv2/hz and evaluated as uv 2/hz while microvolts per square root of hertz (a unit of spectral amplitude) would be denoted uv/hz(1/2) and evaluated as uv/hz½. If more than one division operator is included in the expression the associations should be parenthesized to avoid any ambiguity, but the best approach is to convert a/(b/c) to a.c/b or a.c.b-1 to simplify the expression.
Figure 7-13. Single case ISO abbreviations for multiplier prefixes
Prefix |
| Code | Prefix |
| Code |
---|---|---|---|---|---|
yotta* | 1024 | ya | yocto | 10-24 | Y |
zetta* | 1021 | za | zepto | 10-21 | Z |
exa | 1018 | ex | atto | 10-18 | A |
peta | 1015 | pe | femto | 10-15 | F |
tera | 1012 | t | pico | 10-12 | p |
giga | 109 | g | nano | 10-9 | n |
mega | 106 | ma | micro | 10-6 | u |
kilo | 103 | k | milli | 10-3 | m |
hecto | 102 | h | centi | 10-2 | c |
deca | 101 | da | deci | 10-1 | d |
*These abbreviations are not defined in the ISO specification for single case abbreviations. |
Figure 7-9 lists the abbreviations for common ISO derived units. It also includes standard unit abbreviations for common units, e.g., Milliequivalents, and international units, mm(Hg), and for counting per which we denote by a division sign, a denominator, but no numerator, e.g., /c, that are not part of the above referenced ISO standards. We have extended the units table to better accommodate drug routes and physiologic measures, and otherwise fill in gaps in v2.2.
We have generally followed the IUPAC 1995 Silver Book2 in the definitions of units. However, IUPAC specifies standards for reporting or displaying units and employs 8-bit data sets to distinguish them. This Standard is concerned with the transmission of patient information. Therefore, we have restricted ourselves to case insensitive alphabetic characters and a few special characters (e.g., ".", "/", "(", ")", "*", and "_") to avoid any possible confusion in the transmission. Therefore, we use ISO 2955-1983 (Information processing -- representation of SI and other units in systems with limited character sets) and ANSI X3.50-1986 (Representations for U.S. customary, SI, and other units to be used in systems with limited character sets) case insensitive units abbreviations where they are defined. This means that in some cases, IUPAC abbreviations have different abbreviations in ISO+ even when the IUPAC abbreviations use only standard alphabetic characters. For example, Pascal is abbreviated Pa in IUPAC but PAL in ISO+ (following ISO 2955) because Pa in a case insensitive context also means Picoampere. However, the requirements for transmission do not preclude usage of IUPAC standards for presentation on paper or video display reports to end-users.
All unit abbreviations are case insensitive. One could write milliliters as ML, ml, or mL. In this table we have used lower case for all of the abbreviations except for the letter L which we represent in upper case so that readers will not confuse it with the numeral one (1). This is just a change in presentation, not a change in the Standard. Systems should continue to send the codes as upper or lower case as they always have.
None.
